Evaporator Case: Service and Repair

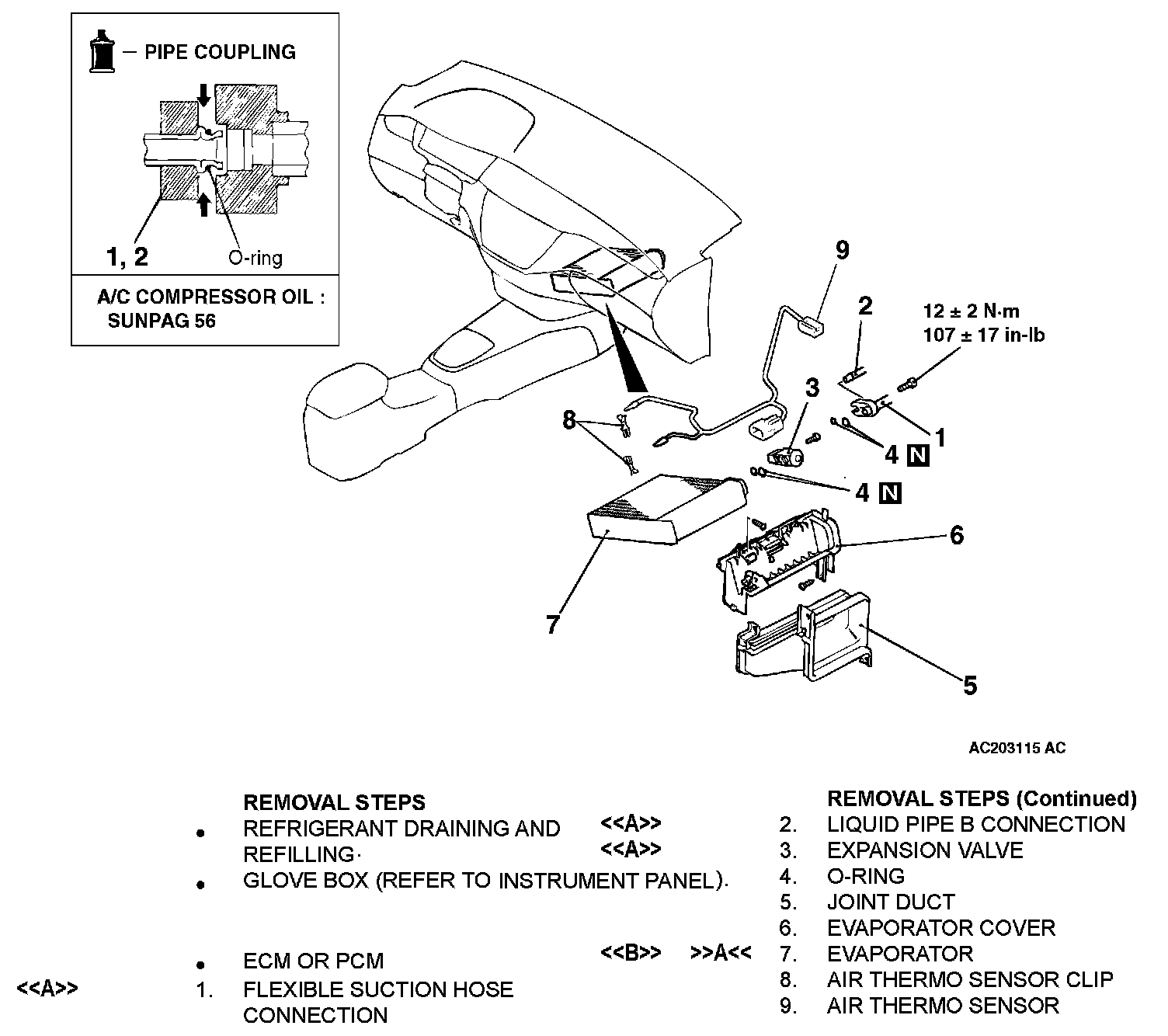

EVAPORATOR ASSEMBLY




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

<> FLEXIBLE SUCTION HOSE, LIQUID PIPE B, AND THE EXPANSION DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to hose and nipples. To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

<> EVAPORATOR REMOVAL

CAUTION: Do not cut the upper side of the pad.




1. When removing the evaporator, cut and fold back the dash-board pad as in the diagram (The thickness of the pad interferes with the removal of the evaporator).
2. Remove the evaporator.

INSTALLATION SERVICE POINTS

>>A<< EVAPORATOR INSTALLATION
After installing the evaporator, glue the cut dashboard panel pad with an adhesive agent.
