Except California Vehicles

EXHAUST MANIFOLD

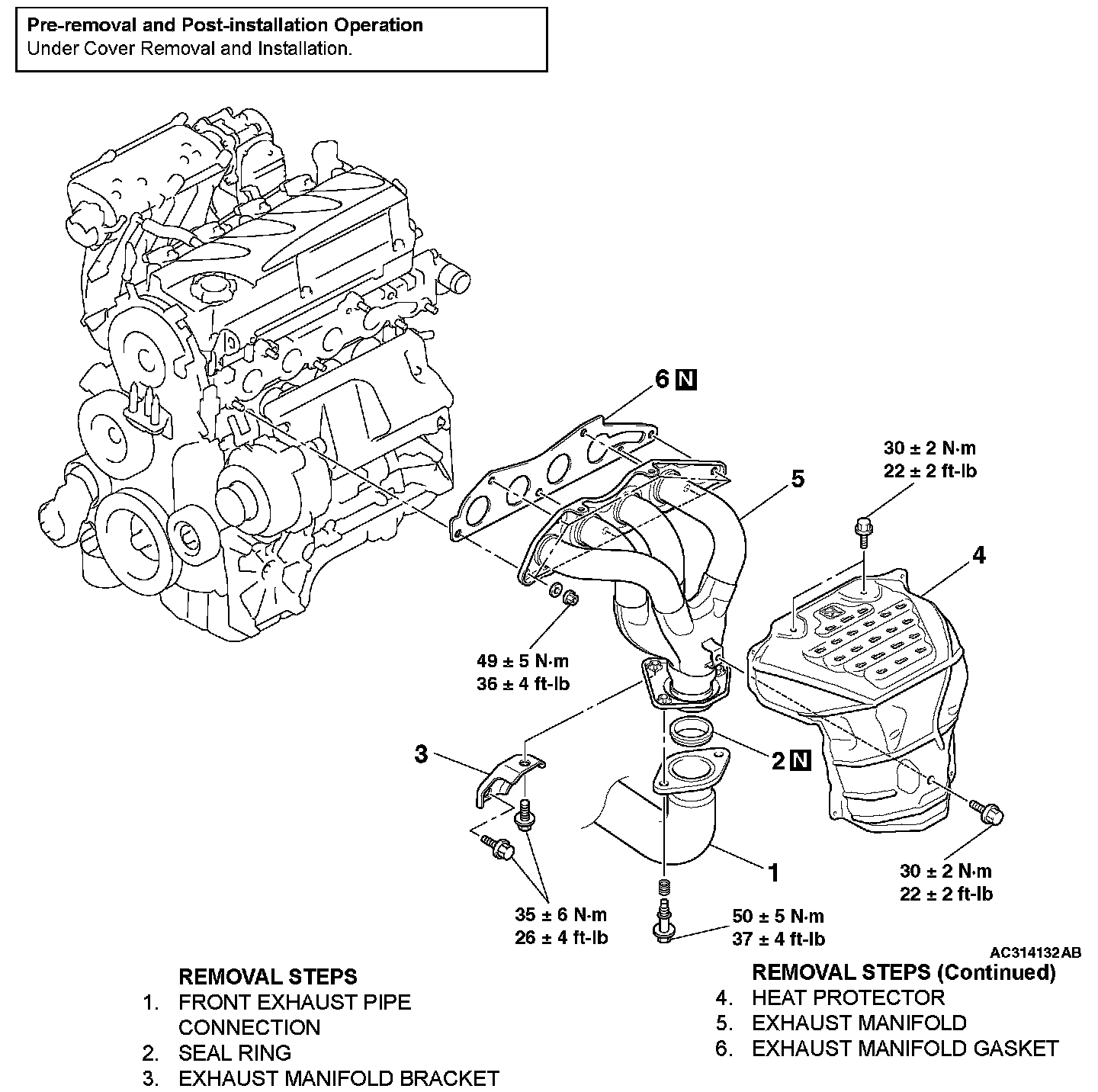

Removal And Installation <2.4L Engine, Except For California>:




REMOVAL AND INSTALLATION <2.4L ENGINE, EXCEPT FOR CALIFORNIA>

Removal And Installation <2.4L Engine, Vehicles For California>:




REMOVAL AND INSTALLATION <2.4L ENGINE, VEHICLES FOR CALIFORNIA>

INSPECTION
Check the following points; replace the part if a problem is found.

EXHAUST MANIFOLD CHECK

1. Check for damage or cracking of any part.
2. Using a straight edge and a feeler gauge, check for distortion of the cylinder head installation surface.

Standard value: 0.15 mm (0.006 inch) or less

Limit: 0.20 mm (0.008 inch)
