Position Indicator Light Check

POSITION INDICATOR LIGHT CHECK

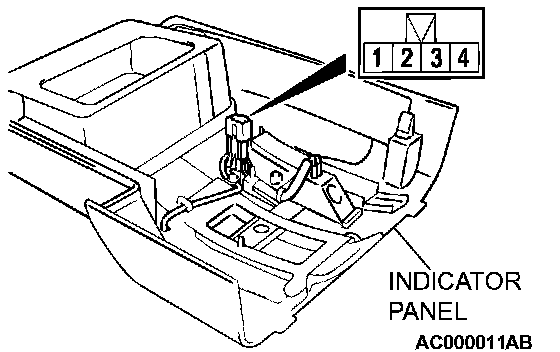

1. Remove the indicator panel.

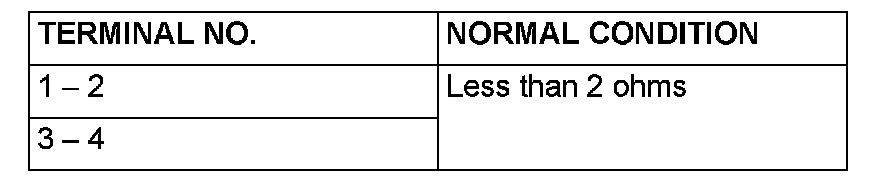

2. Check that there is continuity between the following terminals:
3. If the continuity is incorrect, replace the position indicator light unit assembly.
