Data List Reference Table
The table shows the service data and their normal condition, which are displayed during the "Data List."

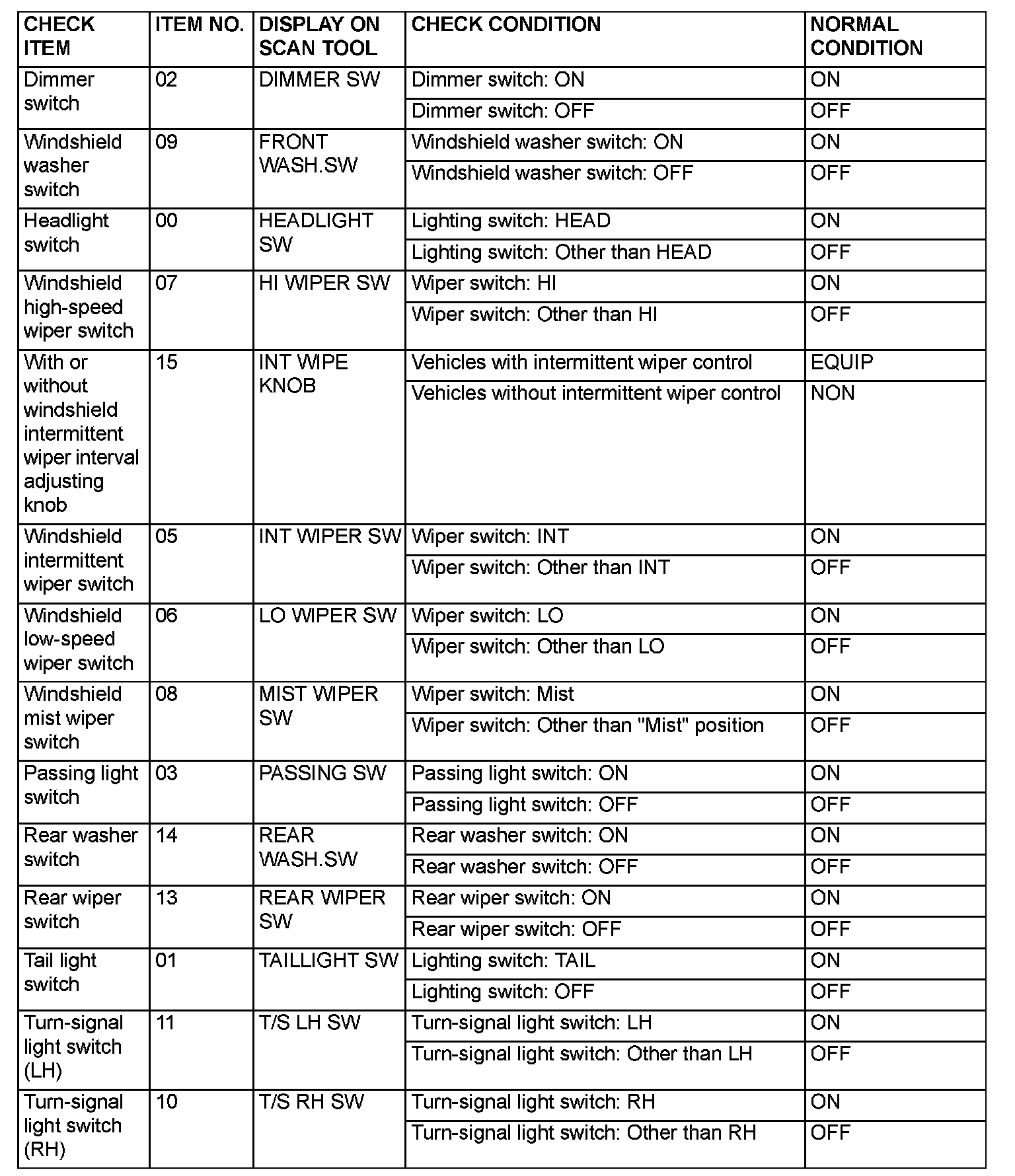

Data List Reference Table - Column ECU:

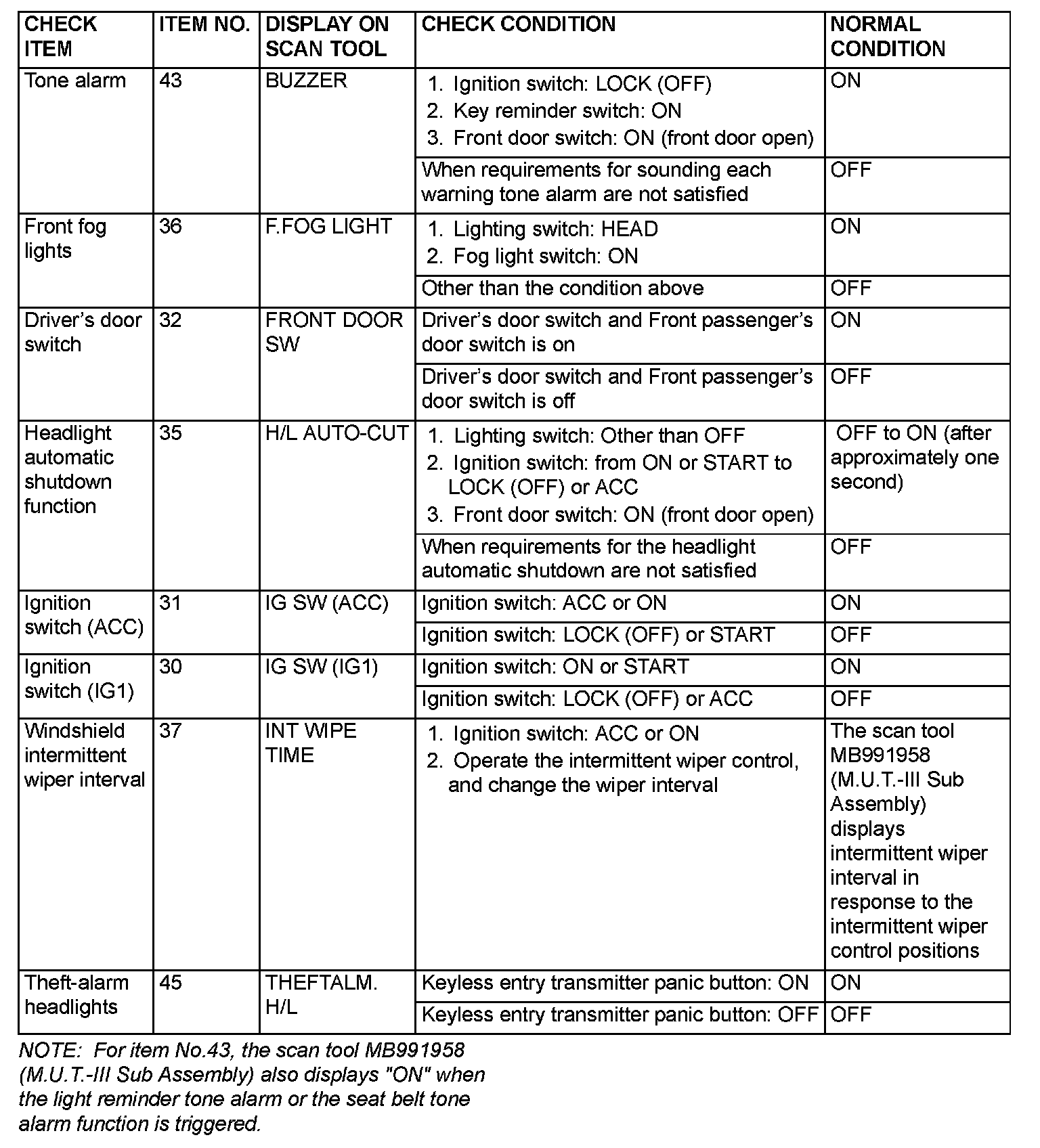

COLUMN ECUData List Reference Table - ETACS:

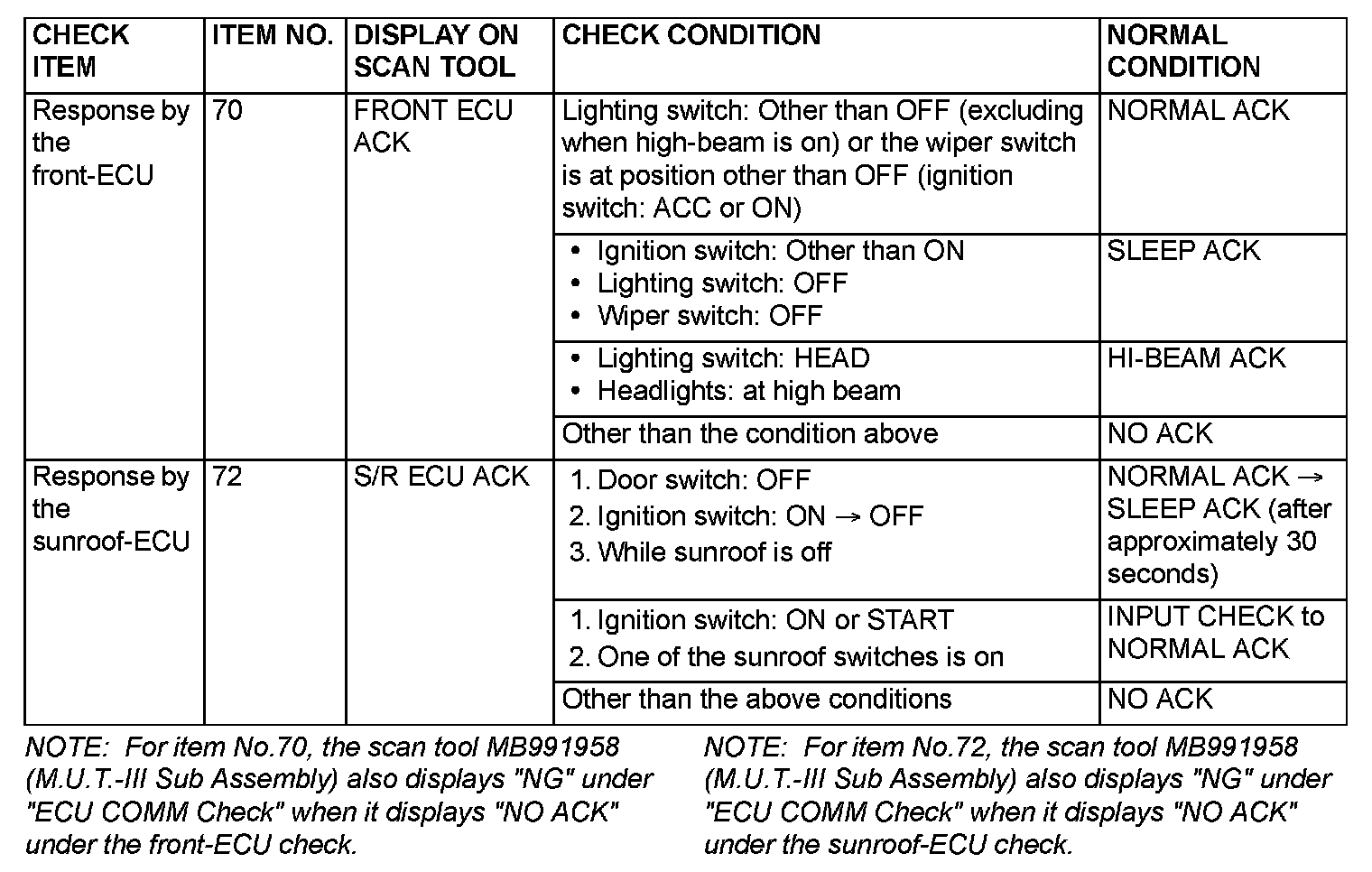

ETACSData List Reference Table - Front-ECU, P/W, S/R:
Front-ECU, P/W, S/R
