Function Diagnosis
The table shows the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal condition" shows values, which are shown when each operation is made.

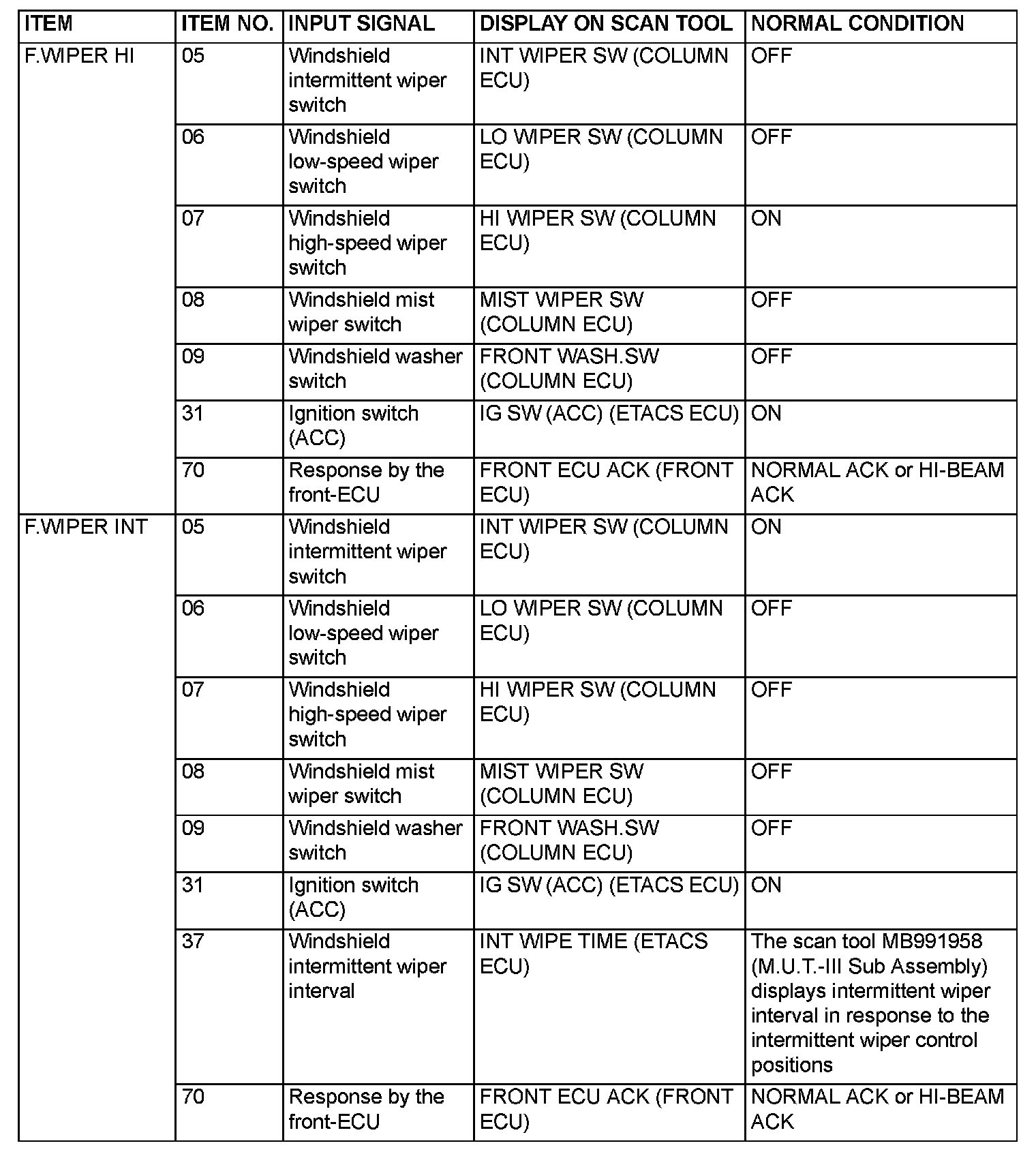

Wiper Part 1:
Wiper Part 2:

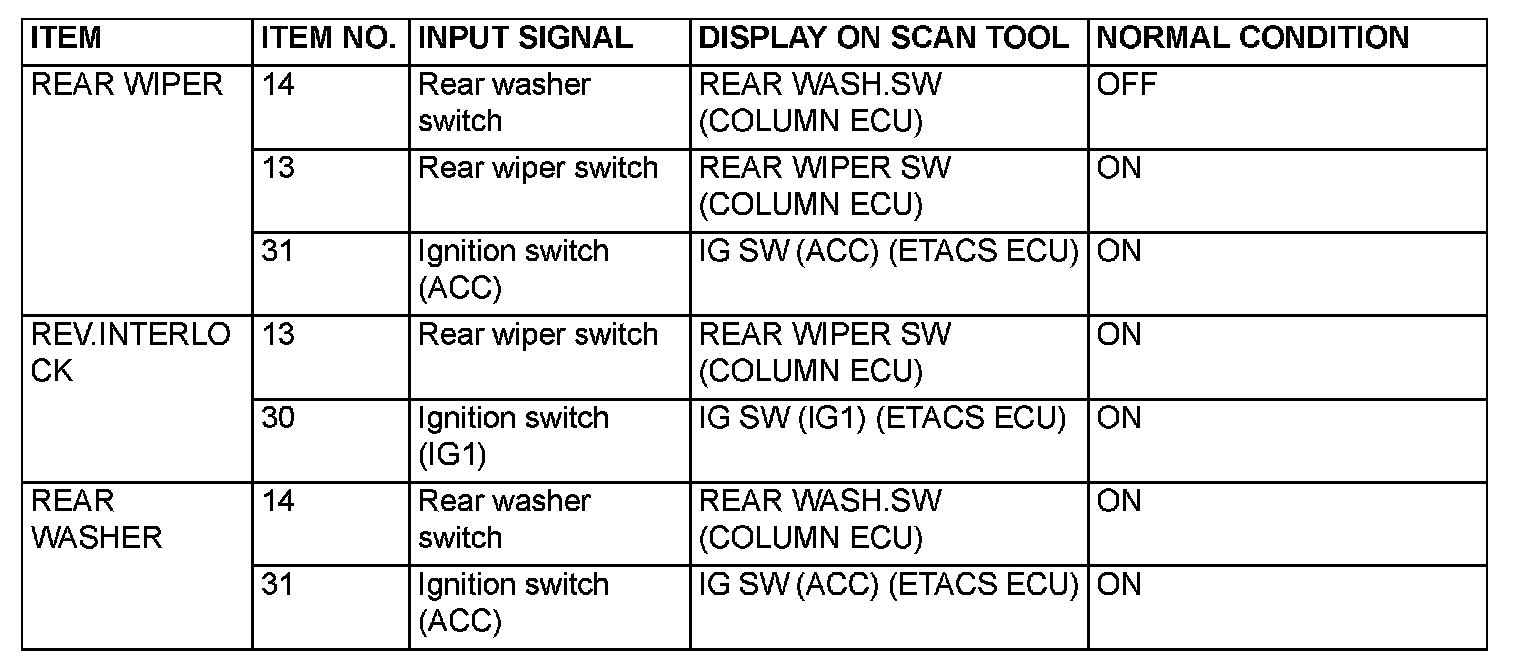

WIPERRear Wiper:

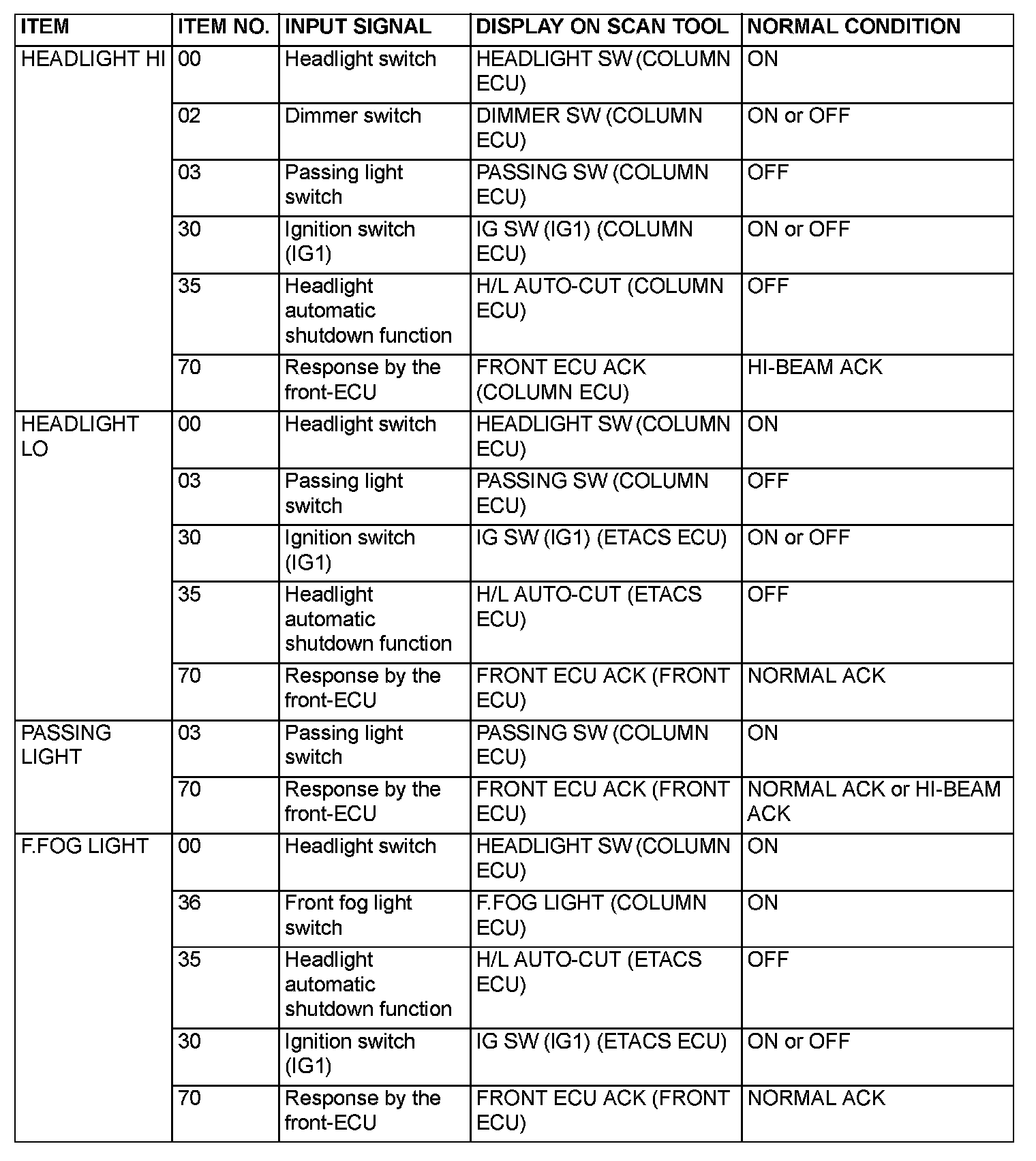

REAR WIPERLighting Part 1:

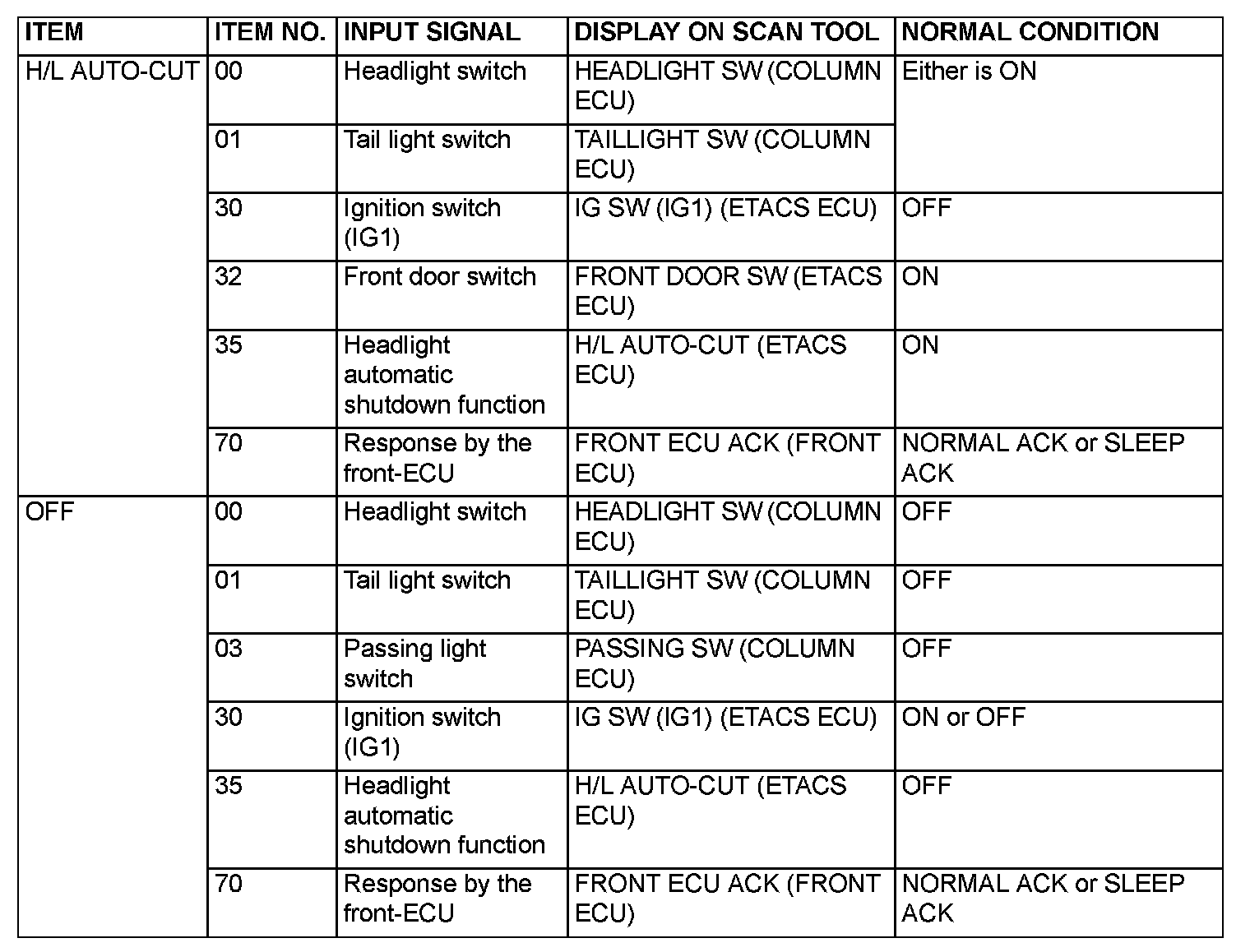

Lighting Part 2:
Lighting Part 3:

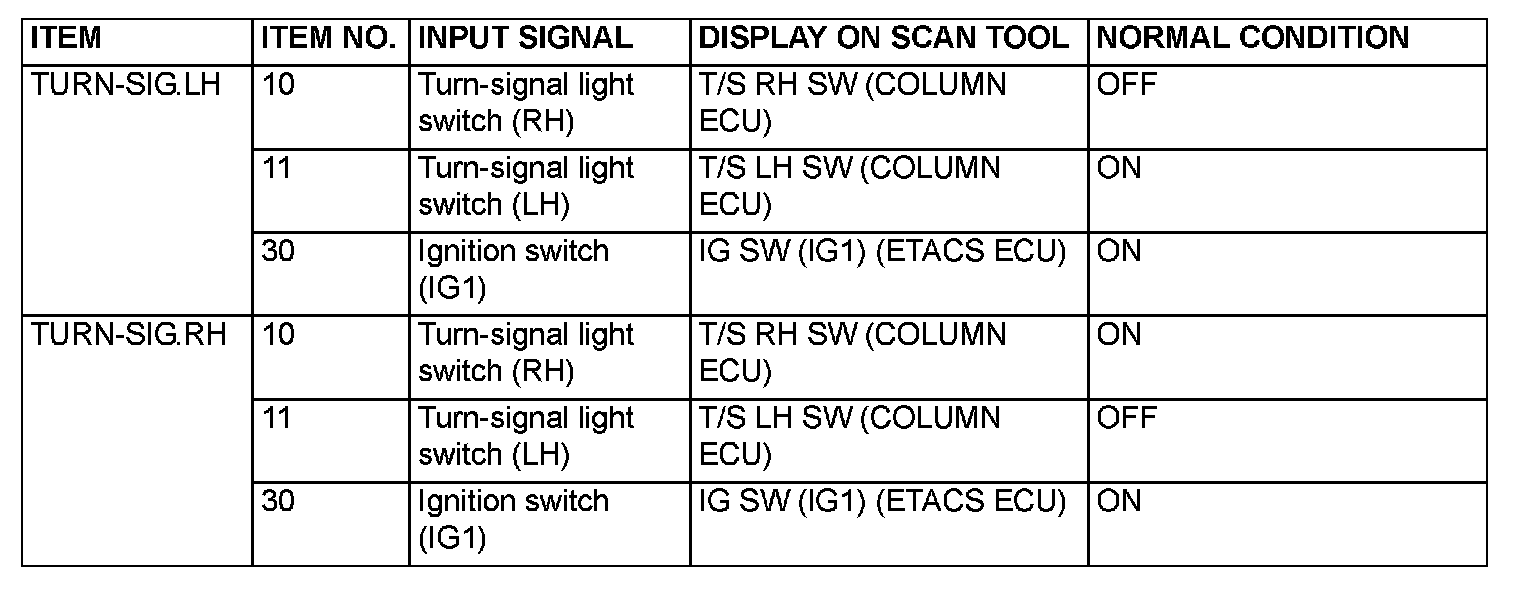

LIGHTINGTurn Signal:

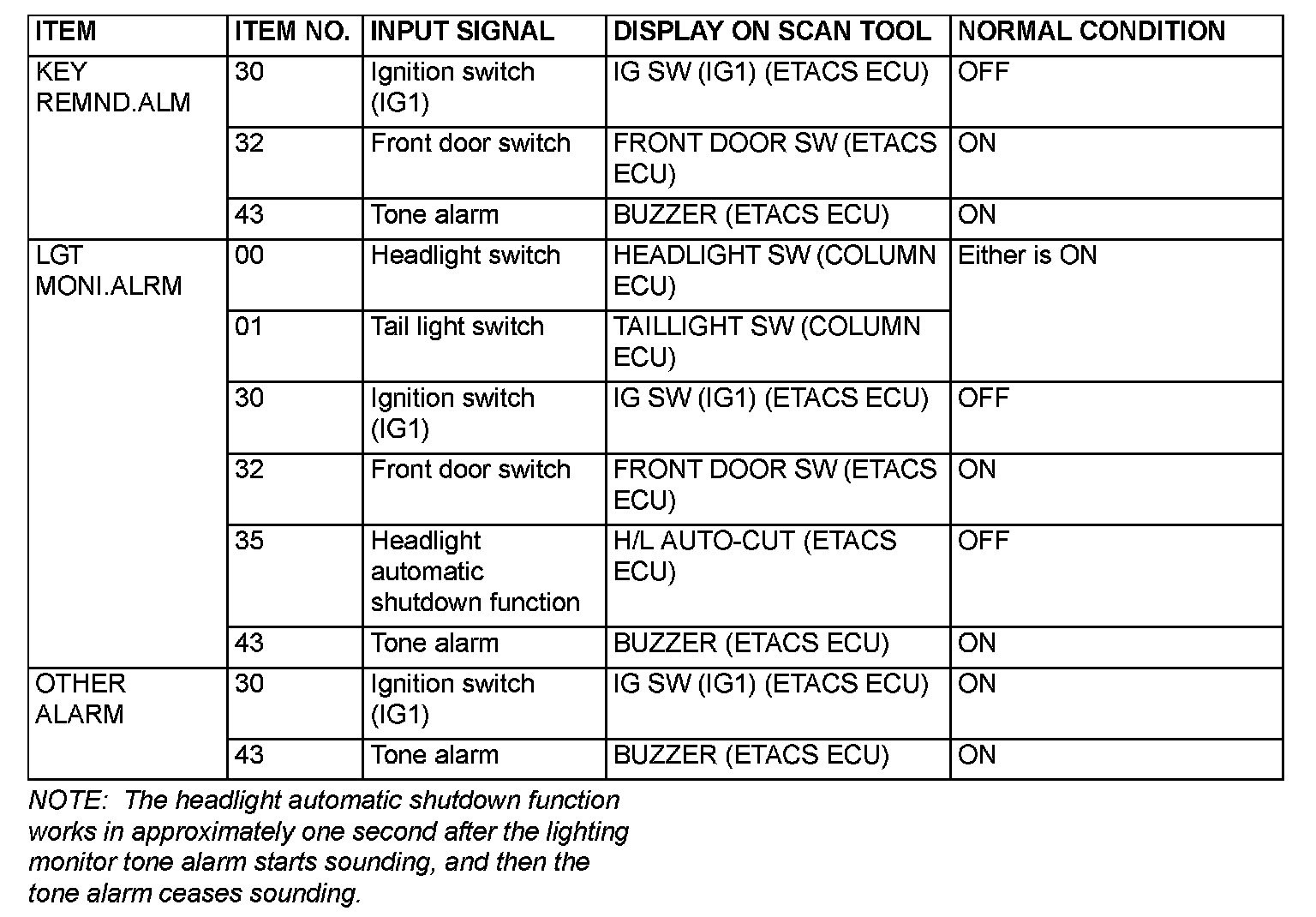

TURN SIGNALBuzzer:

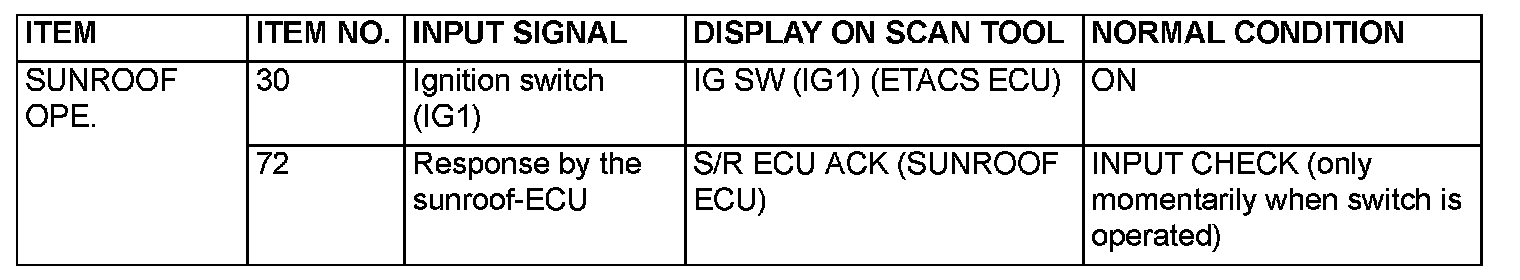

BUZZERSunroof:

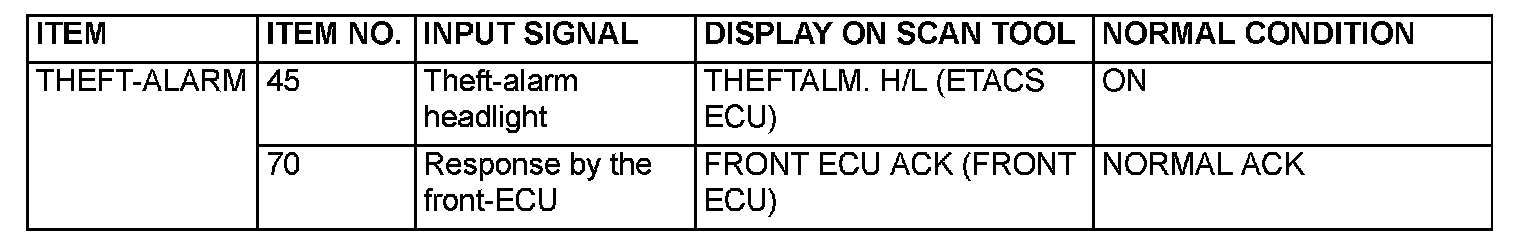

SUNROOFTheft-Alarm:
THEFT-ALARM
