Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

The scan tool activates the following actuators for testing.

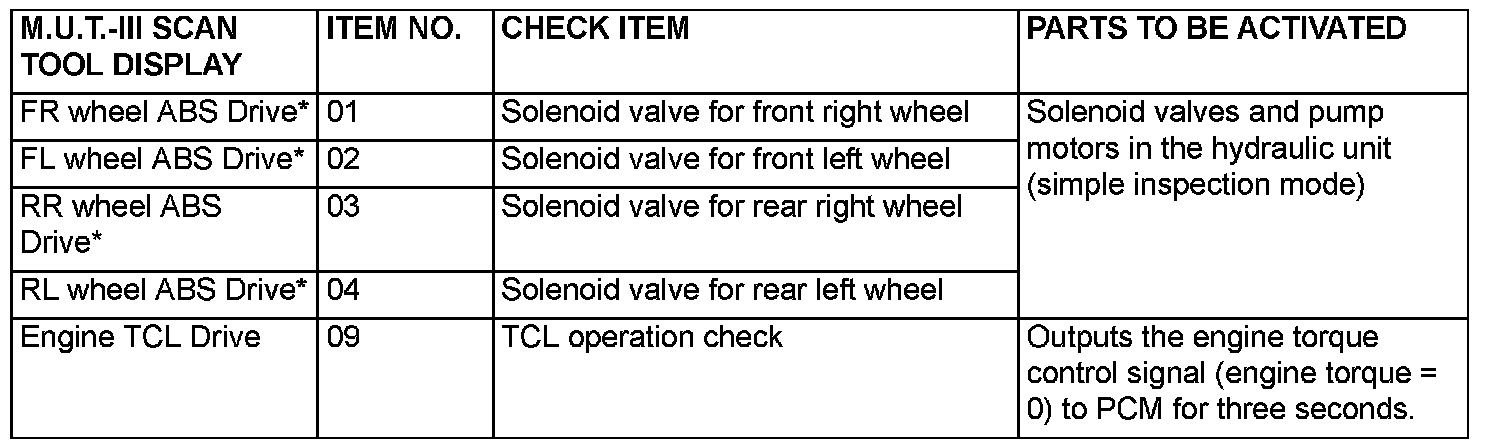

Actuator Test Reference Table:






NOTE: Since the TCL is controlled with the same ABS/TCL-ECU or TCL/ASC-ECU used to control the ABS, the FR, FL, RR or RL Wheel ABS Drive testing items (No.01 to 04) used only for the ABS also appear.
