Data List Reference Table
DATA LIST REFERENCE TABLEThe following items can be read by the scan tool from the ABS/TCL-ECU
or TCL/ASC-ECU input data.

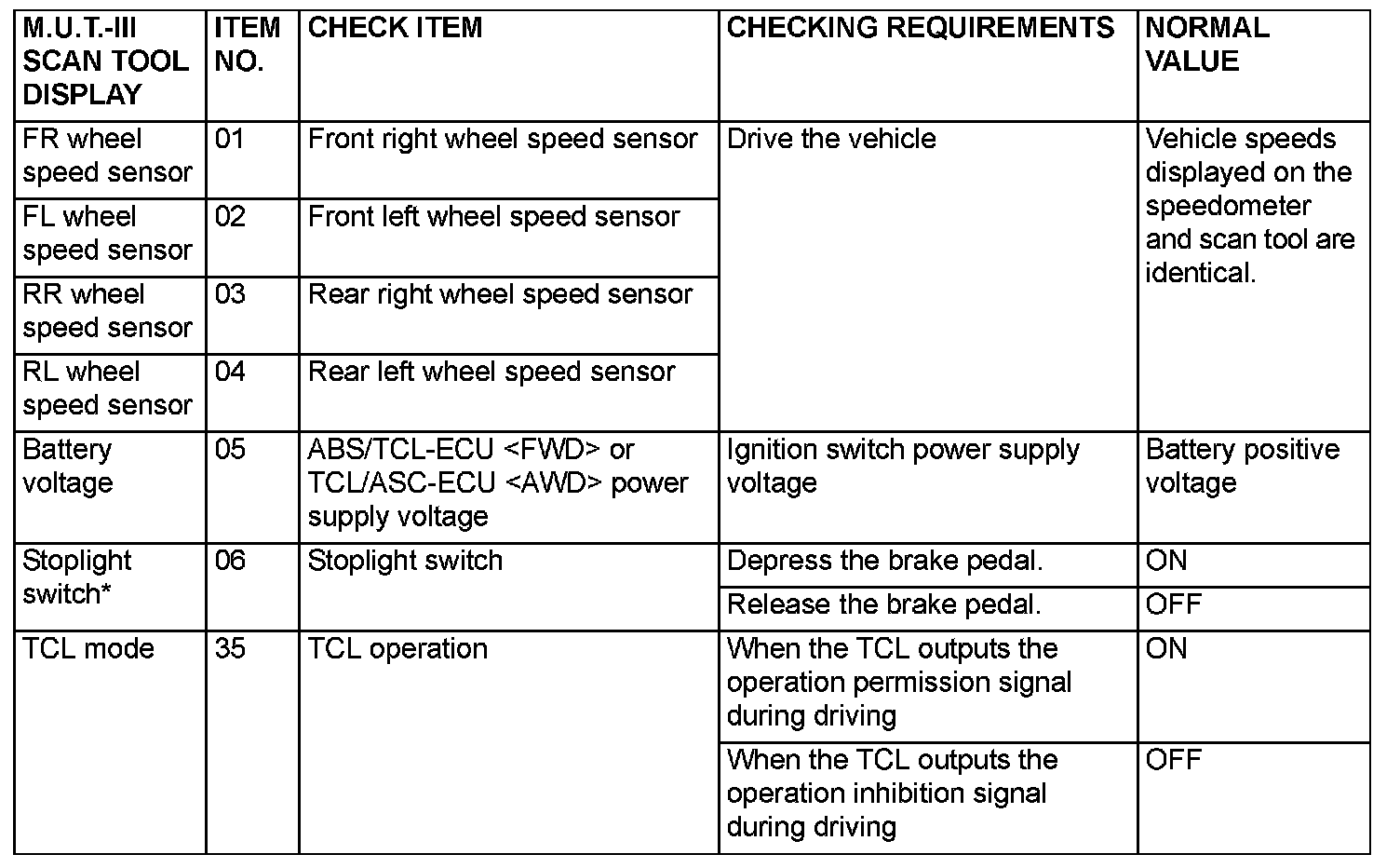

Data List Reference Table:
NOTE: Since the TCL is controlled with the same ABS/TCL-ECU or TCL/ASC-ECU used to control the ABS, the stoplight switch check item (No.6) used only for the ABS also appear.
