Function Diagnosis
[FUNCTION DIAGNOSIS]The table the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal condition" shows values that are shown when each operation is made. .

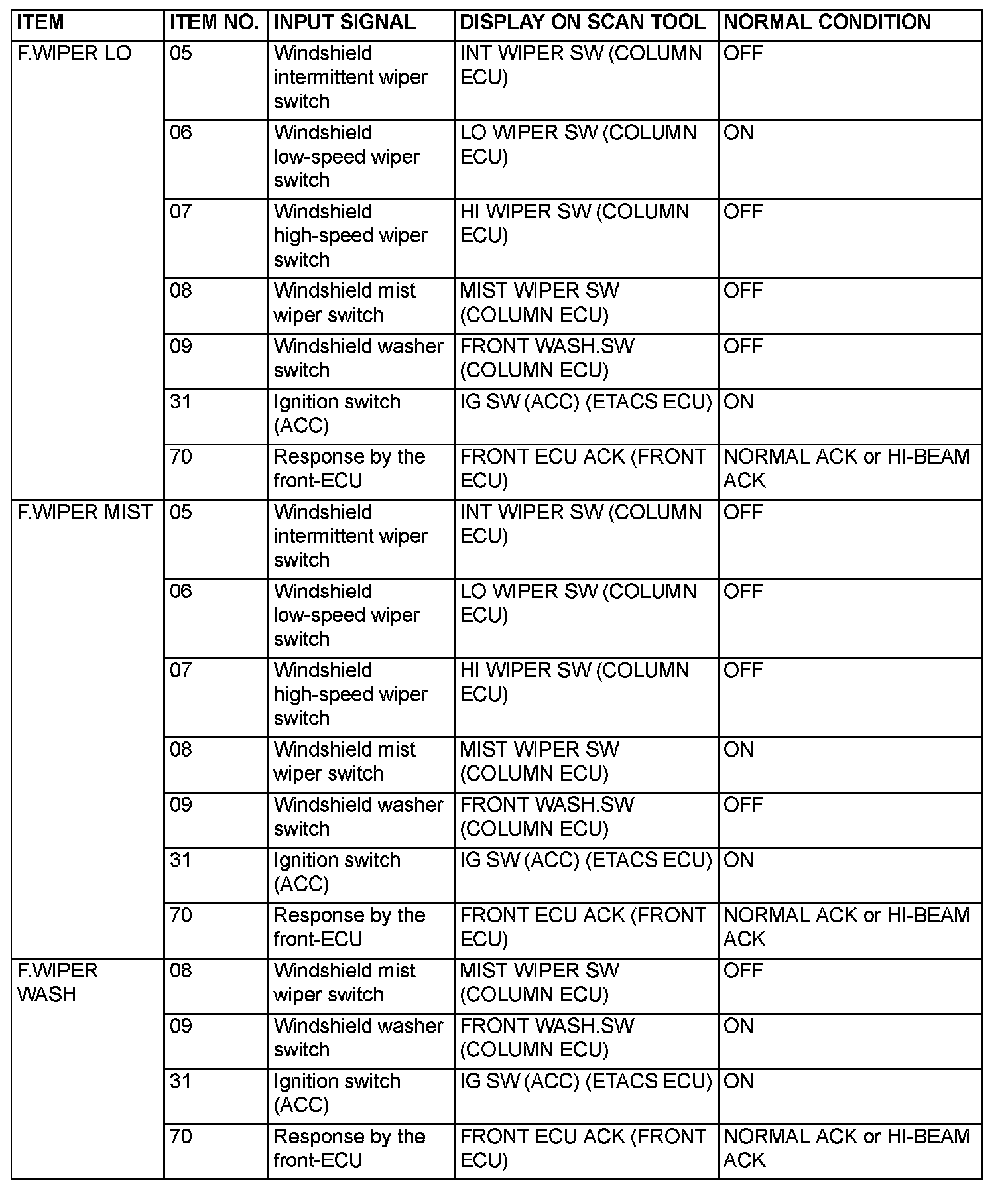

Wiper Part 1:
Wiper Part 2:

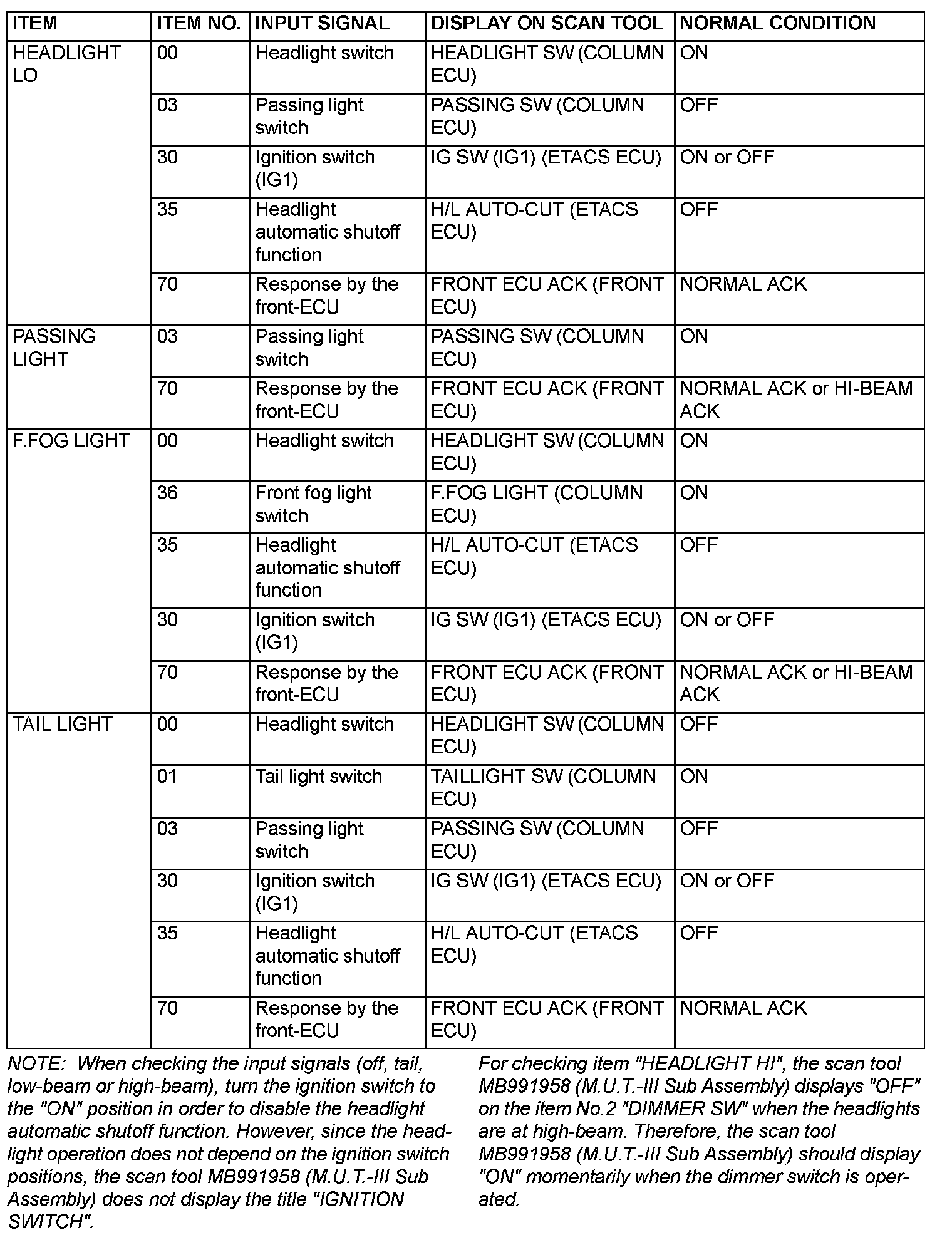

WIPERLighting Part 1:

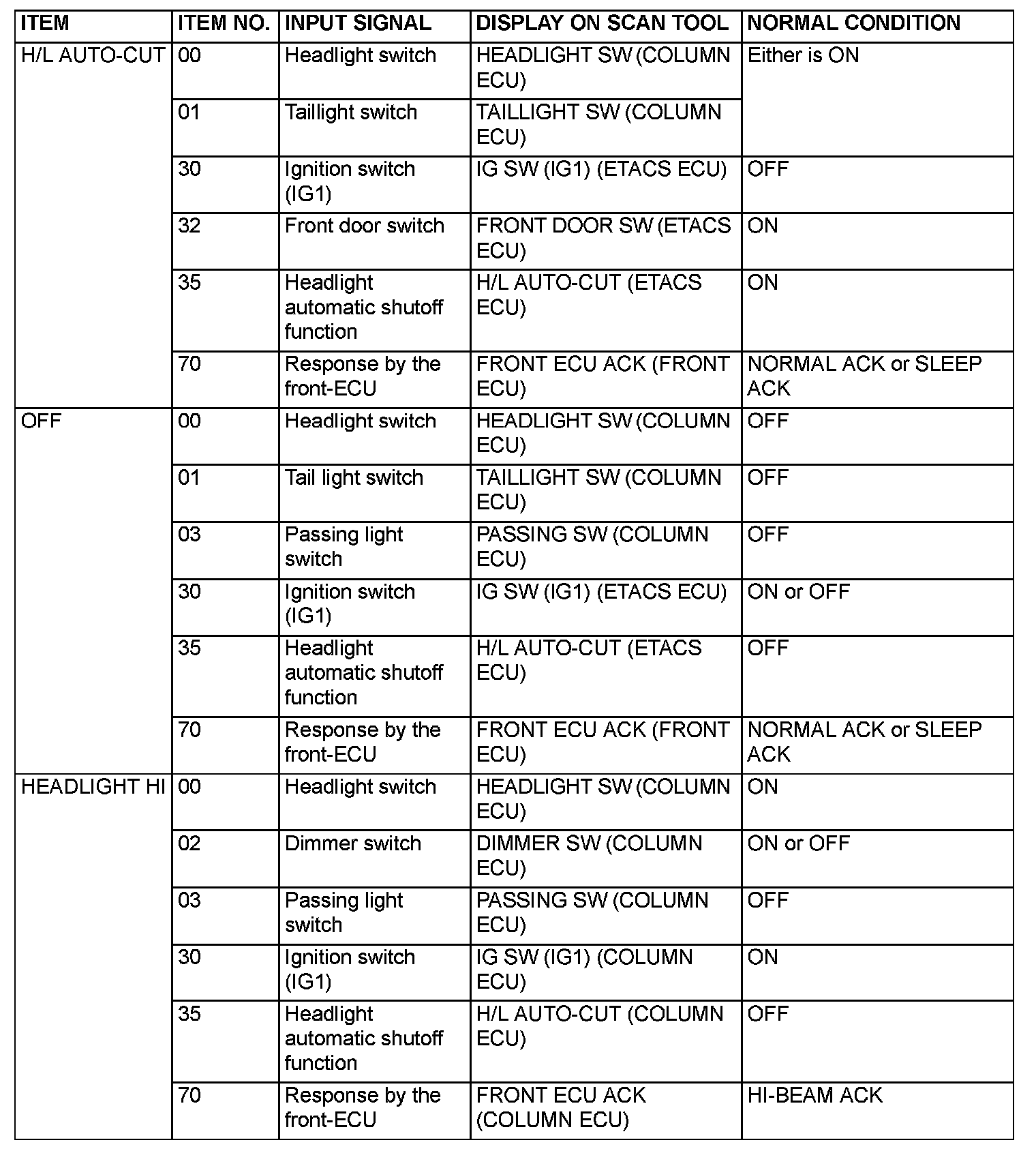

Lighting Part 2:
LIGHTINGTurn Signal:

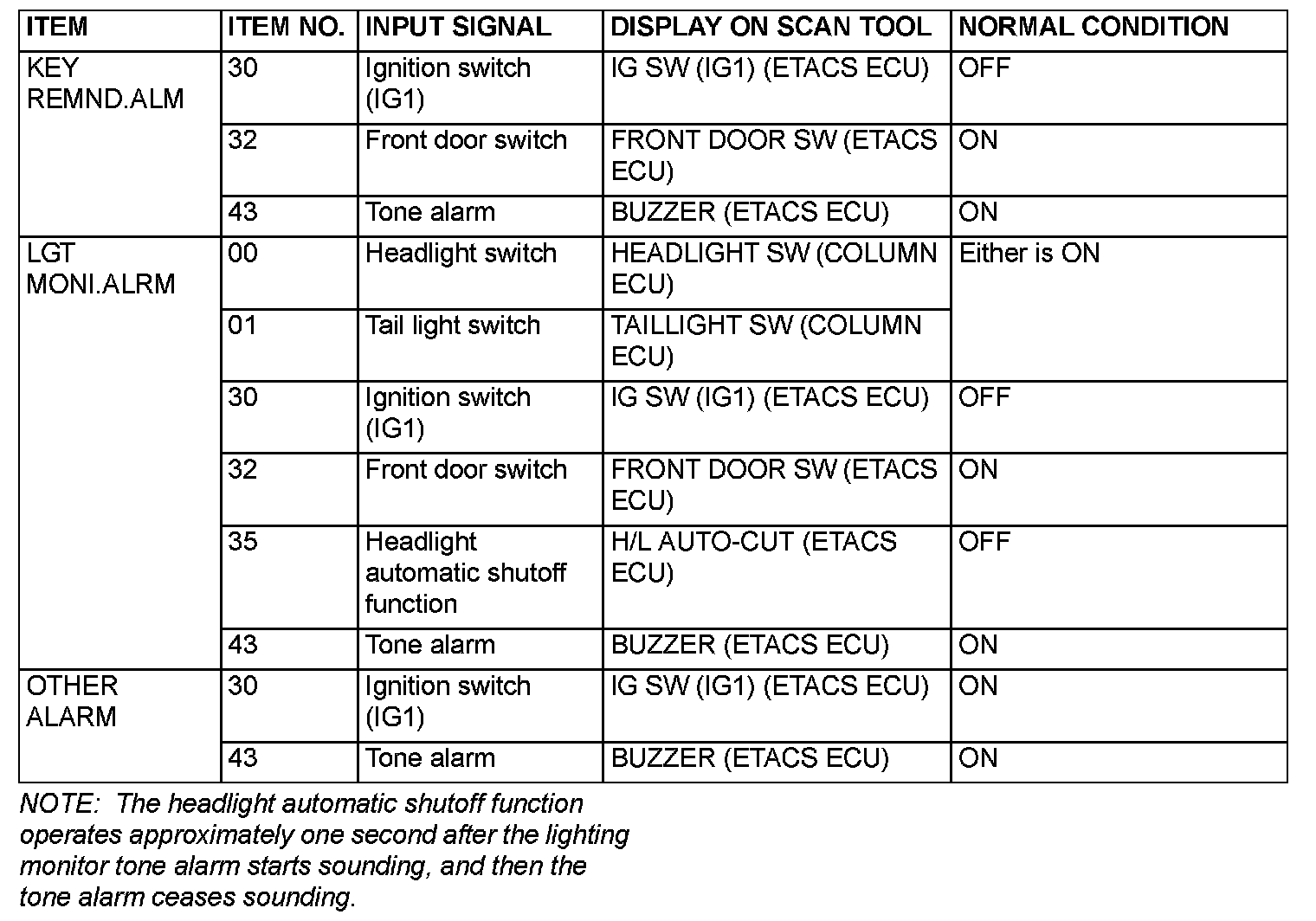

TURN SIGNALBuzzer:

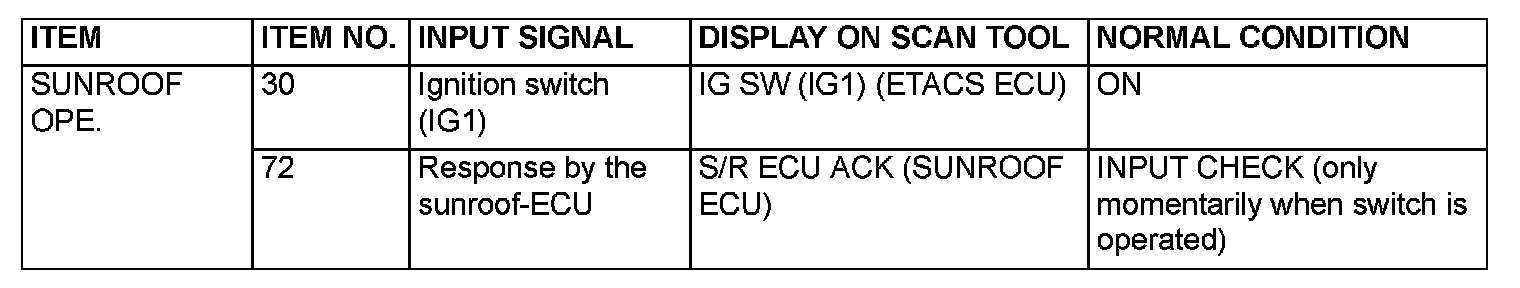

BUZZERSunroof:
SUNROOF
