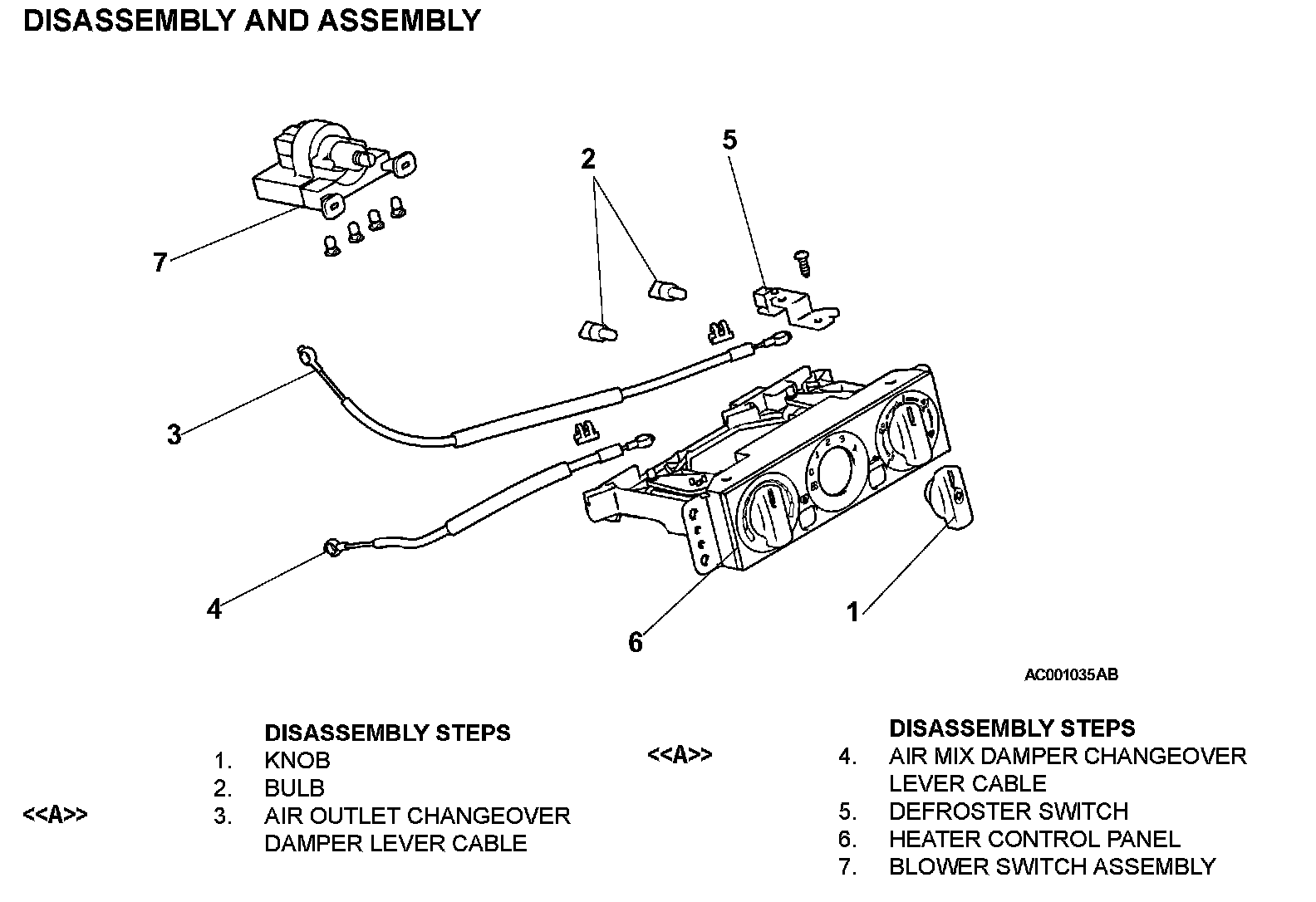

Disassembly and Assembly

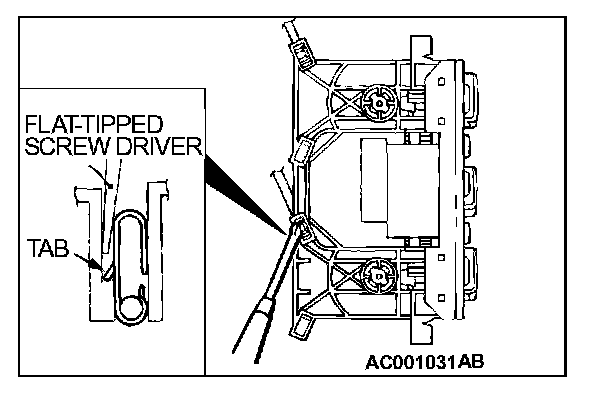

HEATER CONTROL ASSEMBLYDISASSEMBLY AND ASSEMBLYDISASSEMBLY SERVICE POINT<> AIR OUTLET CHANGEOVER DAMPER LEVER CABLE AND AIR MIX DAMPER LEVER CABLE REASSEMBLYInsert a flat-tipped screwdriver into the control base clip from inner side, and then remove the cable by lifting the claw part of the clip.
