Auto A/C

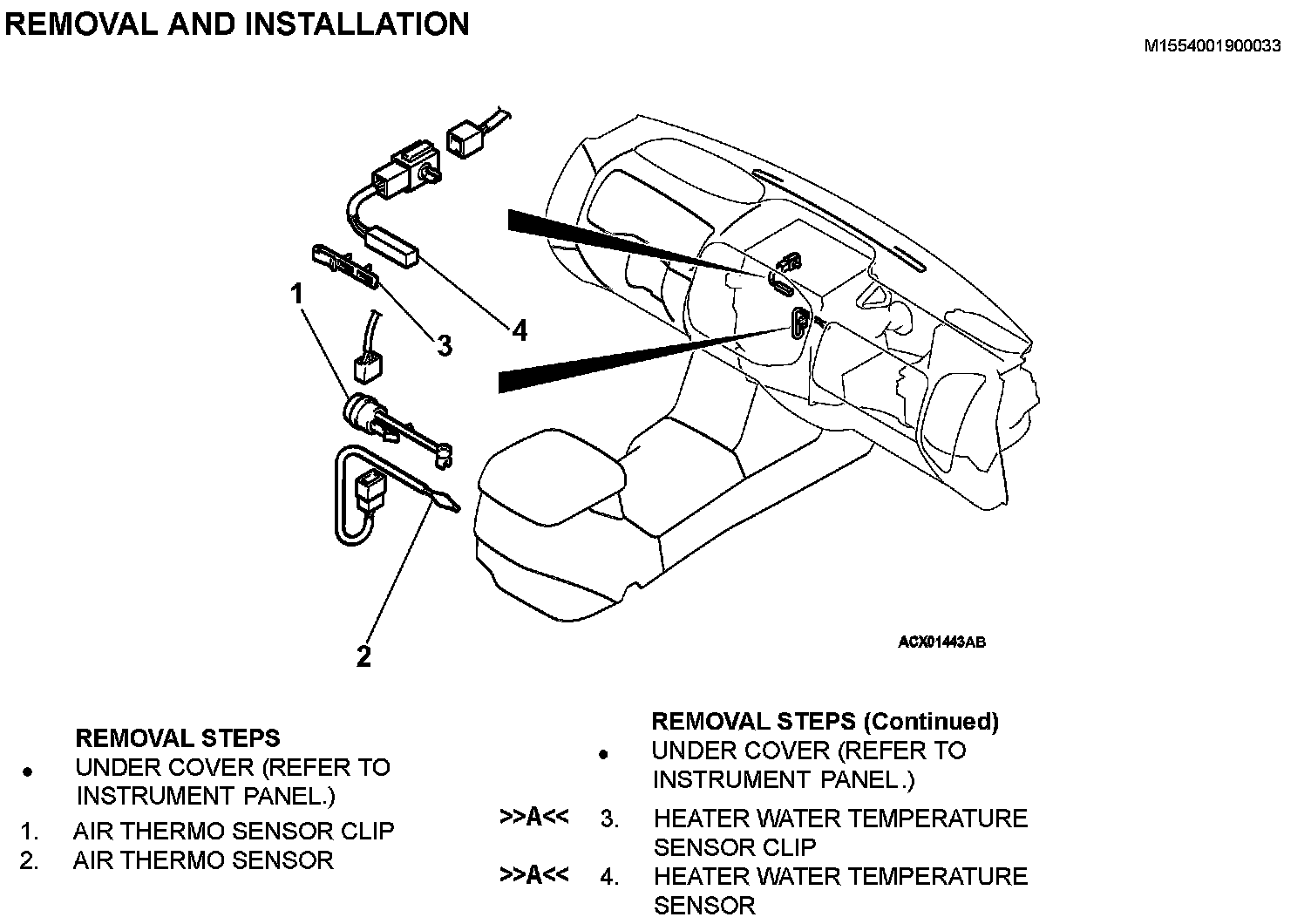

SENSORSREMOVAL AND INSTALLATIONINSTALLATION SERVICE POINT>>A<< HEATER WATER TEMPERATURE SENSOR/HEATER WATER TEMPERATURE SENSOR CLIP INSTALLATIONInsert the heater water temperature sensor into the mounting hole on the heater unit, and secure the sensor with the clip.
