Transmission Control Cable Adjustment

TRANSMISSION CONTROL CABLE ADJUSTMENT





1. Move the selector lever to the "N" position.

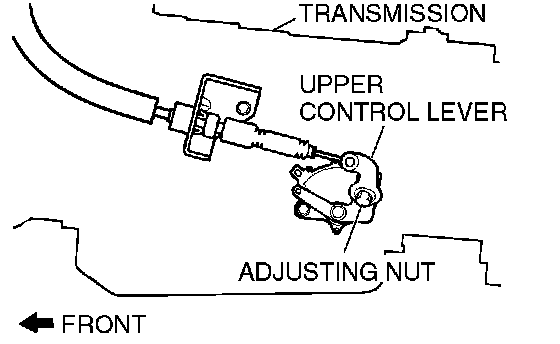

2. Loosen the upper control lever adjusting nut.
3. Check that the transmission range switch is at "N" position.
4. Adjust the upper control lever so that there is no slackness or excessive tightness in the transmission control cable, and then tighten the adjusting nut to the specified torque.
Tightening torque: 23 ± 4 Nm (17 ± 3 ft. lbs.)
5. Check that the transmission operation and functioning in each position corresponds accurately to the position of the selector lever.
