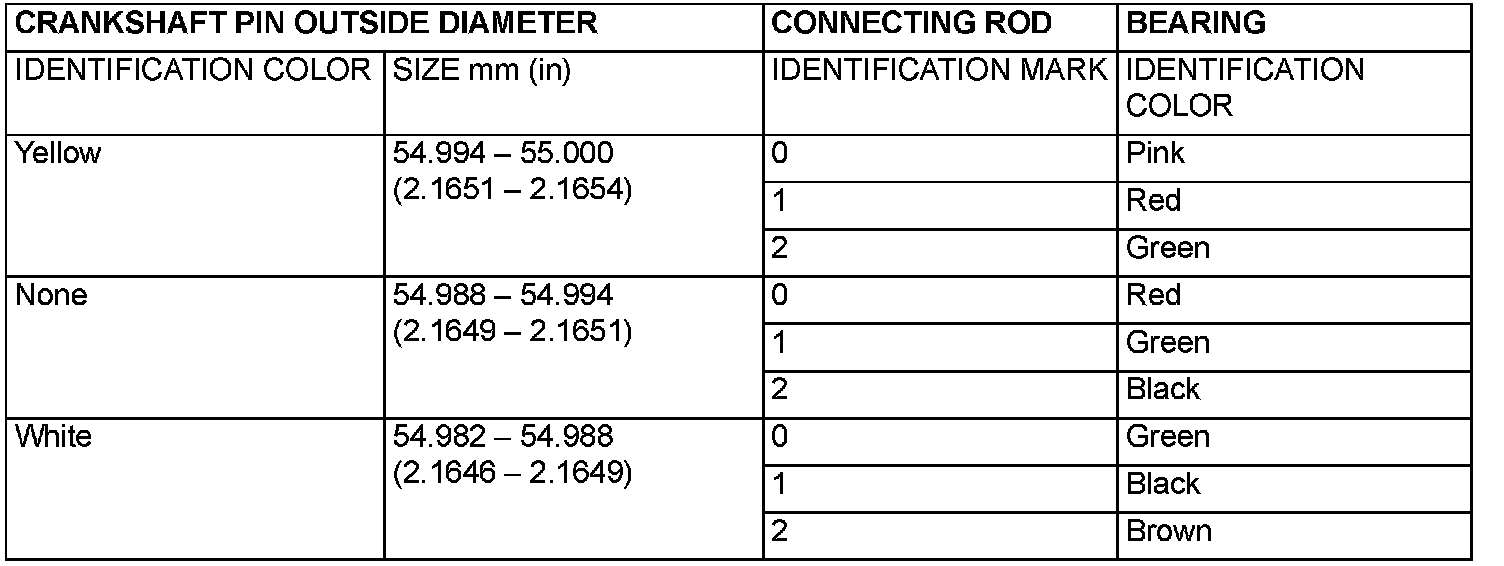

Connecting Rod Bearing
Crankshaft Pin outside Diameter
55 mm (2.165 in.)
Crankshaft Pin Oil Clearance
0.02-0.05 mm (0.008-0.0019 in.)
