Front Fender: Service and Repair

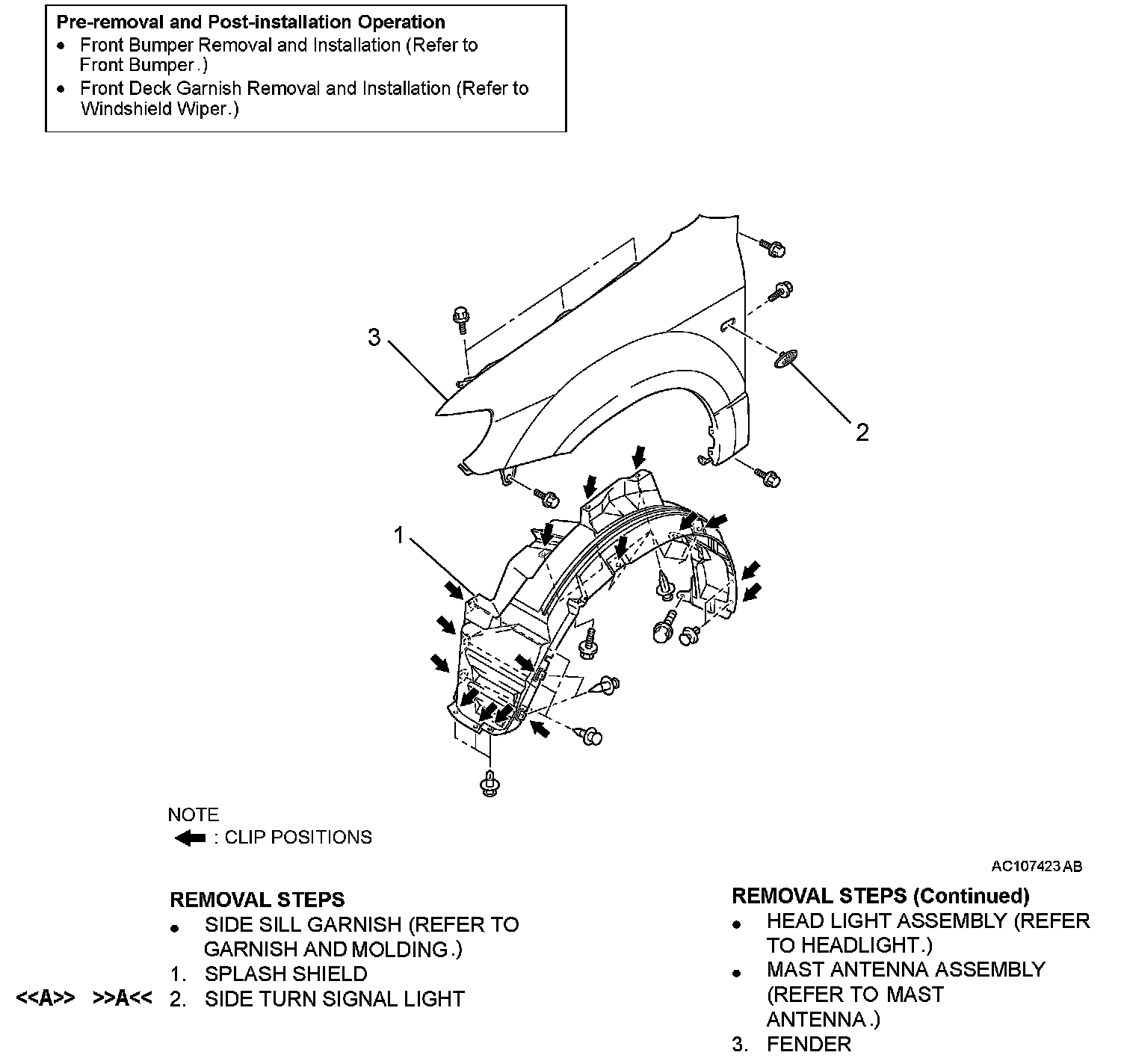

REMOVAL AND INSTALLATION

Fender:

Required Special Tool:
MB990784: Ornament Remover

REMOVAL SERVICE POINT

<> SIDE TURN SIGNAL LIGHT REMOVAL

Use an appropriate tool such as MB990874 to pry out the tab from the fender, and remove the side turn signal light.

INSTALLATION SERVICE POINT

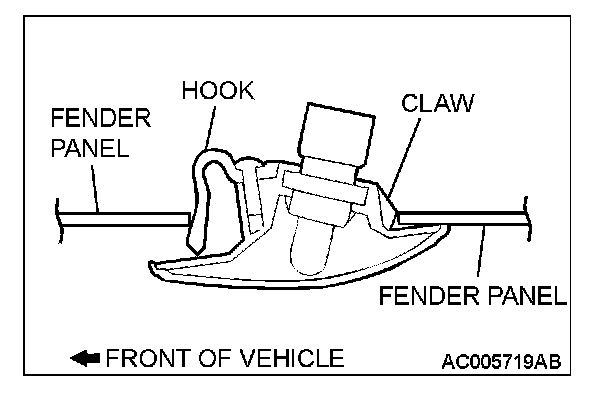

>>A<< SIDE TURN SIGNAL LIGHT INSTALLATION

Engage the hook with the fender panel, and install the side turn signal light.
