Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

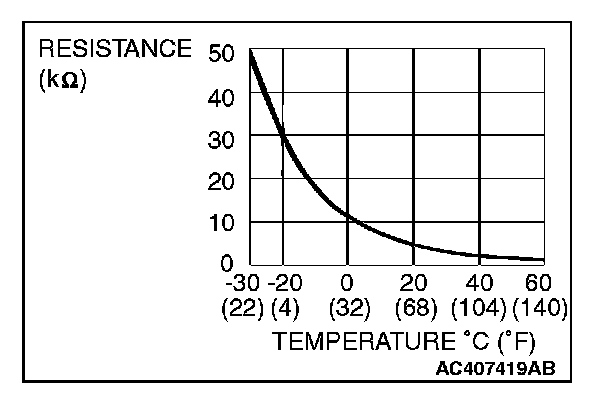

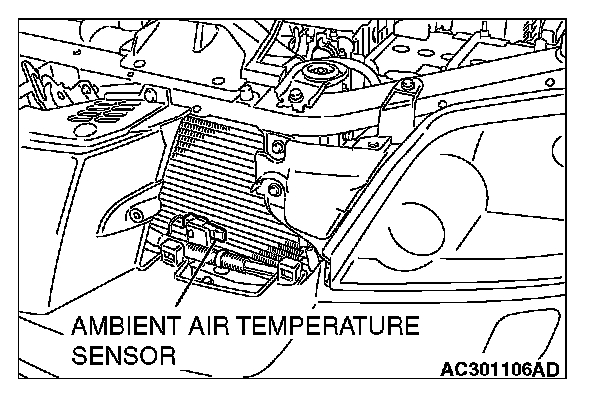

INSPECTIONAMBIENT AIR TEMPERATURE SENSORCheck to see that the resistance shown in the graph is almost satisfied when measuring the resistance between the sensor terminals under two or more different temperature conditions.
