Automatic A/C

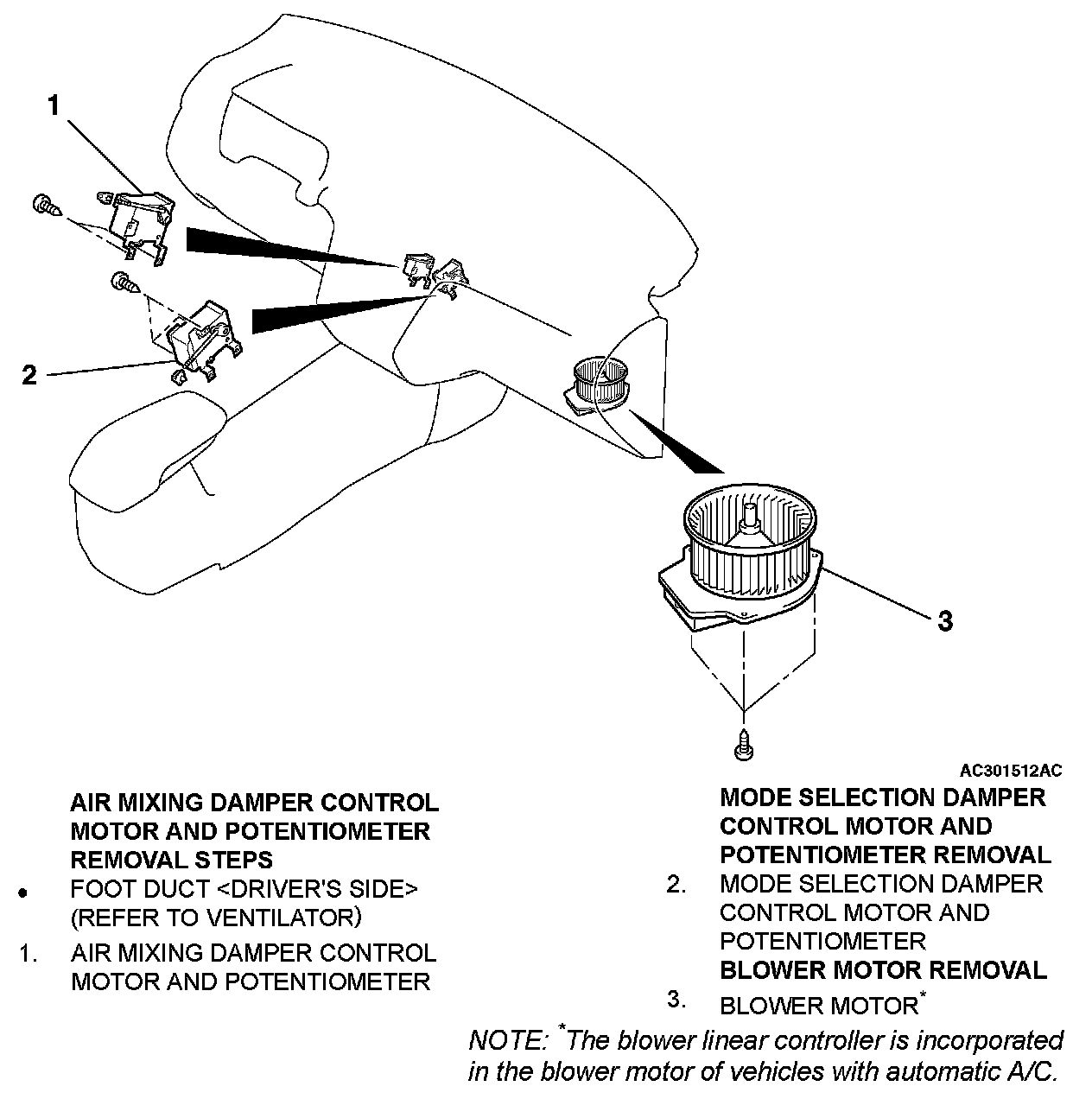

AIR MIXING DAMPER CONTROL MOTOR, MODE SELECTION DAMPER CONTROL MOTOR AND BLOWER MOTOR

REMOVAL AND INSTALLATION

Removal Steps 1-3:

NOTE: The blower linear controller is incorporated in the blower motor of vehicles with automatic A/C.
