Turn Signals: Service and Repair

FRONT TURN-SIGNAL LIGHT BULB

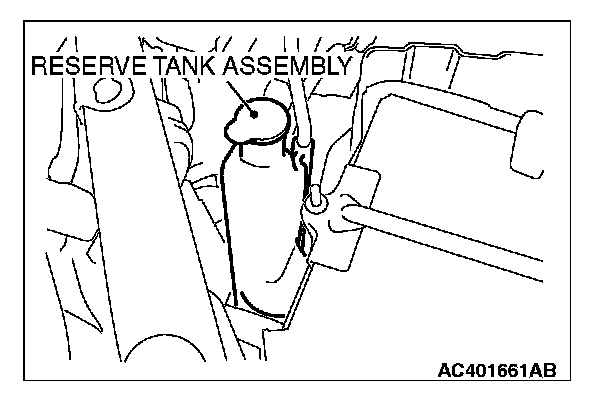

1. Lift up the reserve tank assembly, remove it from the holder, and place it in the space. (Left-side headlight only)

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

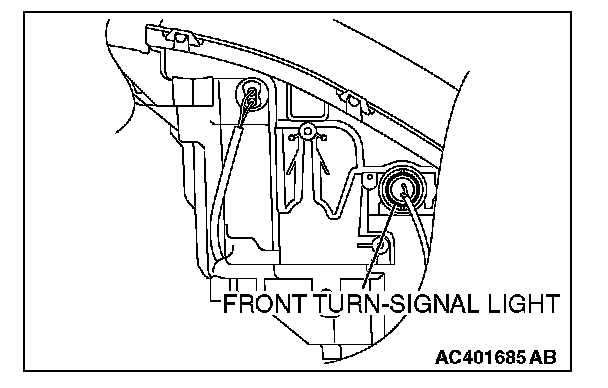

2. Twist the socket to withdraw the bulb.
3. Replace the bulb, and connect the connector securely.
