Removal and Replacement

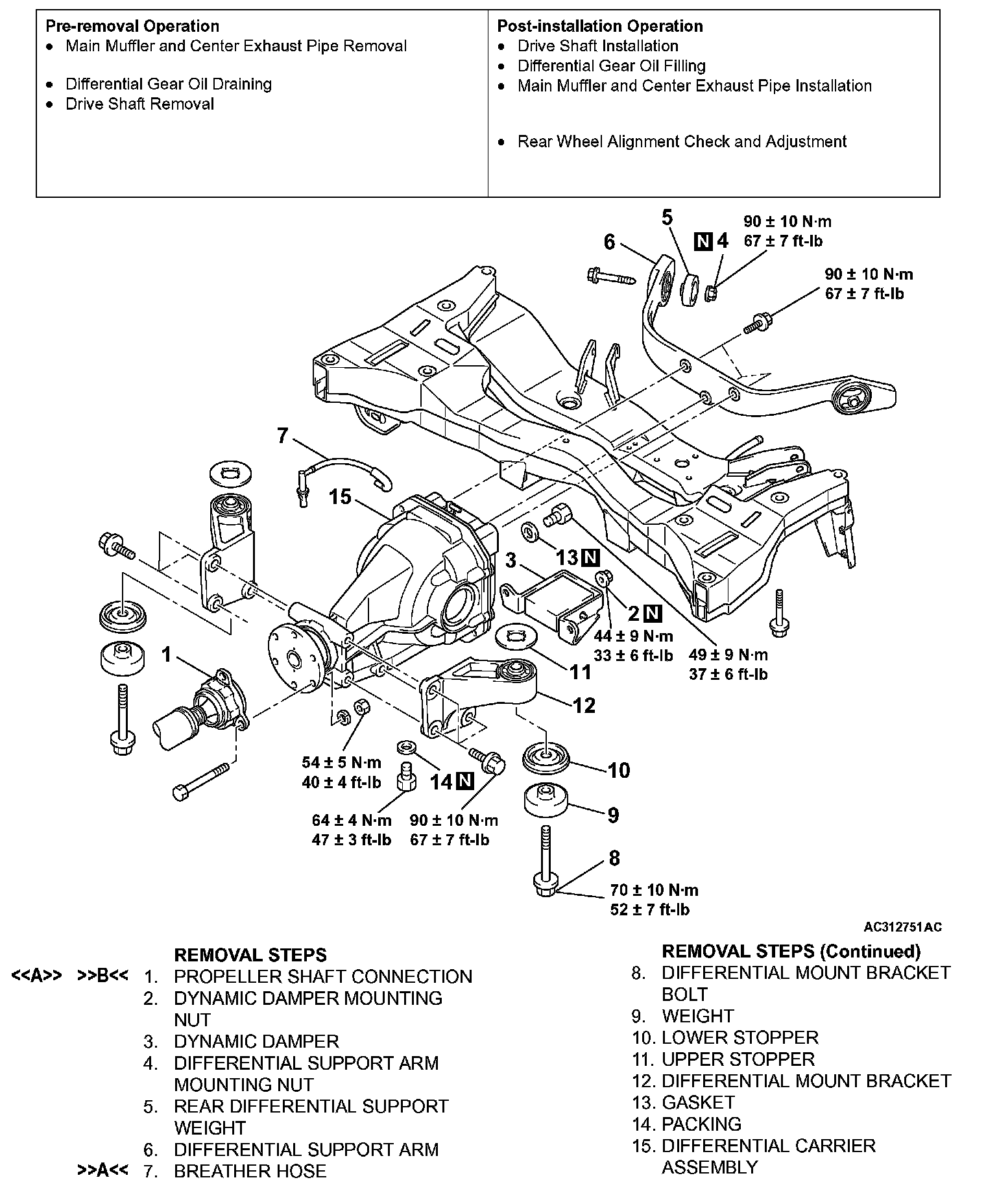

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINTS
<> PROPELLER SHAFT DISCONNECTION

1. Make mating marks on the differential companion flange and the propeller shaft assembly.
2. Suspend the removed propeller shaft from the body with a wire to prevent bending.

INSTALLATION SERVICE POINTS
>>A<< BREATHER HOSE INSTALLATION

CAUTION: Be careful not to apply grease water or soapy water to the hose inlet.

Fully insert the breather hose into the vent plug. Install the breather hose pad as shown in the illustration.

>>B<< PROPELLER SHAFT INSTALLATION
Align the mating marks of differential companion flange and propeller shaft assembly.
