Liftgate Window Glass: Service and Repair

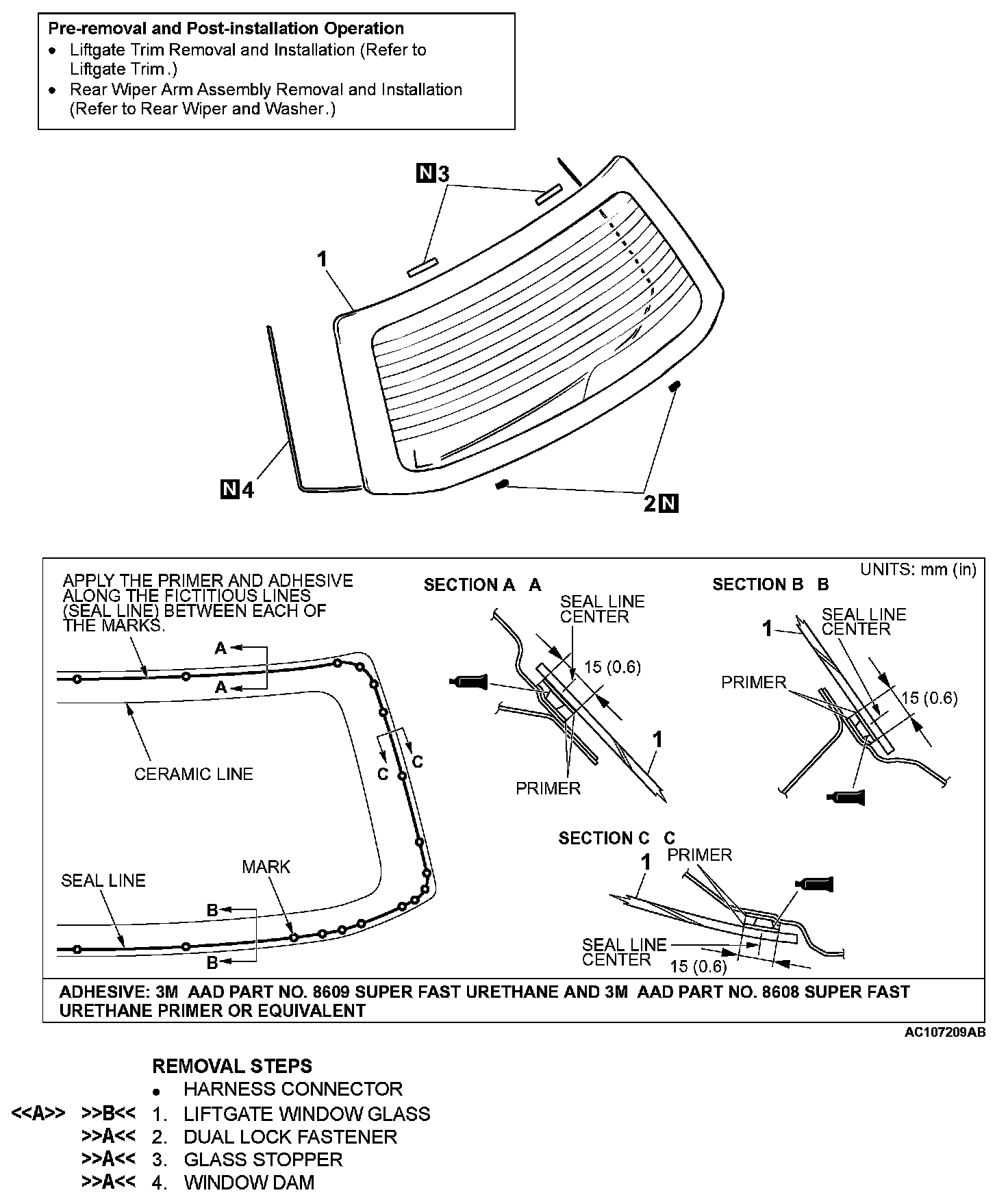

Liftgate Window Glass


Liftgate Window Glass:






Required Special Tool:
MB990480: Glass Holder

REMOVAL SERVICE POINT

[[A]] LIFTGATE WINDOW GLASS REMOVAL
Remove the liftgate window glass using the same procedure as for the windshield.

INSTALLATION SERVICE POINTS

]]A[[ WINDOW DAM/GLASS STOPPER/DUAL LOCK FASTENER INSTALLATION

CAUTION: Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.







1. Use 3M(TM) AAD Part number 8906 or equivalent. to degrease the inside and outside edges of the liftgate window glass and the surface of the liftgate flange.

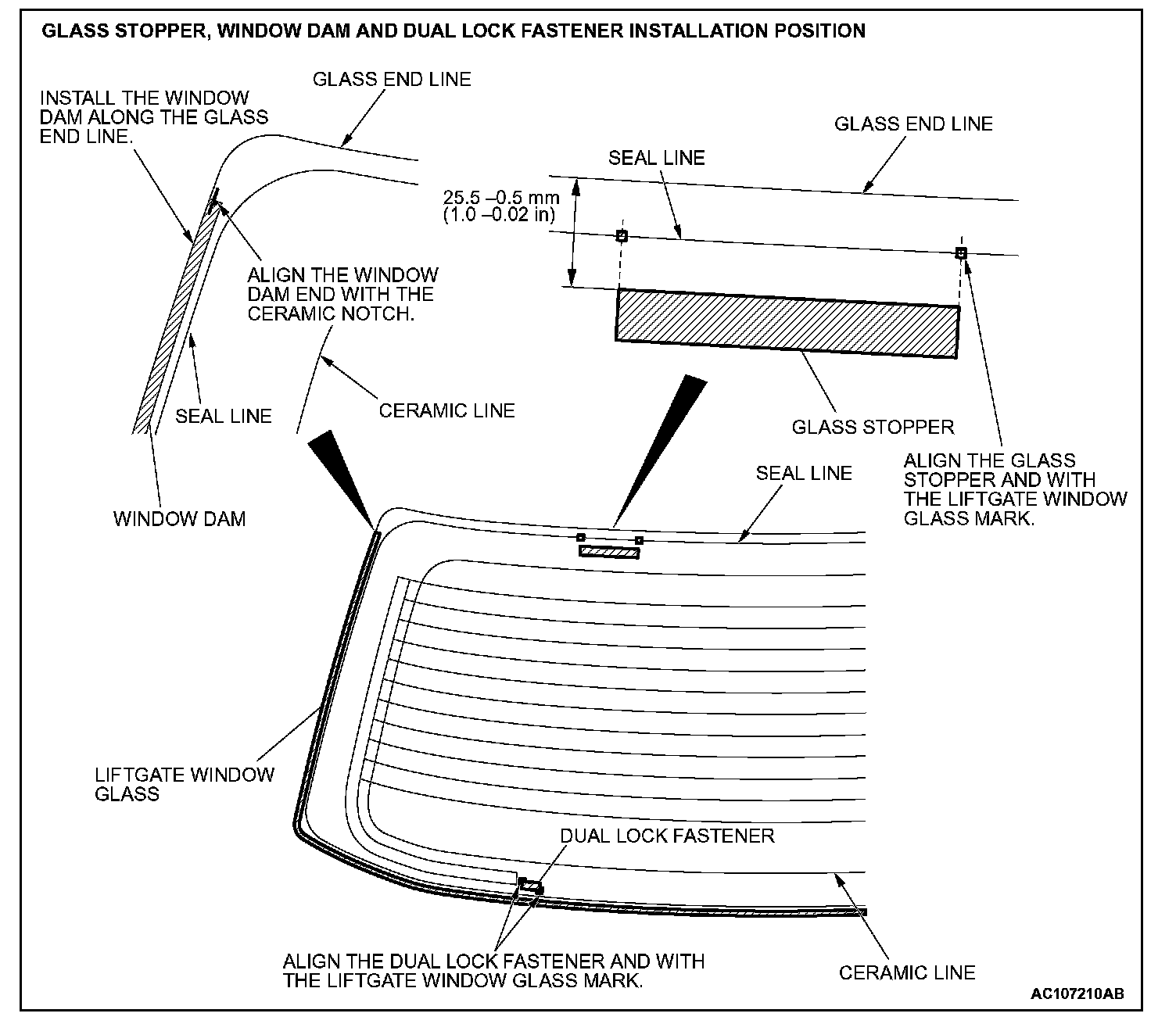

2. Assemble the window dam, glass stopper and dual lock fastener to the liftgate window glass location shown.







3. Assemble the dual lock fastener in alignment with the protrusion of the liftgate flange.

]]B[[ LIFTGATE WINDOW GLASS INSTALLATION
Install the liftgate window glass in the same way as for the windshield.
