Crankshaft Main Bearing

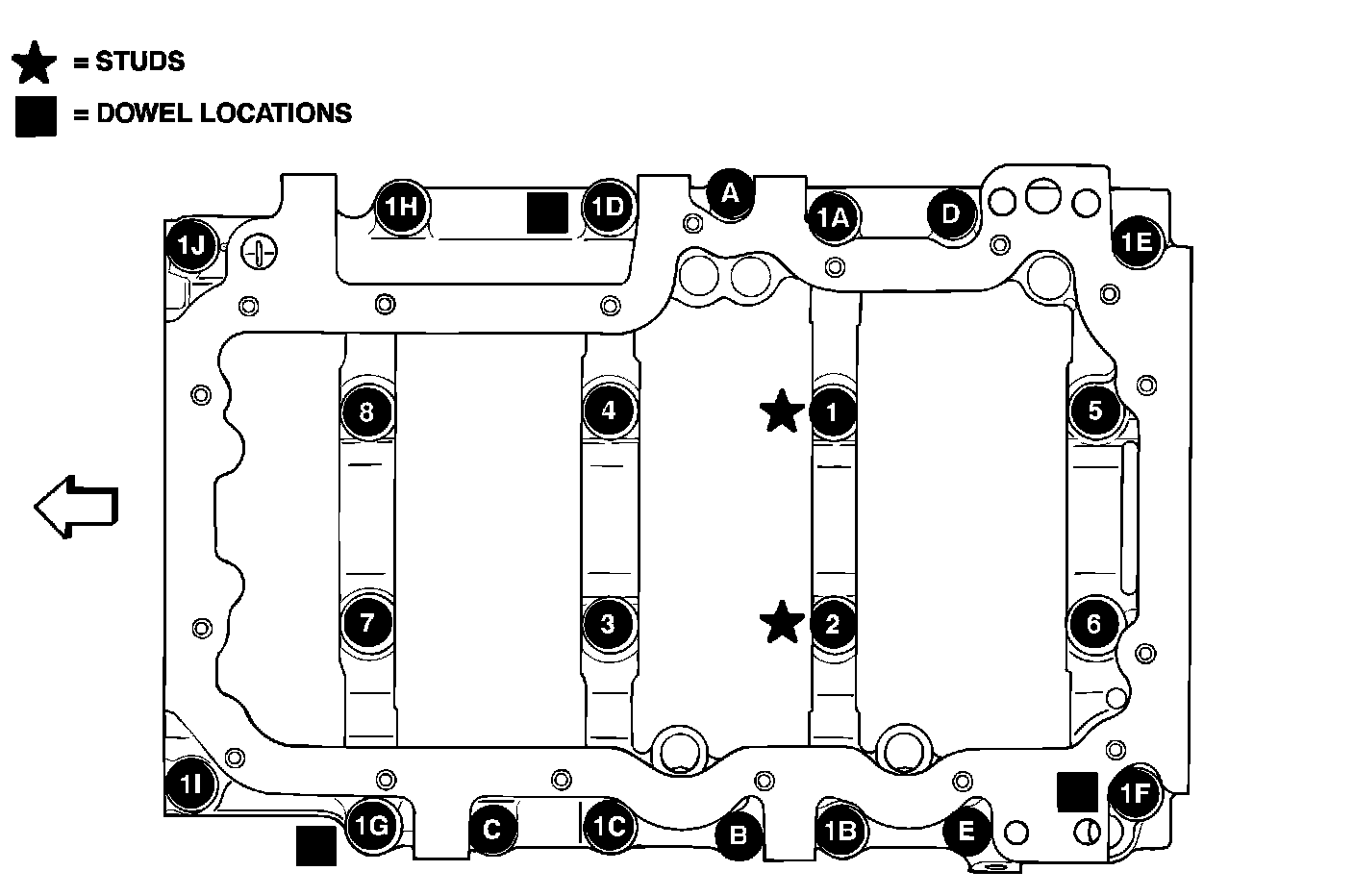

Bed Plate Bolts
Bolts 1A - 1J
54 Nm (40 ft. lbs.)
Bolts 1 - 8
7 Nm (5 ft. lbs.)
Bolts 1 - 8
additional 90°
Bolts A - E
27 Nm (20 ft. lbs.)
Bearing Clearance
0.002 - 0.046 mm (0.00008 - 0.0018 inch)
CRANKSHAFT MAIN BEARING SELECTION CHART:
CRANKSHAFT MAIN BEARING SELECTION CHART:
