Engine Ground Strap

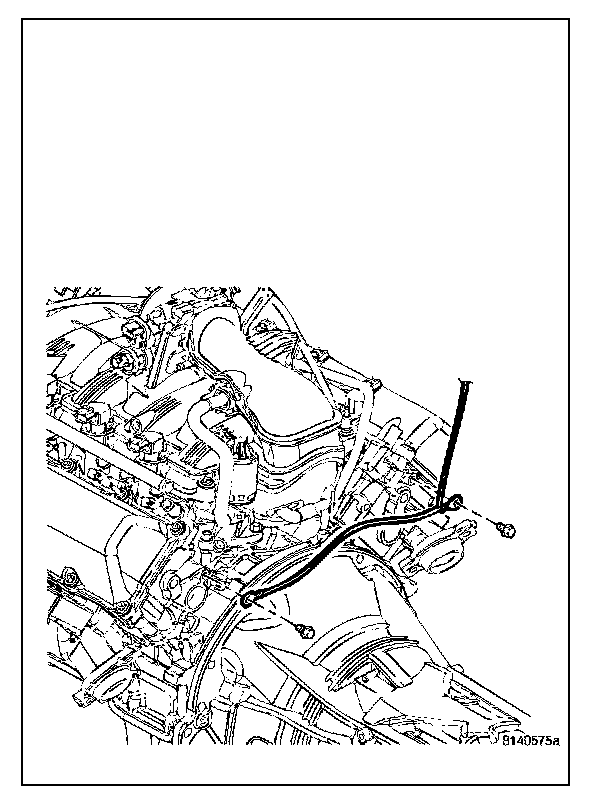

REMOVAL

1. Disconnect and isolate the battery negative cable.
2. Remove the mounting fasteners from the engine cylinder heads.

3. Remove mounting fastener from bulkhead and remove strap.

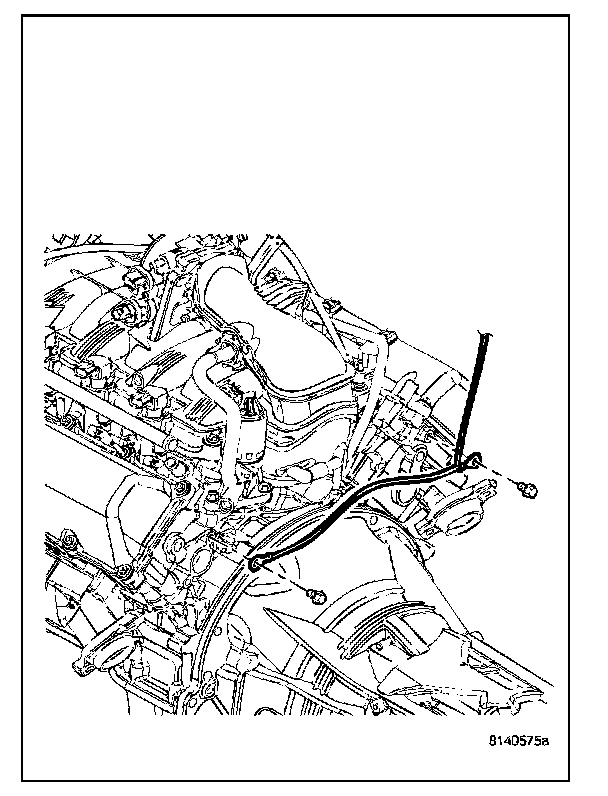

INSTALLATION

1. Position ground strap to engine and install mounting fasteners.
2. Tighten mounting fasteners.

3. Position ground strap to bulkhead and install mounting fastener.
4. Tighten mounting fastener.
5. Connect battery negative cable.
