Grille: Service and Repair

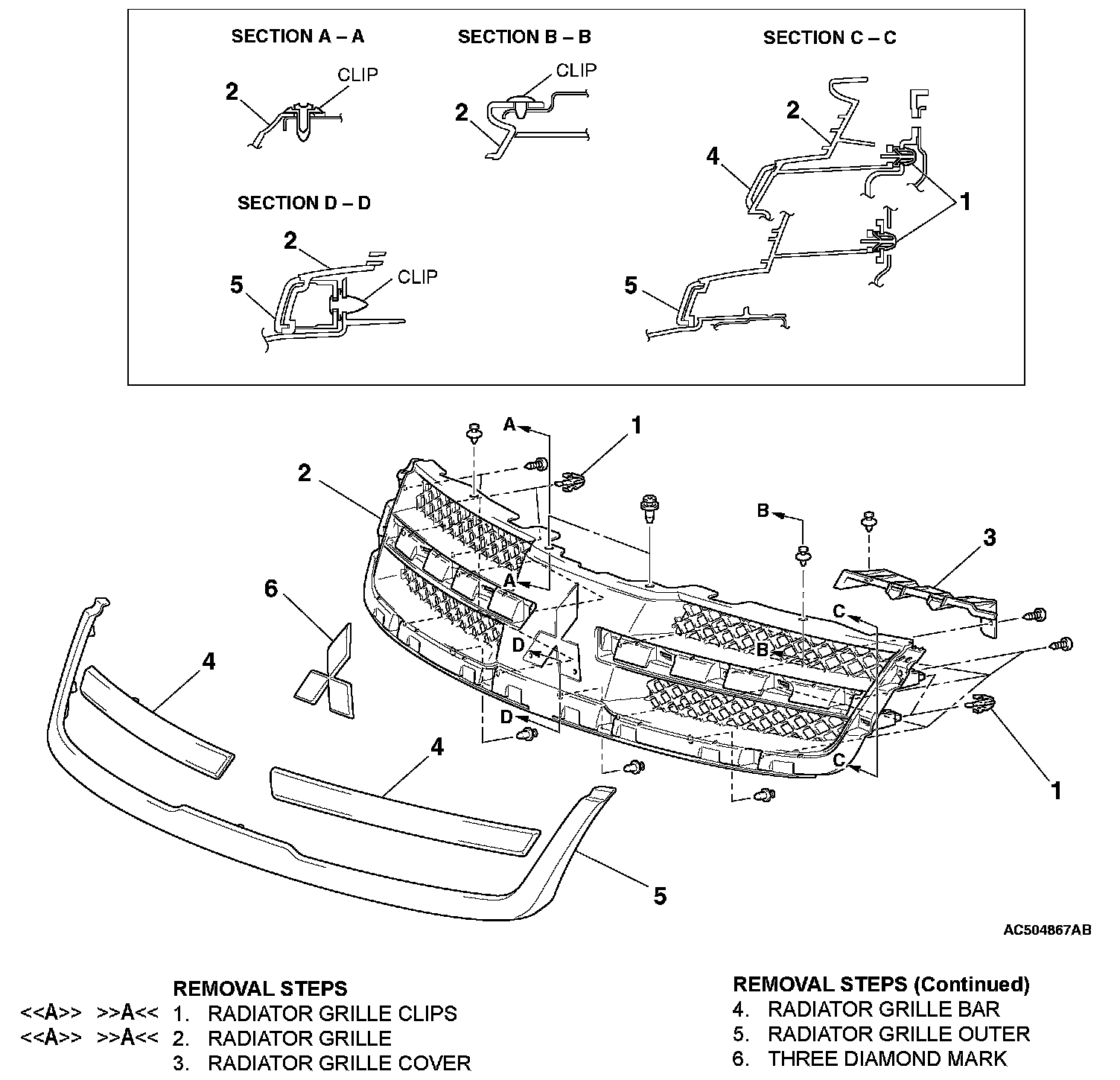

RADIATOR GRILLE

REMOVAL AND INSTALLATION

Removal Steps 1-6:

REMOVAL SERVICE POINT

[A] RADIATOR GRILLES REMOVAL

Use a flat-tipped screwdriver to push and hold the tab on the radiator grille clips toward the arrow direction. Then remove the radiator grille by pulling it toward you.

INSTALLATION SERVICE POINT

]A[RADIATOR GRILLE CLIPS/RADIATOR GRILLES INSTALLATION

Install the radiator grille with the radiator grille clips installed.
