Wheel Speed Sensor: Service and Repair

WHEEL SPEED SENSOR

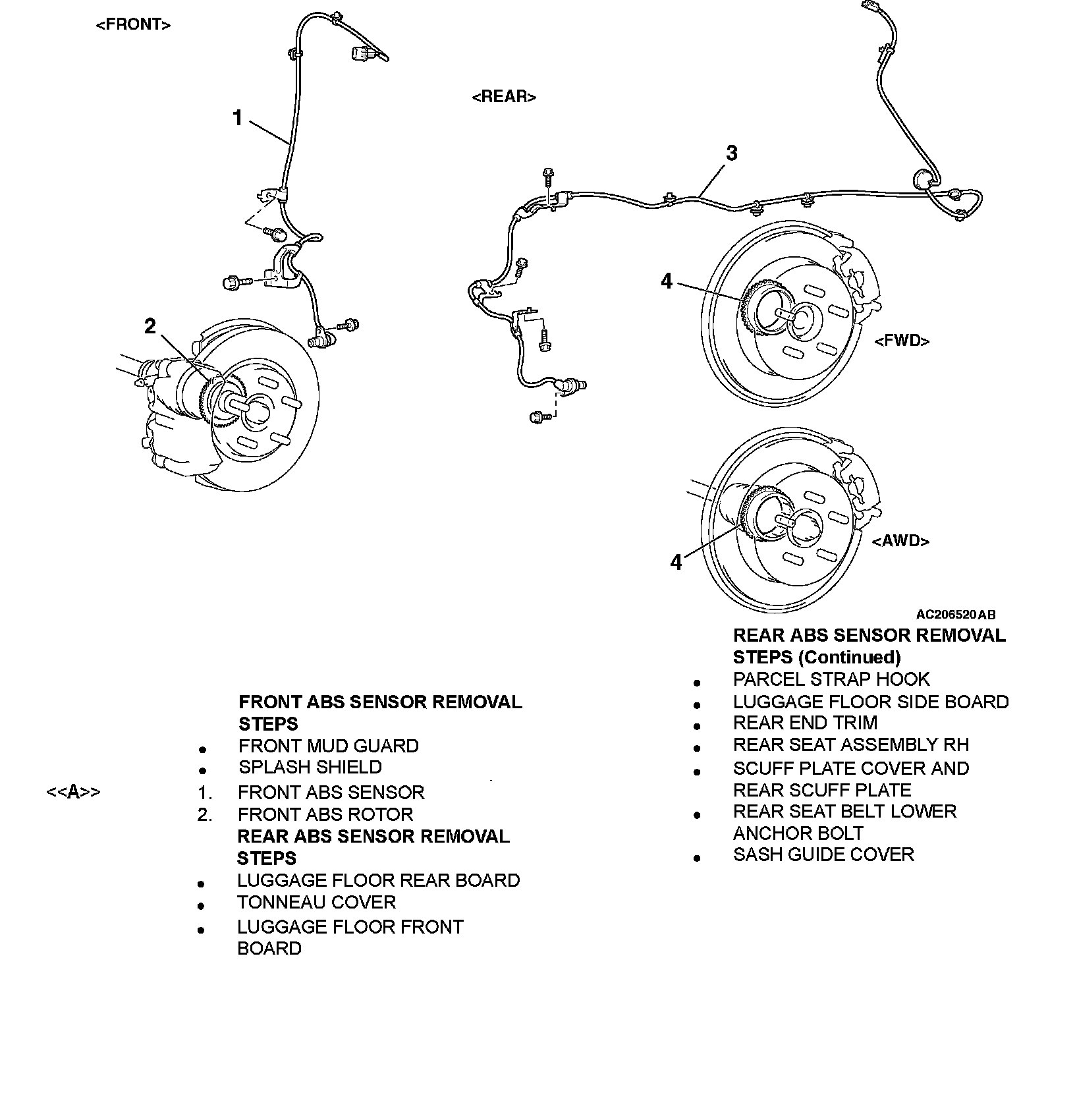

REMOVAL AND INSTALLATION

Post-installation Operation:

NOTE: Front ABS rotors and rear ABS rotors (AWD) are integrated with the BJ assembly of the drive shaft and cannot be disassembled.

NOTE: Rear ABS rotors (FWD) are integrated with the rear hub assembly and cannot be disassembled.

REMOVAL SERVICE POINT

<> FRONT ABS SENSOR/REAR ABS SENSOR REMOVAL

CAUTION: Be careful when handling the projection at the tip of the ABS sensor and the toothed edge of the ABS rotor so as not to damage them by contacting other parts.

INSPECTION

ABS SENSOR CHECK
1. Check whether any metallic foreign material has adhered to the projection at the speed sensor tip. Remove any foreign material. Also check whether the pole piece is damaged. Replace it with a new one if it is damaged.

NOTE: The projection can become magnetized due to the magnet inside the ABS sensor, causing foreign material to easily adhere to it. The projection may not be able to correctly sense the wheel rotation speed if foreign matter is on it or if it is damaged.

2. Measure the resistance between the ABS sensor terminals.
Standard value: 1.24 - 1.64 k ohms
3. If the internal resistance of the ABS sensor is not within the standard value, replace it with a new ABS sensor.

4. Remove all connections from the ABS sensor. The circuit should be open between terminals (1) and (2) and the body of the ABS sensor. If the circuit is not open, replace with a new ABS sensor.
5. Check the ABS sensor cable for breakage, damage or disconnection. Replace with a new one if a problem is found.

NOTE: When checking for cable damage, remove the cable clamp part from the body and then gently bend and pull the cable near the clamp.

TOOTHED ABS ROTOR CHECK

Check whether the ABS rotor teeth are broken or deformed. Replace the BJ assembly of the drive shaft, or the rear hub assembly, respectively, if the teeth are damaged or deformed.
