Engine Block Heater: Service and Repair

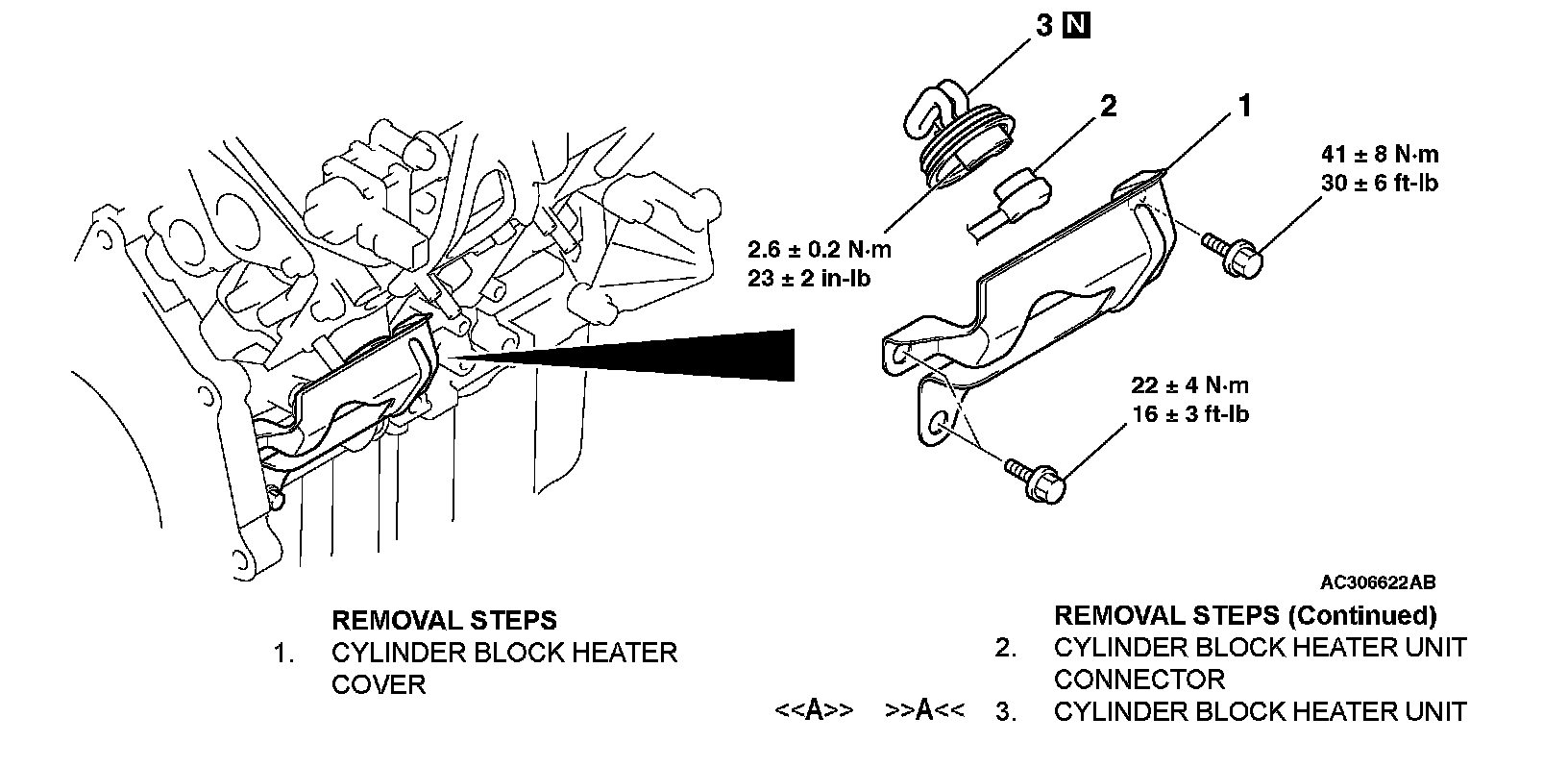

CYLINDER BLOCK HEATER UNIT

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation:








REMOVAL SERVICE POINT

[[A]] CYLINDER BLOCK HEATER UNIT REMOVAL
Remove the cylinder block heater unit by using a flat-tipped screwdriver.

INSTALLATION SERVICE POINT

]]A[[ CYLINDER BLOCK HEATER UNIT INSTALLATION





1. Install the cylinder block heater unit to the cylinder block within the range as shown.
2. Tighten the cylinder block heater unit mounting bolt to the specified torque.

Tightening torque: 2.6 ± 0.2 N-m (23 ± 2 in-lb)
