Condenser Fan: Service and Repair

CONDENSER AND CONDENSER FAN MOTOR

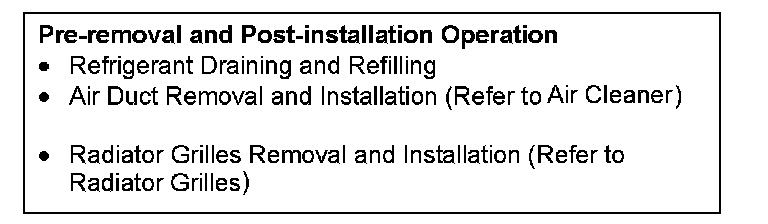

Pre-Removal And Post-Installation Operation:

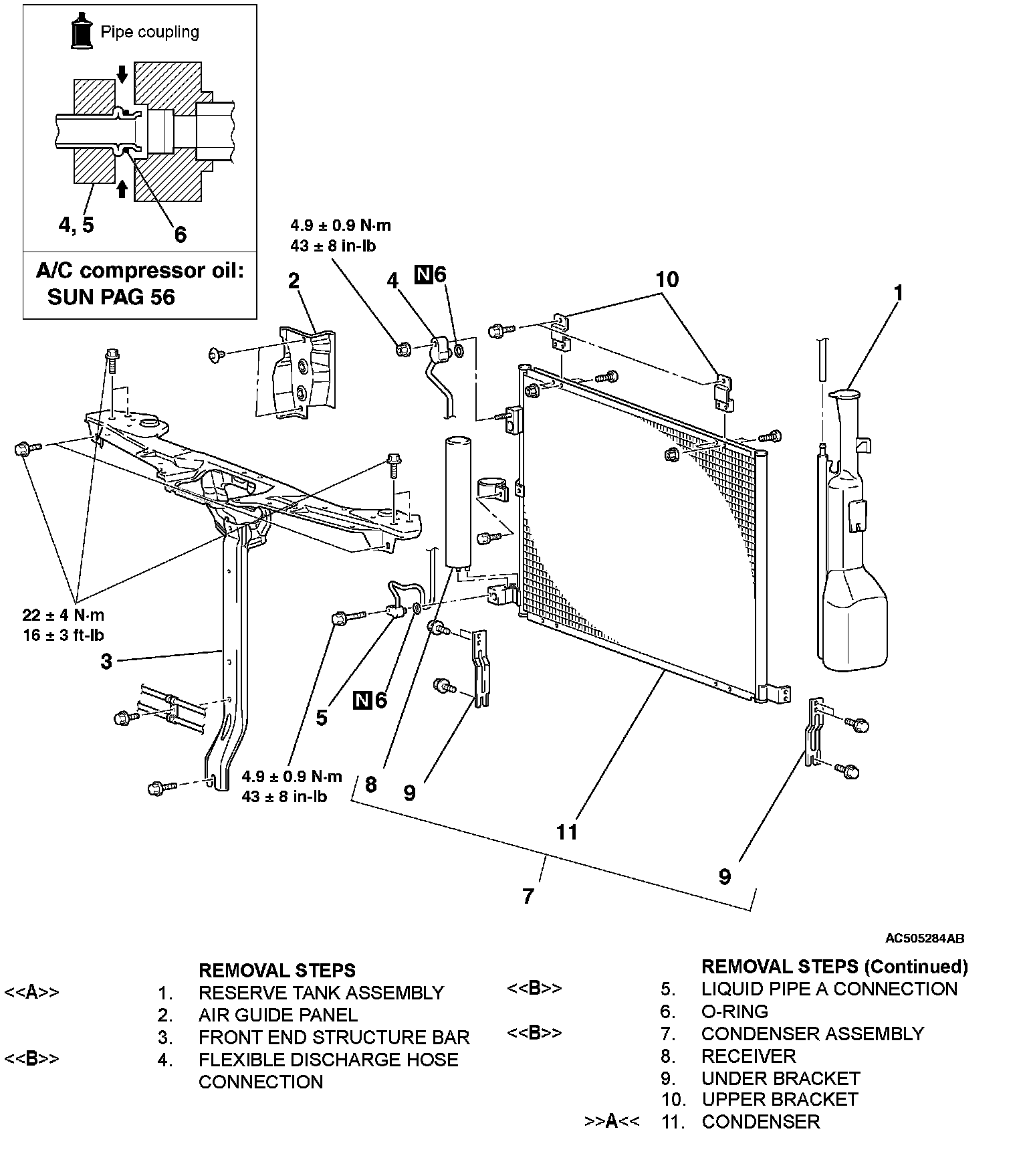

Removal Steps 1-11:




REMOVAL AND INSTALLATION

NOTE: For removal and installation of the condenser fan motor refer Engine Cooling - Radiator.

REMOVAL SERVICE POINTS

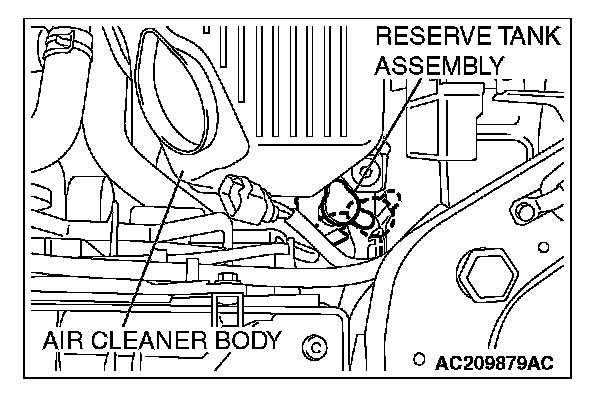

<> RESERVE TANK ASSEMBLY REMOVAL
Position the reserve tank assembly out of the way. The reserve tank assembly cannot be removed completely from the engine compartment.

<> FLEXIBLE SUCTION HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.

INSTALLATION SERVICE POINT

>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it to the vehicle.
- Compressor oil: SUN PAG 56
- Quantity: 15 cubic.cm (0.5 fl.oz)
