Removal and Replacement

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

Pre-Removal And Post-Installation Operation:

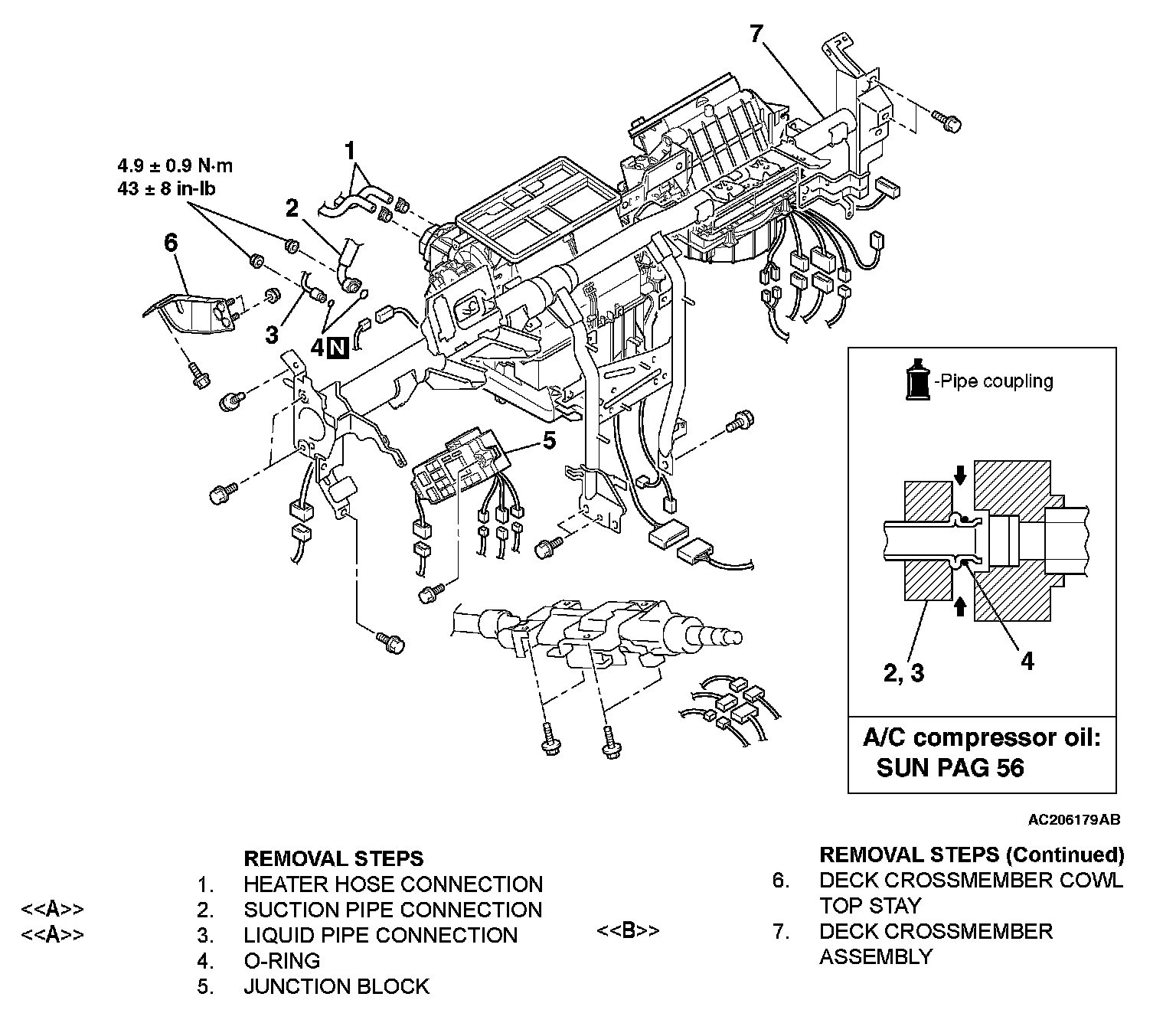

Removal Steps 1-6:




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

<> SUCTION PIPE AND LIQUID PIPE DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

<> FRONT DECK CROSSMEMBER
















ASSEMBLY REMOVAL

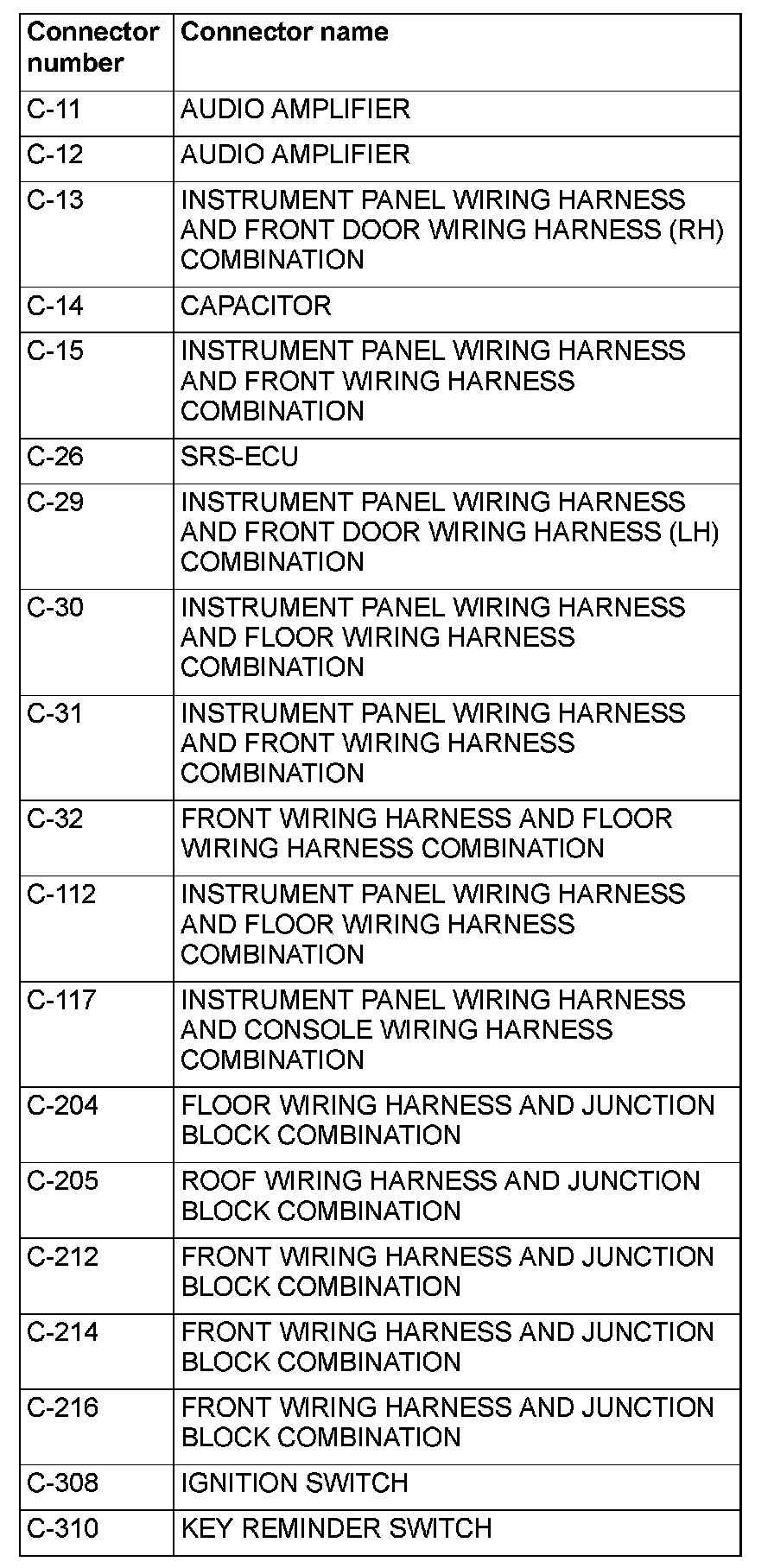

Disconnect the following connectors to gain access to the front deck crossmember.
