Part 2

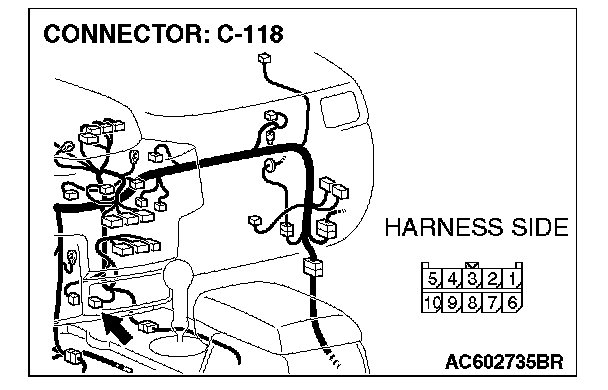

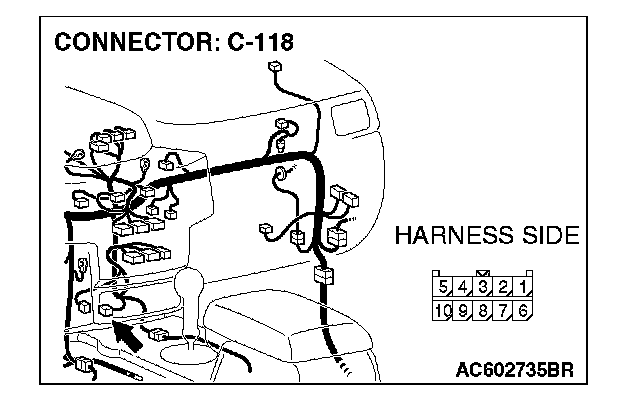

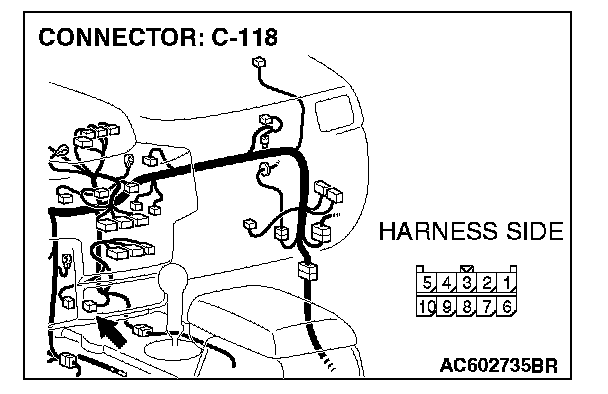

STEP 21. Check TPMS receiver connector C-118 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twisted wire should be within 10 cm (4 inches) from the connector.

Q: Is TPMS receiver connector C-118 in good condition?

YES: Go to Step 22.

NO: Repair the damaged parts.

STEP 22. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the TPMS receiver for a short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

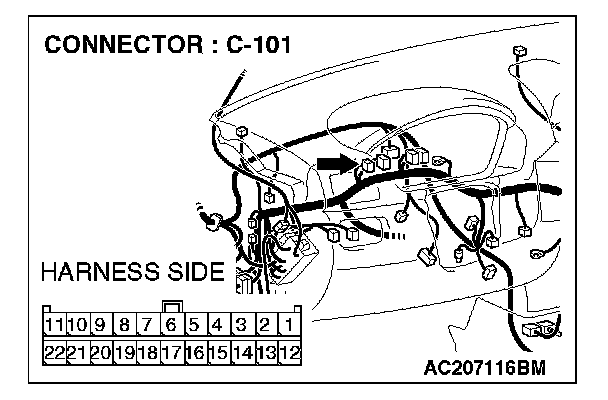

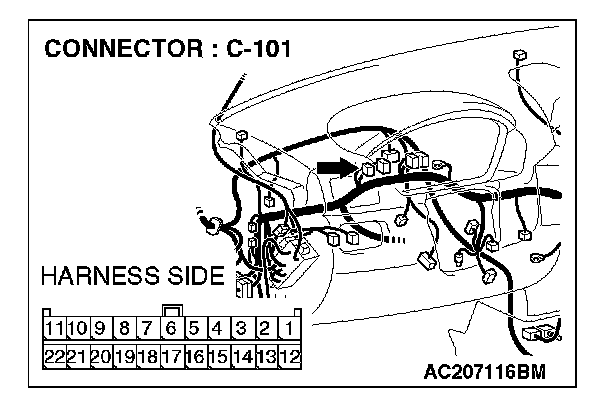

1. Disconnect joint connector (4) C-101 and TPMS receiver connector C-118, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

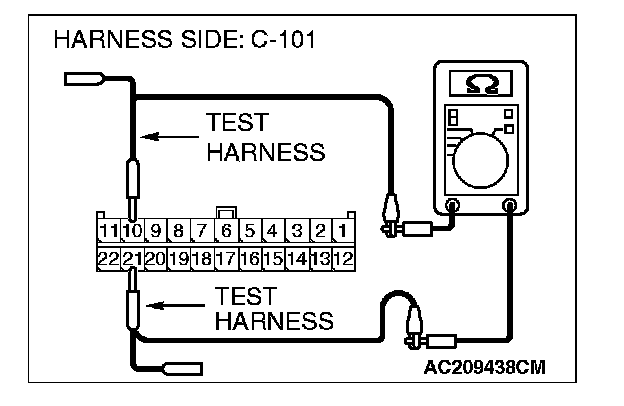

4. Measure the resistance between joint connector (4) terminals 10 and 21.

OK: 1 kohm or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohm or more?

YES: If the resistance measures 1 kohm or more, go to Step 23.

NO: If the resistance measures less than 1 kohm, repair the wiring harness between joint connector (4) and the TPMS receiver connector.

STEP 23. Check the TPMS receiver for short circuit. Measure the resistance at TPMS receiver connector C-118.

CAUTION: A digital multimeter should be used.

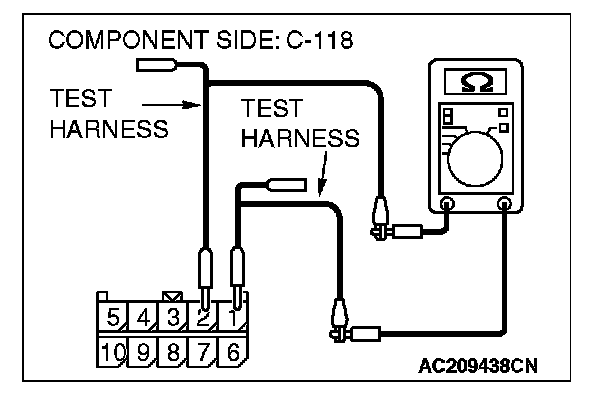

1. Disconnect TPMS receiver connector C-118, and measure the resistance at the component side of TPMS receiver connector C-118.




2. Measure the resistance between TPMS receiver connector terminals 1 and 2.

OK: 1 kohm or more

Q: Does the resistance measure 1 kohm or more?

YES: If the resistance measures 1 kohm or more, diagnose CAN bus lines thoroughly by referring to Diagnostic Item 9. Diagnostic Item 9

NO: If the resistance measures less than 1 kohm, replace the TPMS receiver.

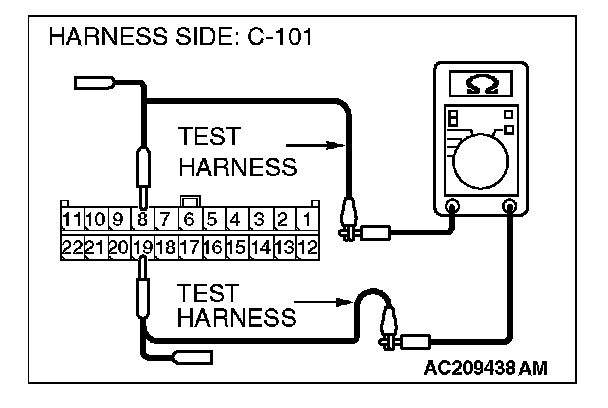

STEP 24. Check the CAN_L and H lines (communication lines including the multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) ) between joint connector (4) and the multi-center display for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

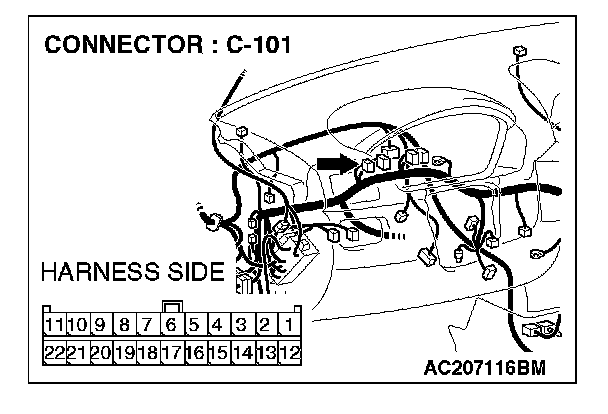

1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

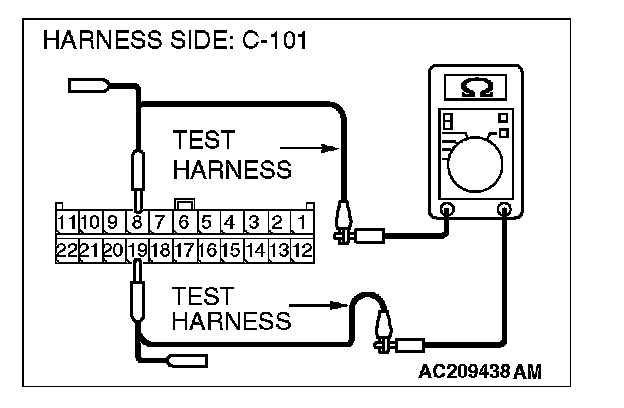

4. Measure the resistance between joint connector (4) terminals 8 and 19.

OK: 1 kohm or more

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Go to Step 28.

NO: less than 1 kohm> Go to Step 25.

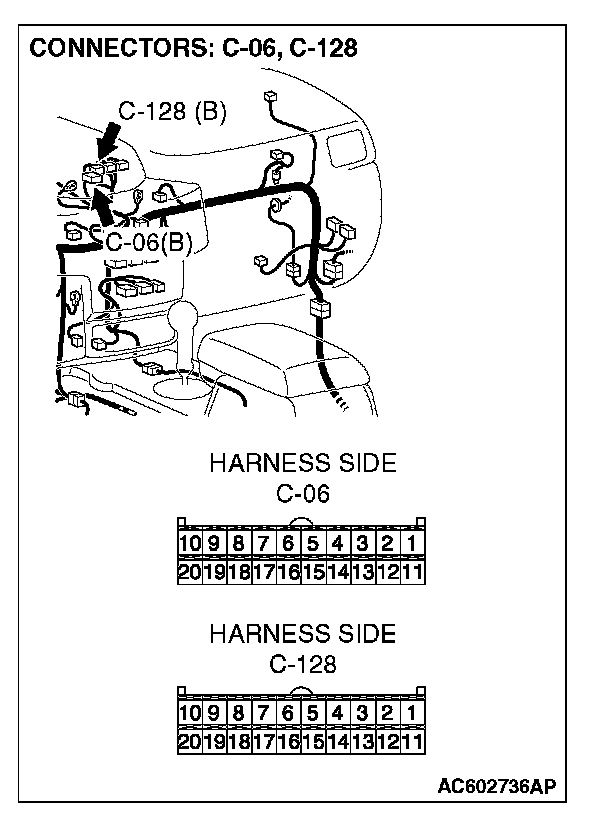

STEP 25. Check multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) connector C-06 or C-128 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) connector C-06 or C-128 in good condition?

YES: Go to Step 26.

NO: Repair the damaged parts.

STEP 26. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.







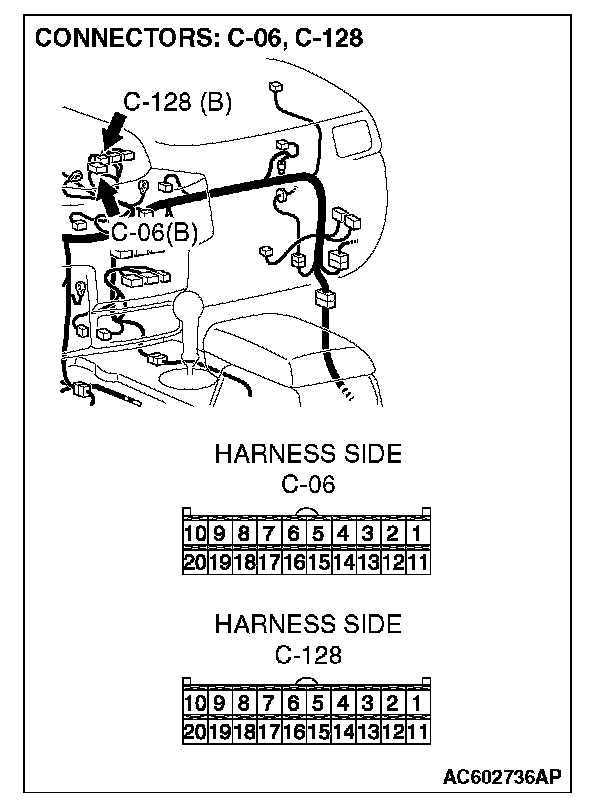

1. Disconnect joint connector (4) C-101 and multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) connector C-06 or C-128 , and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.




4. Measure the resistance between joint connector (4) terminals 8 and 19.

OK: 1 kohm or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Go to Step 27.

NO: less than 1 kohm> Repair the wiring harness between joint connector (4) and multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) connector.

STEP 27. Check the multi-center display unit(middle-grade type) for short circuit. Measure the resistance at multi-center display unit (middle-grade type) connector C-06.

CAUTION: A digital multimeter should be used.




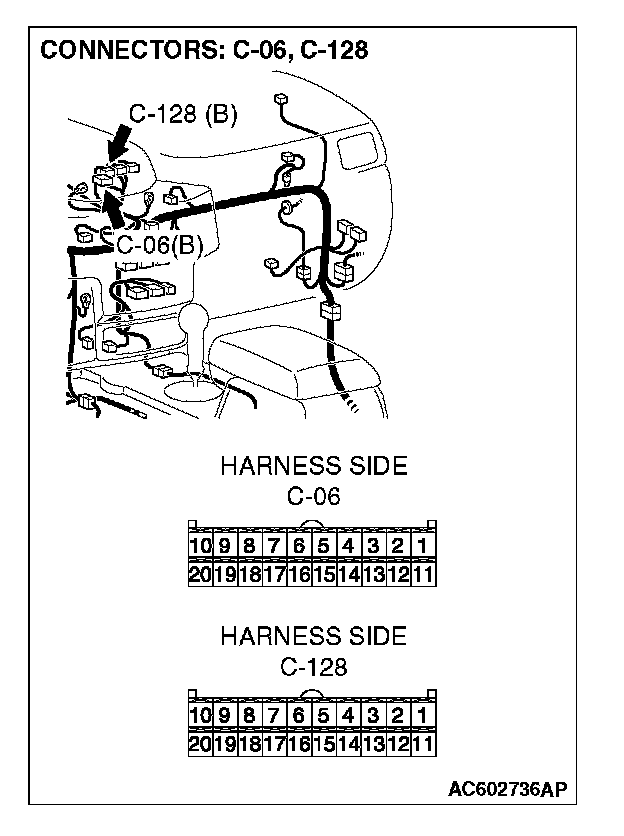

1. Disconnect multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system) connector C-06 or C-128 , and measure the resistance at the equipment side of multi-center display unit(middle-grade type or vehicles with Mitsubishi multicommunication system) connector C-06 or C-128 .







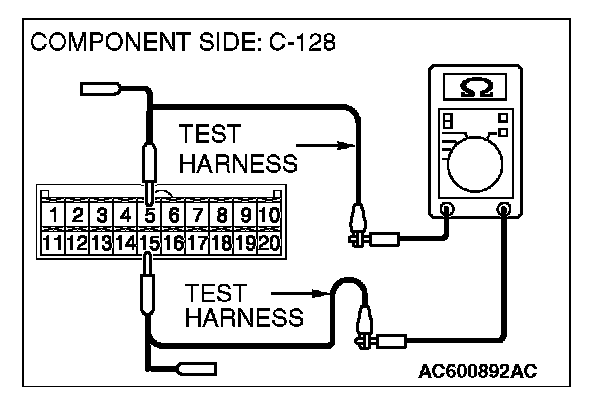

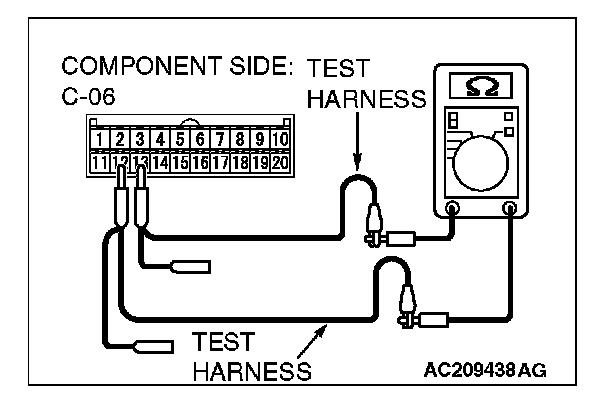

2. Measure the resistance between the multi-center display unit (middle-grade type or vehicles with Mitsubishi multicommunication system) connector terminals 12 and 13 or terminals 5 and 15 .

OK: 1 kohm or more

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 18. Diagnostic Item 18

NO: lower than 1 kohm> Replace the multi-center display unit (middle-grade type or vehicles with Mitsubishi multi communication system).

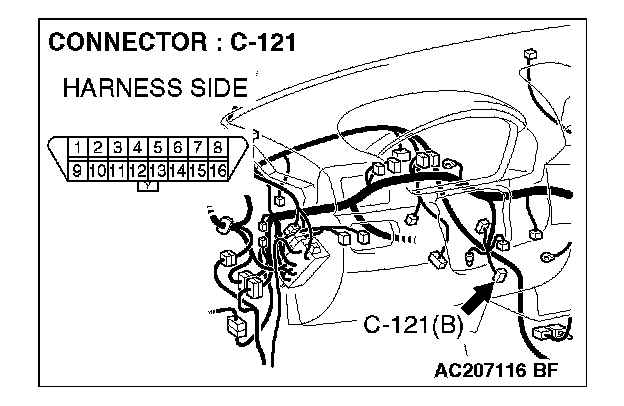

STEP 28. Check data link connector C-121 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is data link connector C-121 in good condition?

YES: Go to Step 29.

NO: Repair the damaged parts.

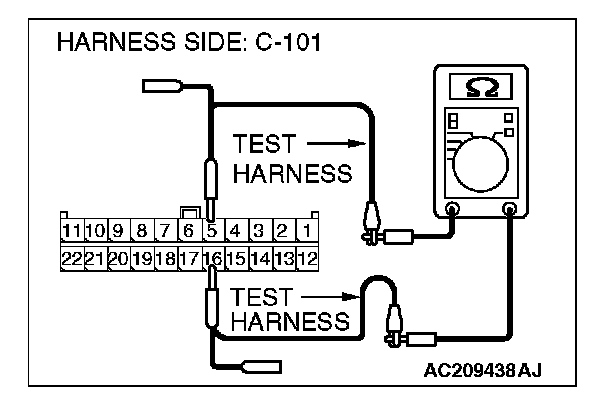

STEP 29. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the data link connector for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.




1. Disconnect joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.




4. Measure the resistance between joint connector (4) terminals 5 and 16.

OK: 1 kohm or more

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Go to Step 30.

NO: less than 1 kohm> Repair the wiring harness between joint connector (4) and the data link connector.

STEP 30. Check the CAN_L and H lines (communication lines only) between joint connector (4) and the intermediate connector for short circuit. Measure the resistance at joint connector (4) C-101.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.

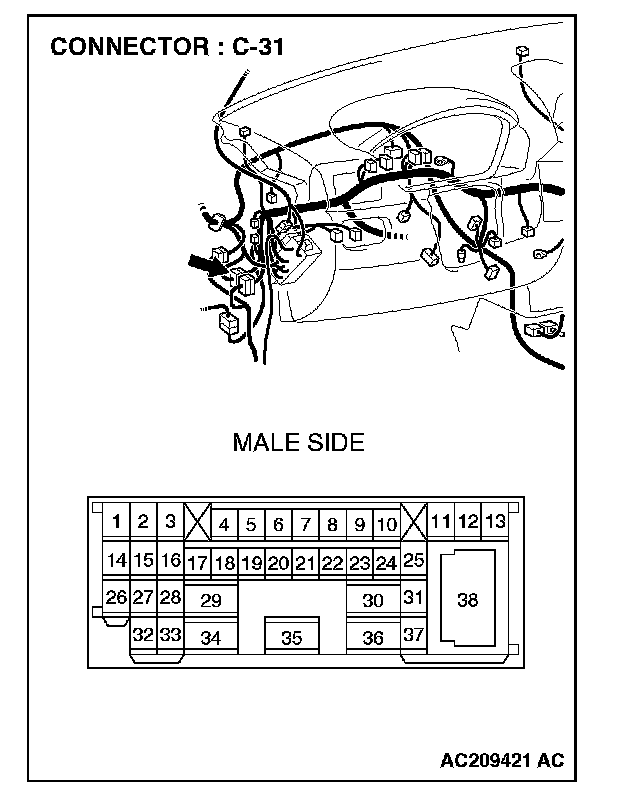

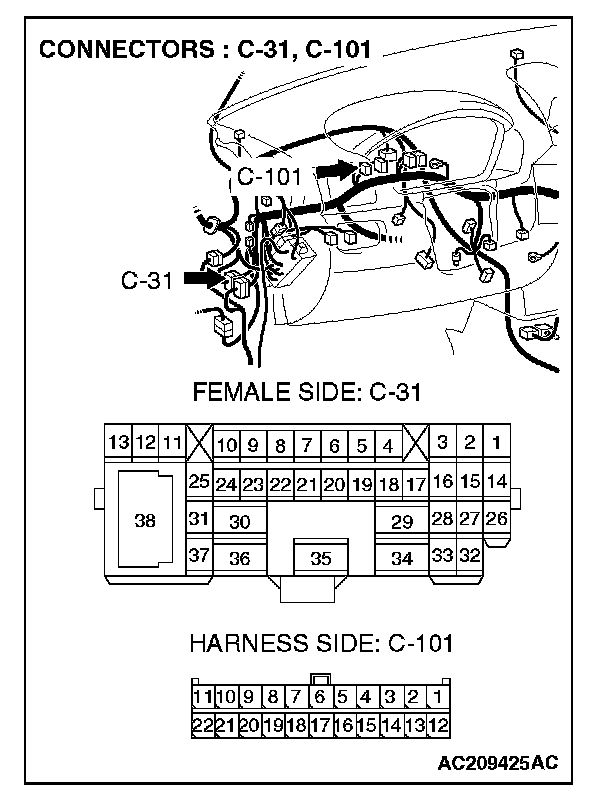

1. Disconnect intermediate connector C-31 and joint connector (4) C-101, and measure the resistance at the wiring harness side of joint connector (4) C-101.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

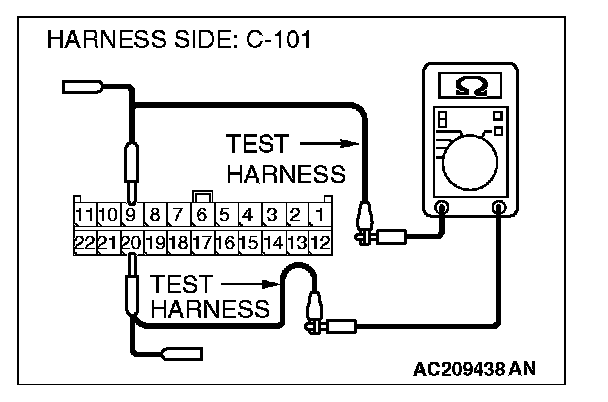

4. Measure the resistance between joint connector (4) terminals 9 and 20.

OK: 1 kohm or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 18. Diagnostic Item 18

NO: less than 1 kohm> Repair the wiring harness between intermediate connector C-31and joint connector (4).

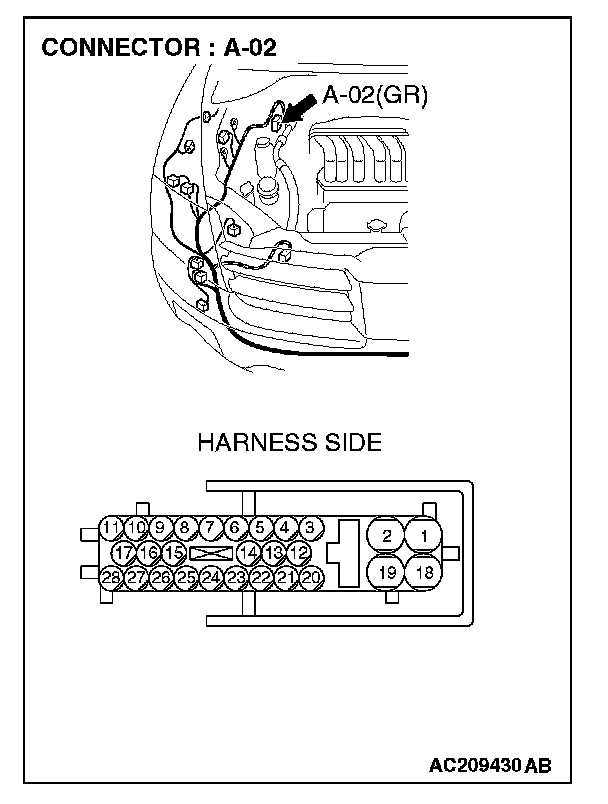

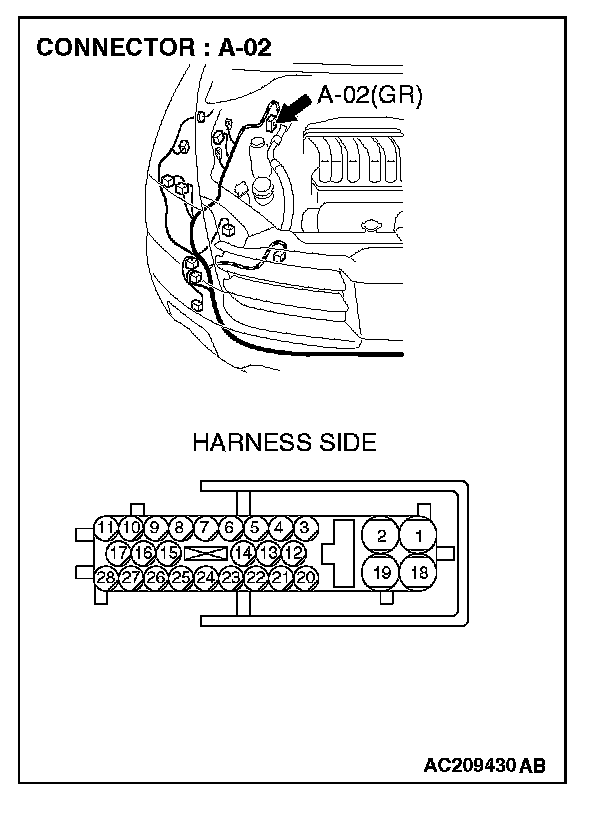

STEP 31. Check ABS/TCL-ECU connector A-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is ABS/TCL-ECU connector A-02 in good condition?

YES: Go to Step 32.

NO: Repair the damaged parts.

STEP 32. Check the CAN_L and H lines (communication lines only) between the ABS/TCL-ECU connector and the intermediate connector for short circuit. Measure the resistance at intermediate connector C-31.






CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.




1. Disconnect intermediate connector C-31 and ABS/TCL-ECU connector A-02, and measure the resistance at the male side of intermediate connector C-31(at front wiring harness side).
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

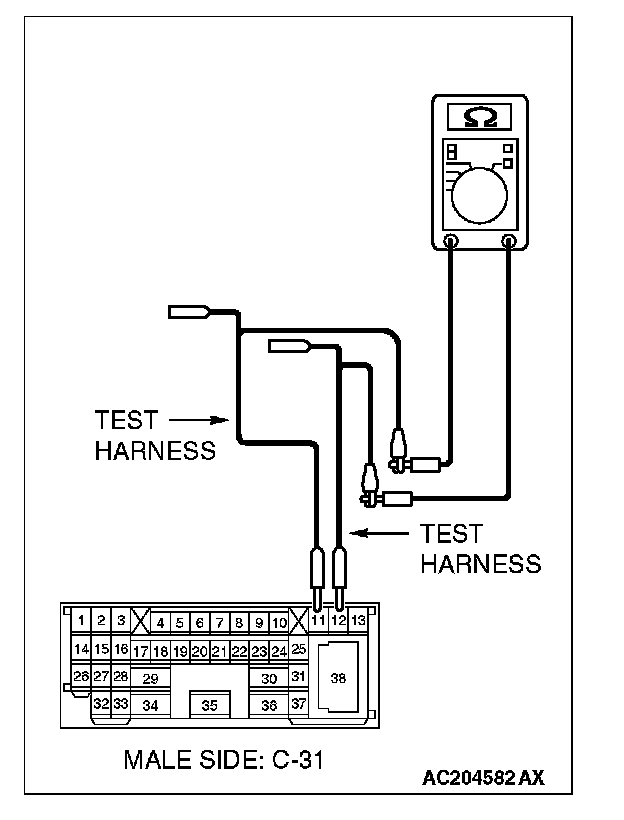

4. Measure the resistance between intermediate connector C-31 terminals 11 and 12.

OK: 1 kohm or more

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Go to Step 33.

NO: less than 1 kohm> Repair the wiring harness between intermediate connector C-31 and ABS/TCL-ECU connector.

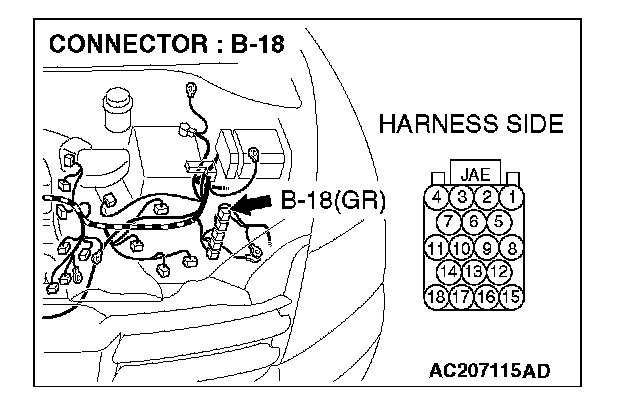

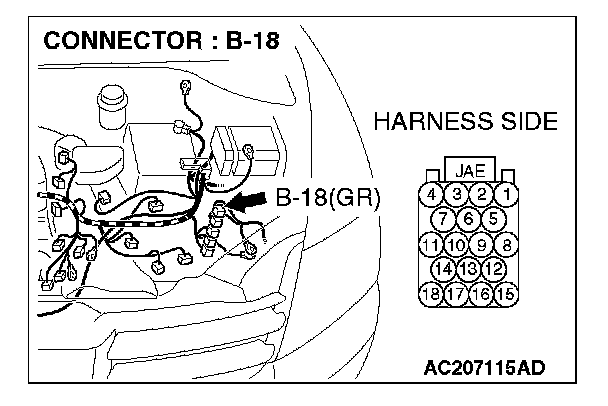

STEP 33. Check powertrain control module connector B-18 for loose, corroded or damaged terminals, or terminals pushed back in the connector.






CAUTION: The strand end of the twist wire should be within 10 cm (4 inches) from the connector.

Q: Is powertrain control module connector B-18 in good condition?

YES: Go to Step 34.

NO: Repair the damaged parts.

STEP 34. Check the CAN_L and H lines (communication lines only) between the powertrain control module connector and the ABS/TCL-ECU connector for short circuit. Measure the resistance at powertrain control module connector B-18.

CAUTION:
- A digital multimeter should be used.
- The test wiring harness should be used.







1. Disconnect powertrain control module connector B-18 and ABS/TCL-ECU connector A-02, and measure the resistance at the harness side of powertrain control module connector B-18.
2. Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION: Disconnect the negative battery terminal.

3. Disconnect the negative battery terminal.

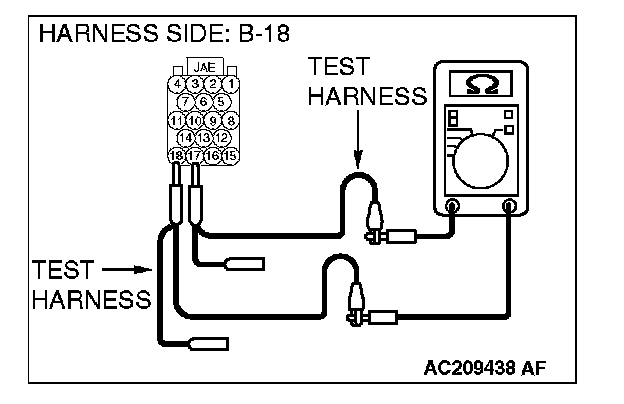

4. Measure the resistance between powertrain control module connector terminals 17 and 18.

OK: 1 kohm or more

CAUTION: Strictly observe the specified wiring harness repair procedure.

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Go to Step 35.

NO: less than 1 kohm> Repair the wiring harness between powertrain control module connector and ABS/TCL-ECU connector.

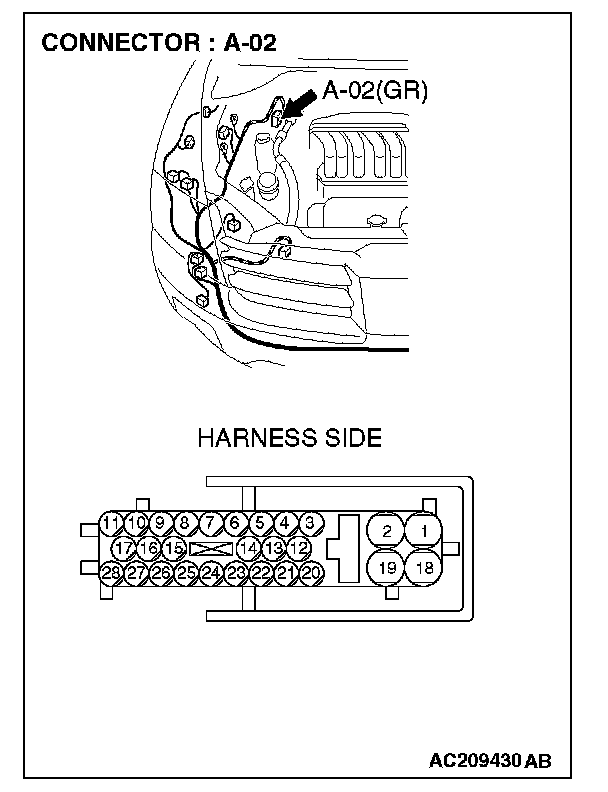

STEP 35. Check the ABS/TCL-ECU for short circuit. Measure the resistance at ABS/TCL-ECU connector A-02.

CAUTION: A digital multimeter should be used.

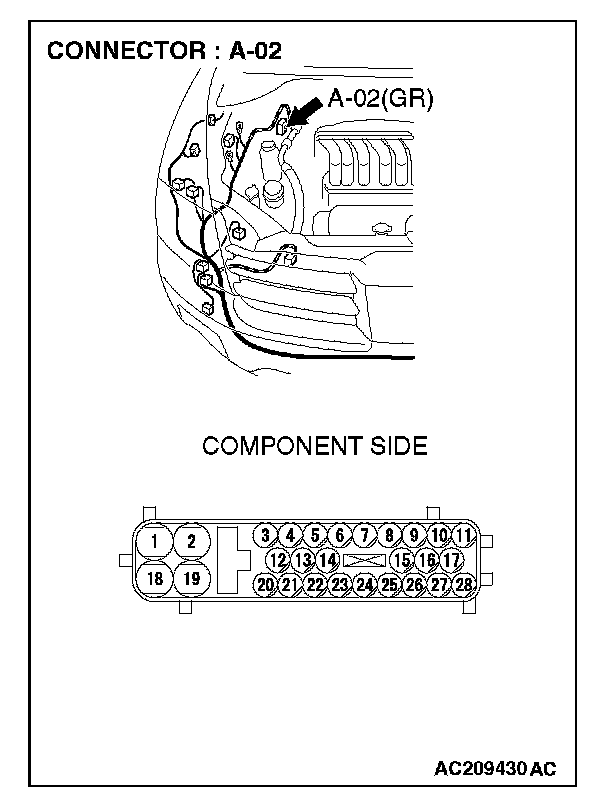

1. Disconnect ABS/TCL-ECU connector A-02, and measure the resistance at the equipment side of ABS/TCL-ECU connector A-02.

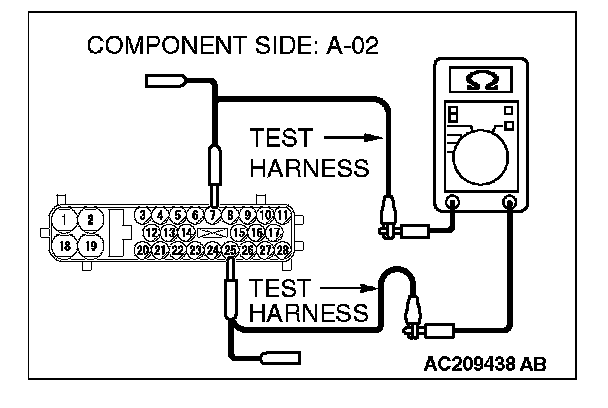

2. Measure the resistance between ABS/TCL-ECU connector terminals 7 and 25.

OK: 1 kohm or more

Q: Does the resistance measure 1 kohm or more?

YES: 1 kohm or more> Go to Step 36.

NO: less than 1 kohm> Replace the ABS/TCL-ECU.

STEP 36. Check the powertrain control module for short circuit. Measure the resistance at powertrain control module connector B-18.

CAUTION: A digital multimeter should be used.

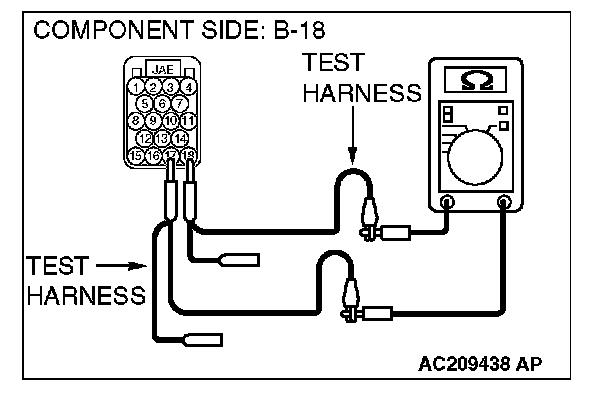

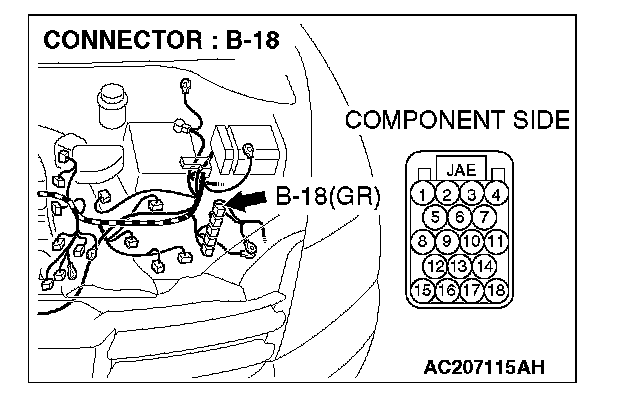

1. Disconnect powertrain control module connector B-18, and measure the resistance at the equipment side of powertrain control module connector B-18.




2. Measure the resistance between powertrain control module connector terminals 17 and 18.

OK: 120 ± 20 ohms

Q: Does the resistance measure 120 ± 20 ohms?

YES: 120 ± 20 ohms> Diagnose CAN bus lines thoroughly by referring to Diagnostic Item 18. Diagnostic Item 18

NO: 120 ± 20 ohms> Replace the powertrain control module.
