Oil Pan, Engine
Upper
Oil Pan Bolts
9.0 ± 3.0 Nm (76 ± 31 in-lb)

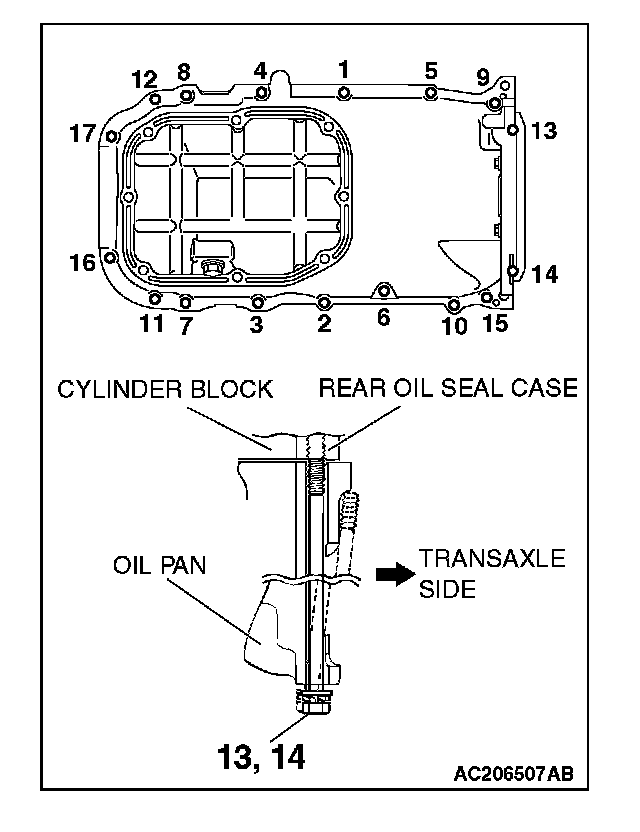

CAUTION: The bolt holes for bolts 13 and 14 in the illustration are cut away on the transaxle side. Be careful not to insert these bolts at an angle.
Upper
oil pan to torque converter bolt
35 ± 6 Nm (26 ± 4 ft-lb)

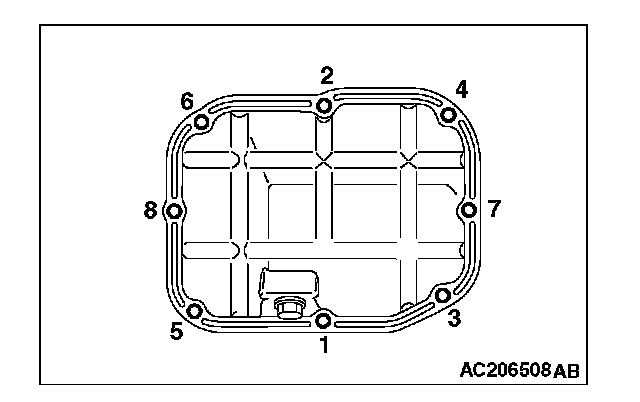

Lower
oil pan bolts
11 ± 1 Nm (97 ± 9 in-lb)
