Instruments - Center Display DTC Addition

No: TSB-09-54-005

DATE: February, 2009

MODEL: 2004-08 Endeavor

SUBJECT:
DIAGNOSTIC TROUBLE CODES FOR CENTER DISPLAY ADDED - SERVICE MANUAL REVISION

PURPOSE

The diagnostic trouble codes for the multi-center display were omitted in the applicable Service Manuals. This Service Bulletin contains the added codes and related descriptions.

AFFECTED VEHICLE(S)
2004-2008 Endeavor

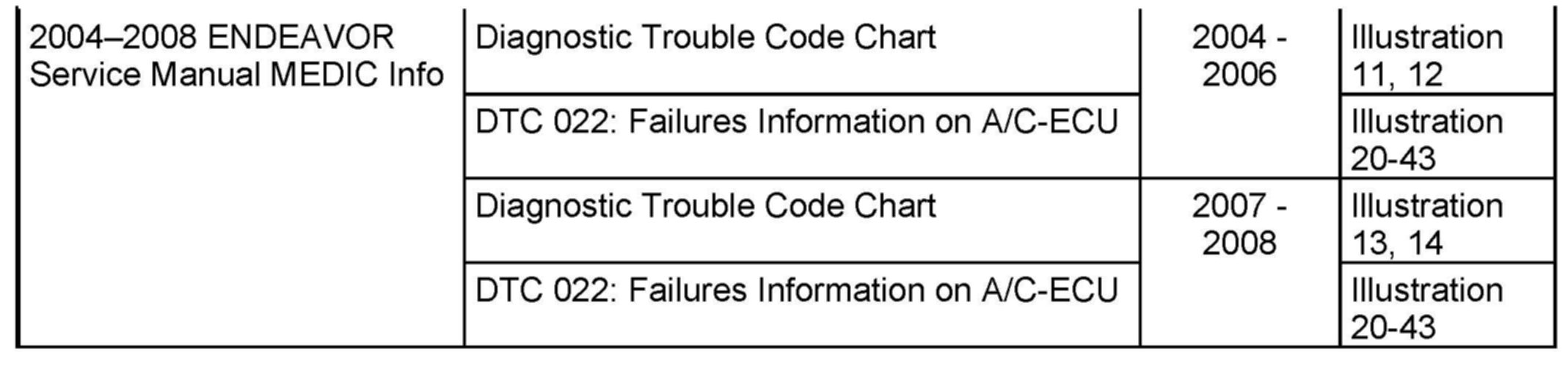

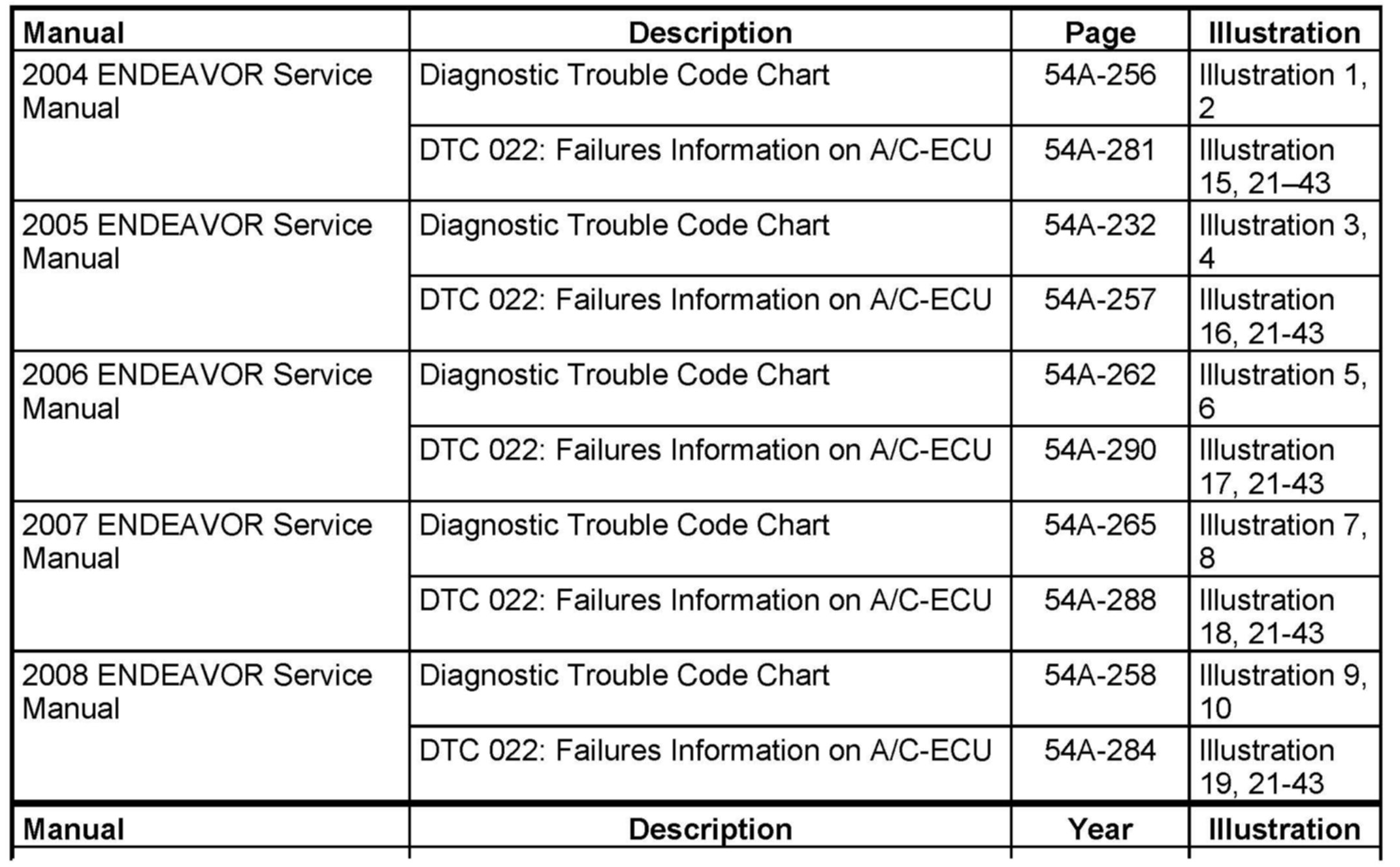

APPLICABLE MANUAL(S)

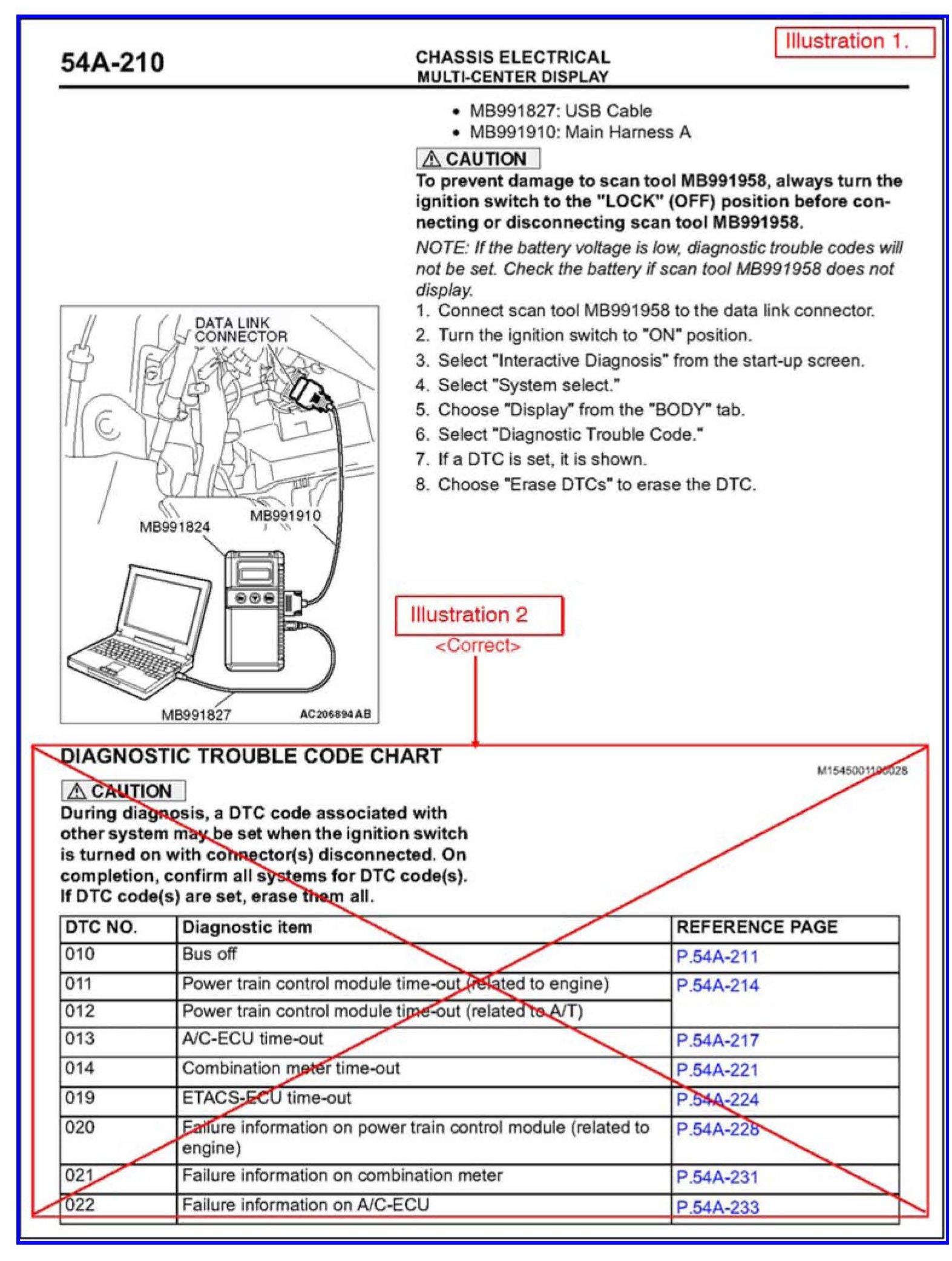

Illustration 1 - Page 54A-210

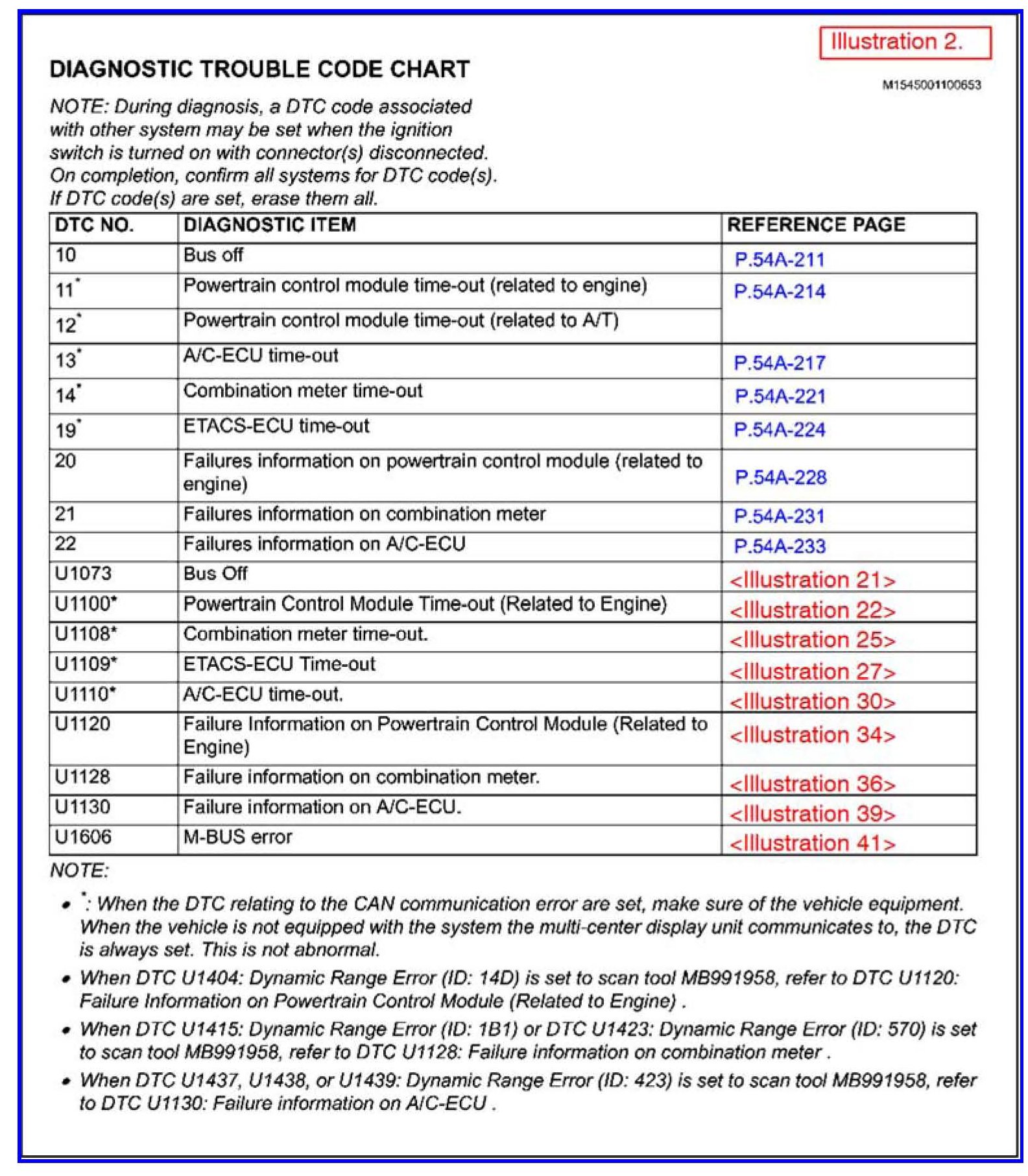

Illustration 2

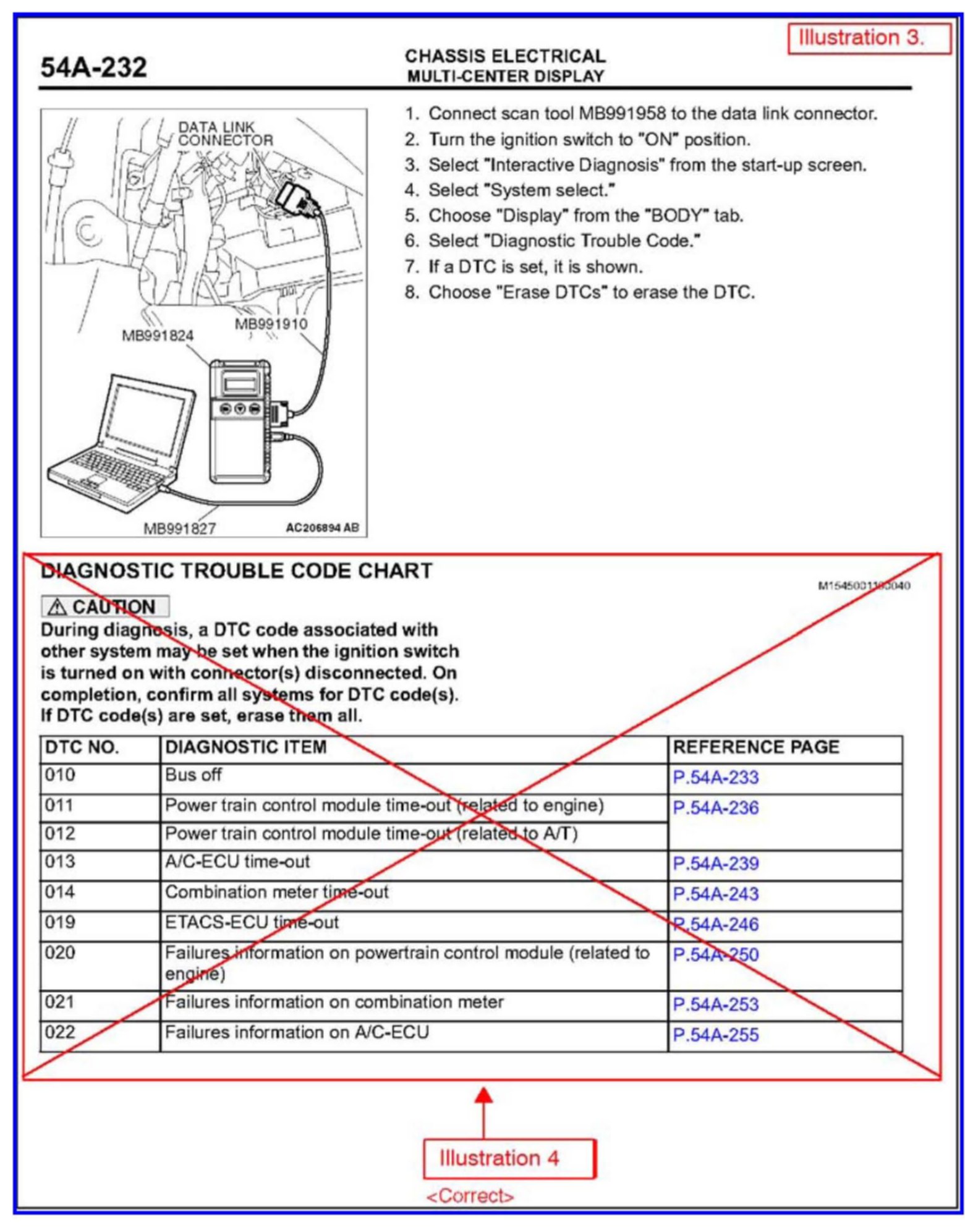

Illustration 3 Page 54A-232

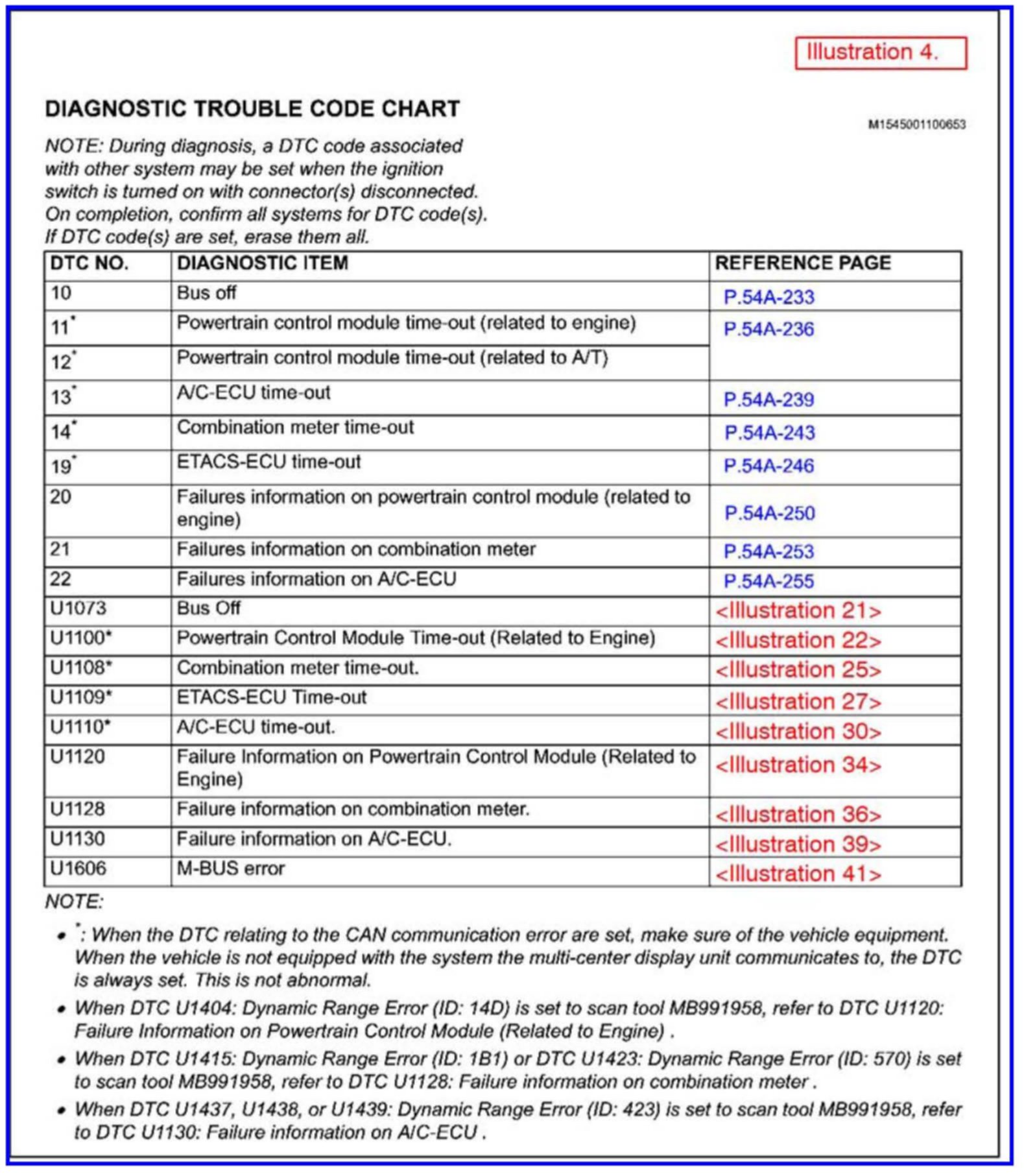

Illustration 4

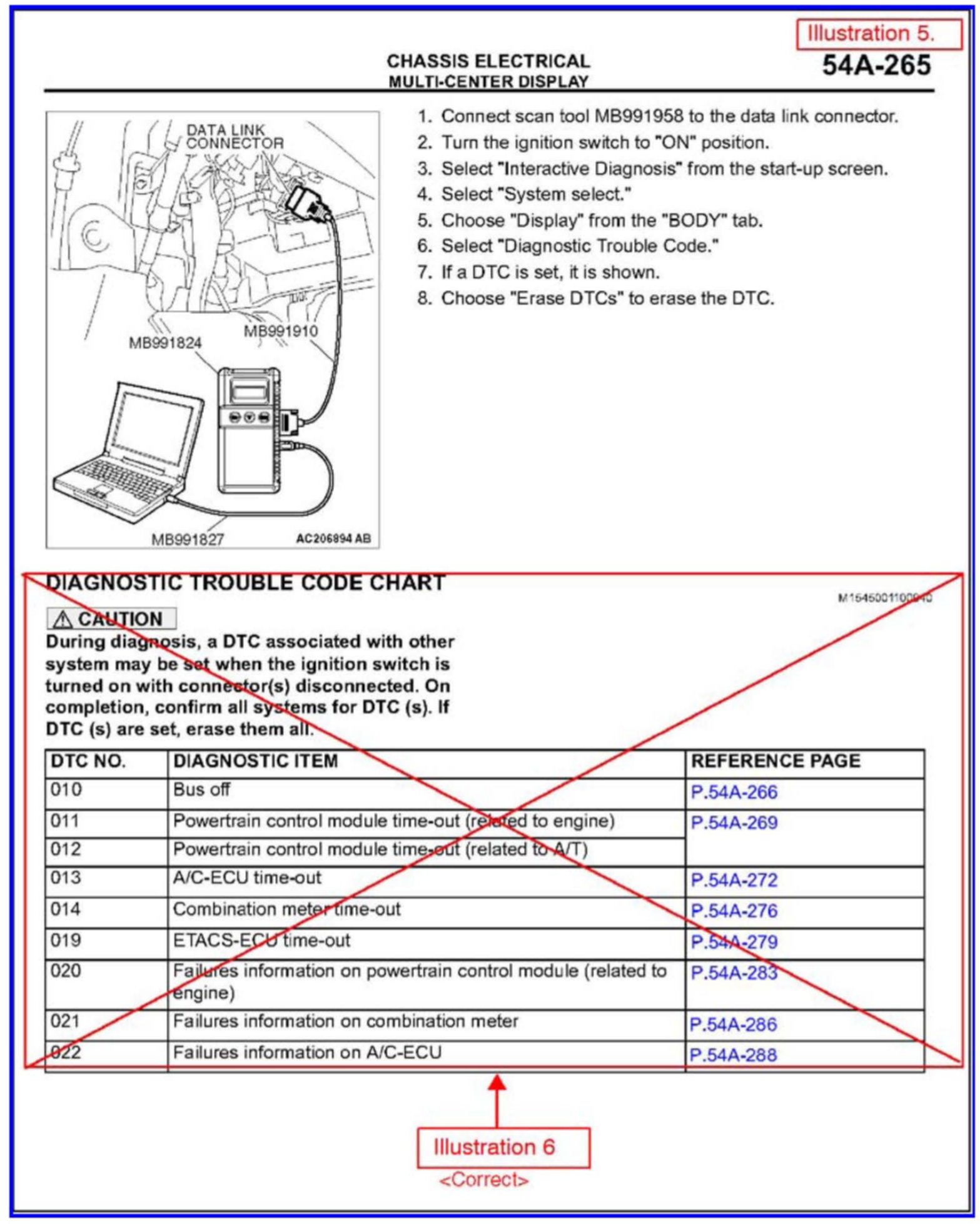

Illustration 5 - Page 54A-265

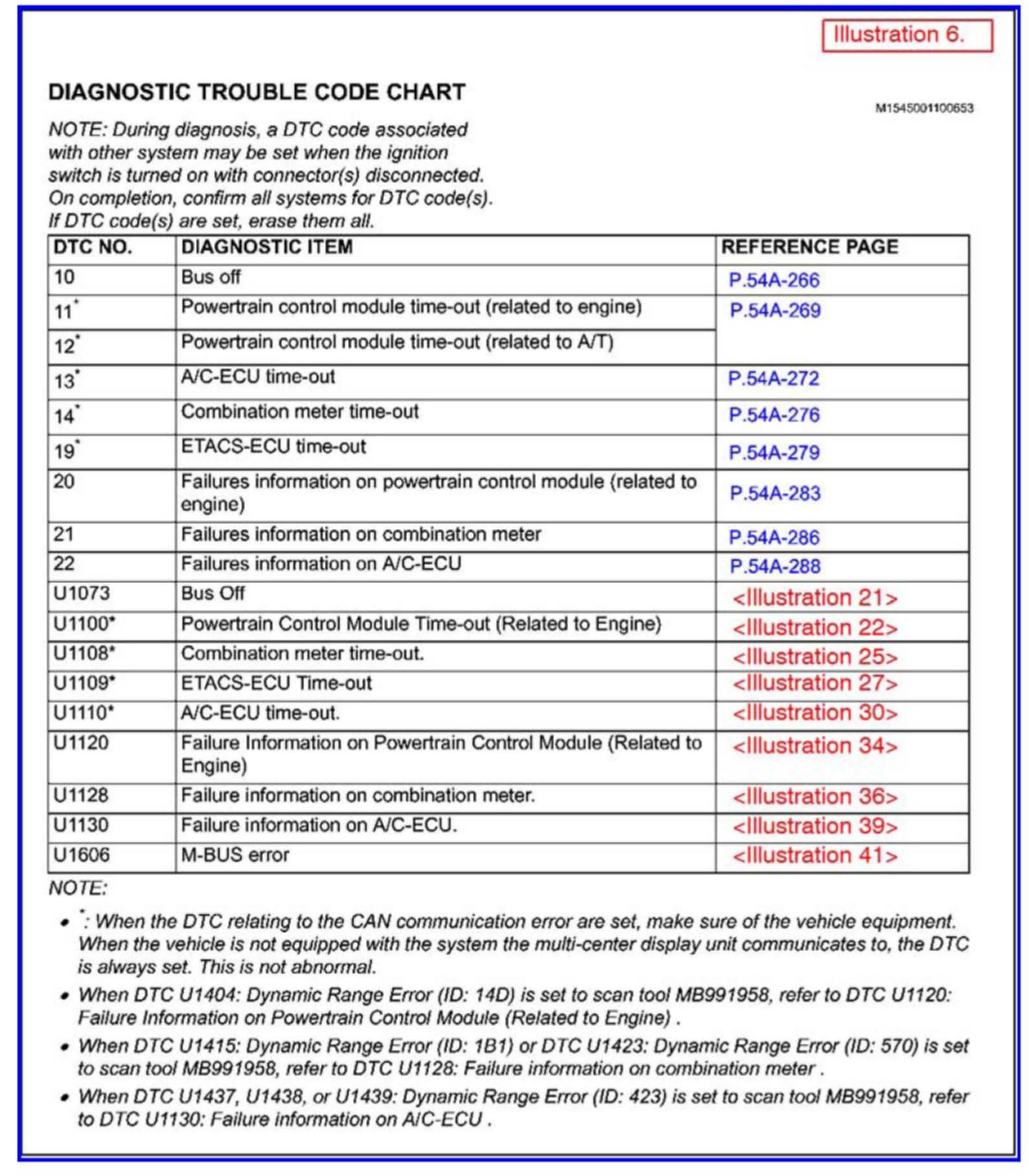

Illustration 6

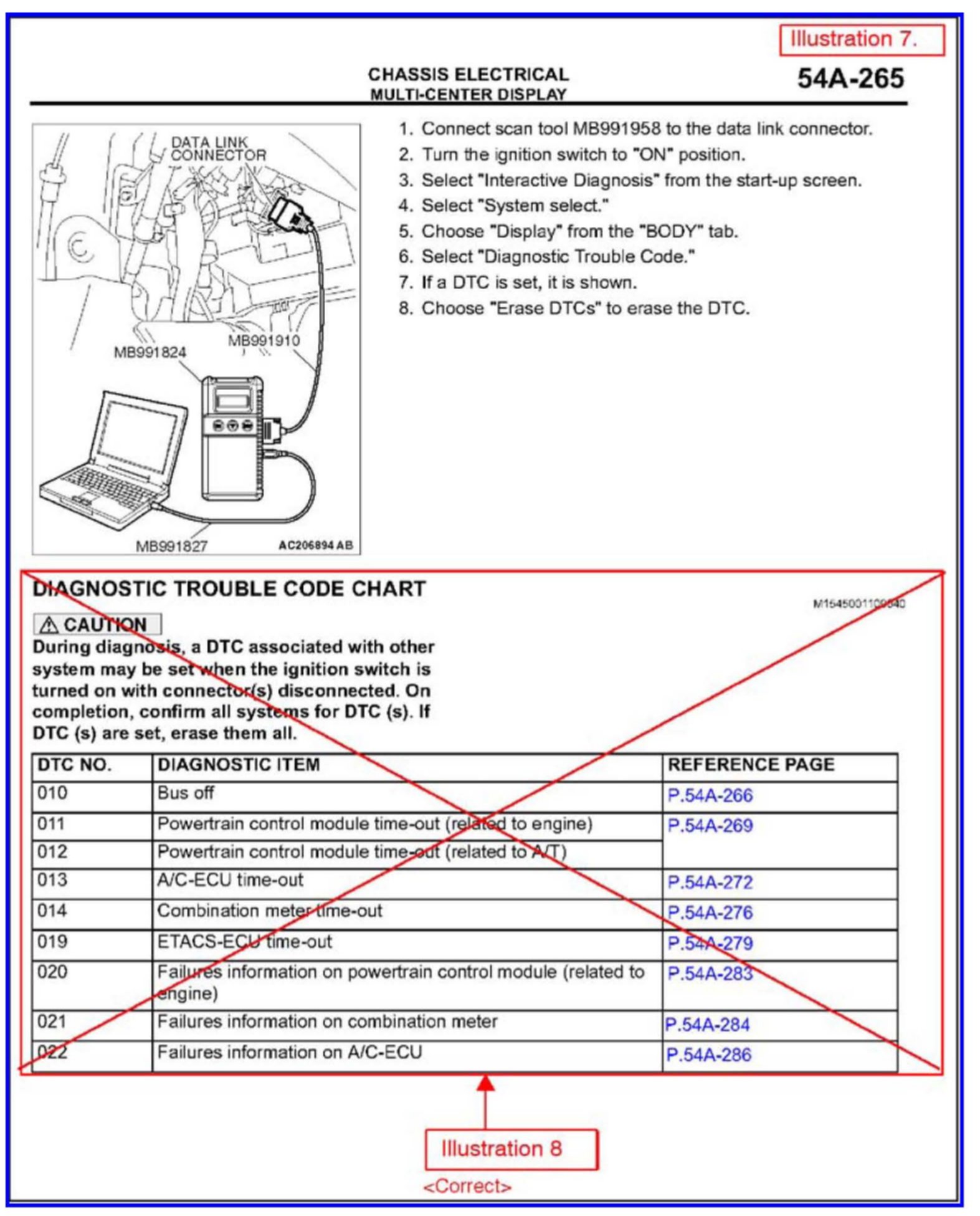

Illustration 7 - Page 54A-265

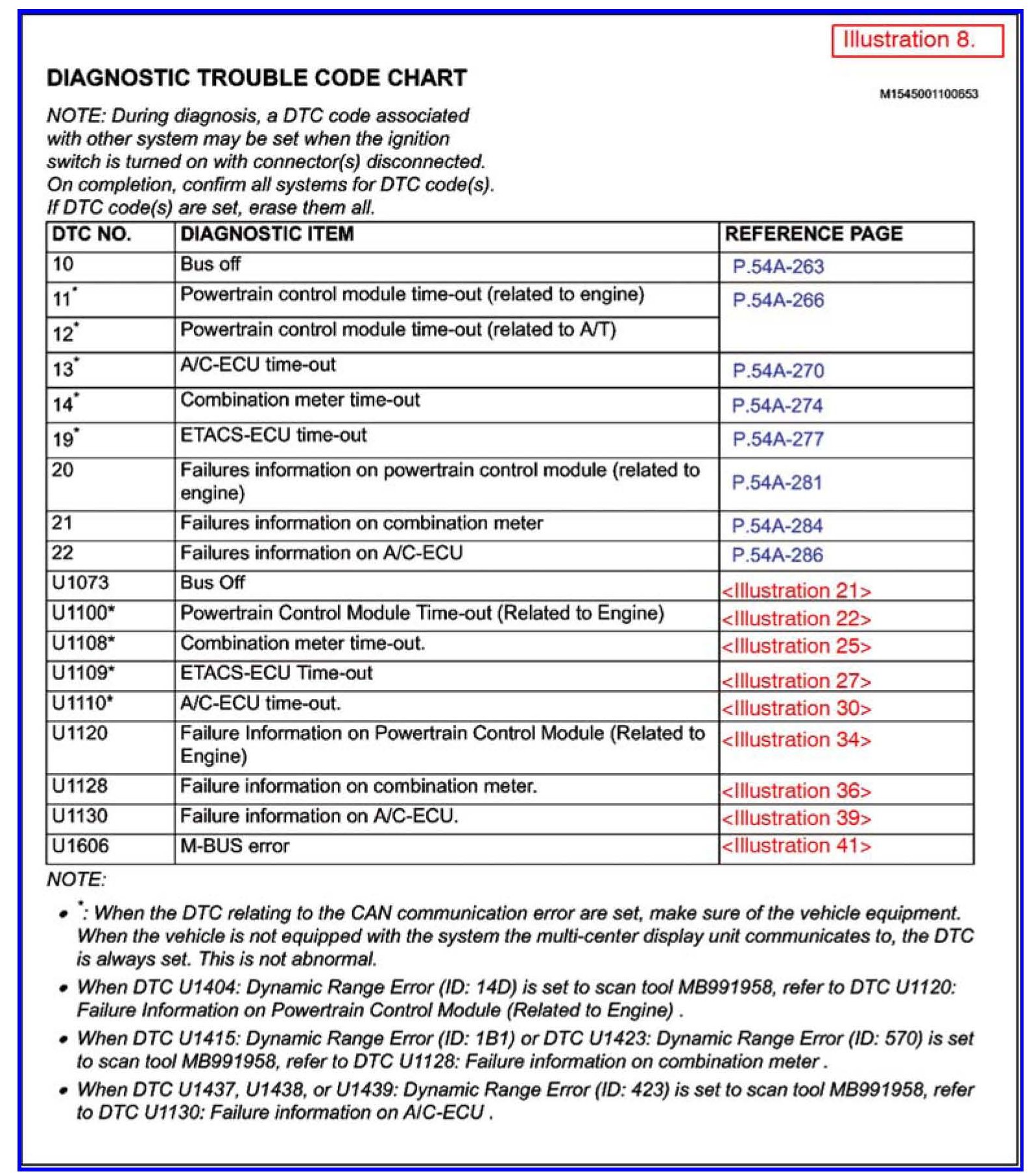

Illustration 8

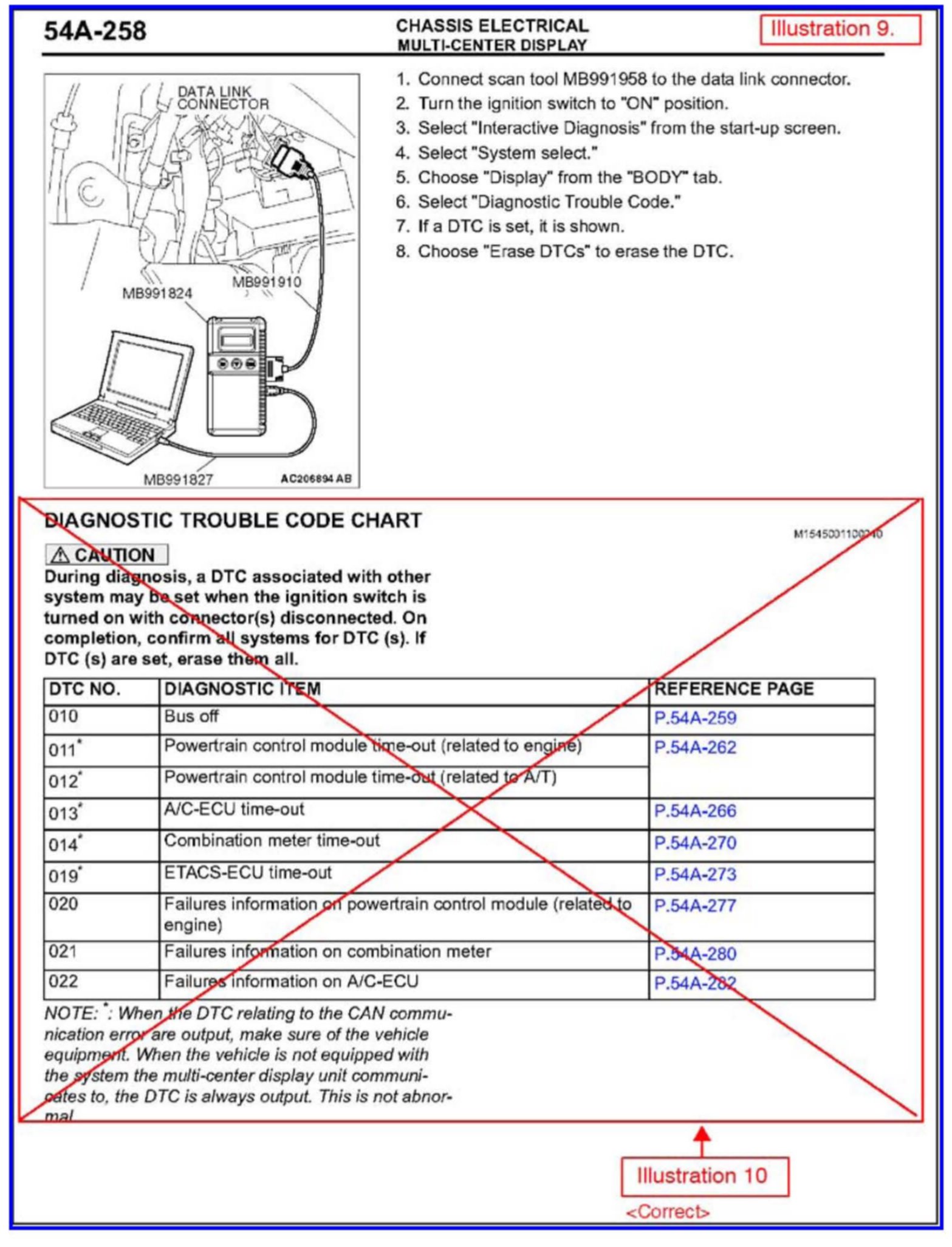

Illustration 9 - Page 54A-258

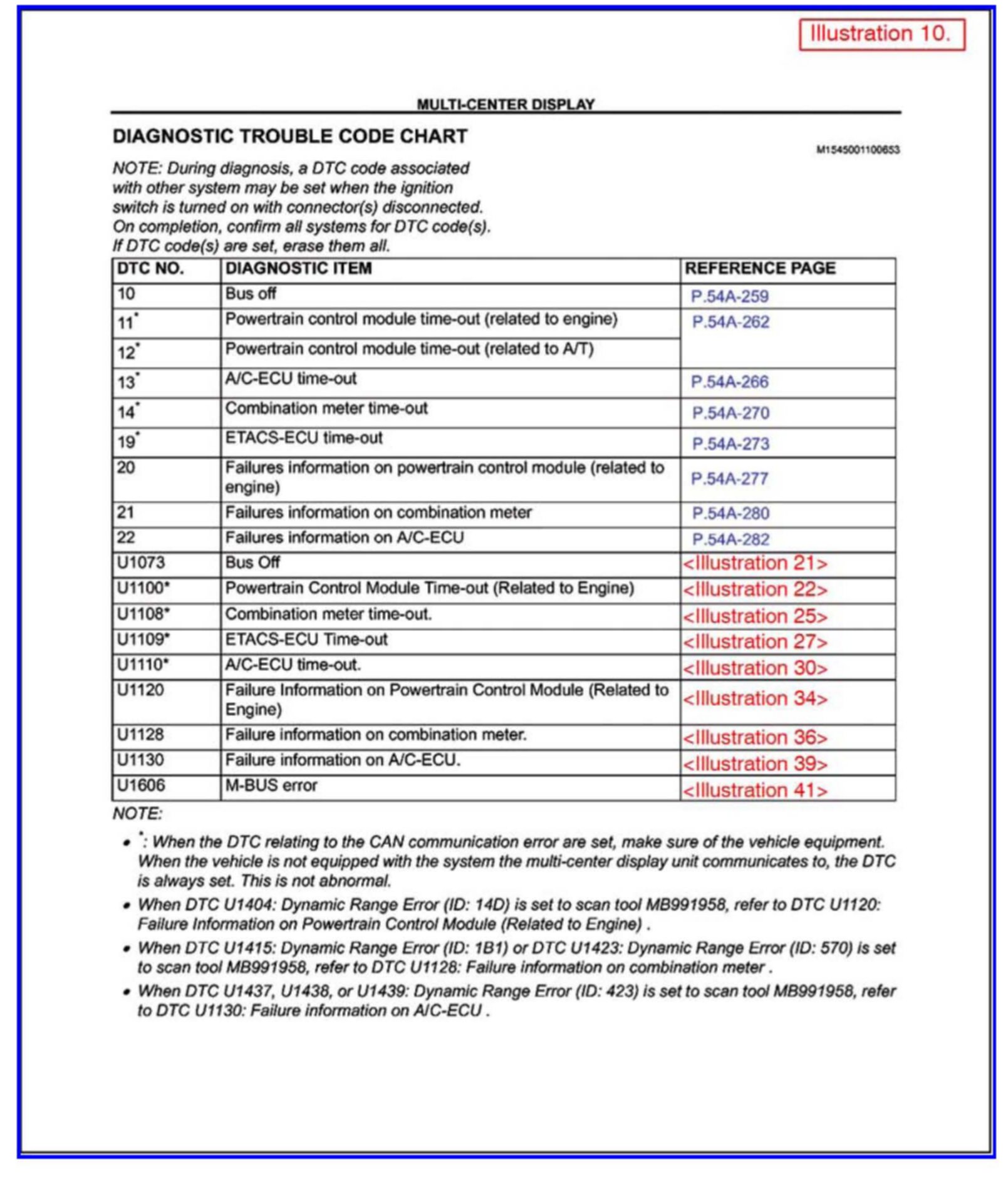

Illustration 10

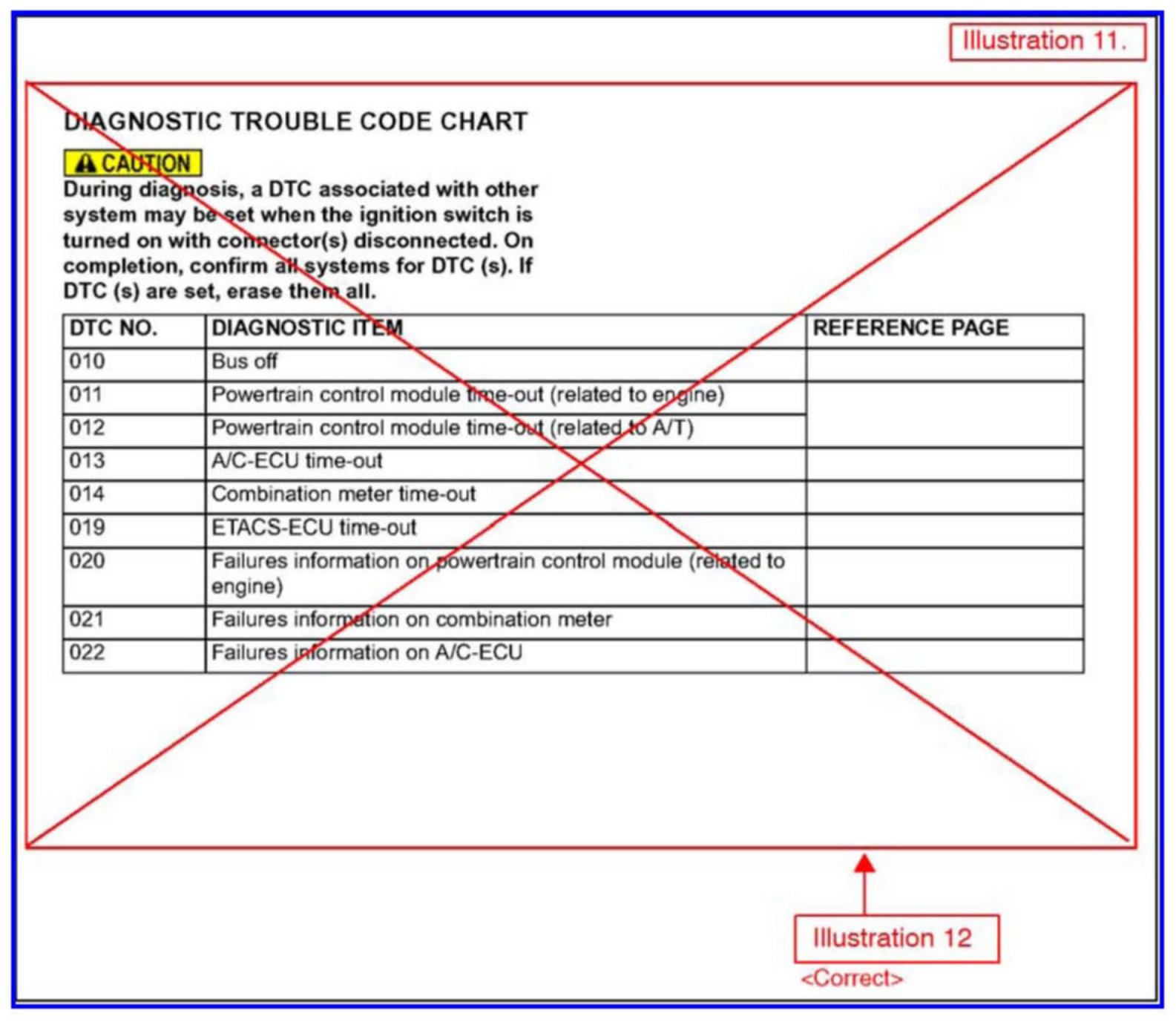

Illustration 11

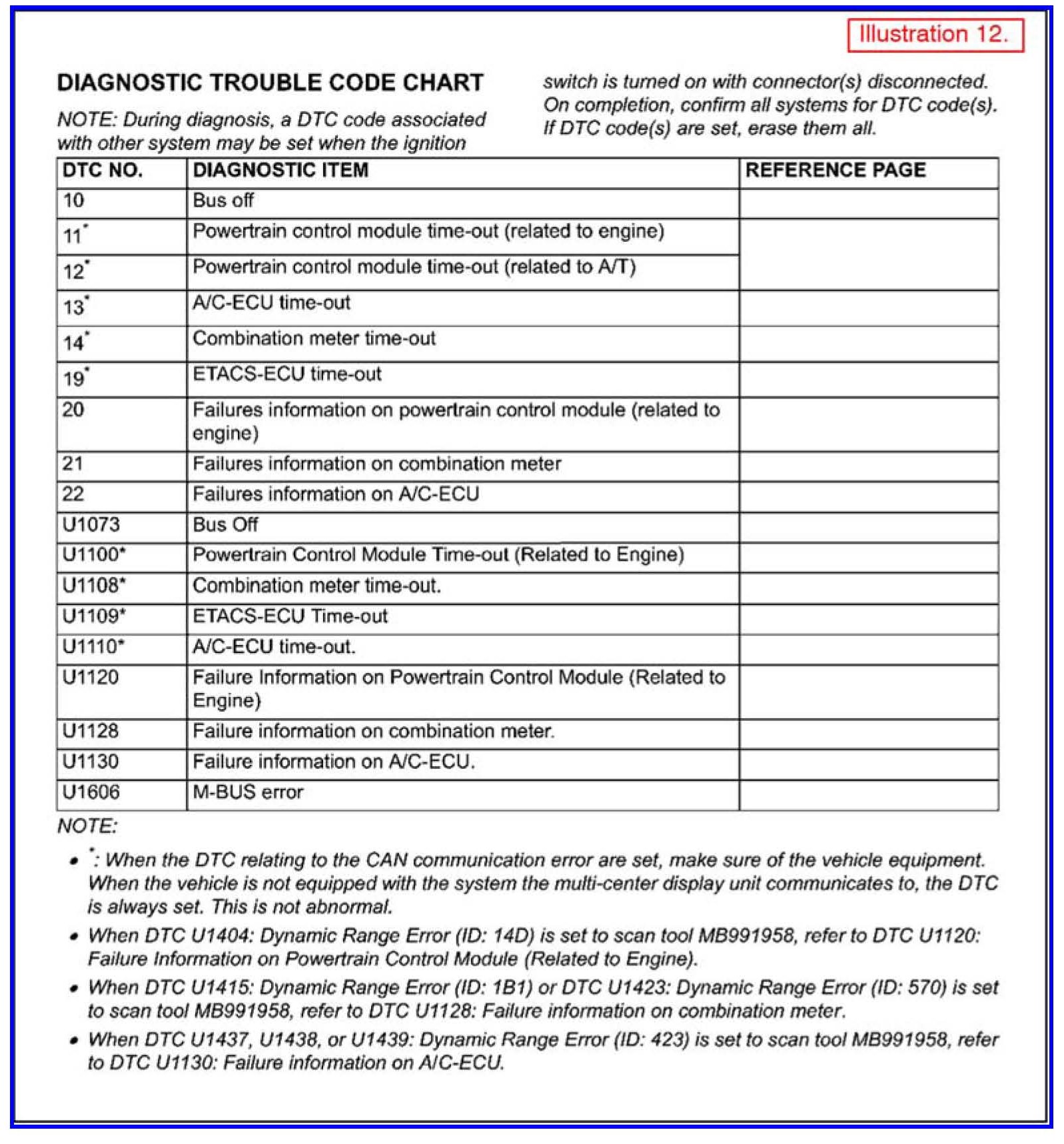

Illustration 12

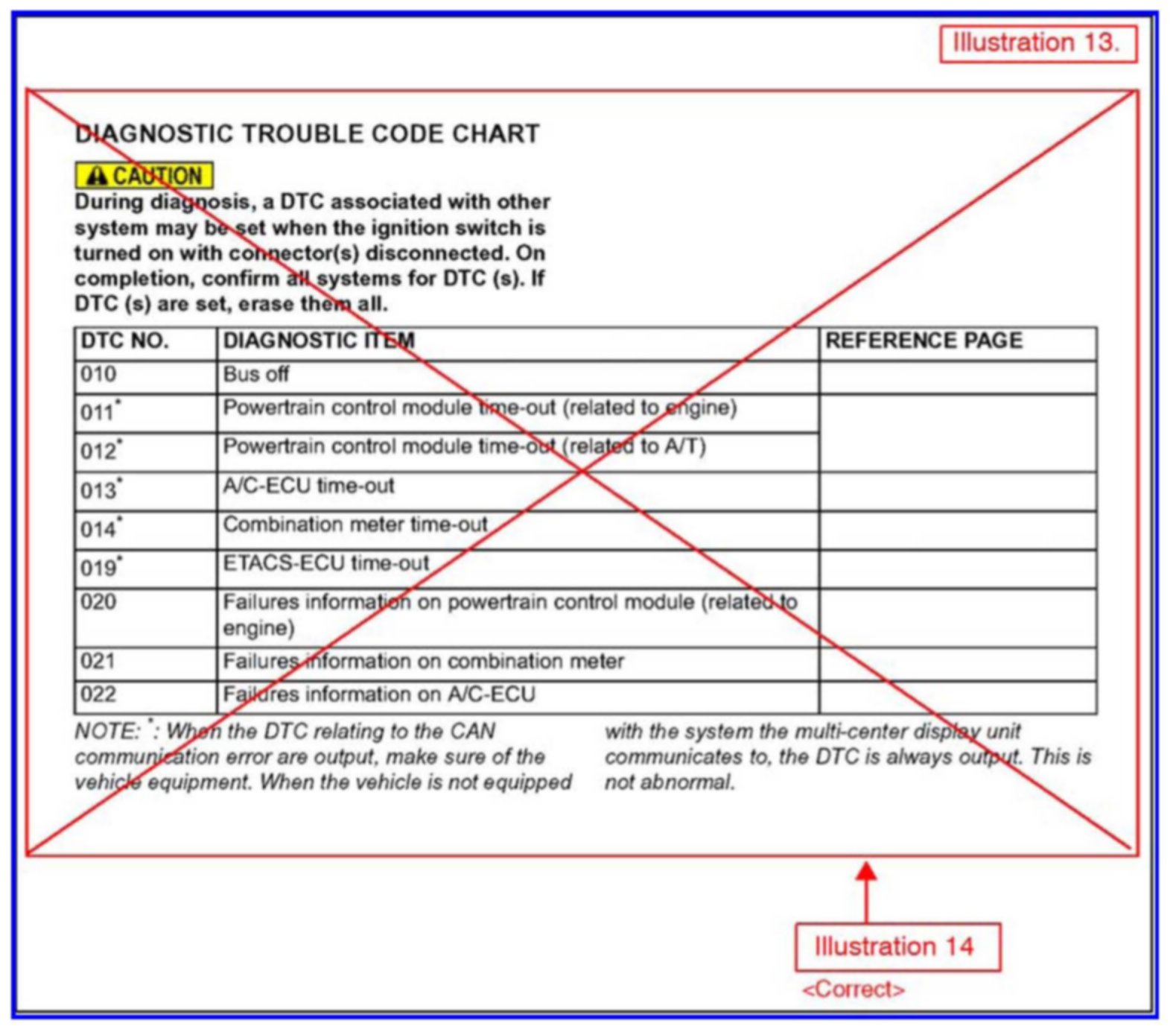

Illustration 13

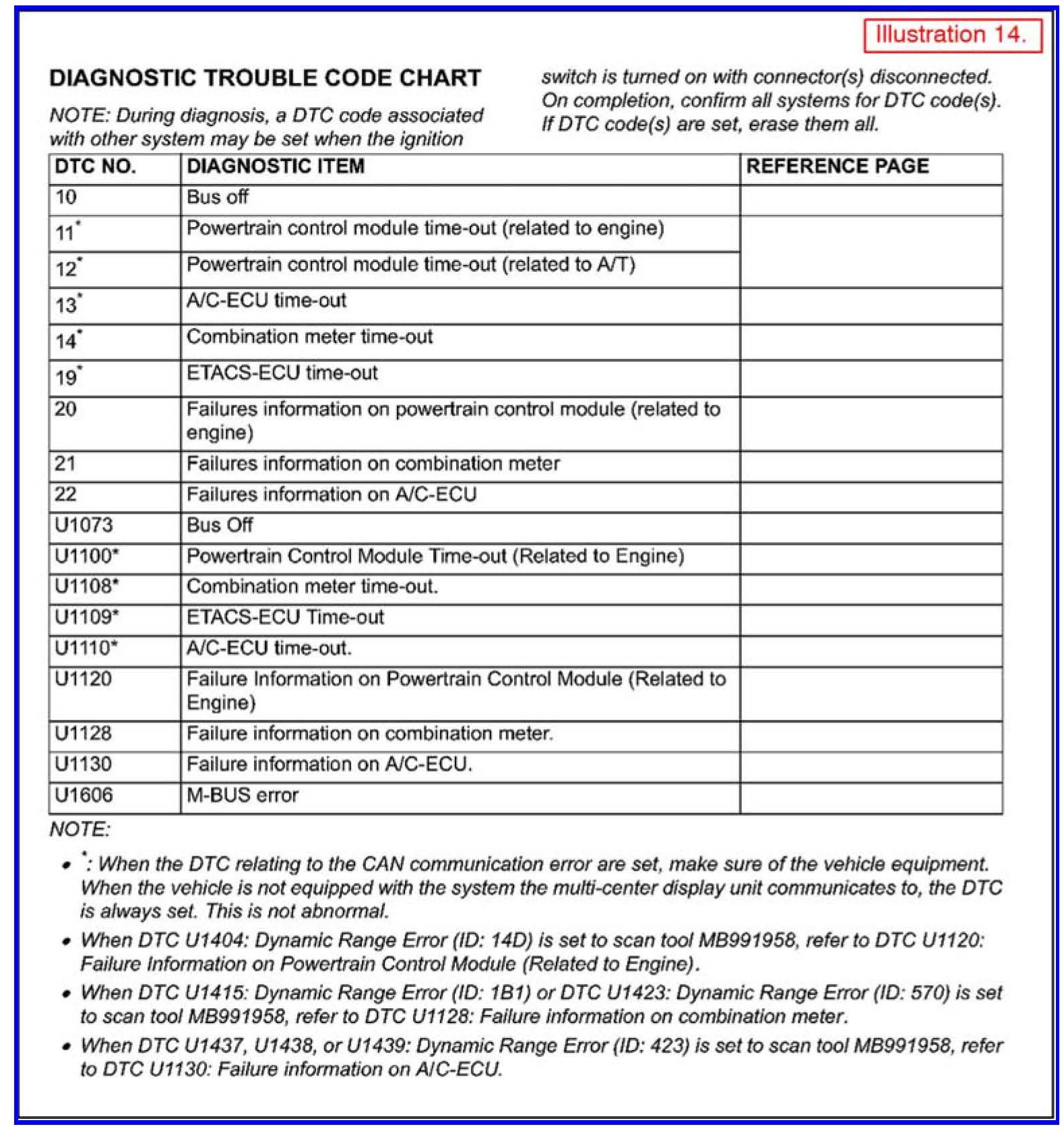

Illustration 14

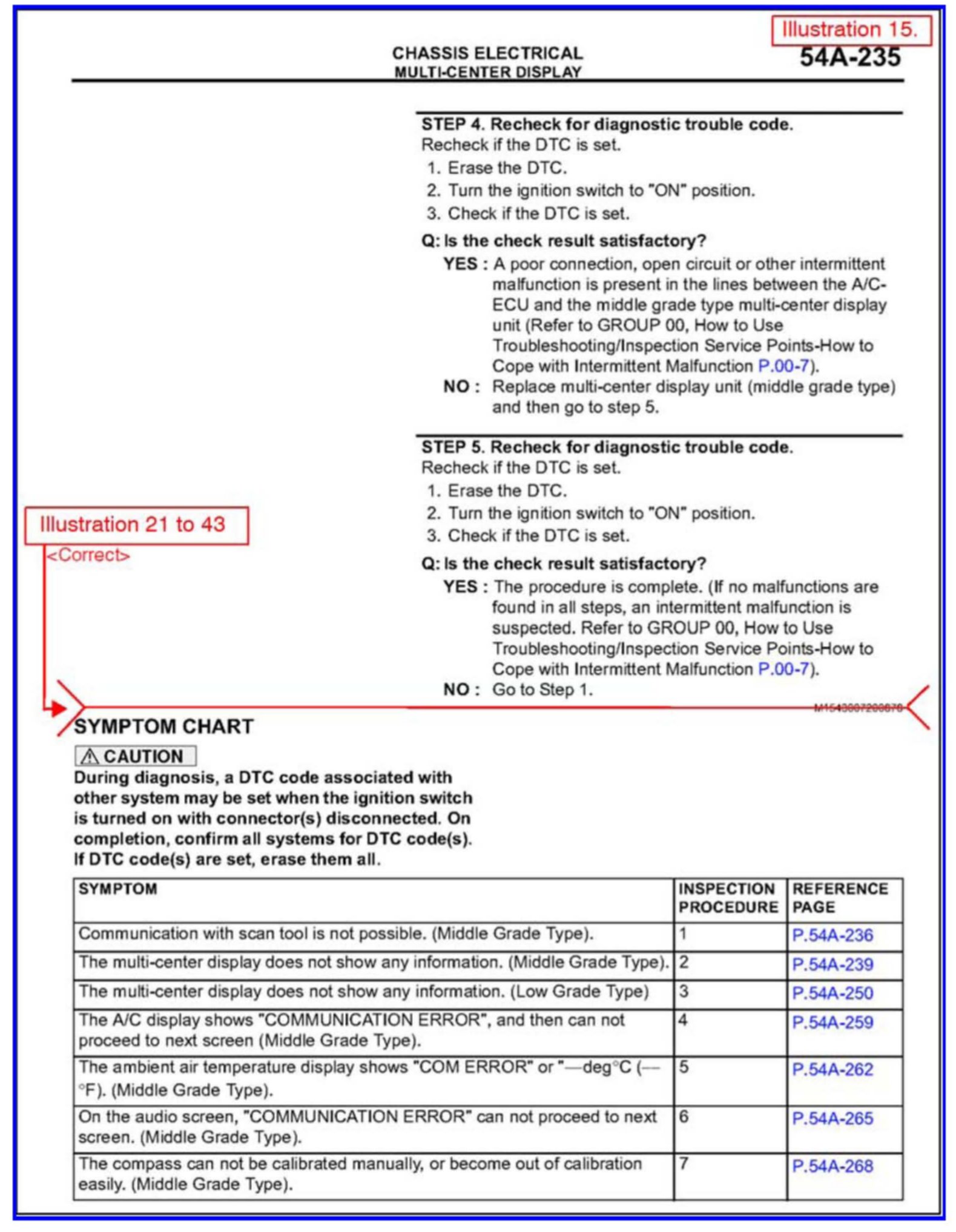

Illustration 15 - Page 54A-235

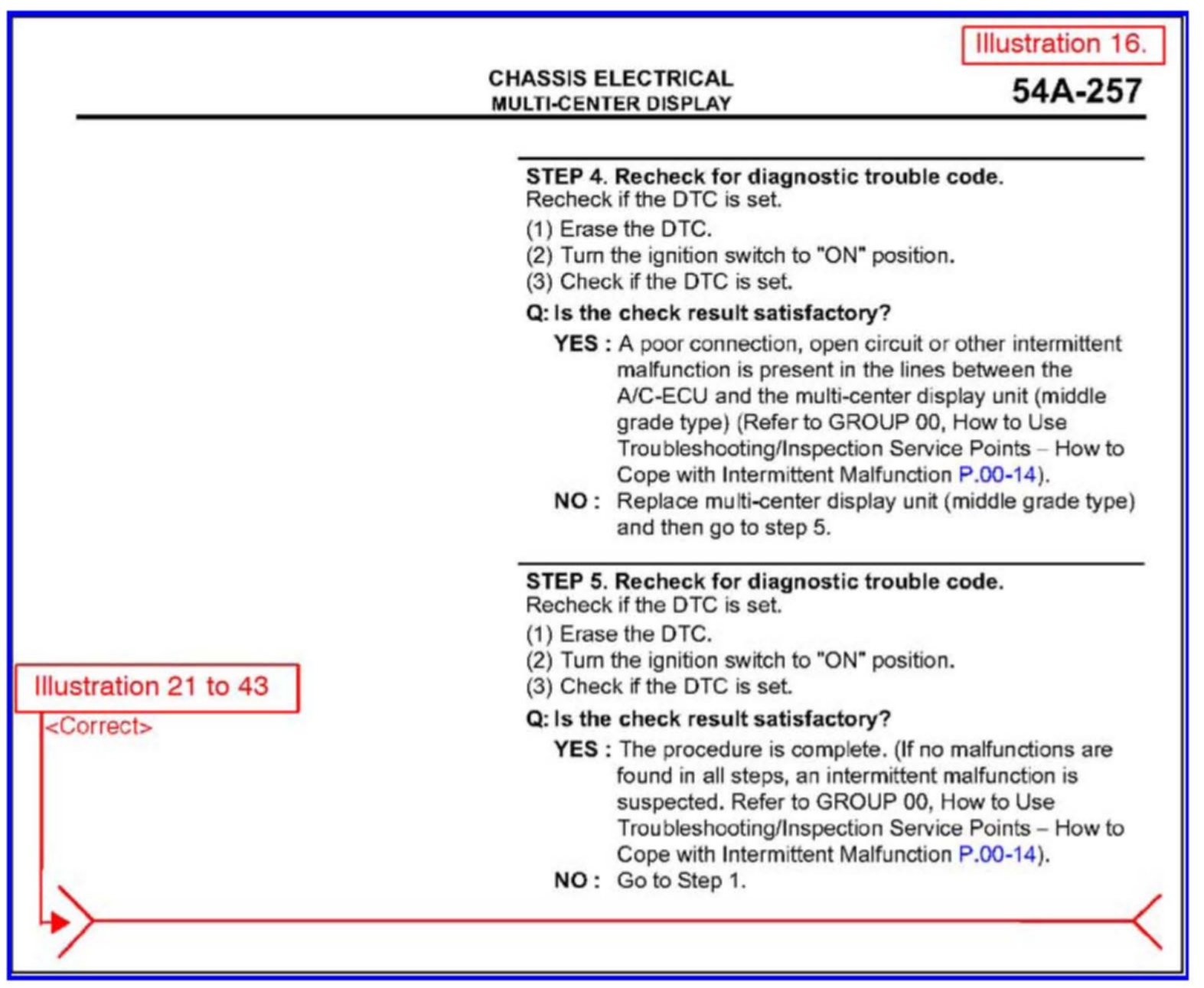

Illustration 16 - Page 54A-257

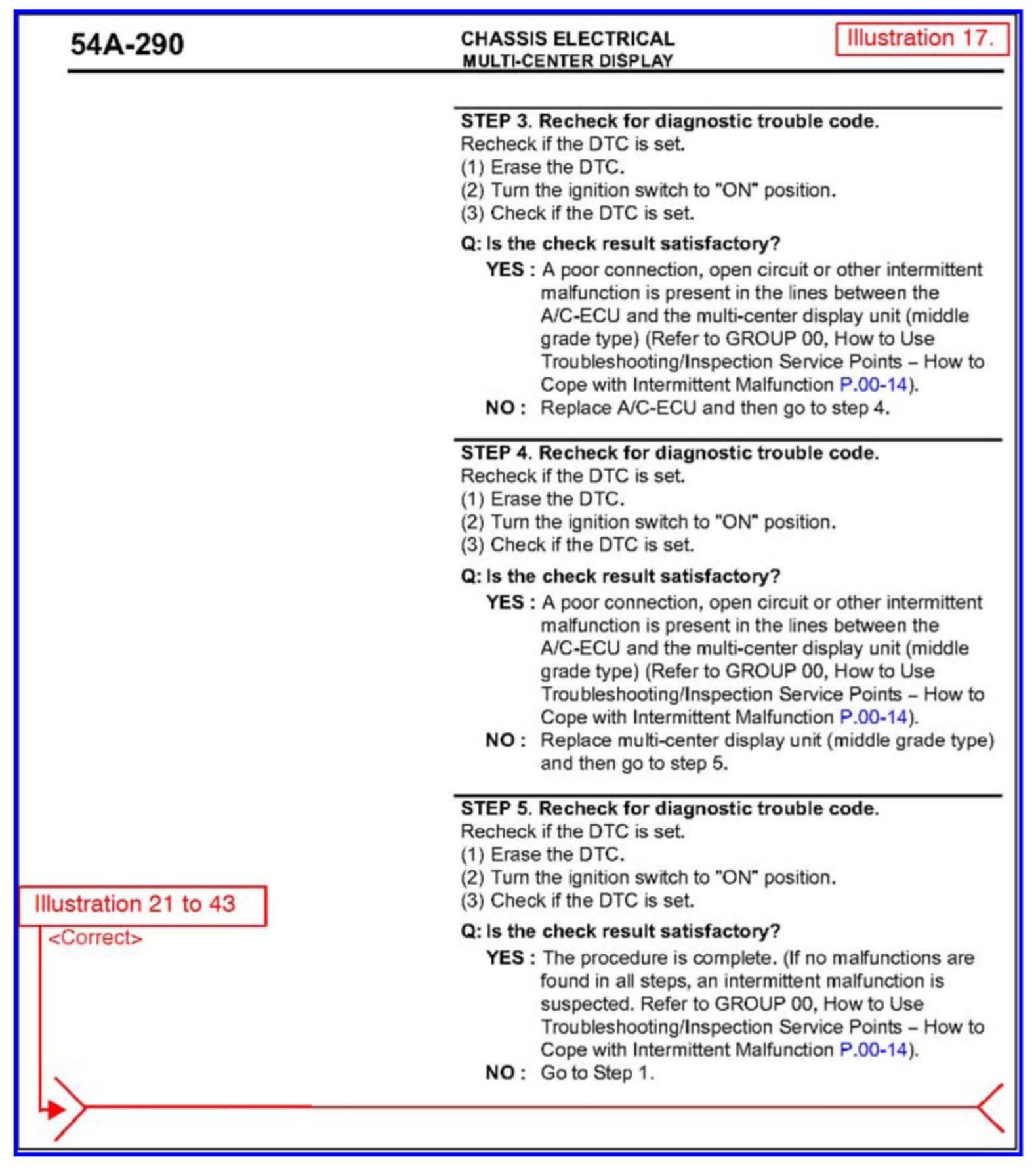

Illustration 17 - Page 54A-290

Illustration 18 - Page 54A-288

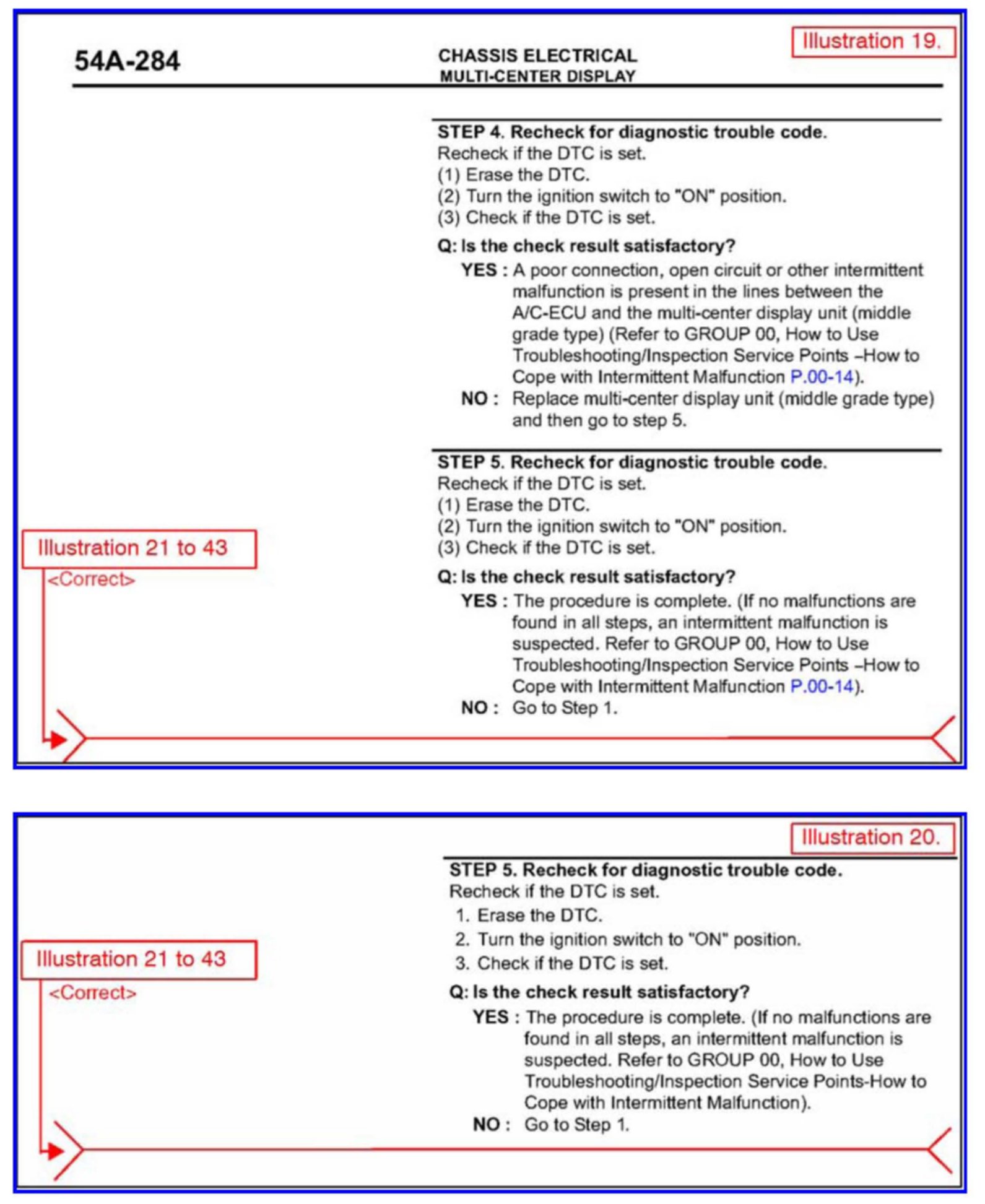

Illustration 19 - Page 54A-284 and Illustration 20
