Fluid Line/Hose: Service and Repair

TRANSMISSION FLUID COOLER, HOSE AND PIPE

REMOVAL AND INSTALLATION

Pre-removal & Post-installation Operation:

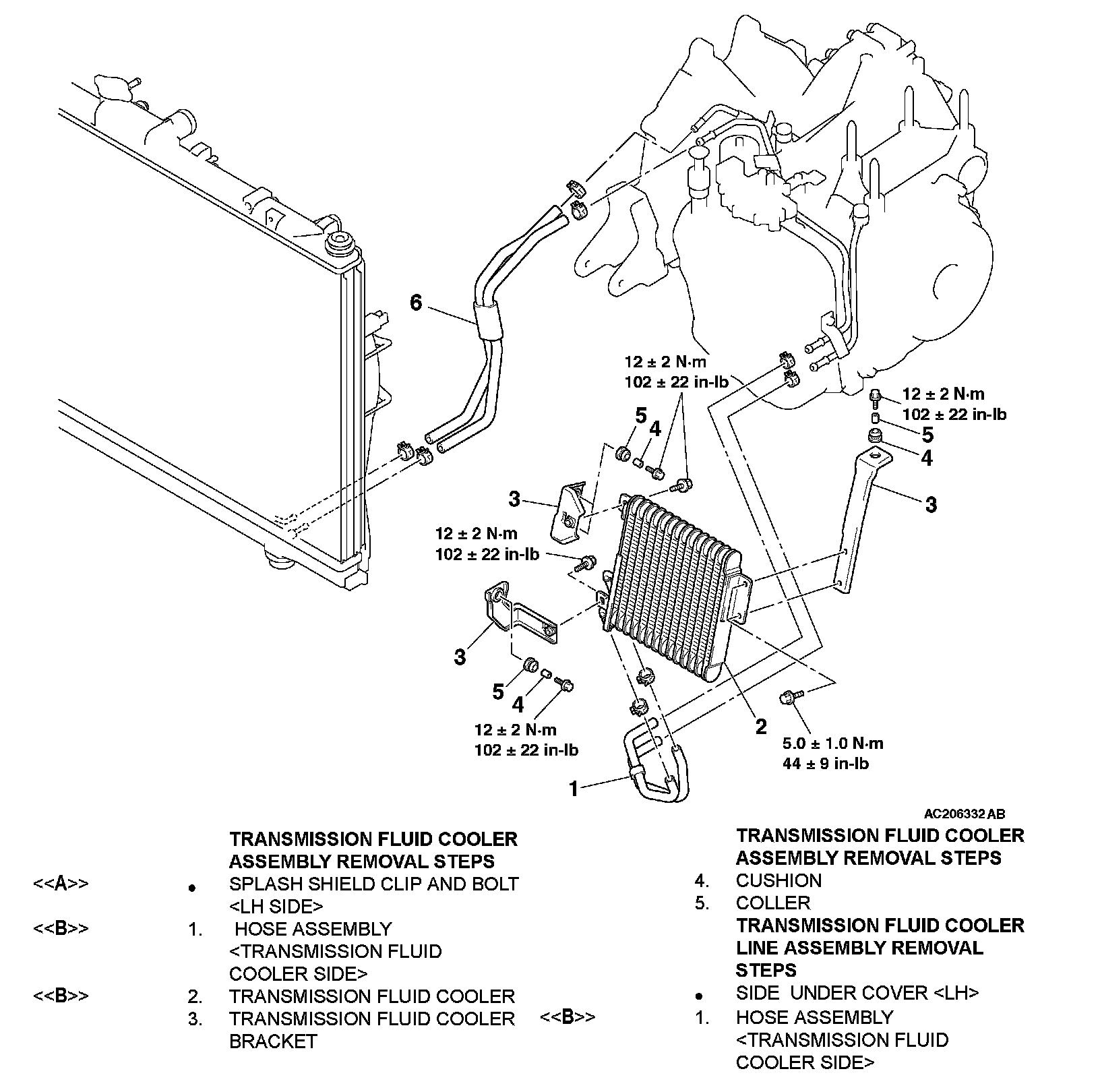

Transmission Fluid Cooler Assembly Removal Steps 1-5, Transmission Fluid Cooler Line Assembly Removal Steps 1-6:





REMOVAL SERVICE POINTS
<> SPLASH SHIELD CLIP AND BOLT REMOVAL





Remove the clips and bolts shown in the illustration.

<> HOSE ASSEMBLY /TRANSMISSION FLUID COOLER/HOSE ASSEMBLY REMOVAL
Drain the transmission fluid, which still remained in the hose assembly and the transmission fluid cooler.
