Front Door Window Regulator: Service and Repair

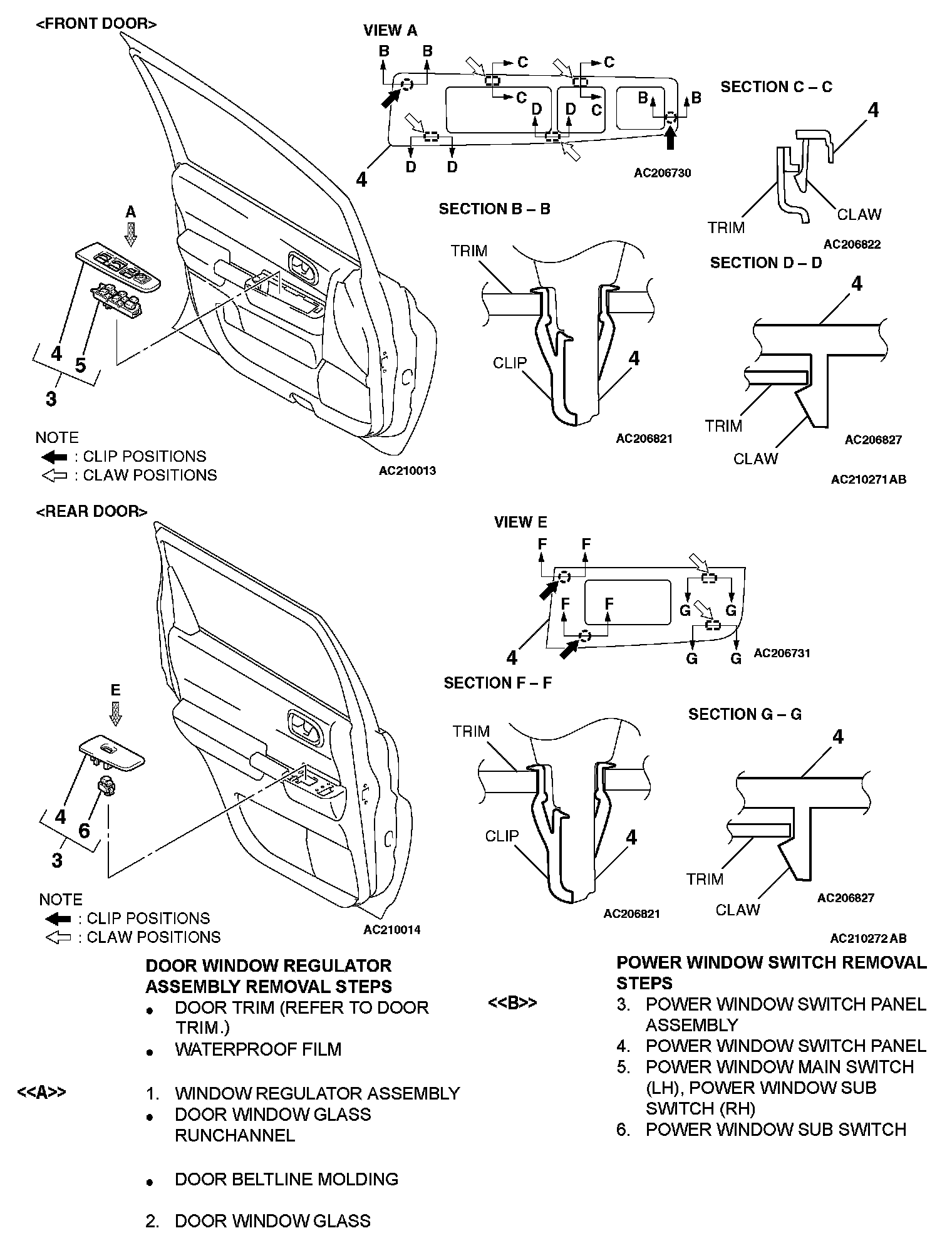

DOOR GLASS AND REGULATOR







Required Special Tools:
- MB990480: Window Glass Holder
- MB990784: Ornament Remover
- MB991223: Harness Set

REMOVAL SERVICE POINTS

[[A]] WINDOW REGULATOR ASSEMBLY REMOVAL
1. Remove the door window glass installation bolts.

CAUTION: If tinting film is adhered to the door window glass, attach special tool MB990480 to the outside of the glass to prevent the film from peeling off.

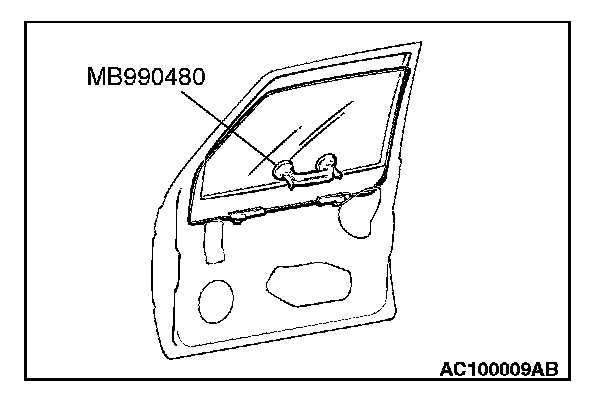

2. Lift the door window glass, and attach special tool MB990480 to the glass as shown to prevent the glass from falling.
3. Remove the window regulator assembly and power window motor assembly.




[[B]] POWER WINDOW SWITCH PANEL ASSEMBLY REMOVAL

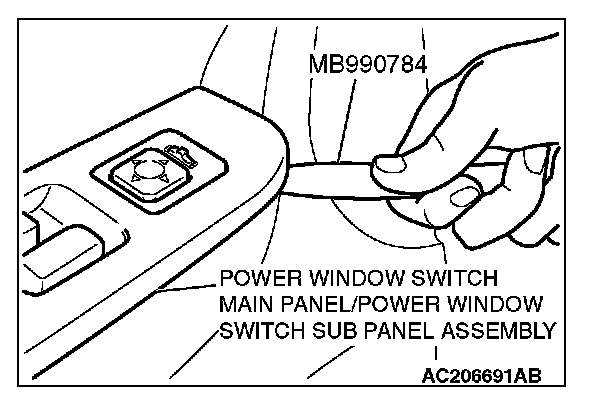

Insert special tool MB990784 as shown to remove the power window switch panel assembly.
