Window Seal: Service and Repair

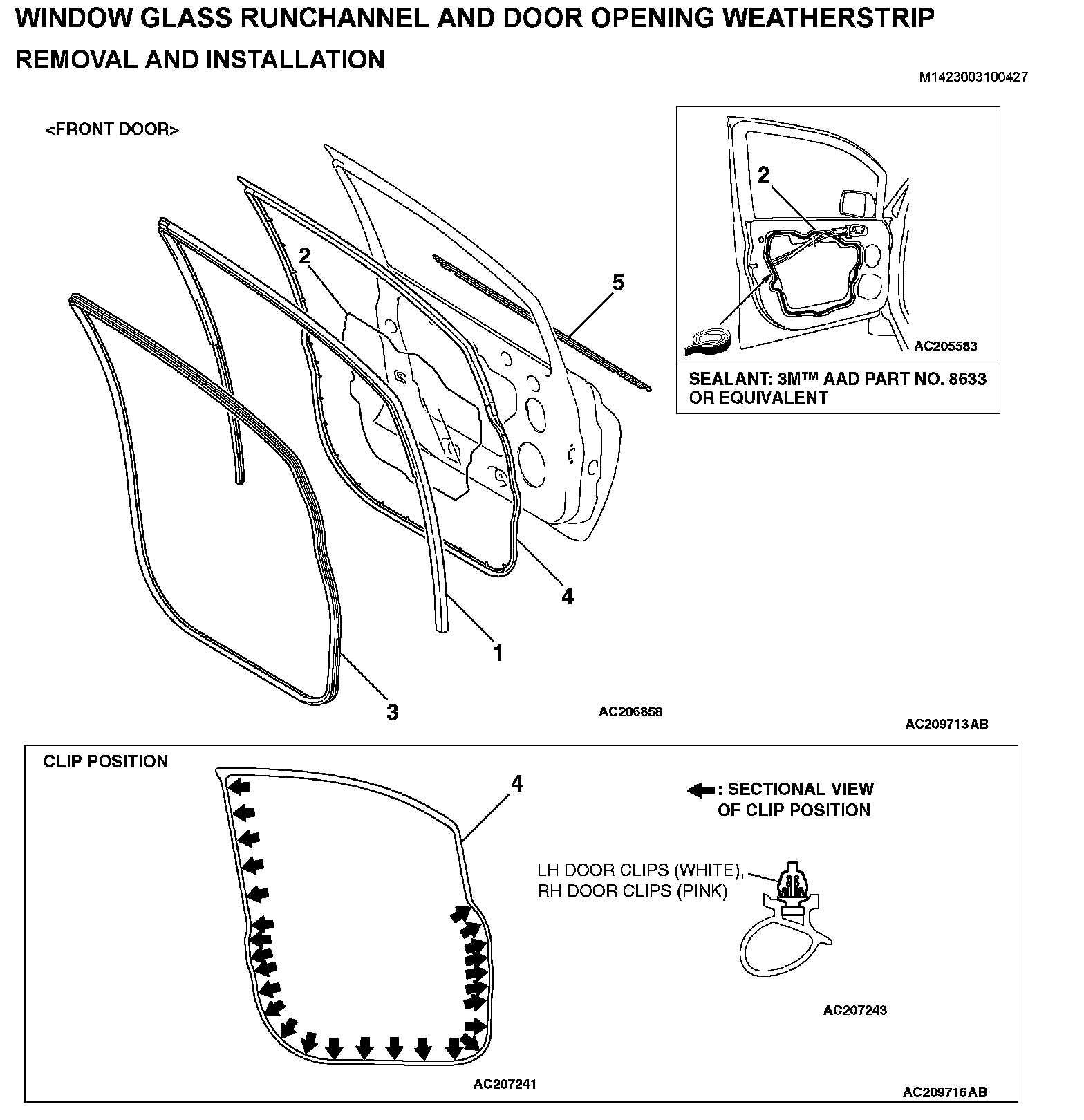

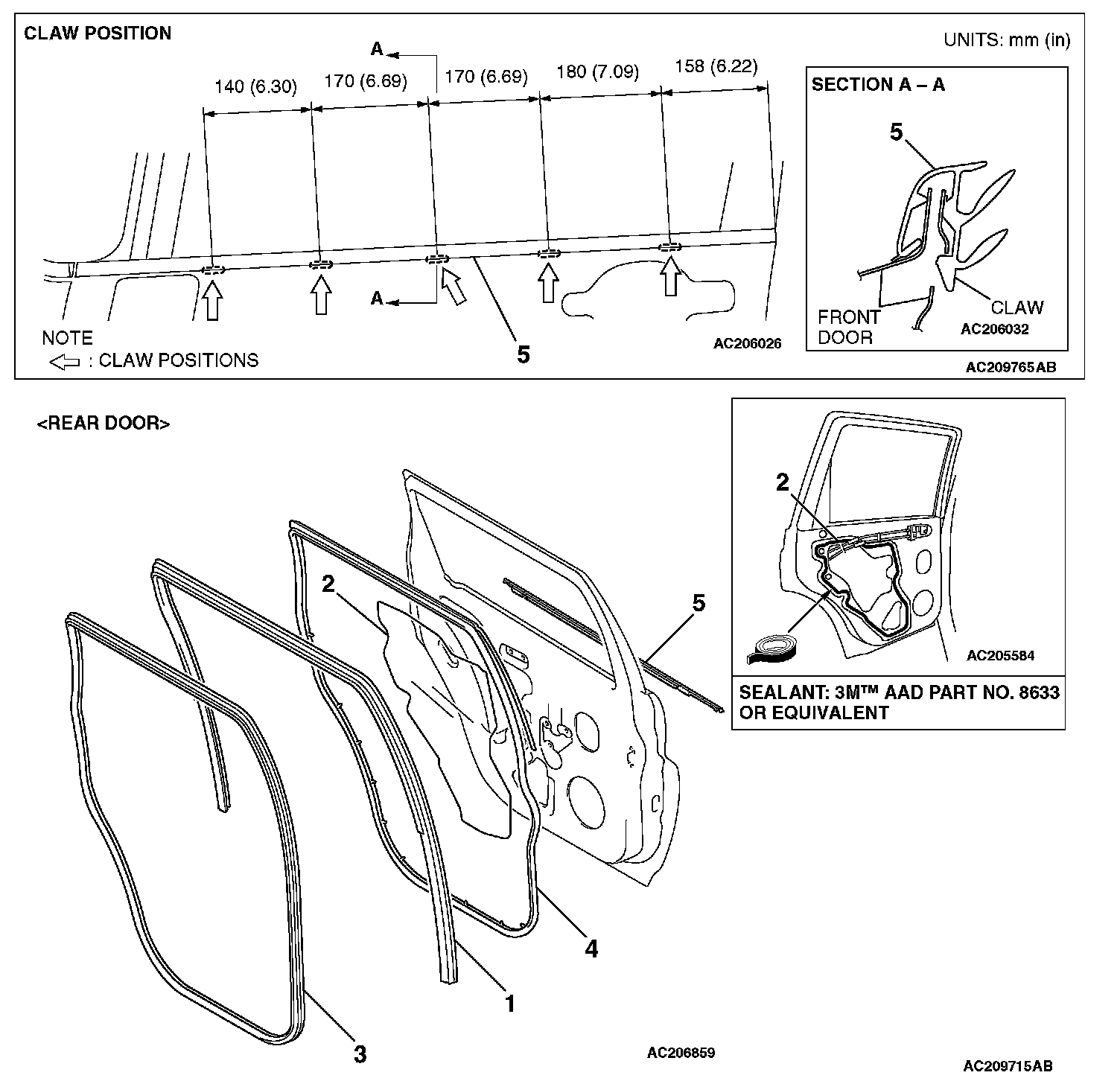

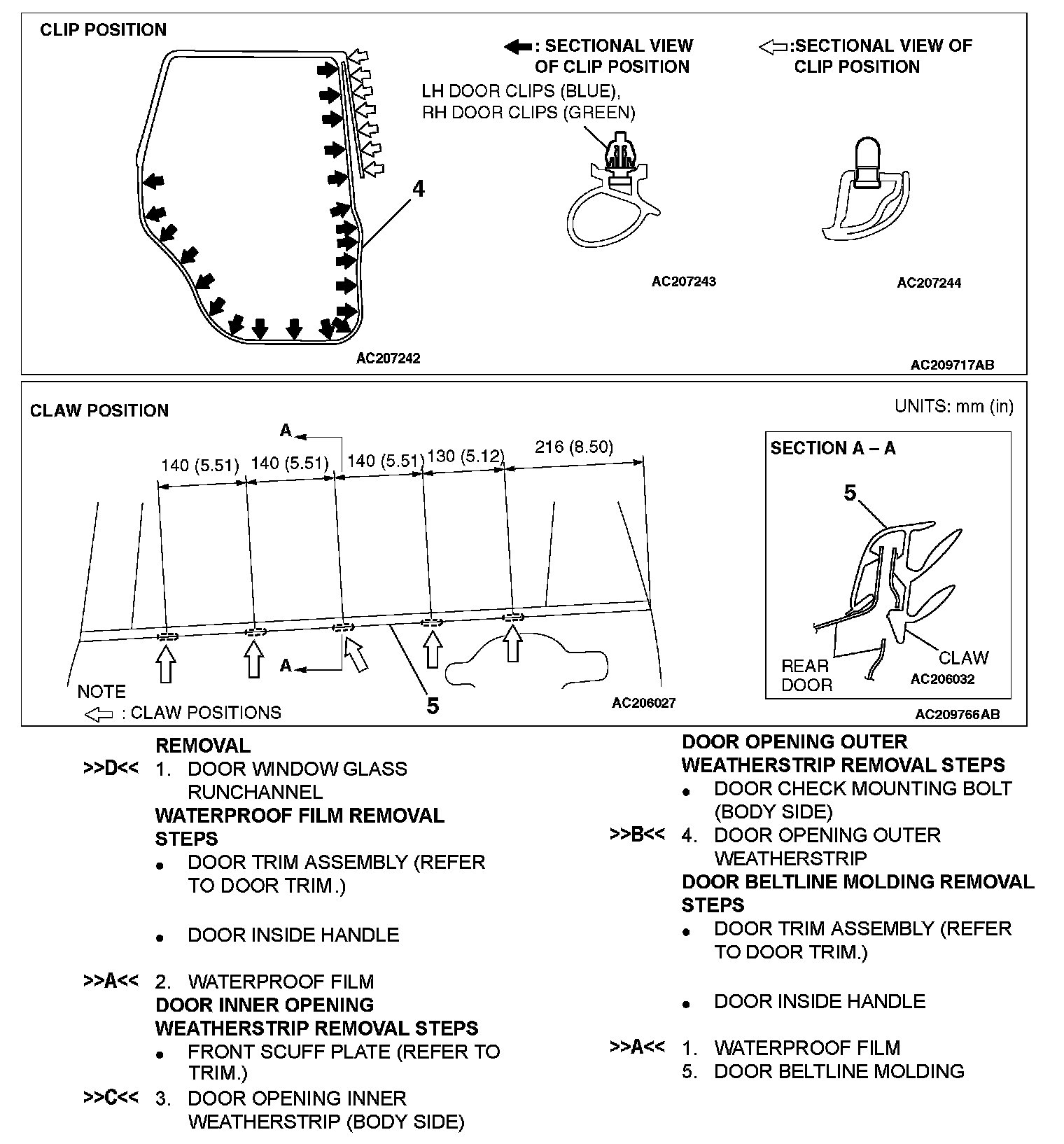

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

















INSTALLATION SERVICE POINTS




]]A[[ WEATHER PROOF FILM INSTALLATION
Install the weatherproof film in the order shown.

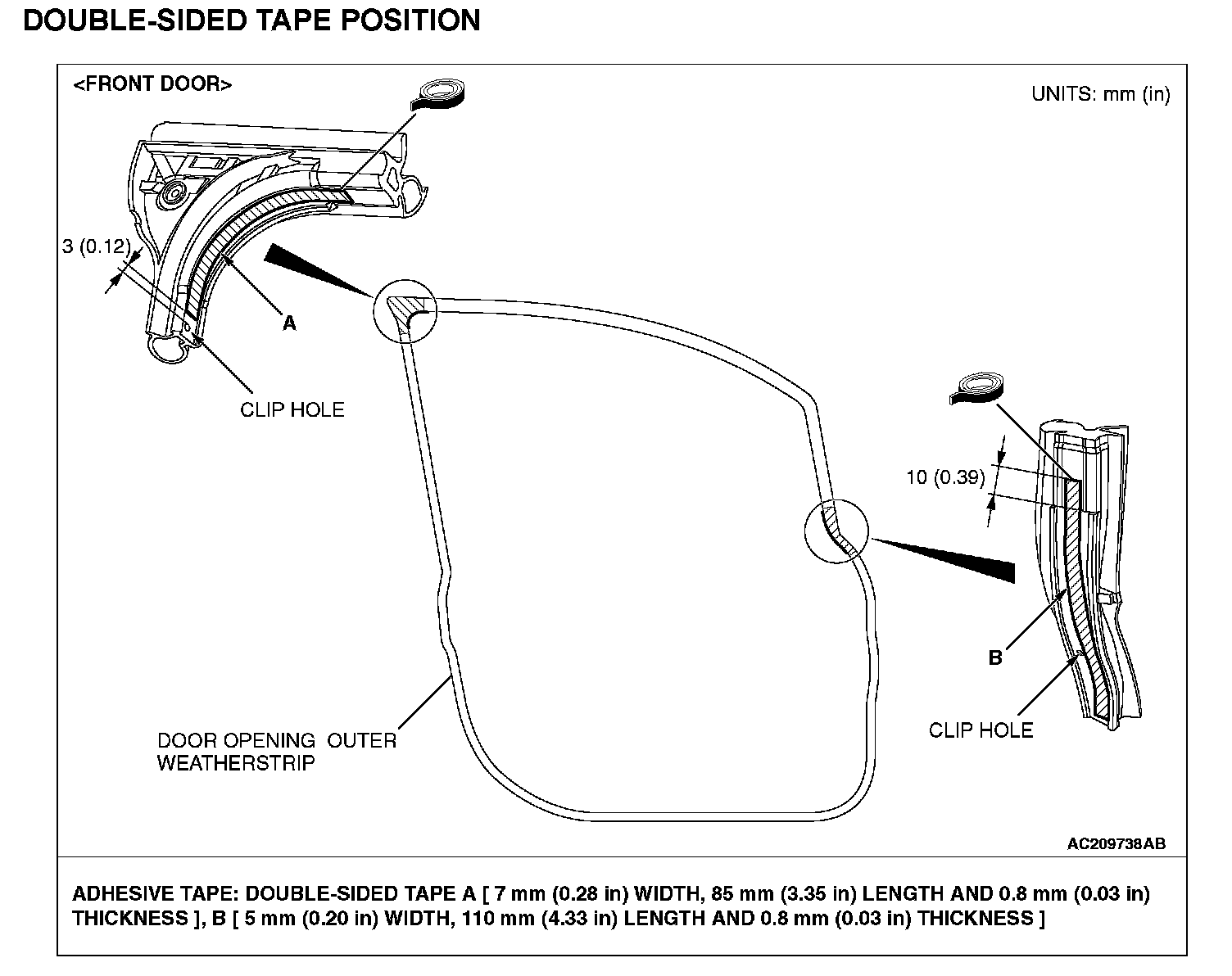

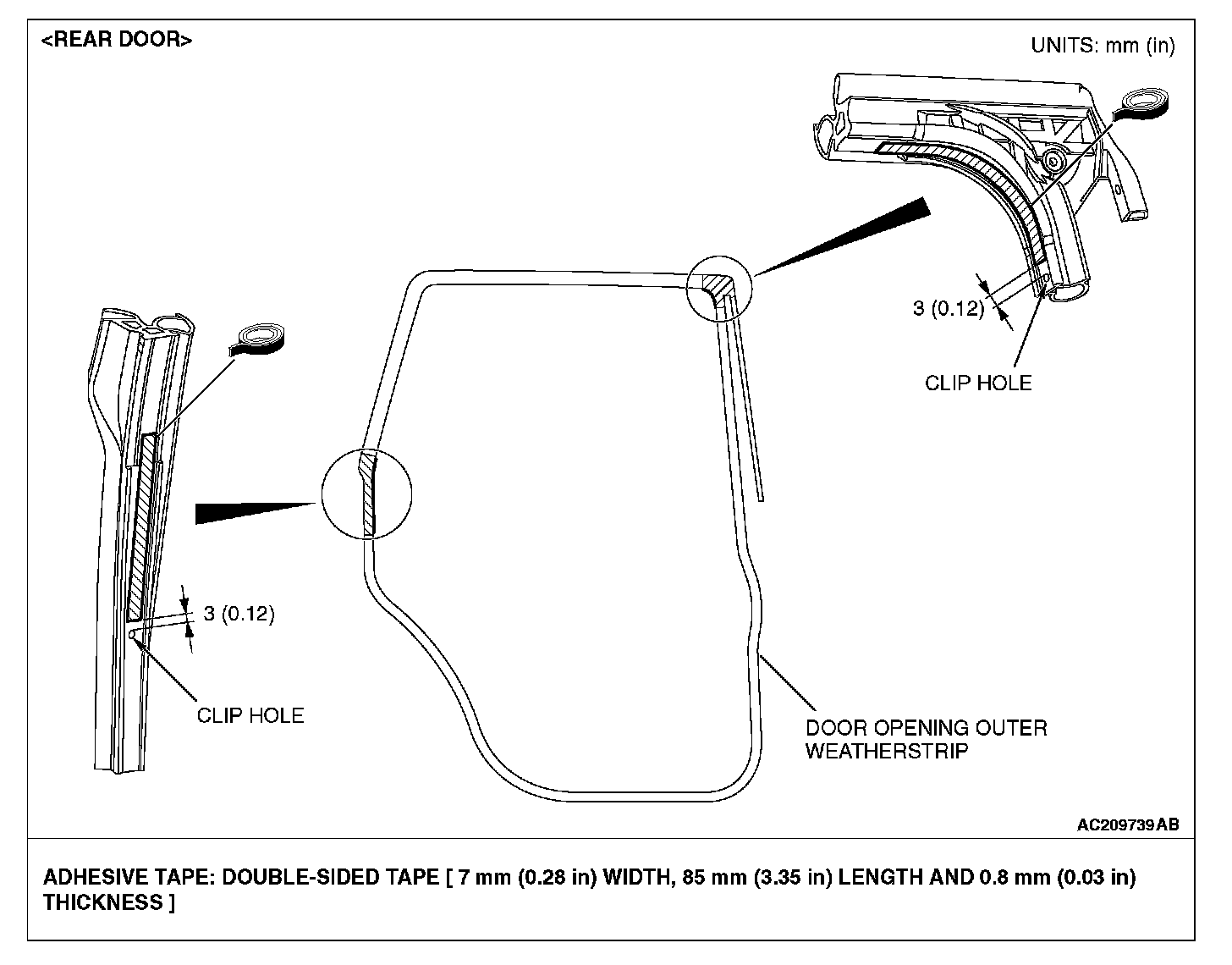

]]B[[ DOOR OPENING OUTER WEATHERSTRIP INSTALLATION

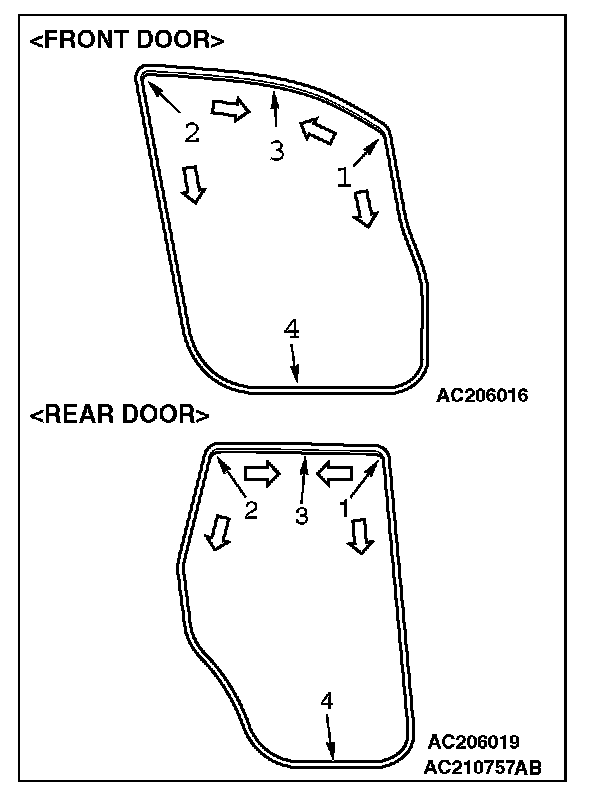

Install the door opening outer weatherstrip in the sequence shown.




]]C[[ DOOR OPENING INNER WEATHERSTRIP INSTALLATION

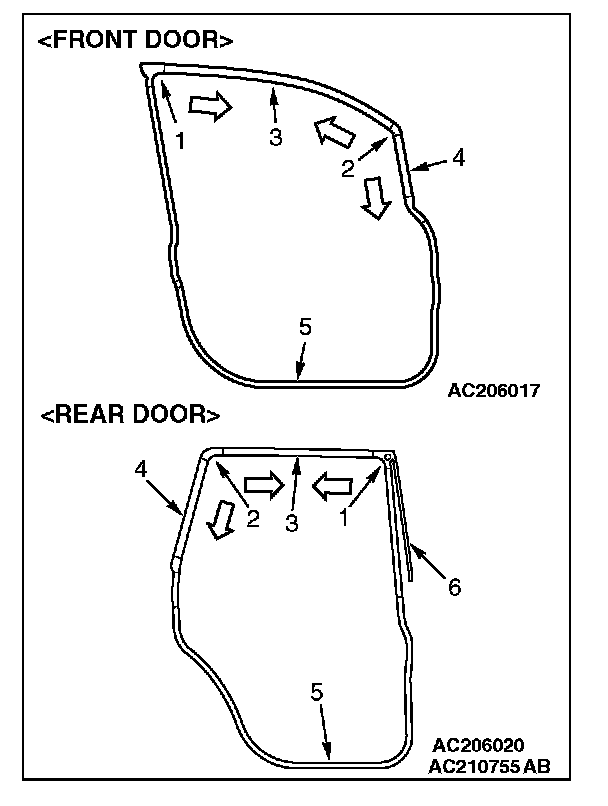

Install the door opening inner weatherstrip in the sequence shown.




]]D[[ DOOR WINDOW GLASS RUNCHANNEL INSTALLATION

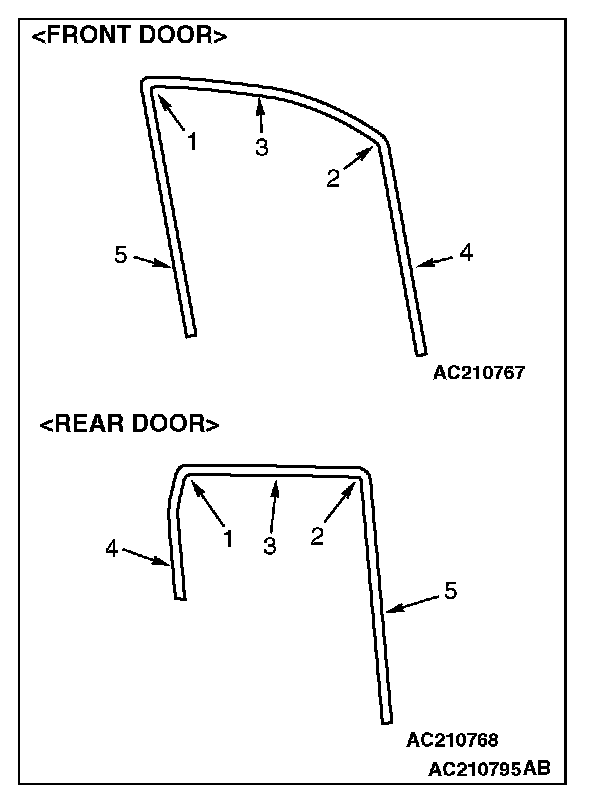

Install the door window glass runchannel in the sequence shown.
