Windshield Wiper

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

Removal Steps 1-19 (Part 1):

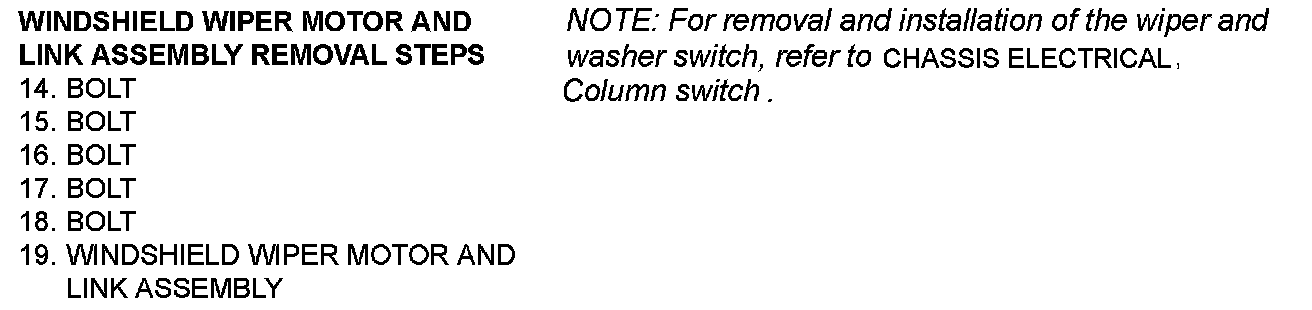

Removal Steps 1-19 (Part 2):






INSTALLATION SERVICE POINTS

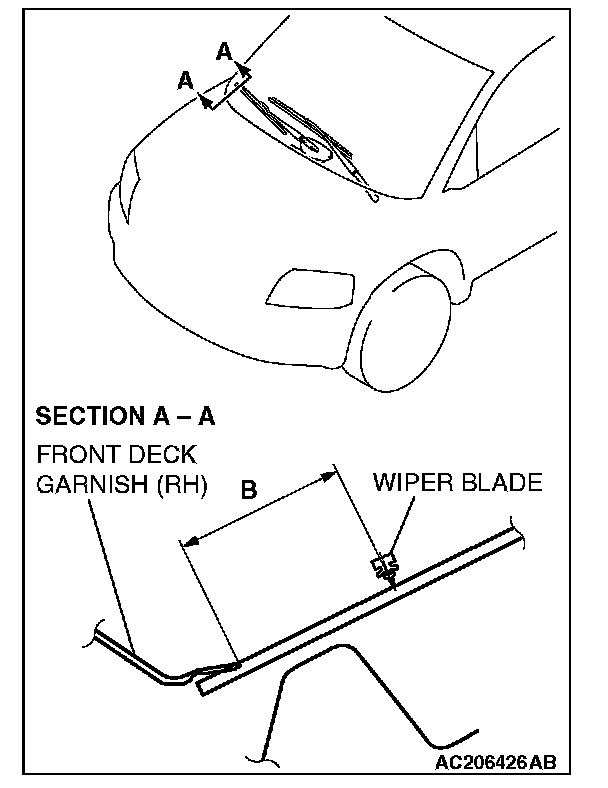

]A[ WIPER ARM AND BLADE ASSEMBLY (RH) INSTALLATION






Install the wiper blade at the specified position (standard value).

Standard value (B): 69 ± 5 mm (2.70 ± 0.20 inches)

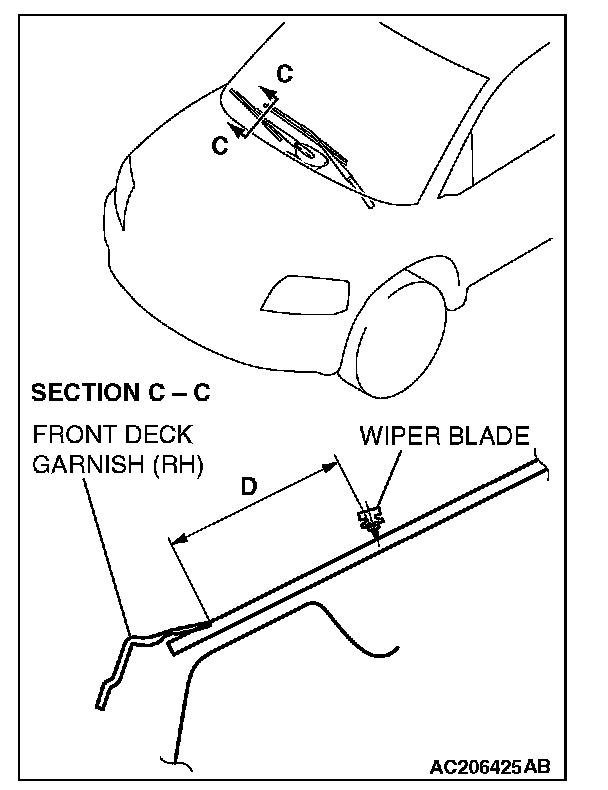

]B[ WIPER ARM AND BLADE ASSEMBLY (LH) INSTALLATION






Install the wiper blade at the specified position (standard value).

Standard value (D): 63 ± 5 mm (2.47 ± 0.20 inches)

]C[ WIPER BLADE RUBBER/WIPER BLADE ASSEMBLY INSTALLATION






CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.
