Windshield Wiper

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

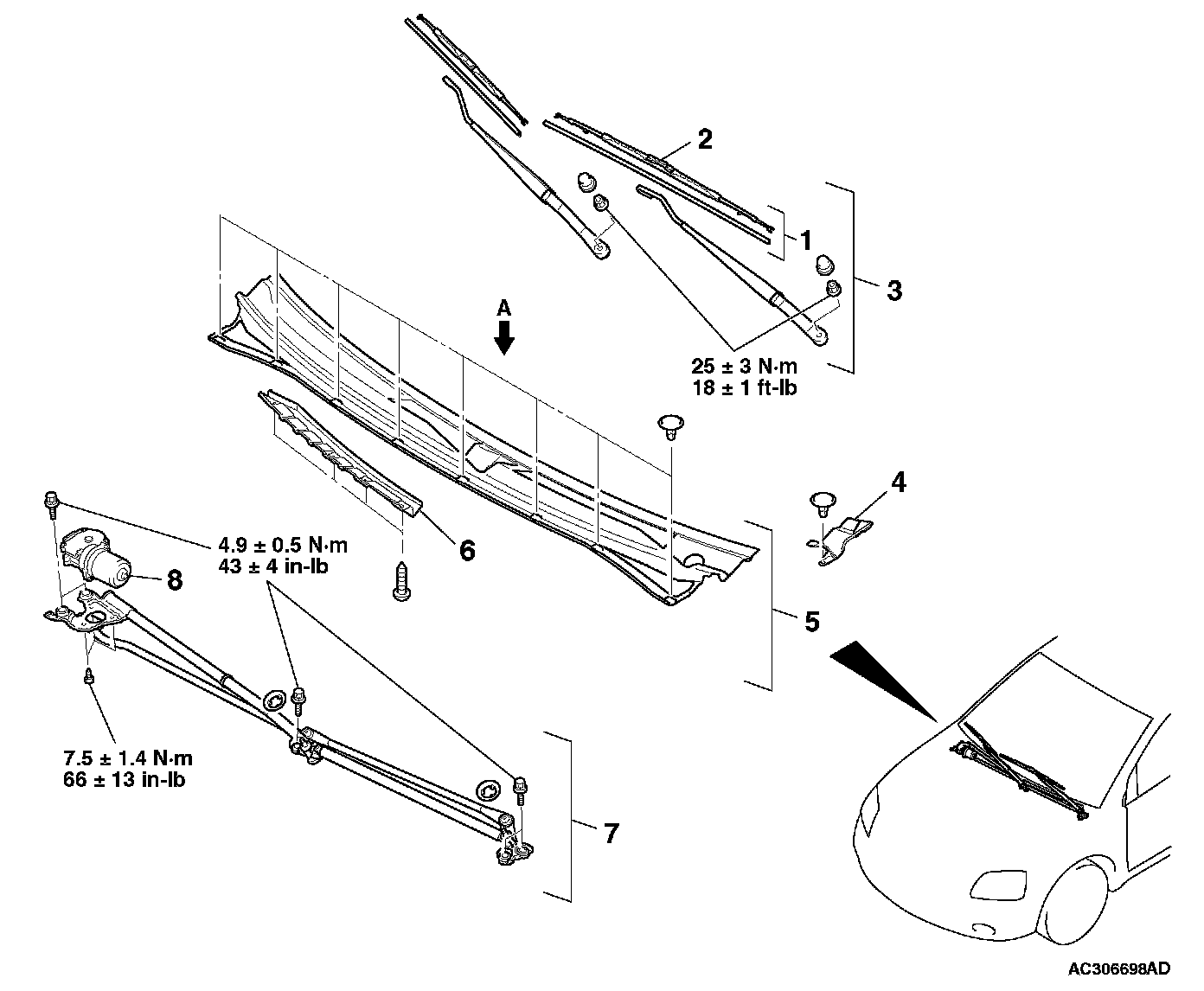

Removal Steps 1-8 (Part 1):

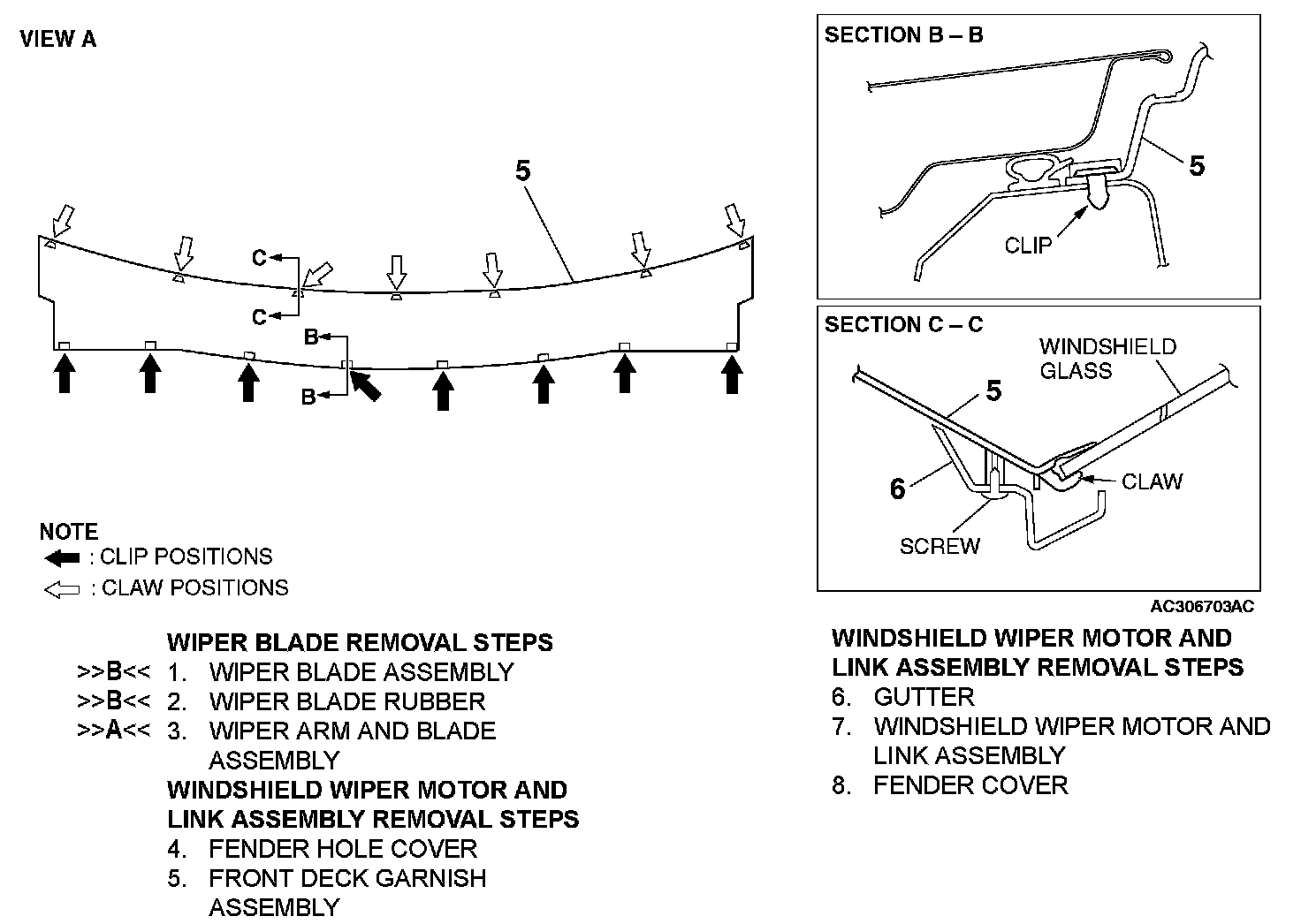

Removal Steps 1-8 (Part 2):






NOTE: For removal and installation of the wiper and washer switch, refer to Chassis Electrical, Column switch.

INSTALLATION SERVICE POINTS

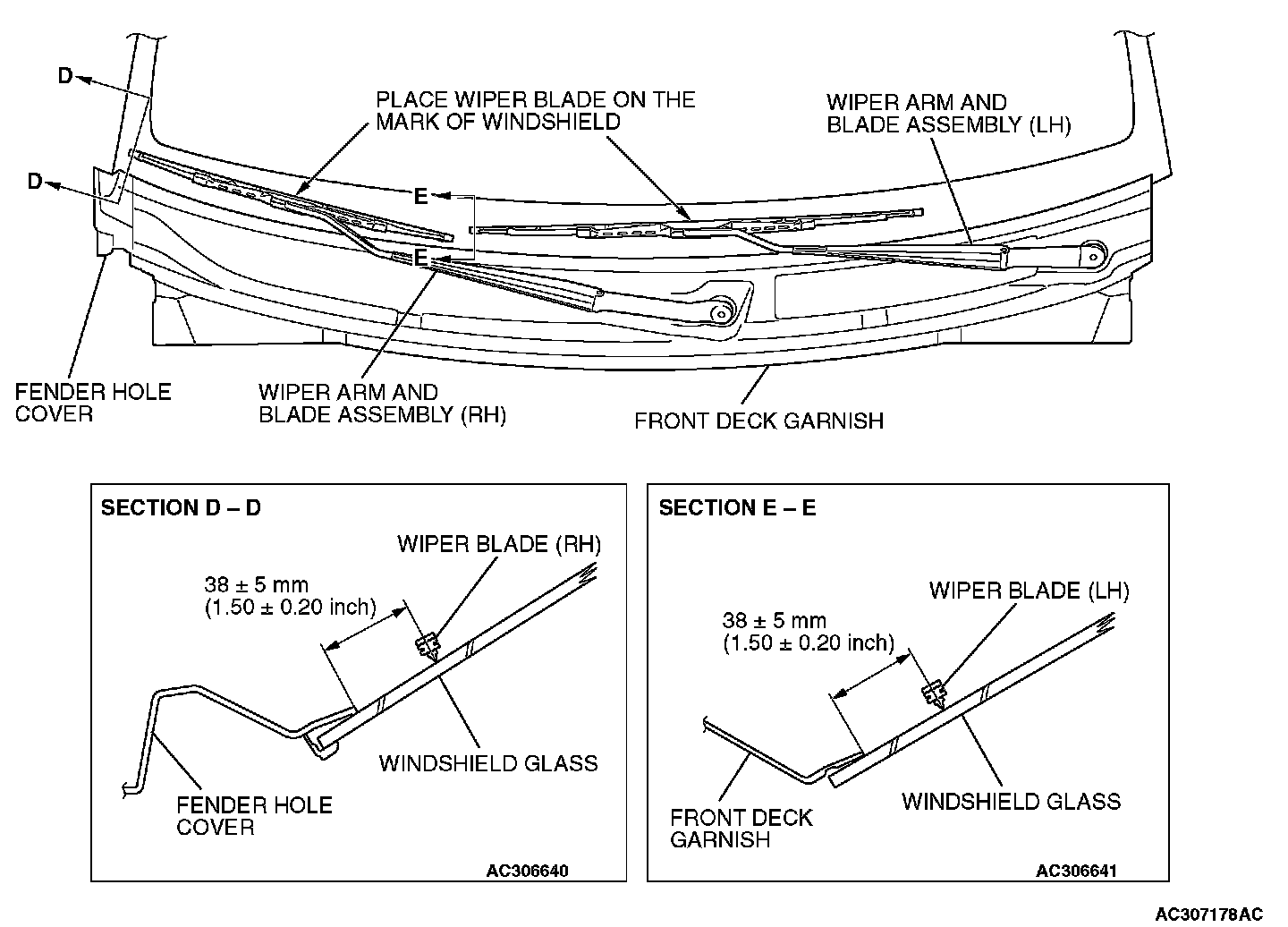

]]A[[ WIPER ARM AND BLADE ASSEMBLY INSTALLATION






Install the wiper blade at the position specified above.

]]B[[ WIPER BLADE RUBBER/ WIPER BLADE ASSEMBLY INSTALLATION






CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.
