Power Window Switch

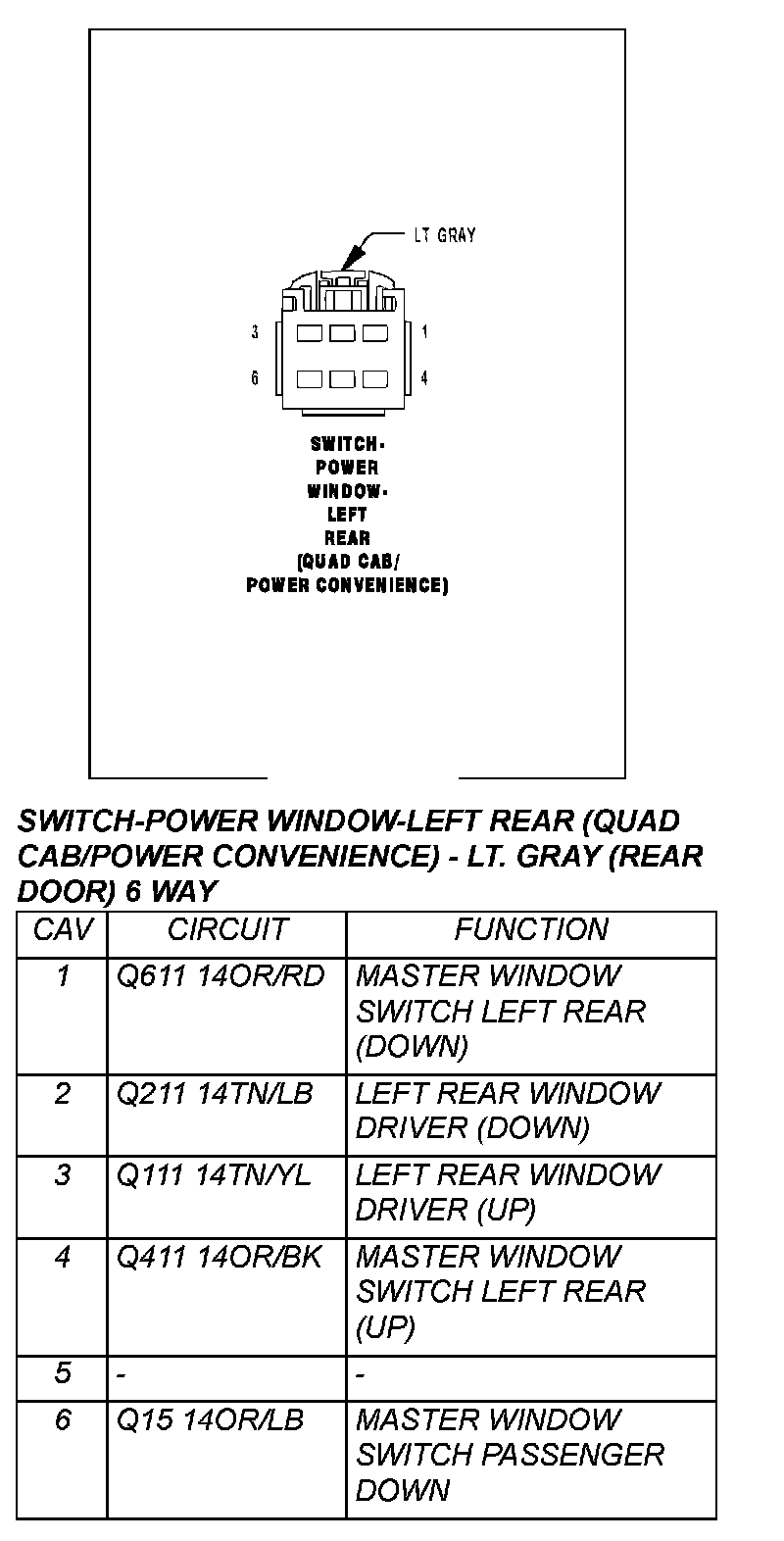

Switch-Power Window - Left Rear (Quad Cab/Power Convenience) - LT. Gray (Rear Door) 6 Way:

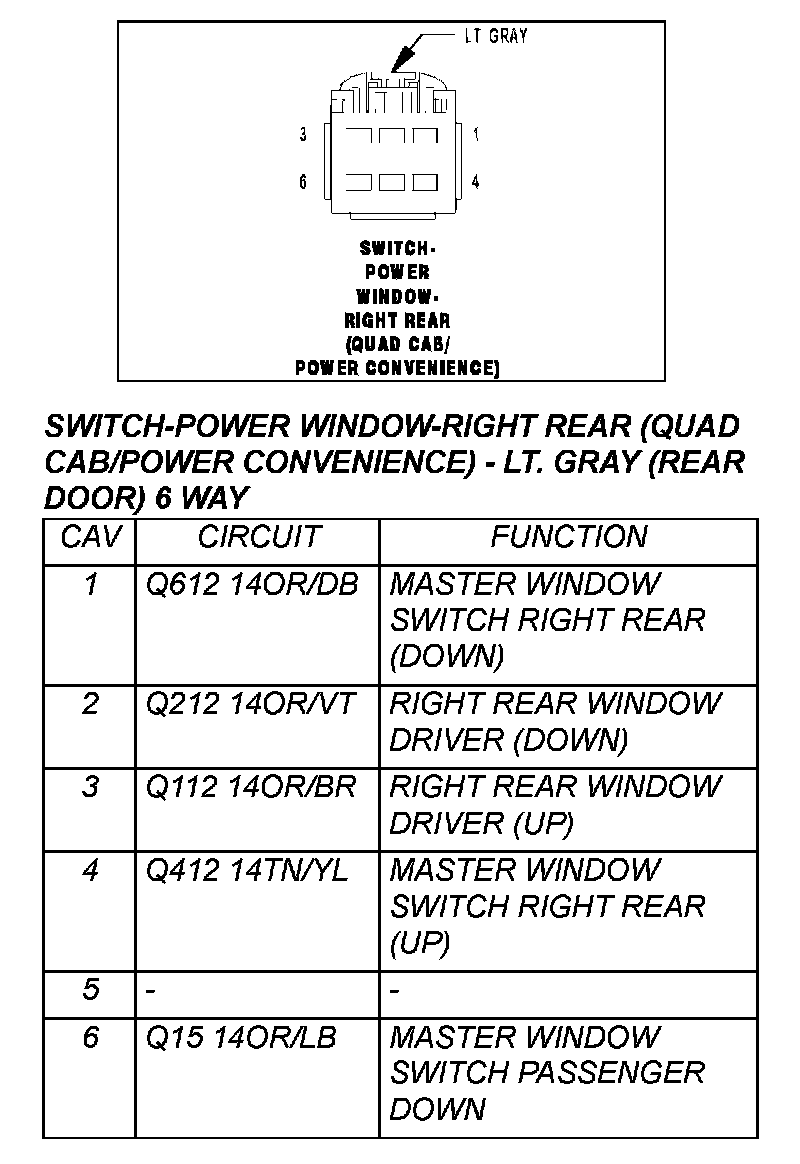

Switch-Power Window - Right Rear (Quad Cab/Power Convenience) - LT. Gray (Rear Door) 6 Way:

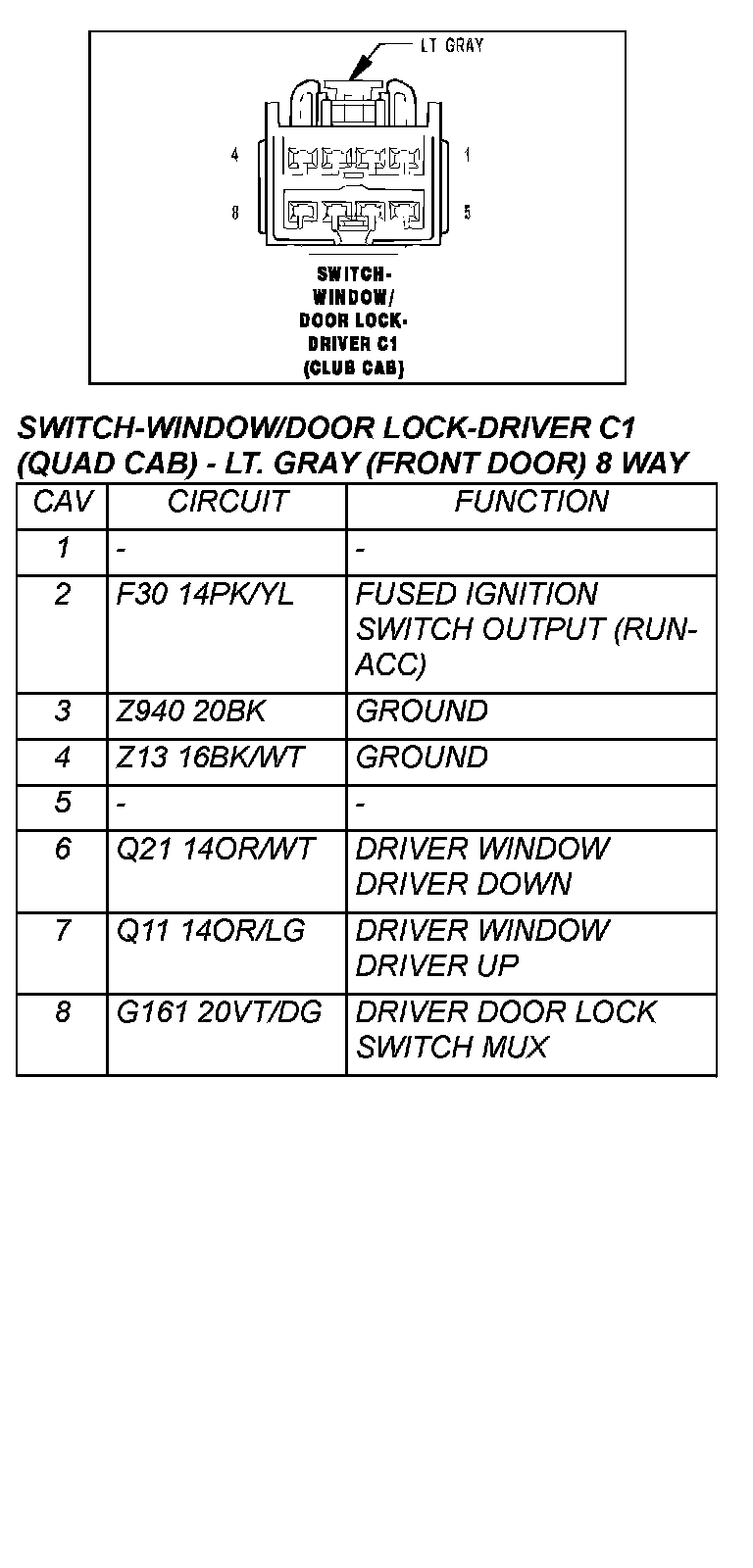

Switch-Window/Door Lock - Driver C1 (Quad Cab) - LT. Gray (Front Door) 8 Way:

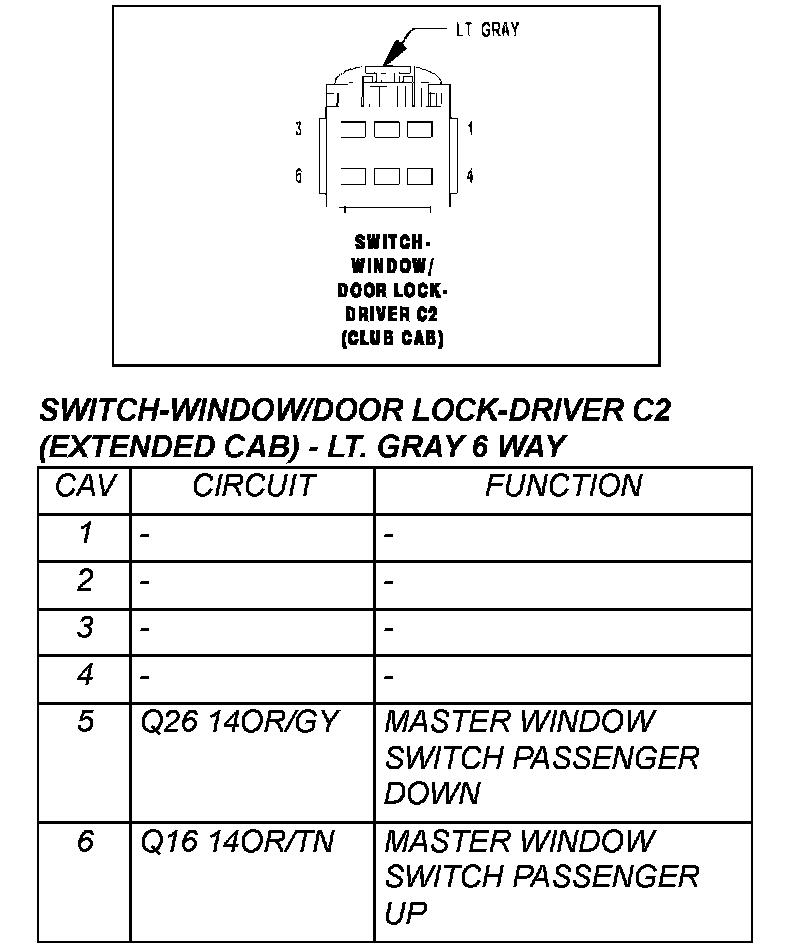

Switch-Window/Door Lock - Driver C2 (Extended Cab) - LT. Gray 6 Way:

Switch-Window - Door Lock - Driver Express C1 (Quad Cab) - LT. Gray (Front Door) 8 Way:

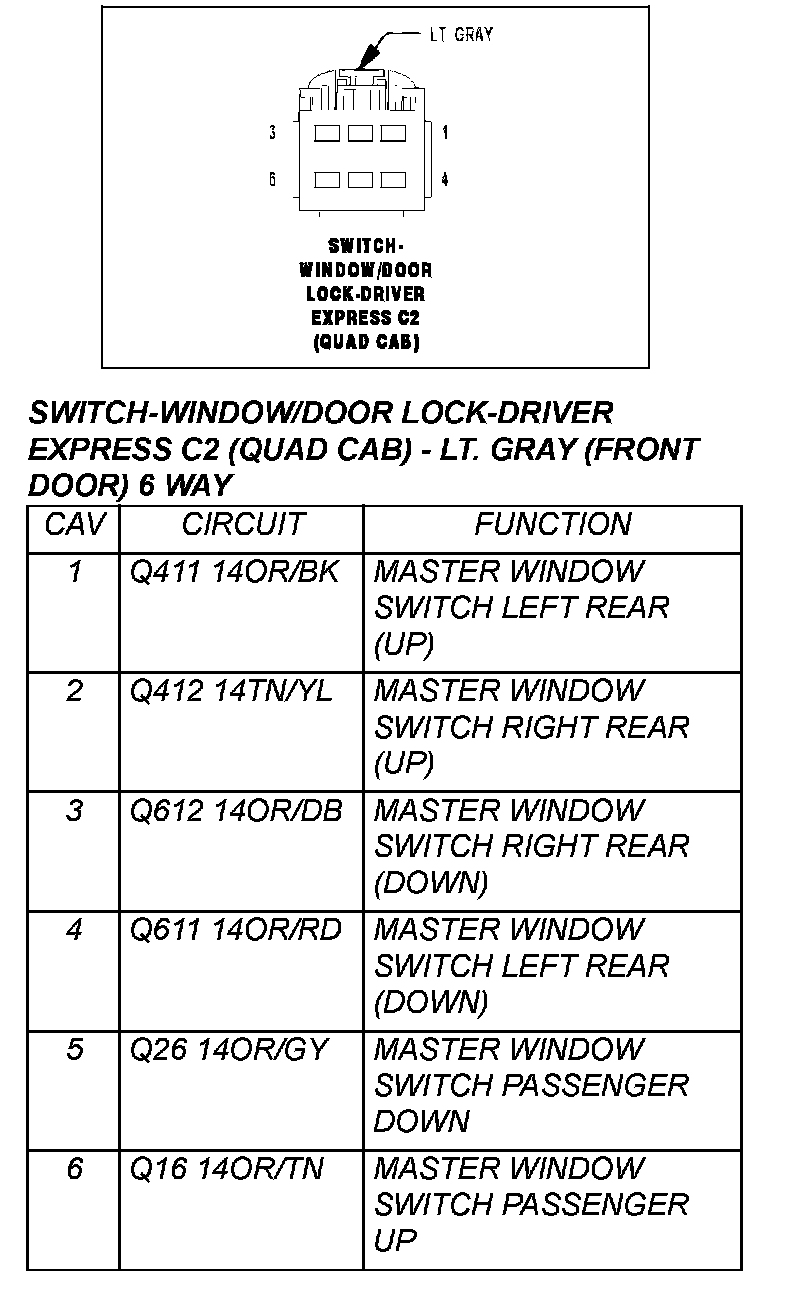

Switch-Window/Door Lock - Driver Express C2 (Quad Cab) - LT. Gray (Front Door) 6 Way:

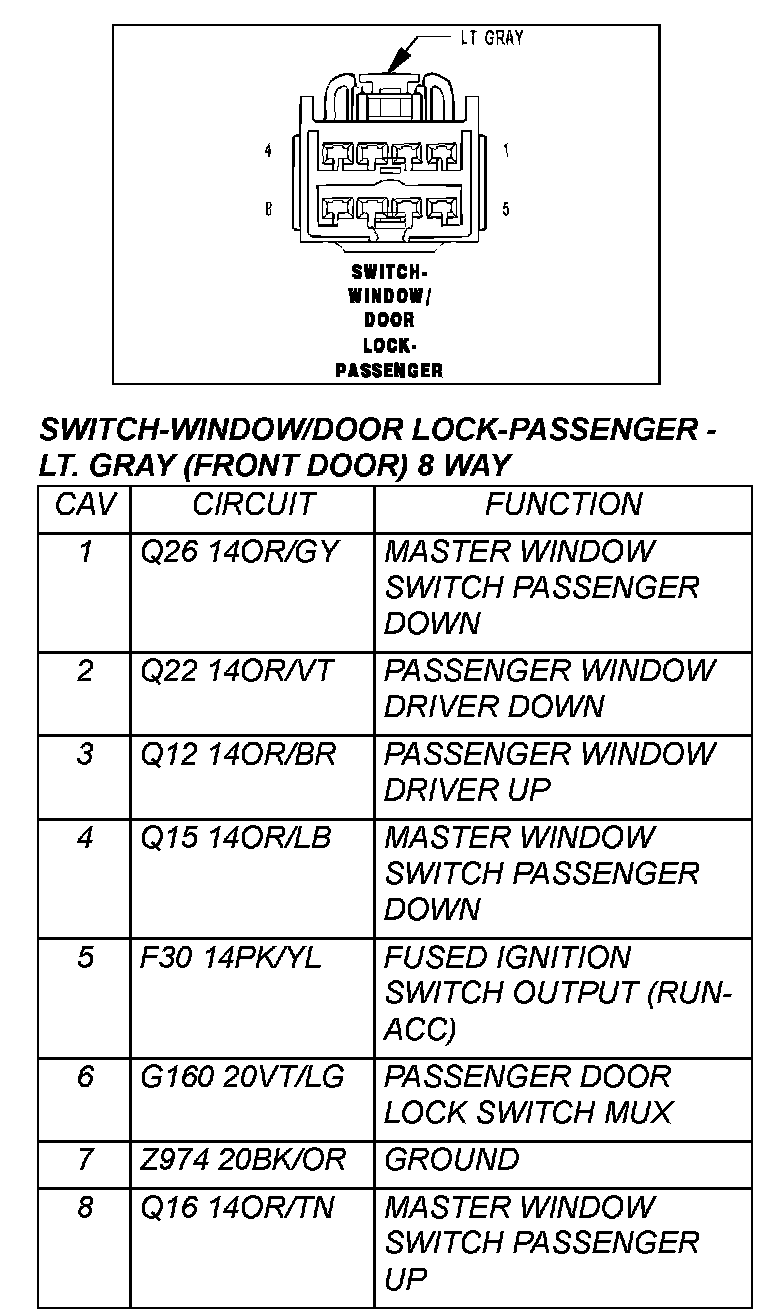

Switch-Window/Door Lock - Passenger - LT. Gray (Front Door) 8 Way:
