Knock Sensor: Diagrams

Sensor-Knock - Black (Engine) 4 Way:



Sensor-Knock No. 1 (3.7L) - Black (Engine) 2 Way:

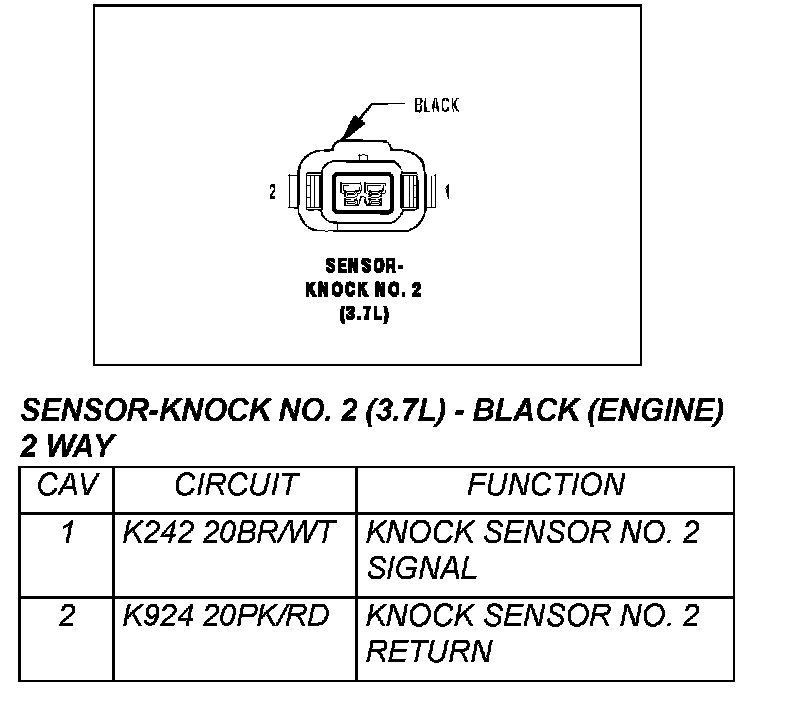

Sensor-Knock No. 2 (3.7L) - Black (Engine) 2 Way:
