System Specifications

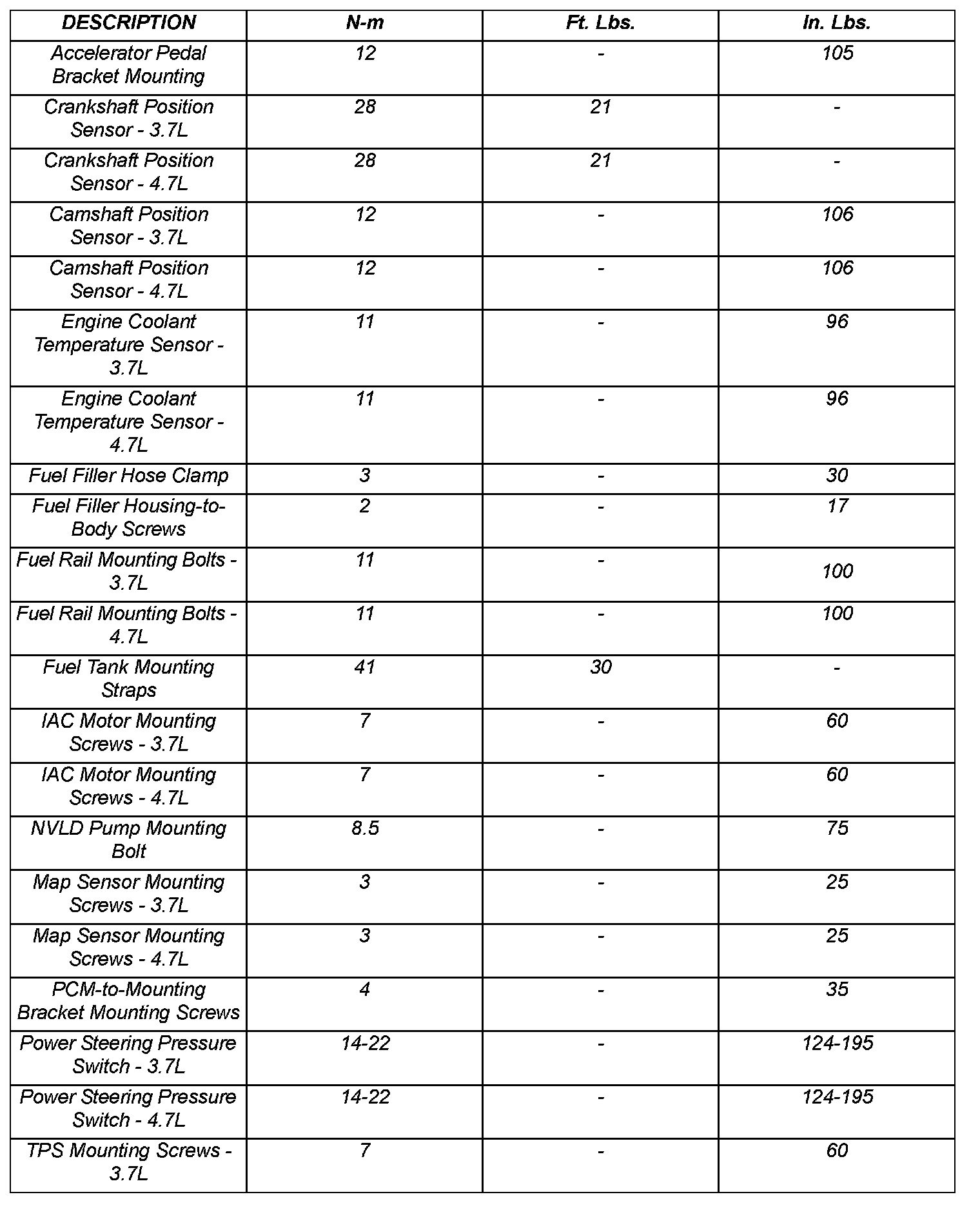

TORQUE - FUEL SYSTEM

Torque-Fuel System Part 1:

Torque-Fuel System Part 2:

CAUTION: Proper torque of the throttle body is critical to operation. If the throttle body is over-torqued, damage to the throttle body can occur resulting in throttle plate malfunction.
