Speaker

Speaker-Left Front Door - White (Front Door) 3 Way:



Speaker-Left Rear (Club Cab) - White (Body) 3 Way:

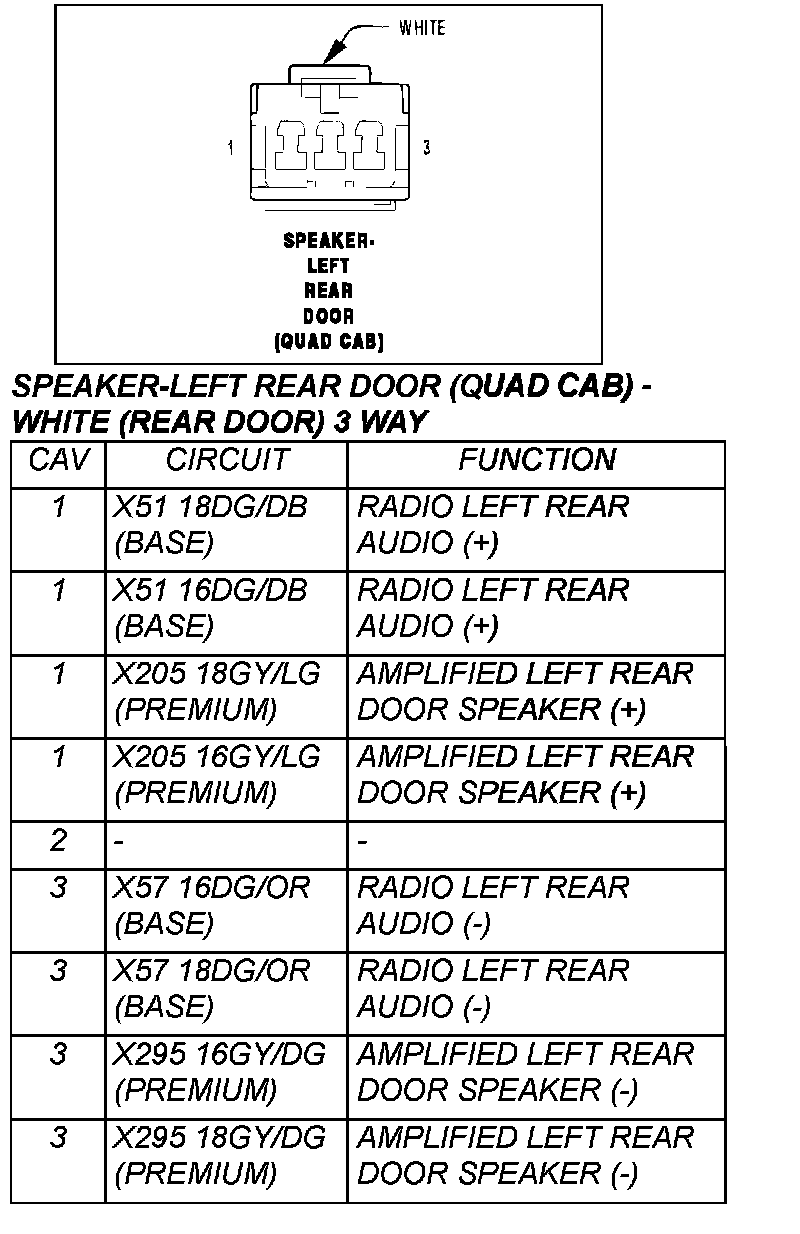

Speaker-Left Rear Door (Quad Cab) - White (Rear Door) 3 Way:



Speaker-Right Front Door - White (Front Door) 3 Way:



Speaker-Right Rear (Club Cab) - White (Body) 3 Way:

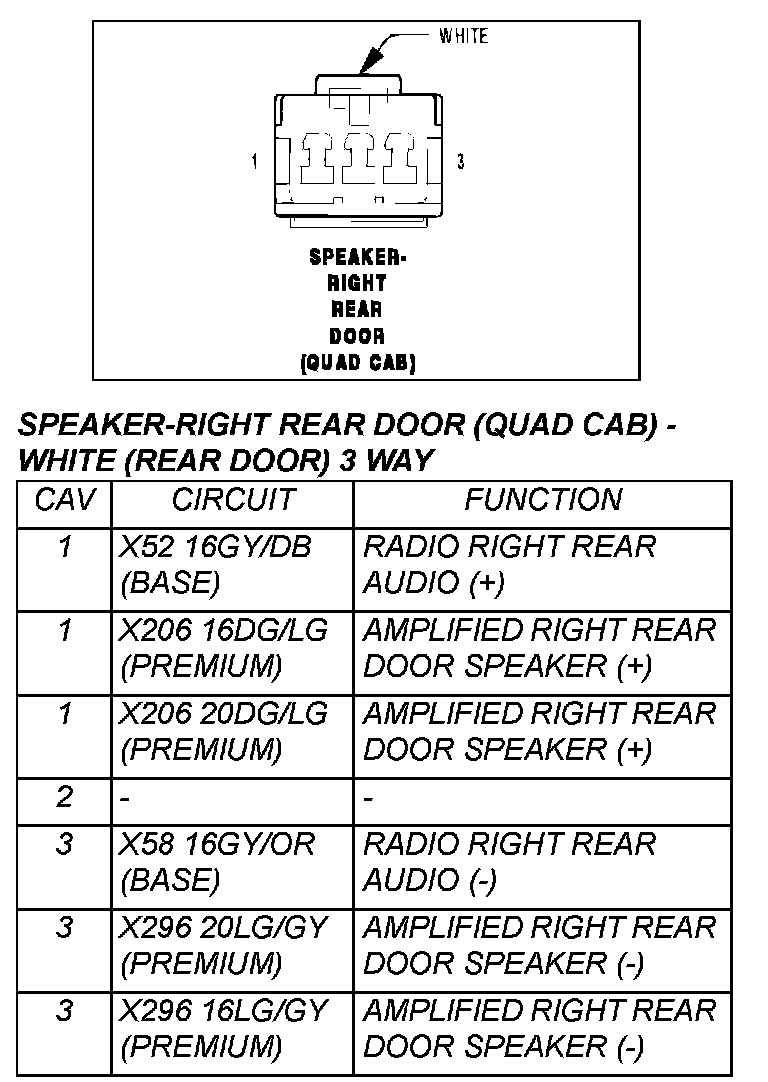

Speaker-Right Rear Door (Quad Cab) - White (Rear Door) 3 Way:



Speaker-Tweeter - Left Front (Premium) - Black (Front Door) 3 Way:



Speaker-Tweeter - Right Front (Premium) - Black (Front Door) 3 Way:
