Fluid - M/T: Service and Repair
STANDARD PROCEDURE - DRAIN AND FILL Drain plug:
1.
Raise and support vehicle.
2.
Remove drain plug (1) on transmission (2) and drain fluid.
3.
Install drain plug and tighten to
50 Nm (37 ft. lbs.).Fill plug:
4.

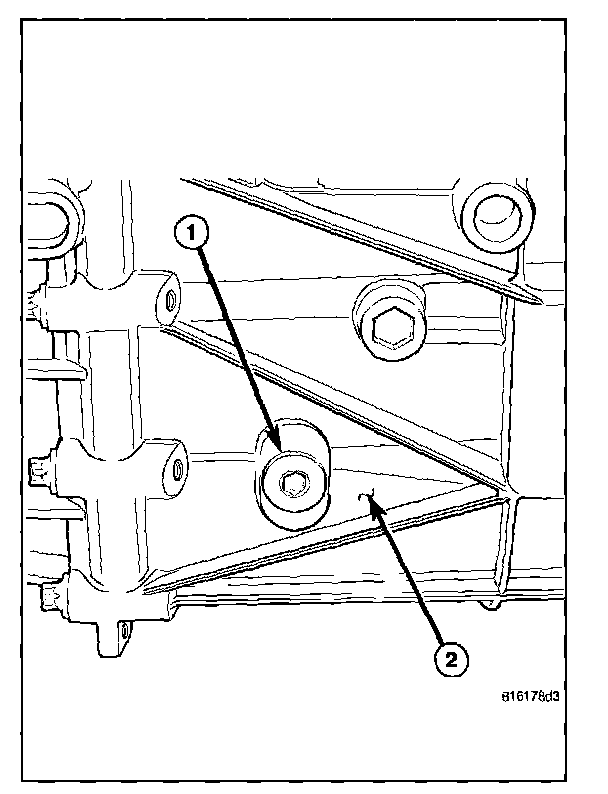

Remove fill plug (1) from side of transmission (2).
5.
Fill transmission even with the bottom of the fill hole.
6.
Install fill plug and tighten to
50 Nm (37 ft. lbs.).
