System Specifications

CYLINDER BLOCK

CYLINDER BLOCK:





PISTONS

PISTONS:








PISTON RINGS

PISTON RINGS:





CONNECTING RODS

CONNECTING RODS:





Connecting Rod Cap Bolts 27 Nm (20 ft. lbs.)
PLUS 90° TURN

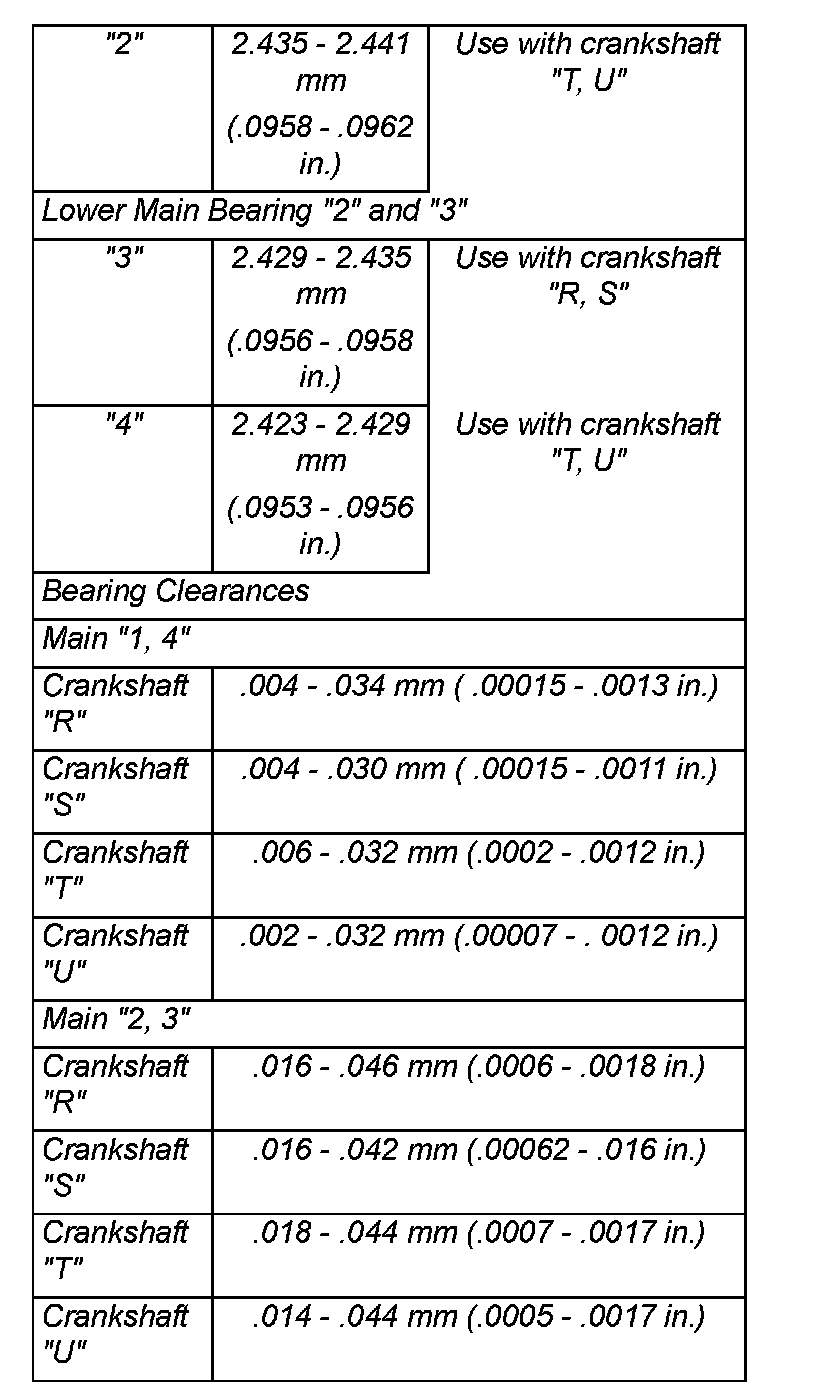

CRANKSHAFT

CRANKSHAFT:

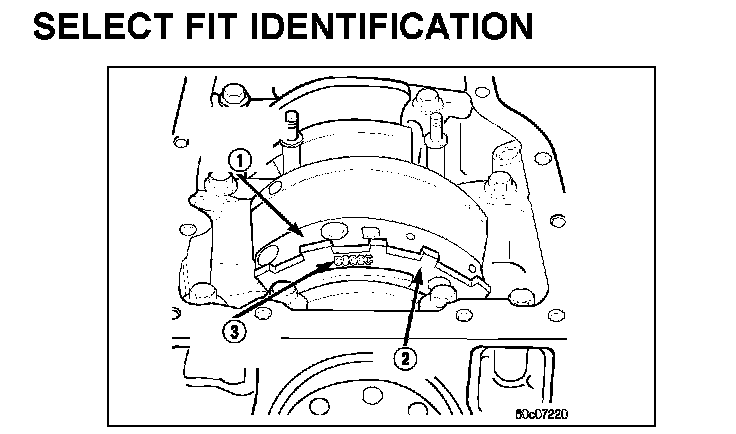

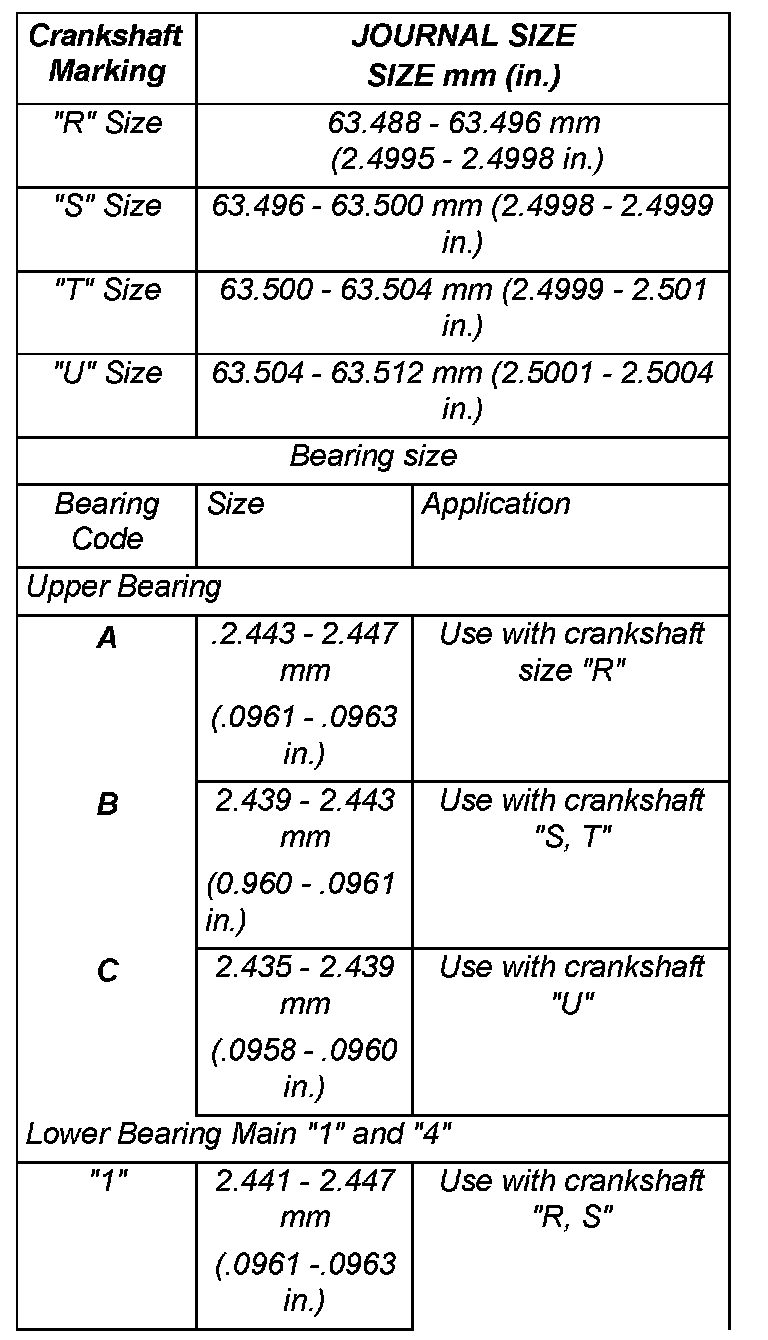

SELECT FIT IDENTIFICATION:

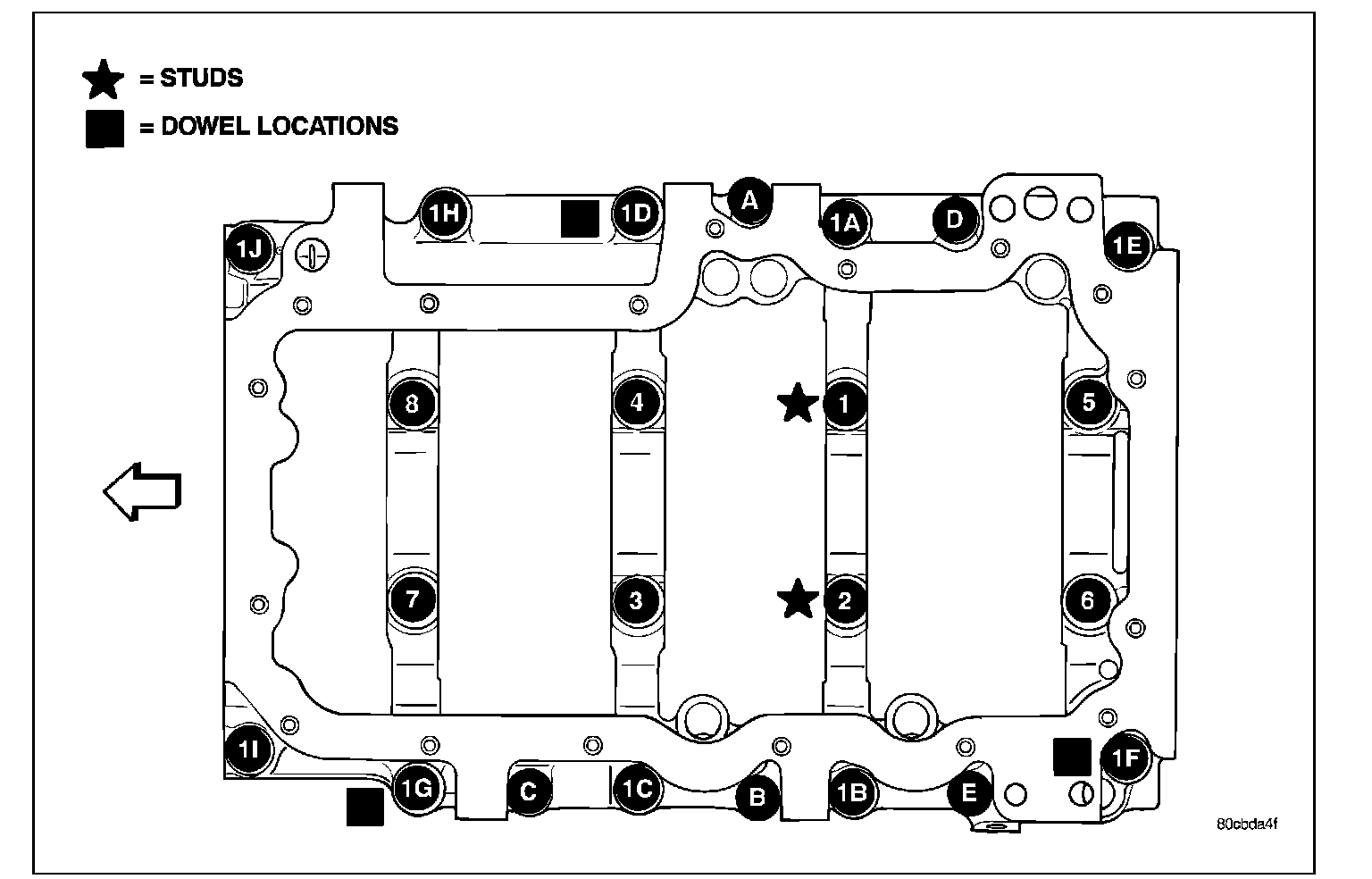

Bed Plate Bolts
1A - 1J 54 Nm (40 ft. lbs.)
1 - 8 7 Nm (5 ft. lbs.)
1 - 8 additional 90°
A - E 27 Nm ( 20 ft. lbs.)





Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
