Console: Service and Repair
CONSOLE - FLOORREMOVAL
MINI FLOOR CONSOLE
1. If equipped, remove the shift boot (2).
2. Remove the rubber liners (1).
3. Remove the screws (2) that secure the floor console (3) to the floor panel and remove the floor console.

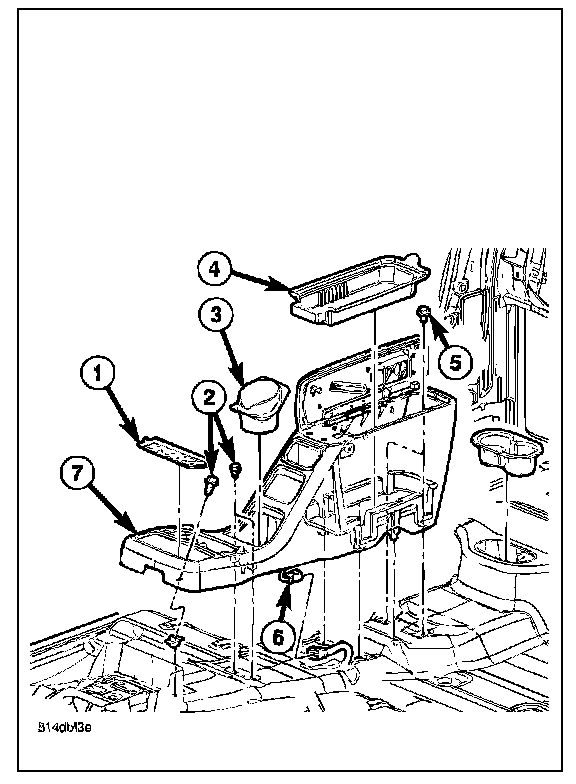

FULL FLOOR CONSOLE
1. Remove the rubber liner (1).
2. Remove the cup holder (3).
3. Remove the tray (4).
4. Remove the screws (2) (5) that secure the floor console (7) to the floor panel.
5. Disconnect the console assembly wire harness connector (6) located underneath the floor console and remove the floor console from the vehicle.
INSTALLATION
MINI FLOOR CONSOLE
1. Position the floor console (3) in the vehicle and install the screws (2) that secure the console to the floor panel.
2. Install the rubber liners (1).
3. If equipped, install the shift boot (2).

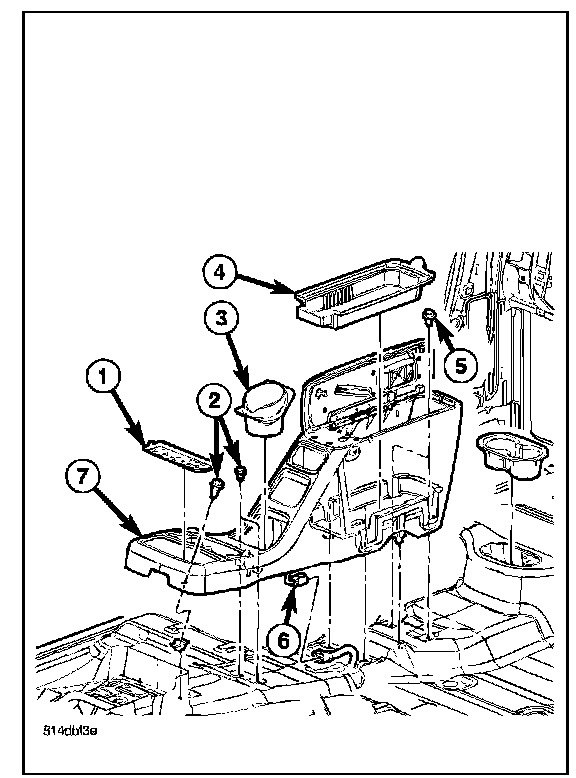

FULL FLOOR CONSOLE
1. Position the floor console (7) in the vehicle and connect the console assembly wire harness connector (6).
2. Position the floor console to the floor panel and install the screws (2) (5) that secure the console to the floor panel.
3. Install the rubber liner (1).
4. Install the cup holder (3).
5. Install the tray (4).
