SENSOR - WHEEL SPEED - FRONT

REMOVAL





1. Raise and support the vehicle.
2. Remove the front rotor and caliper adapter.

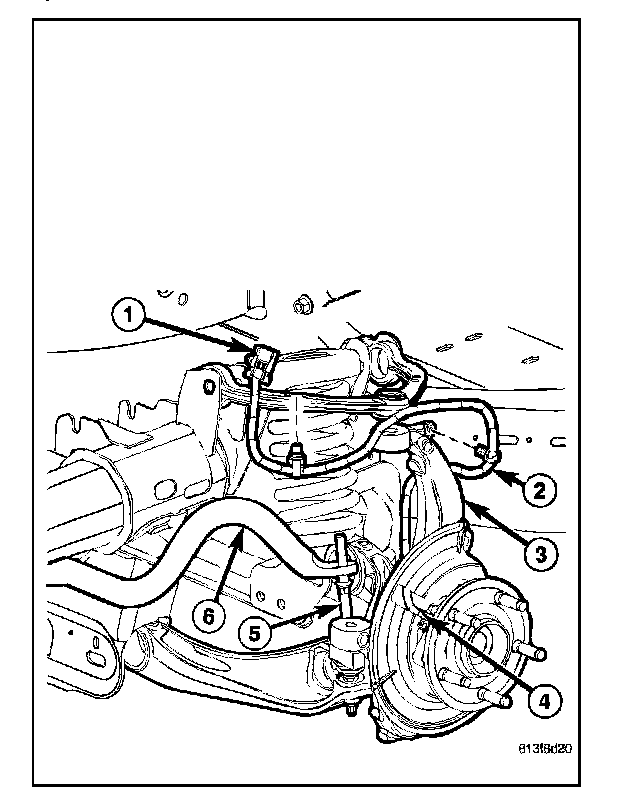

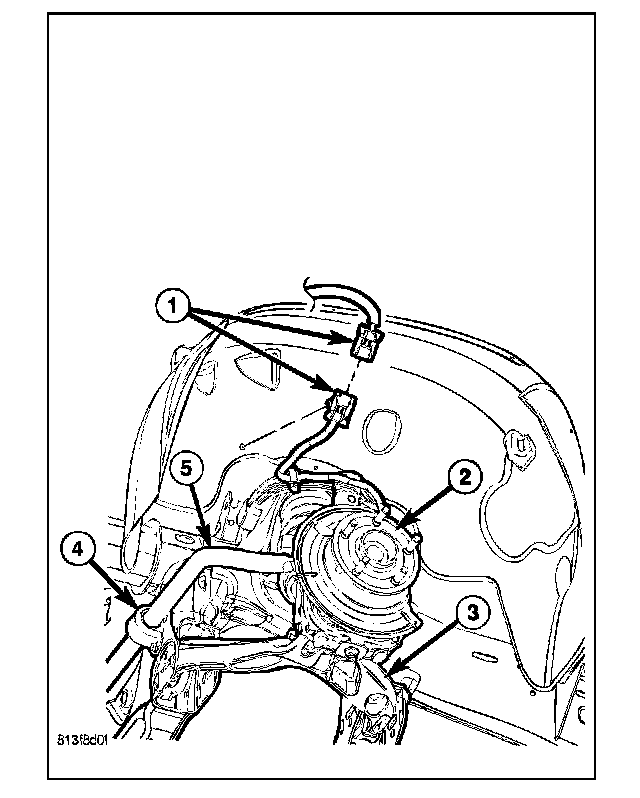

3. Remove the wheel speed sensor mounting bolt (1) from the hub (3).
4. Remove the wheel speed sensor (2) from the hub (3).





5. Remove the wiring from the clips and disconnect the electrical connector (1).

INSTALLATION

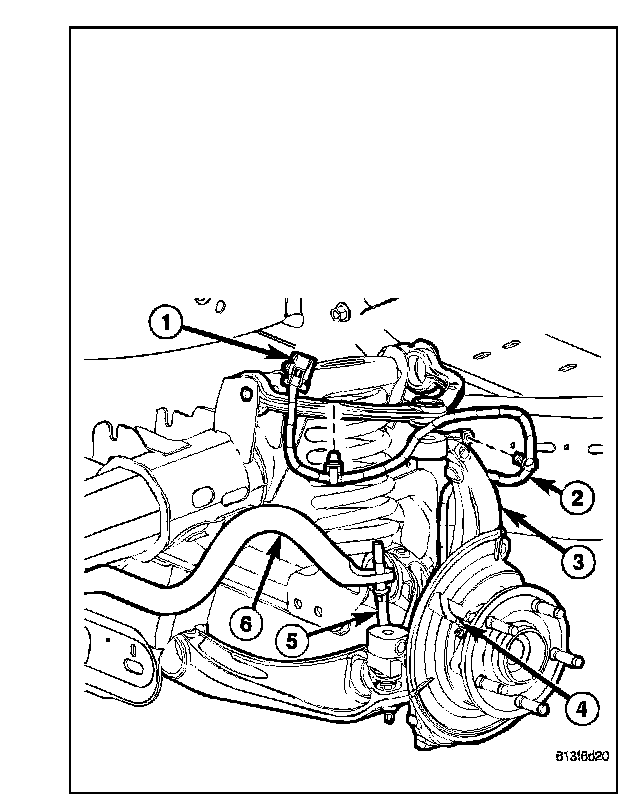

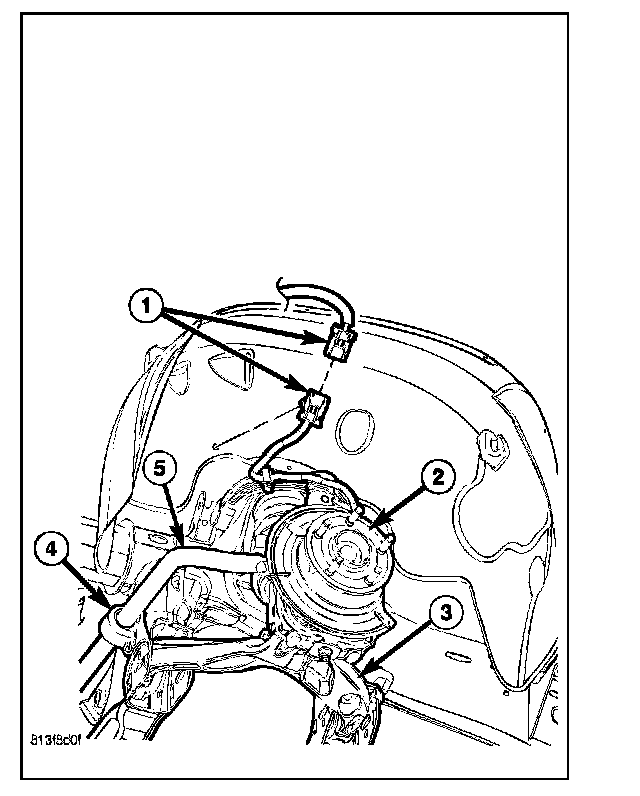

1. Install the wiring to the clips and Reconnect the electrical connector (1).





2. Install the wheel speed sensor (2) to the hub (3).
3. Install the wheel speed sensor mounting bolt (1) to the hub (3). Tighten the bolt to 21 Nm (190 in. lbs.).





4. Install the front rotor and brake caliper assembly.
