Pressure Regulating Solenoid, A/T

Assembly-Line Pressure Sensor/Variable Force Solenoid - Black (Engine) 6 Way:

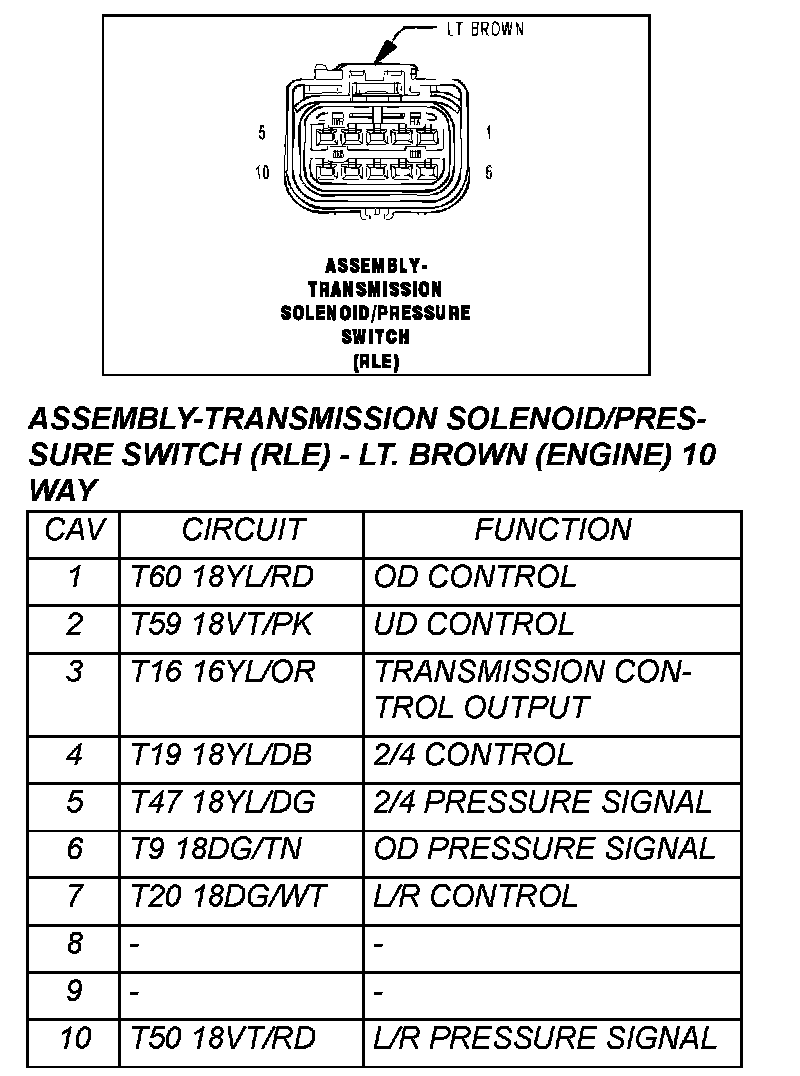

Assembly-Transmission Solenoid/Pressure Switch (RLE) - LT.Brown (Engine) 10 Way:



Assembly-Transmission Solenoid/TRS (RFE) - Black (Engine) 23 Way (Part 1):

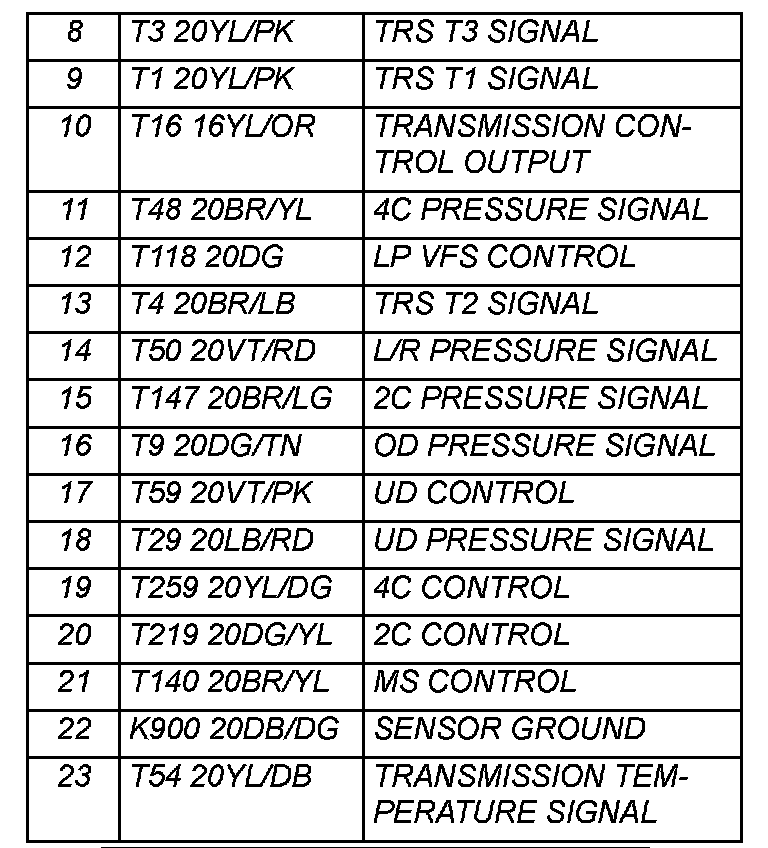

Assembly-Transmission Solenoid/TRS (RFE) - Black (Engine) 23 Way (Part 2):
