Oxygen Sensor: Diagrams

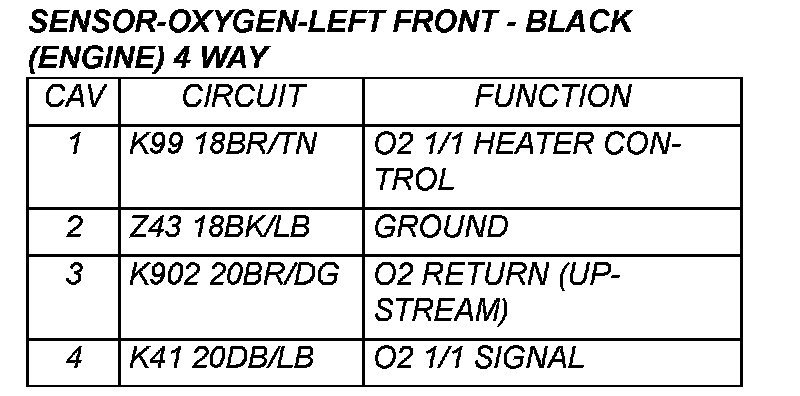

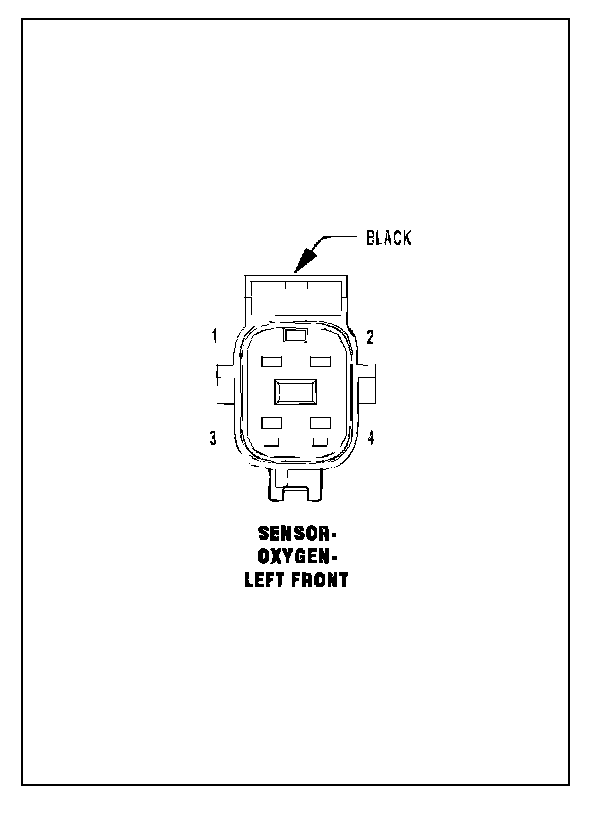

Sensor - Oxygen - Left Front - Black (Engine) 4 Way (Part 1):



Sensor - Oxygen - Left Front - Black (Engine) 4 Way (Part 2):

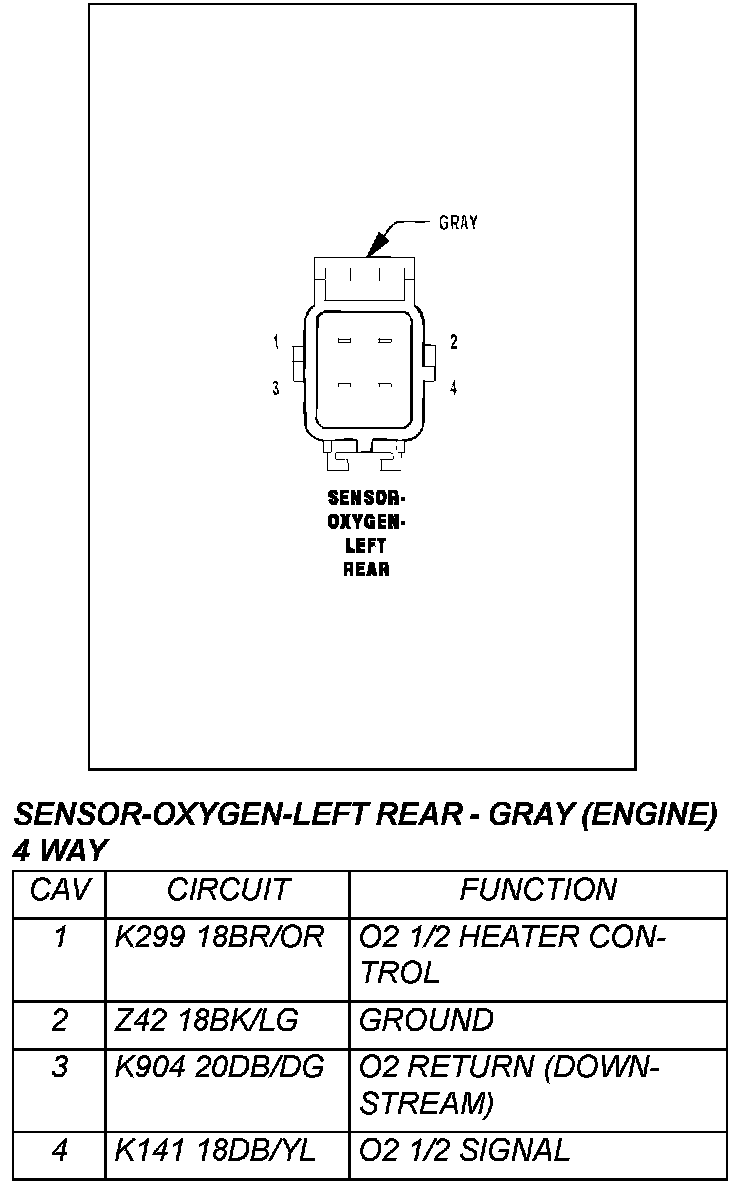

Sensor - Oxygen - Left Rear - Gray (Engine) 4 Way:

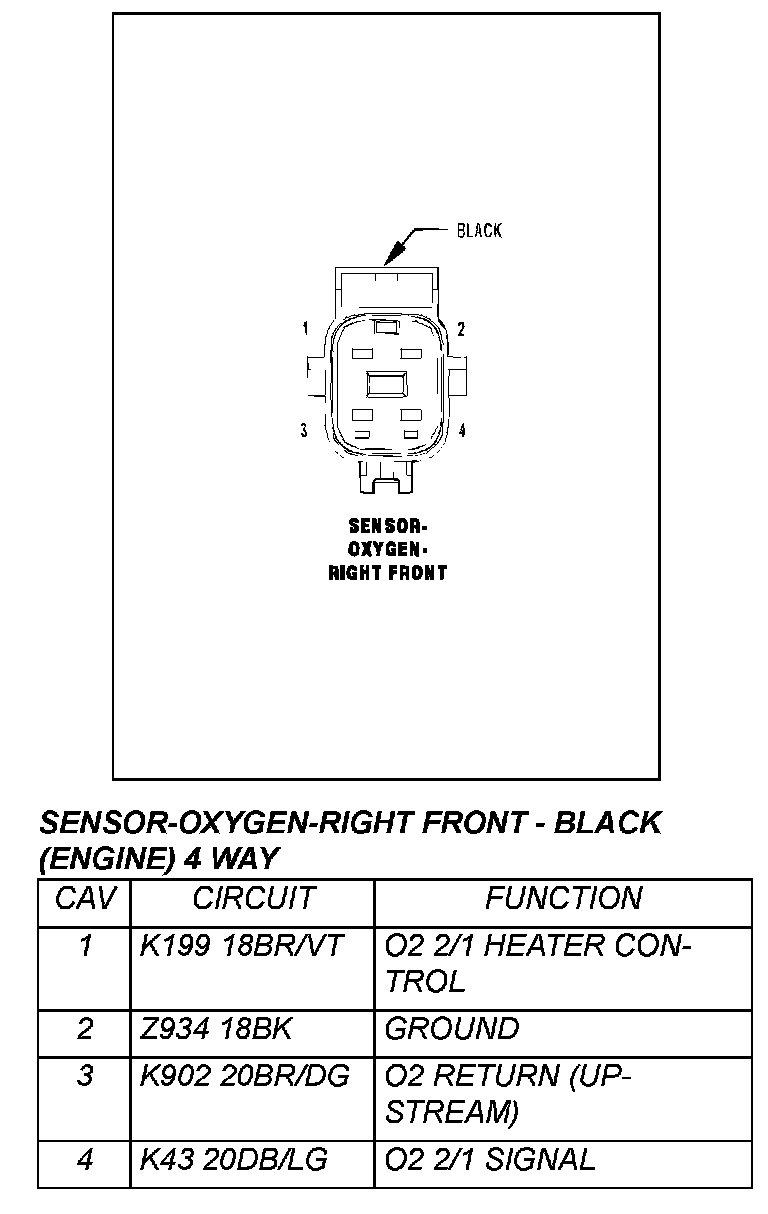

Sensor - Oxygen - Right - Front - Black (Engine) 4 Way:

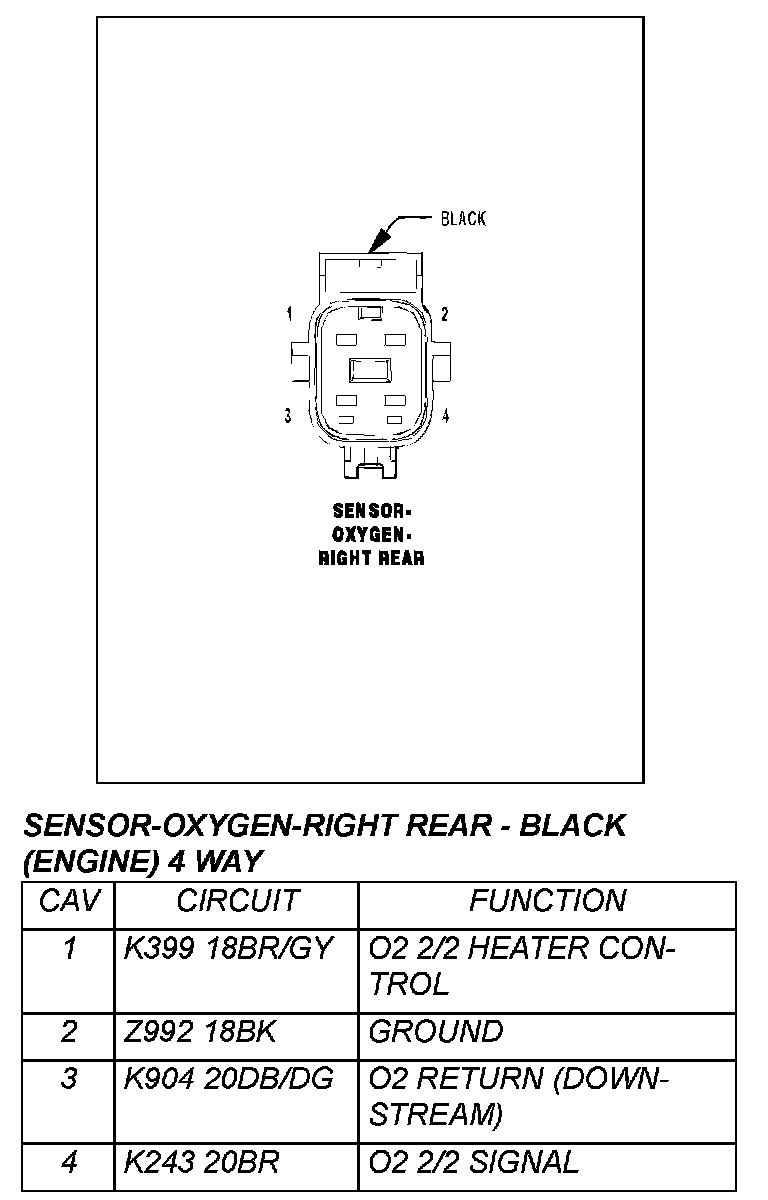

Sensor - Oxygen - Right Rear - Black (engine) 4 Way:
