Oil Pan, Engine
OIL PAN Clean the oil pan gasket mating surface of the bedplate and
oil pan.
Position the oil pan gasket and pickup tube with new o-ring. Install the mounting bolt and nuts. Tighten bolt and nuts to 28 Nm (20 ft. lbs.).

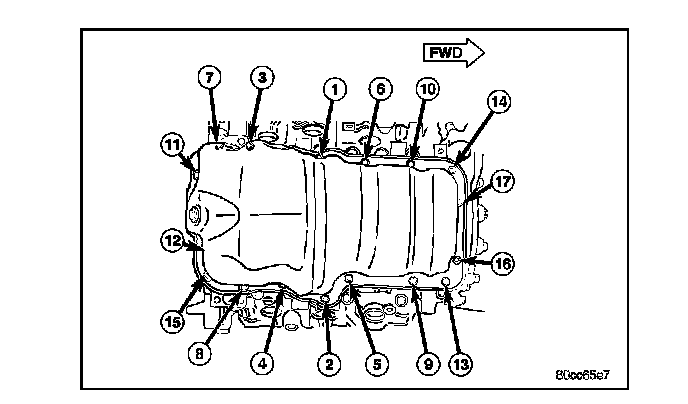

Position the
oil pan and install the mounting bolts. Tighten the mounting bolts to 16 Nm (140 in. lbs.) in the sequence shown.
