Lower Control Arm Bushing

LOWER CONTROL ARM BUSHING

REMOVAL

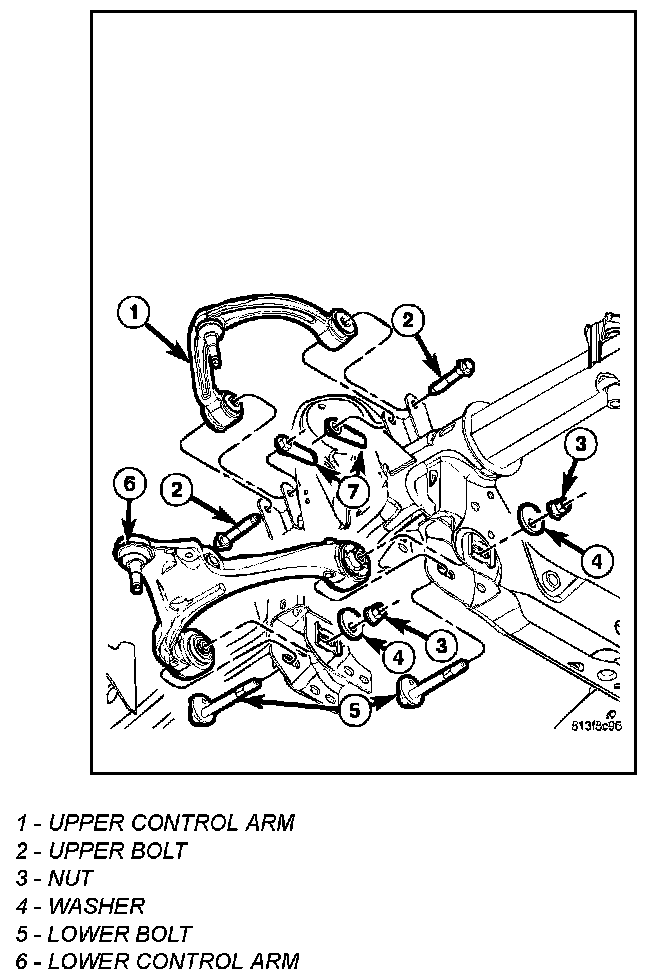

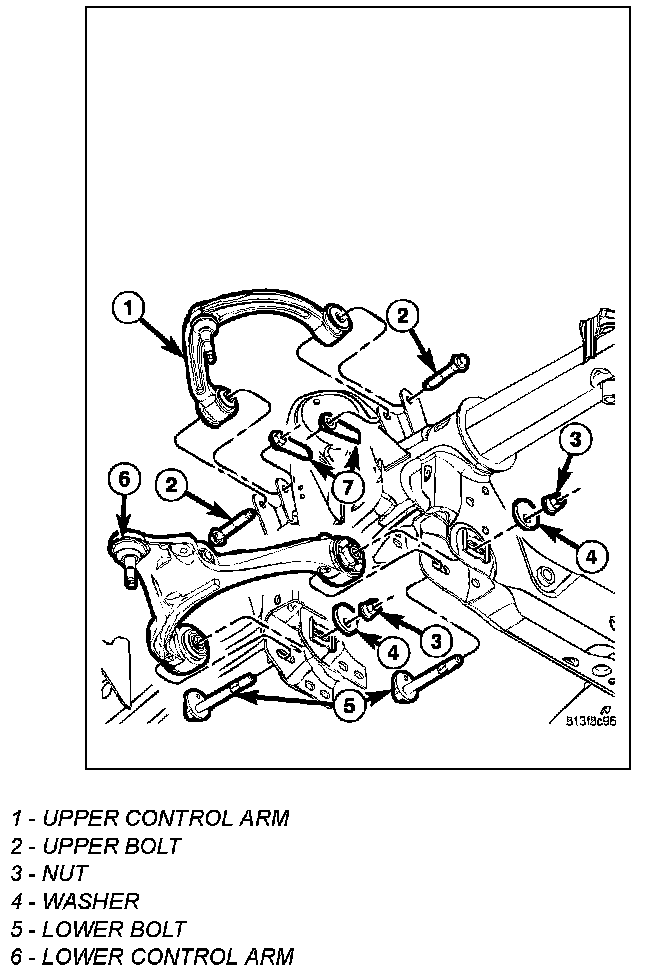

1. Remove the lower control arm (6).
2. Secure the control arm in a vise.





NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

3. Install special tools C-4212-F (press) (1), 9334.5 (Receiver) (2), 9603.3 (Driver) (5) to press the bushing out of the lower control arm.

INSTALLATION





1. Install the new bushing (4) into the lower control arm (3) using tools C-4212-F (Press) (1), 9603.2 (Depth Gauge) (2), 9603.1 (Driver) (5).





2. Remove the control arm from the vise.
3. Install the lower control arm (6).
4. Reset the vehicle ride height.
5. Perform a wheel alignment.
