Outside Rear View Mirror

DOOR MIRROR

REMOVAL AND INSTALLATION

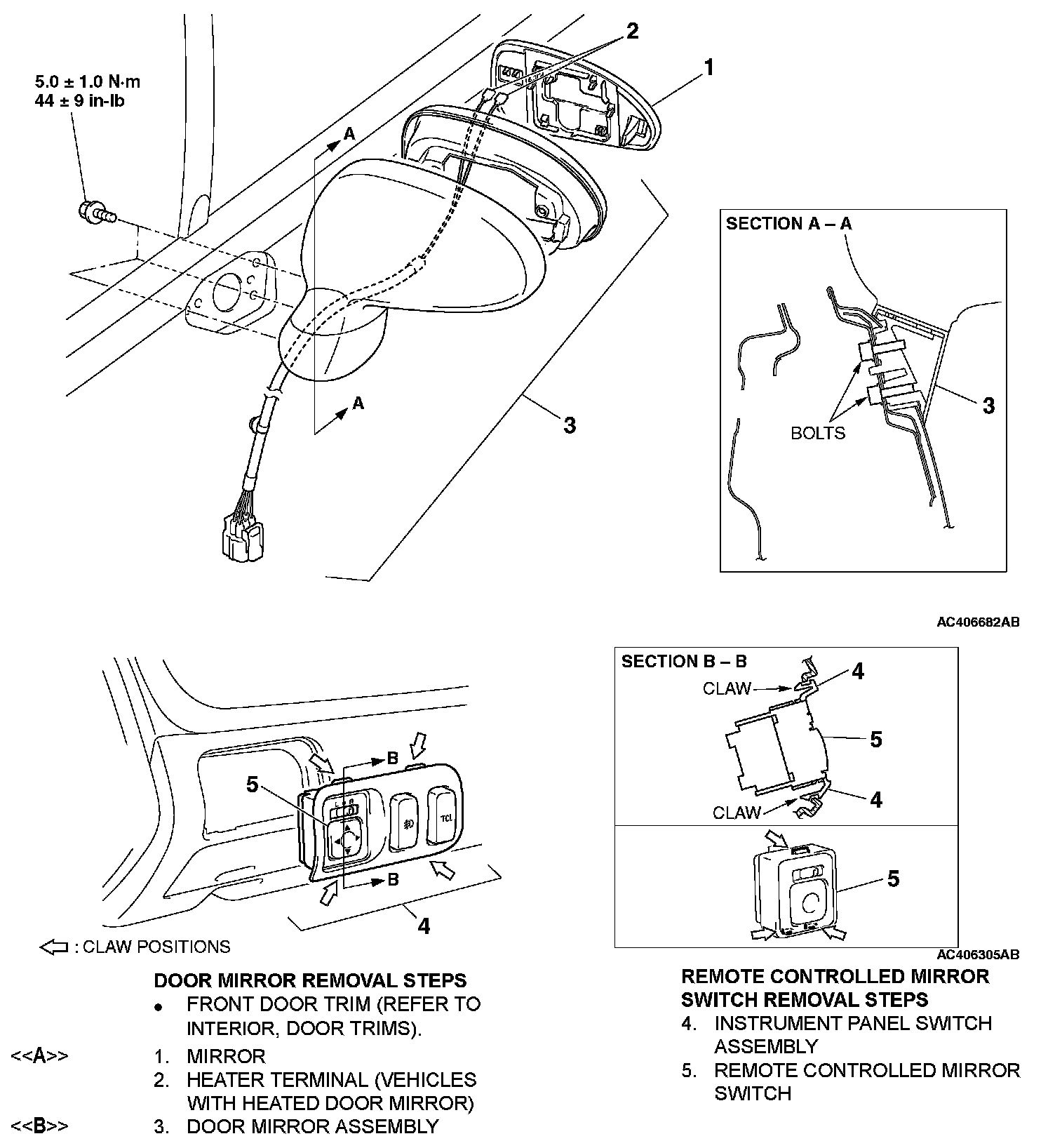

Removal Steps 1-5:






REMOVAL SERVICE POINTS

[[A]] MIRROR REMOVAL







CAUTION: The claws of the mirror are prone to breakage when working in cold temperatures. Always warm up the mirror claws and their periphery to 20°C(60°F) or higher before handling.

Slant the mirror upward with your hands. Then insert a flat-tipped screwdriver wrapped with protective tape between the pivot plate and mirror through the notch from behind the mirror. Now pry off the mirror claws and remove mirror as shown.

[[B]] DOOR MIRROR ASSEMBLY REMOVAL







CAUTION: When loosening or tightening the door mirror assembly mounting bolts, use a magnetic wrench to prevent bolts from dropping into the door panel cavity.
