Data List Reference Table
DATA LIST REFERENCE TABLEThe following items can be read by the scan tool from the
convertible top control module input data.

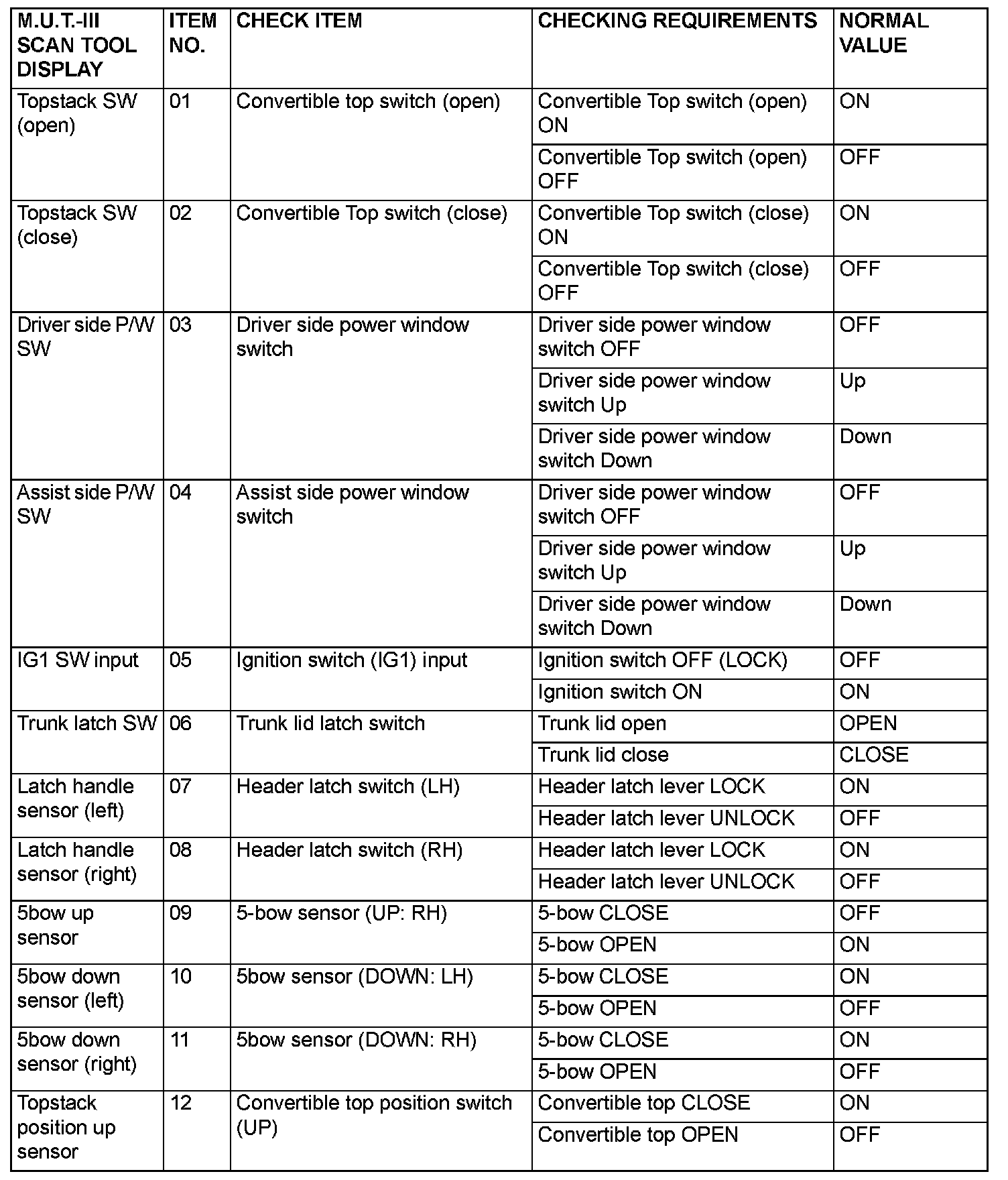

Data List Reference Table (Part 1):

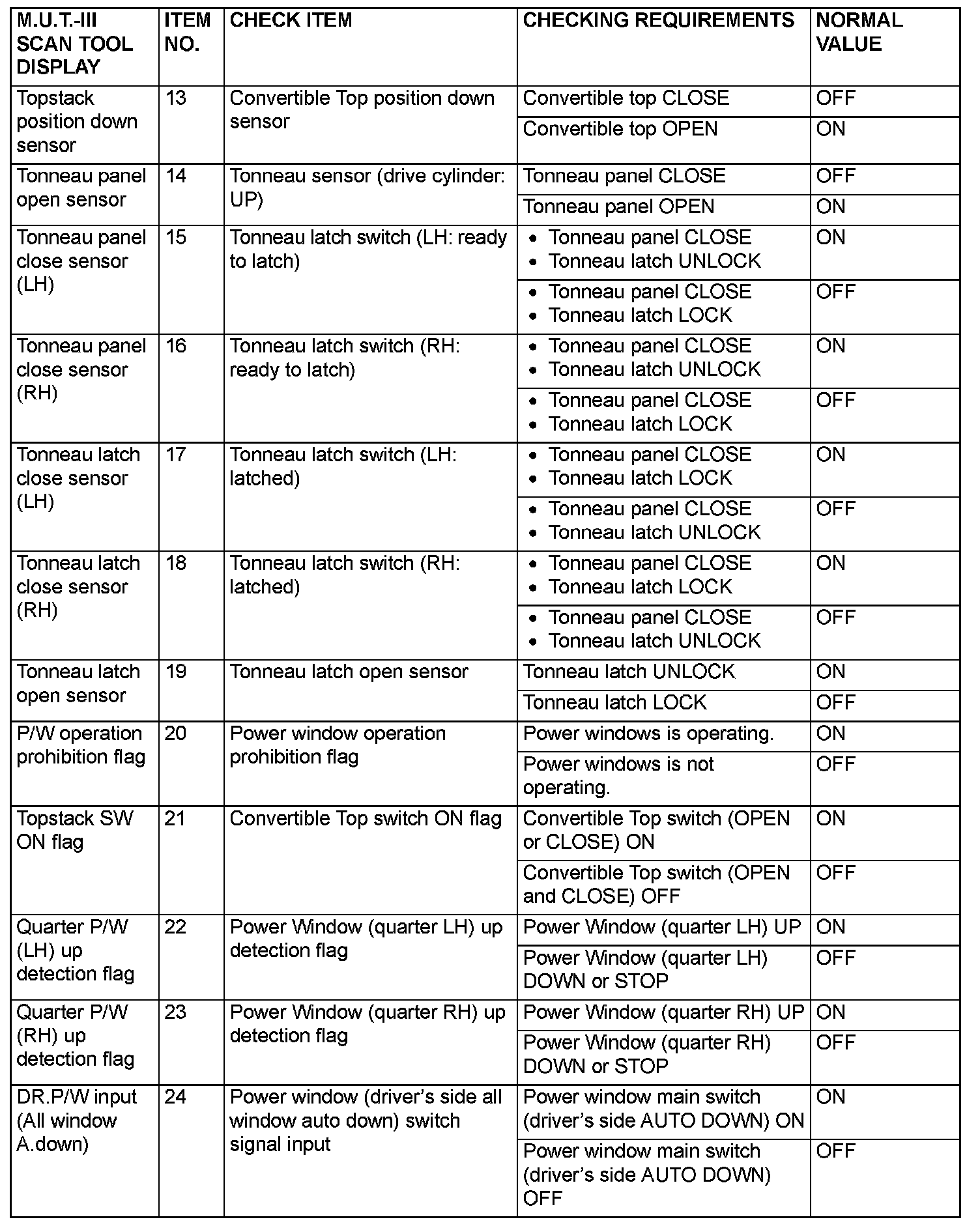

Data List Reference Table (Part 2):

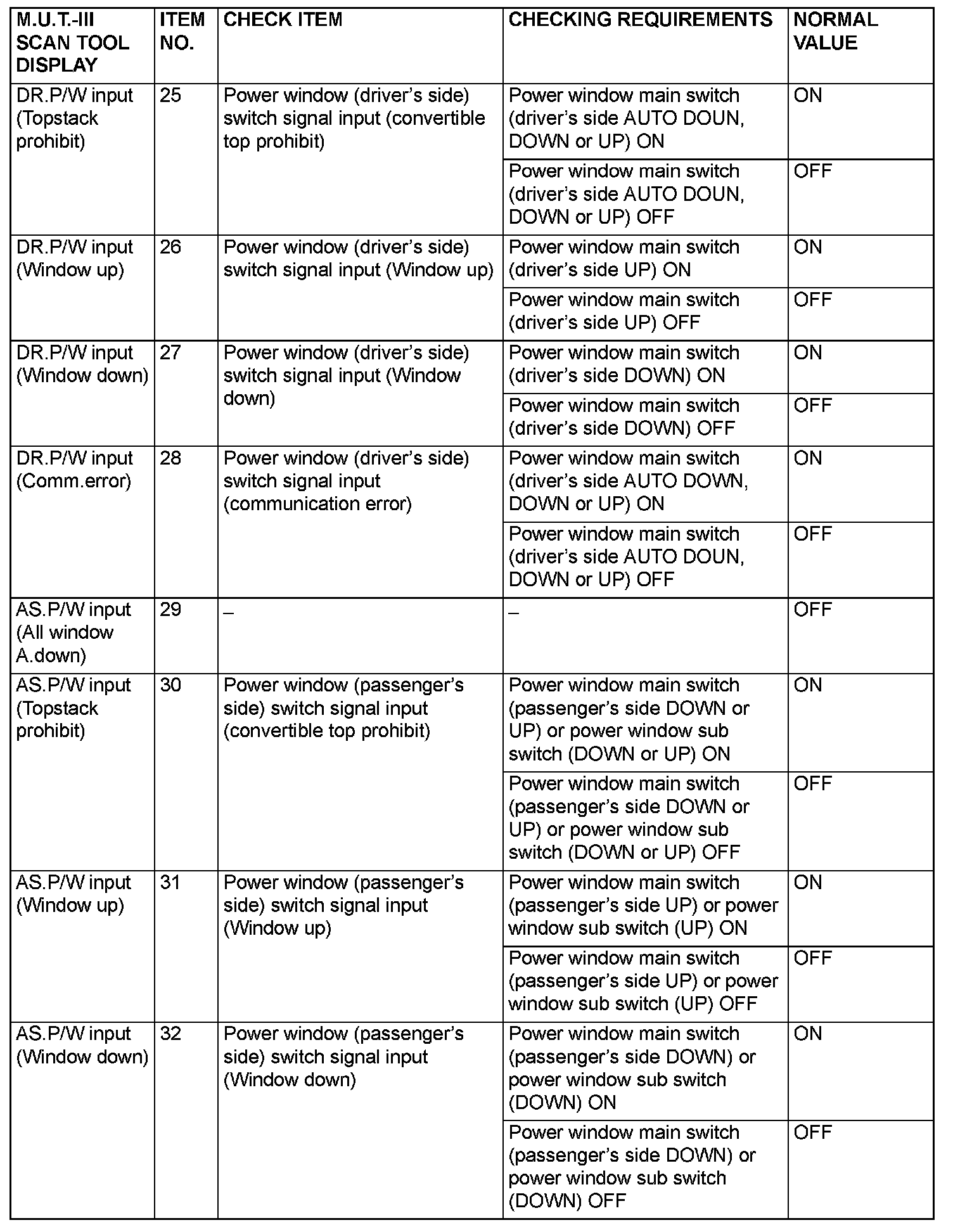

Data List Reference Table (Part 3):

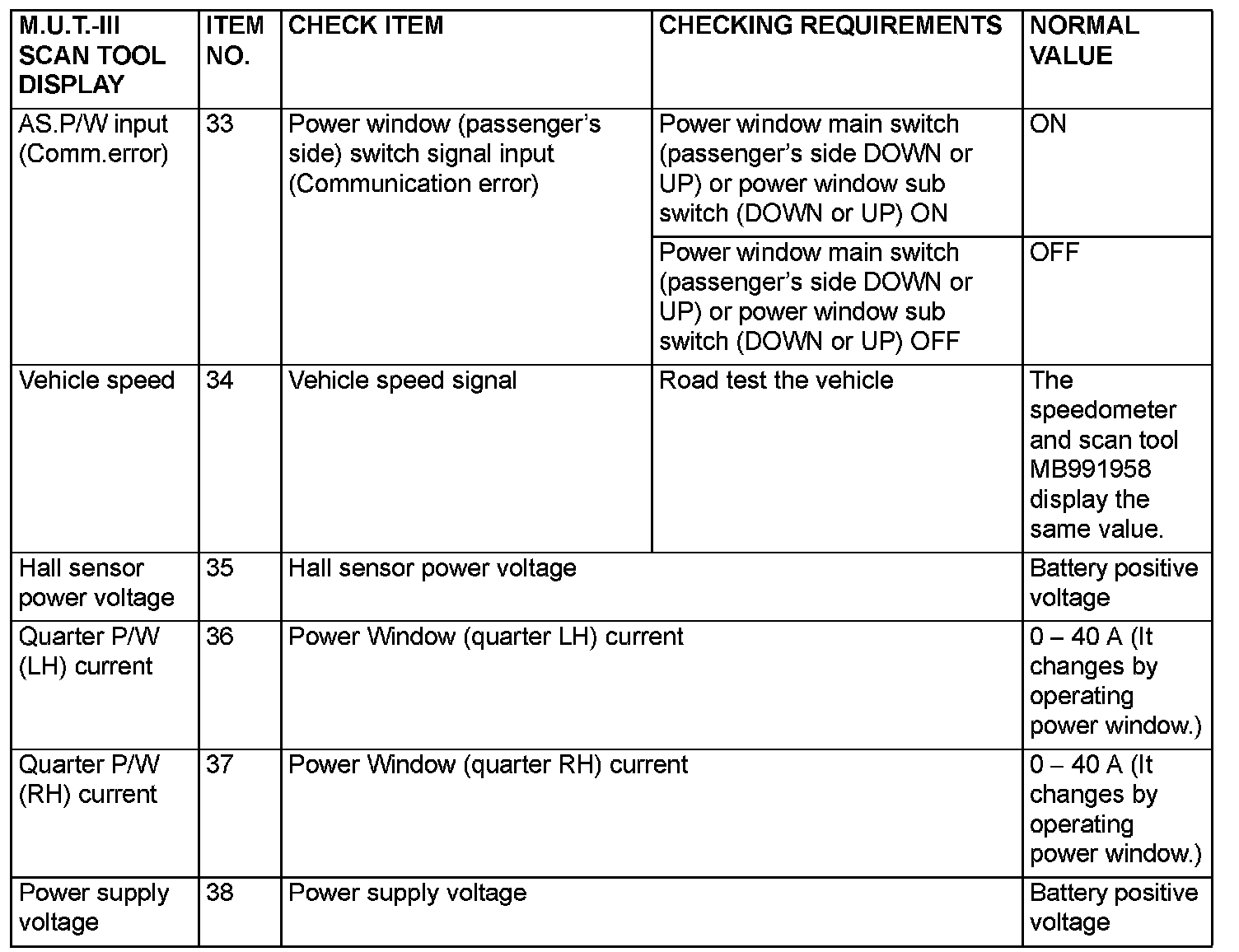

Data List Reference Table (Part 4):
