Power Steering Line/Hose: Service and Repair

This article has been updated by TSB-09-37-003


POWER STEERING HOSES

REMOVAL AND INSTALLATION

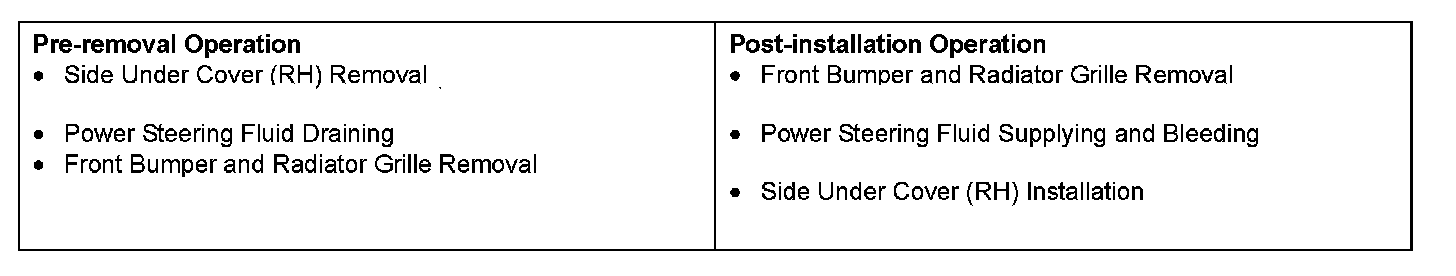

Pre-removal & Post-installation Operation:

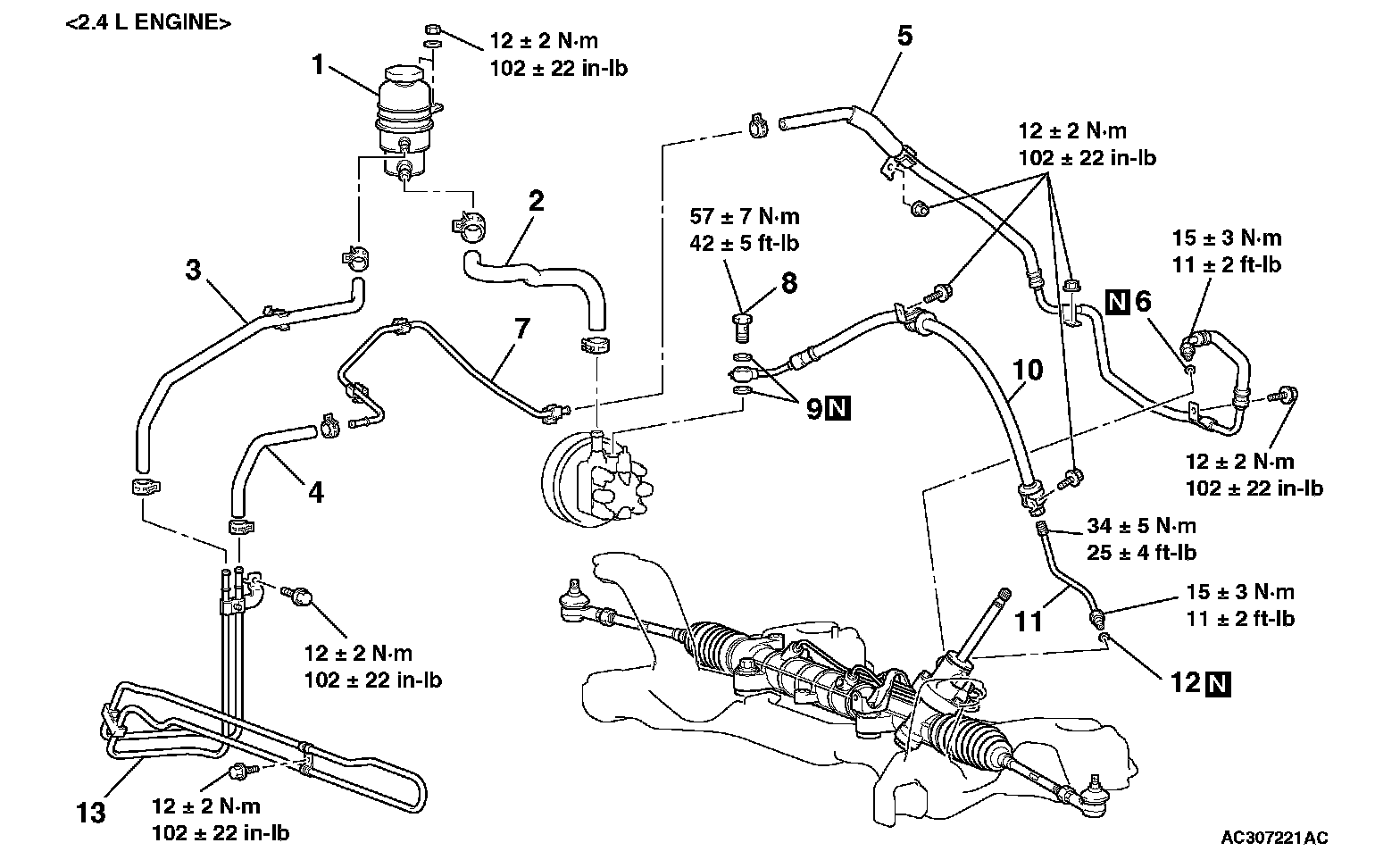

[2.4 L ENGINE]

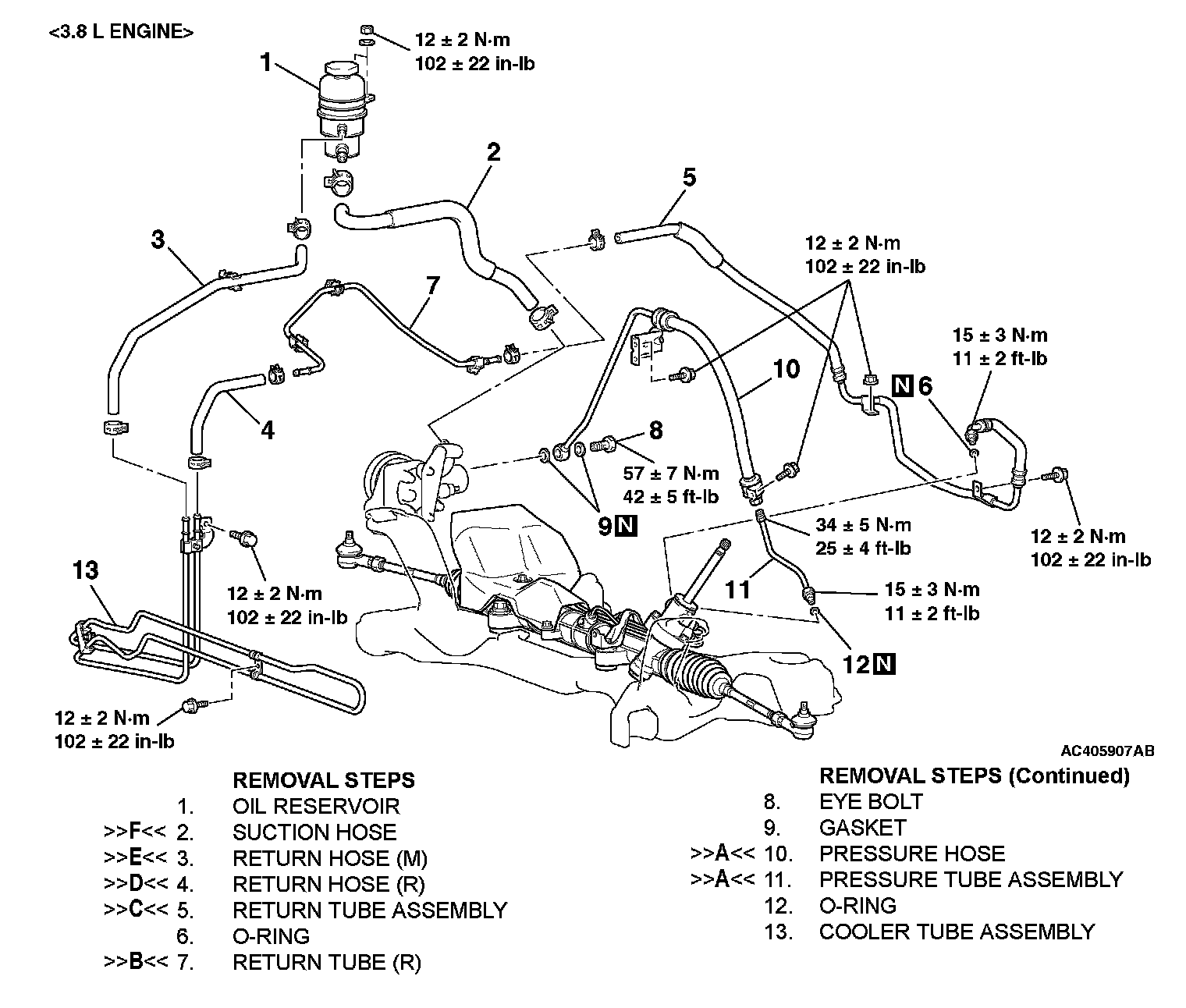

[3.8 L ENGINE]

Removal Steps 1-13:





INSTALLATION SERVICE POINTS

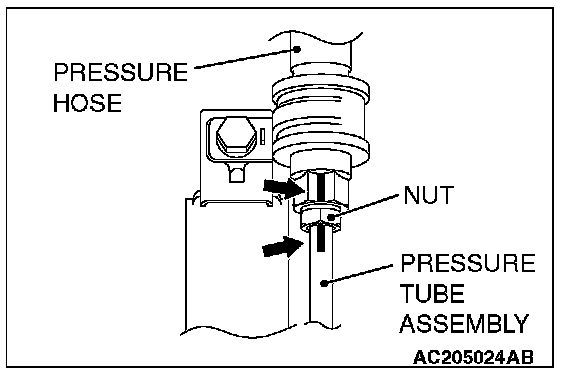

]]A[[ PRESSURE TUBE ASSEMBLY/PRESSURE HOSE INSTALLATION





Align the markings as shown in the illustration and tighten the nut.

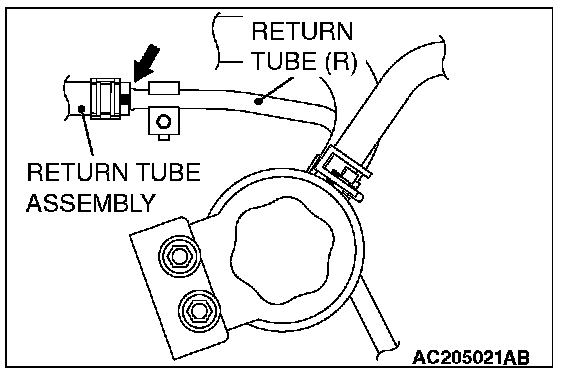

]]B[[ RETURN TUBE (R) INSTALLATION





Install the return tube (R) so that the marking is positioned as shown in the illustration.

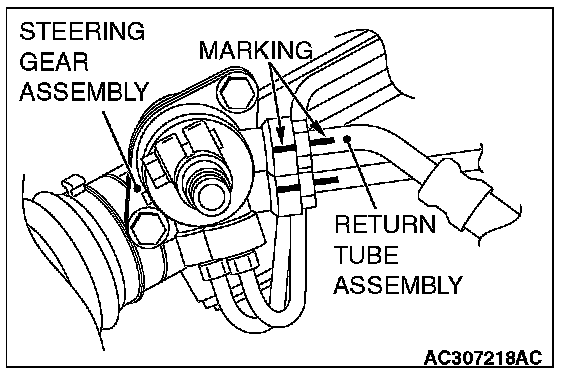

]]C[[ RETURN TUBE ASSEMBLY INSTALLATION





1. Install the return tube assembly so that the marking is positioned as shown in the illustration.
2. Align the markings as shown in the illustration and tighten the nut.

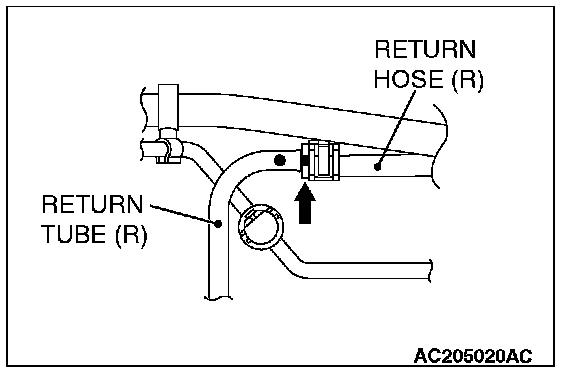

]]D[[ RETURN HOSE (R) INSTALLATION





Install the return hose (R) so that the markings are positioned as shown in the illustration.

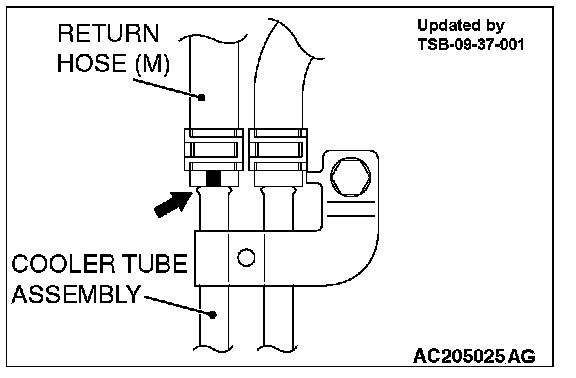

]]E[[ RETURN HOSE (M) INSTALLATION





Install the return hose (M) so that the markings are positioned as shown in the illustration.

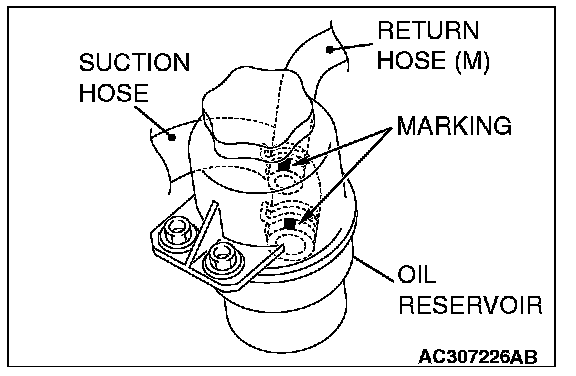

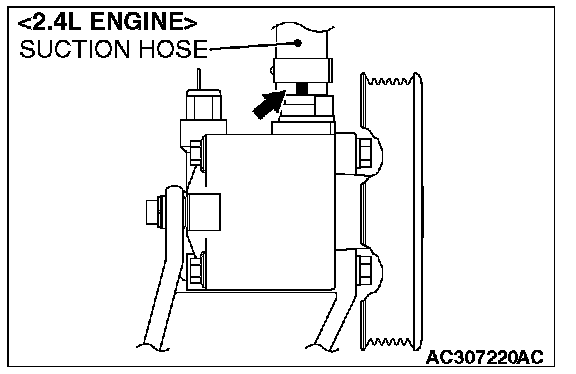

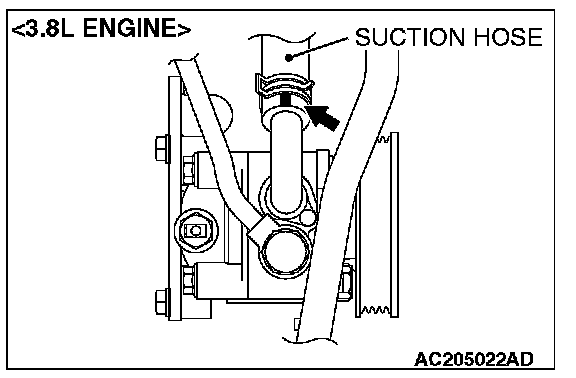

]]F[[ SUCTION HOSE INSTALLATION





Install the suction hose so that the marking is positioned as shown in the illustration.
