Datal List Reference Table
DATA LIST REFERENCE TABLECAUTION
- When shifting the selector lever to D range, the brakes should be applied so that the vehicle does not move forward.
- Driving tests always need two persons: one driver and one observer.
NOTE:
- *1: In a new vehicle [driven approximately 500 km (311 mile) or less], the mass airflow sensor output value is sometimes 10 % higher than the standard value.
- *2: The injector drive time represents the time when the cranking speed is at 250 r/min or below when the power supply voltage is 11 volts.
- *3: In a new vehicle [driven approximately 500 km (311 mile) or less], the injector drive time is sometimes 10 % longer than the standard time.
- *4: Vehicles for Canada, the headlight, taillight, etc. remain lit even when the lighting switch is in "OFF" position but this is no problem for checks.

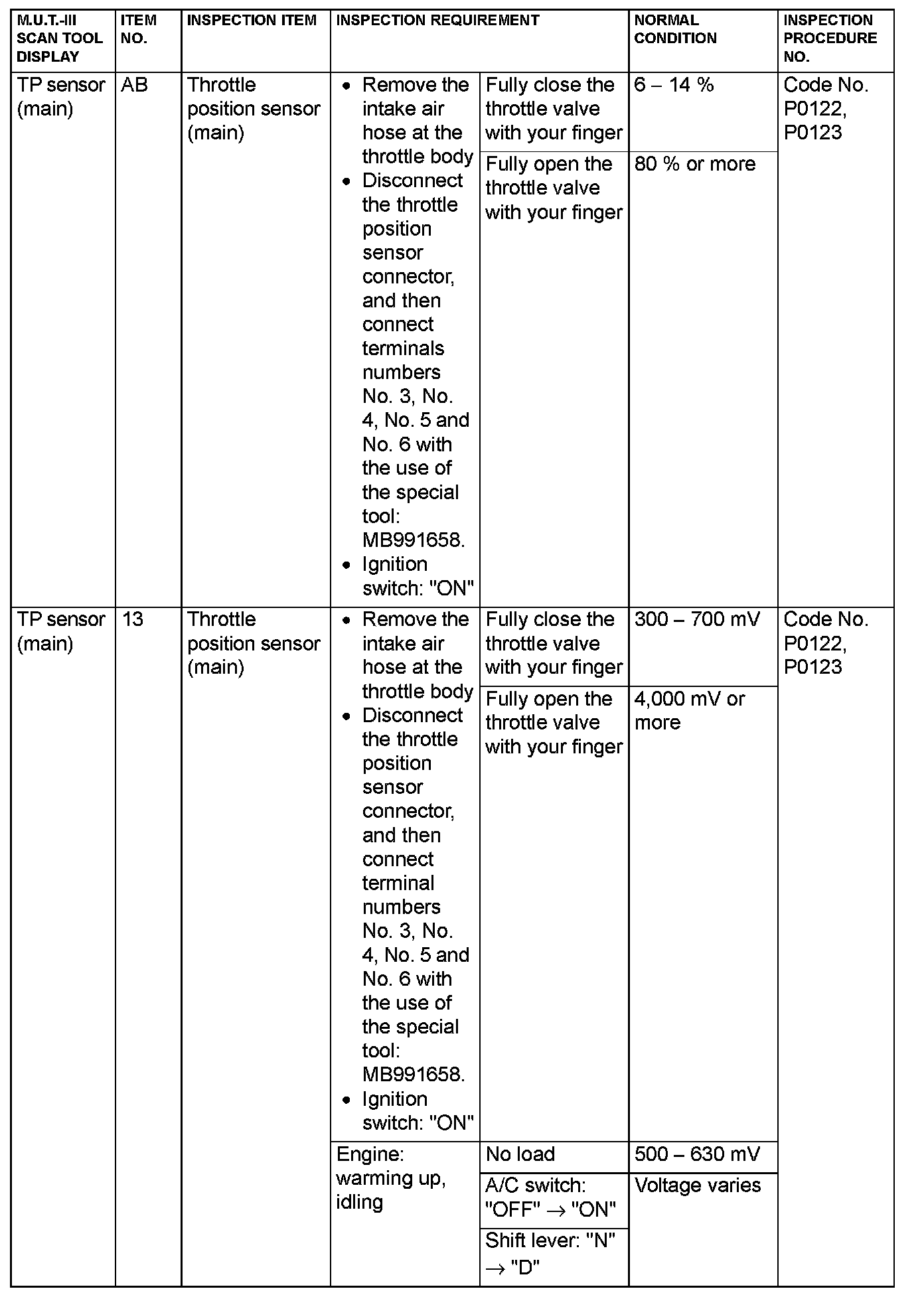

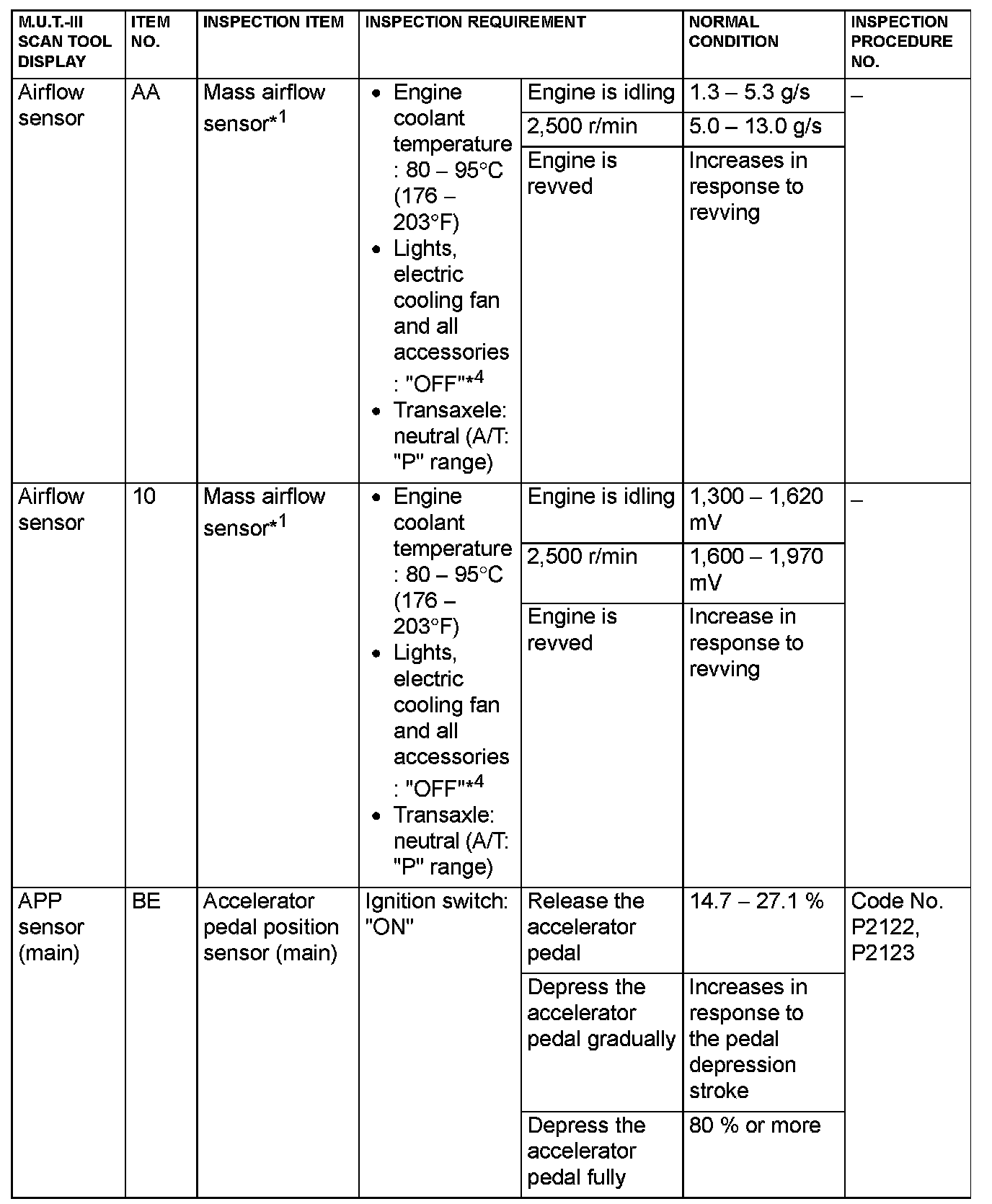

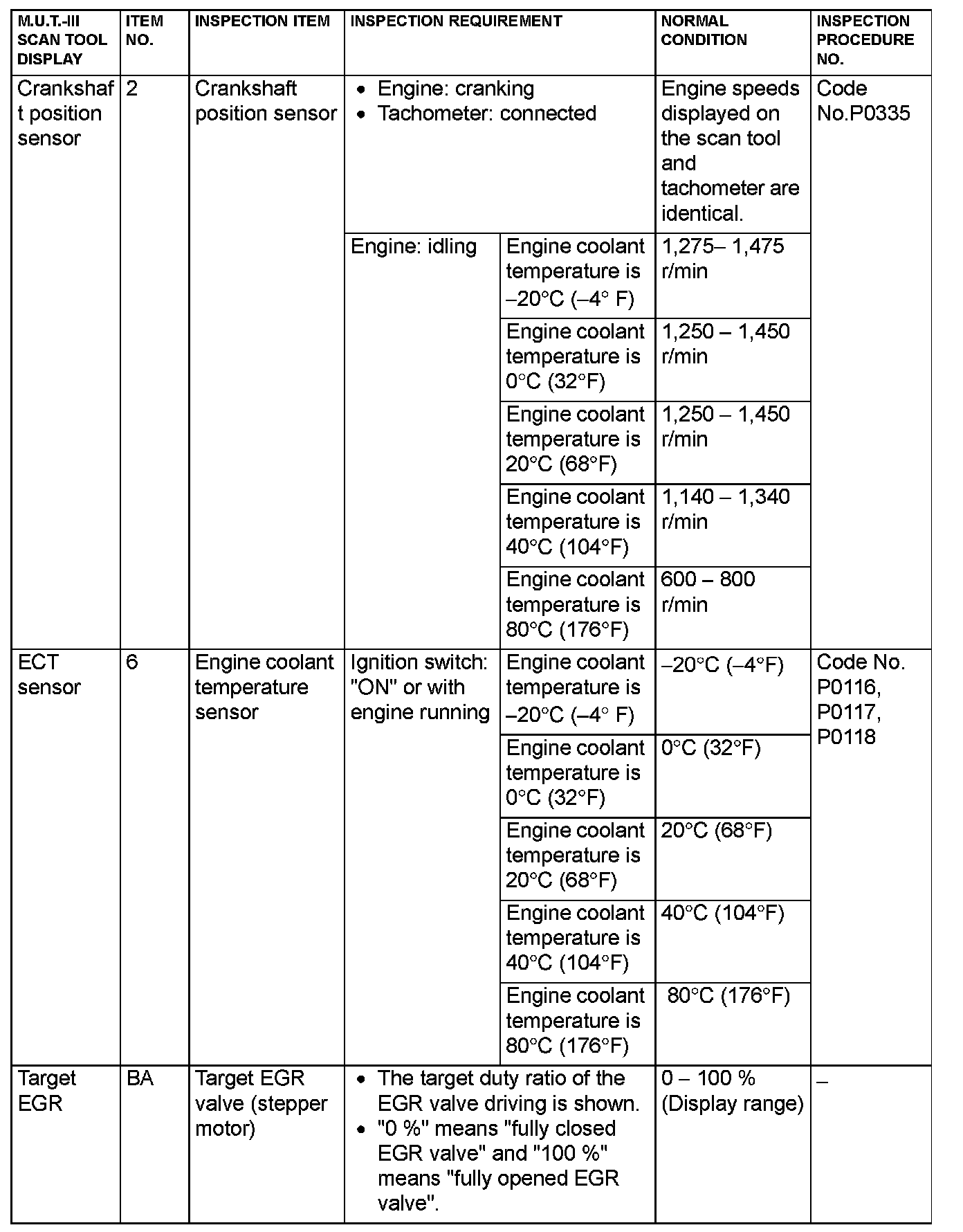

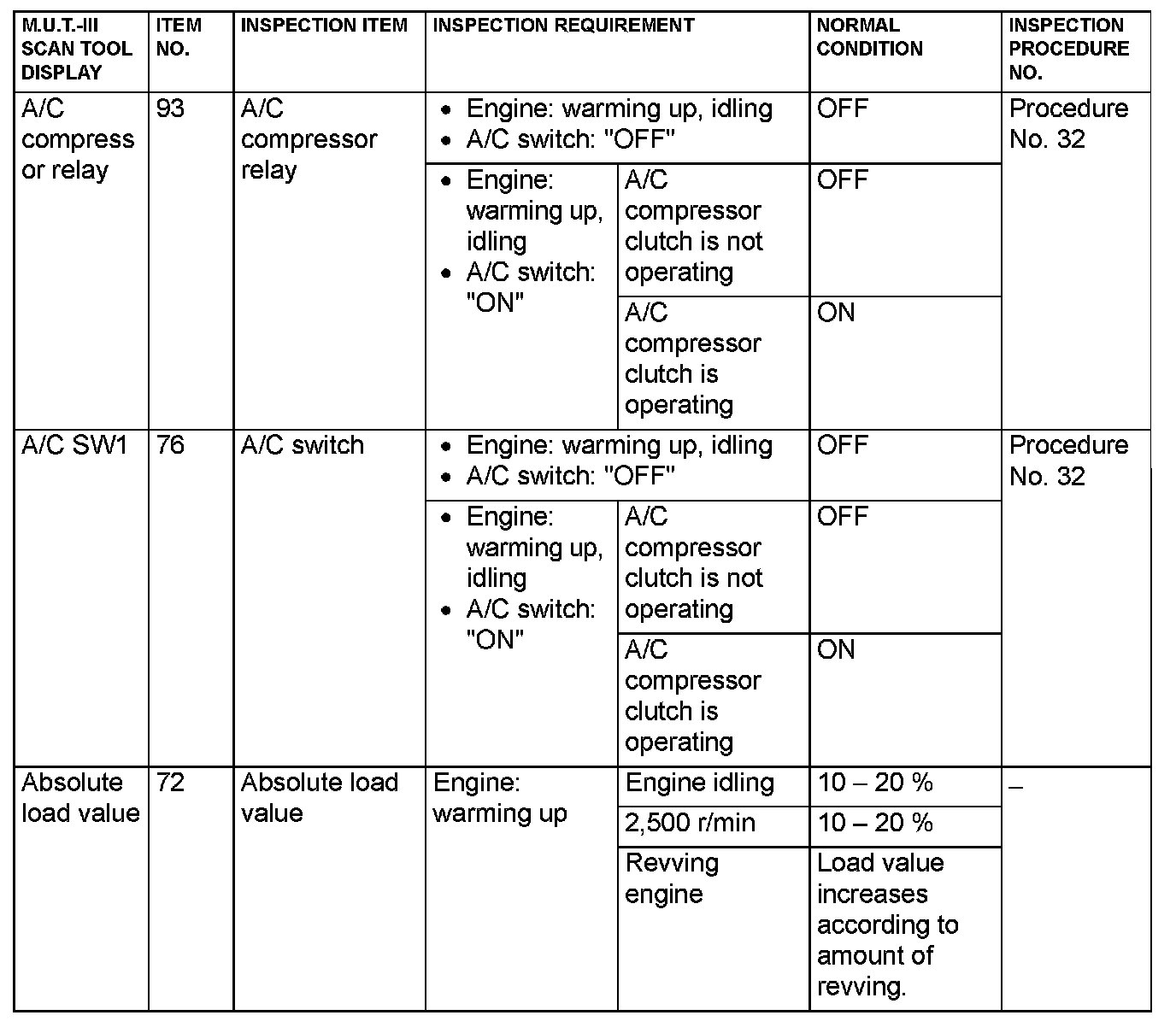

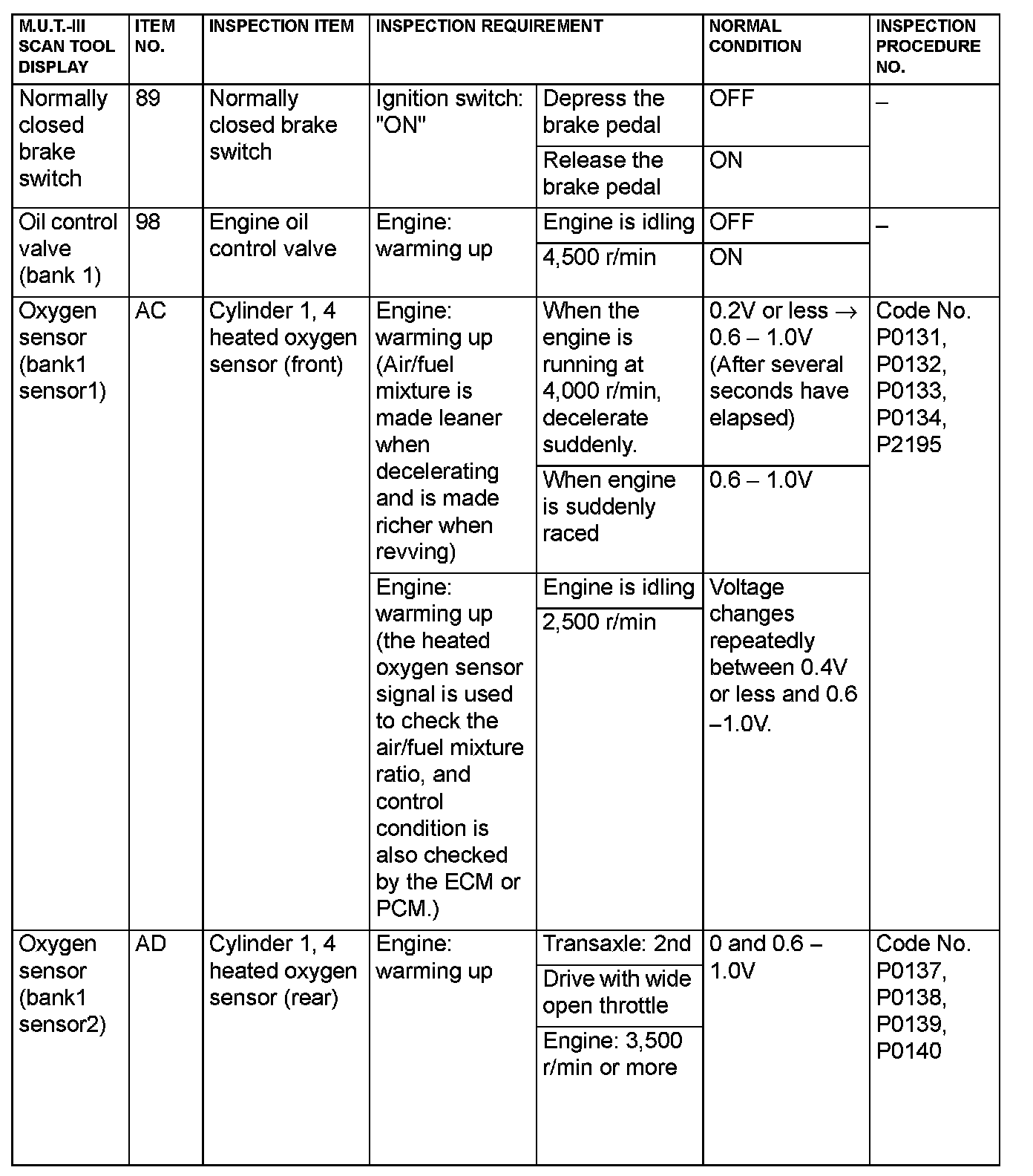

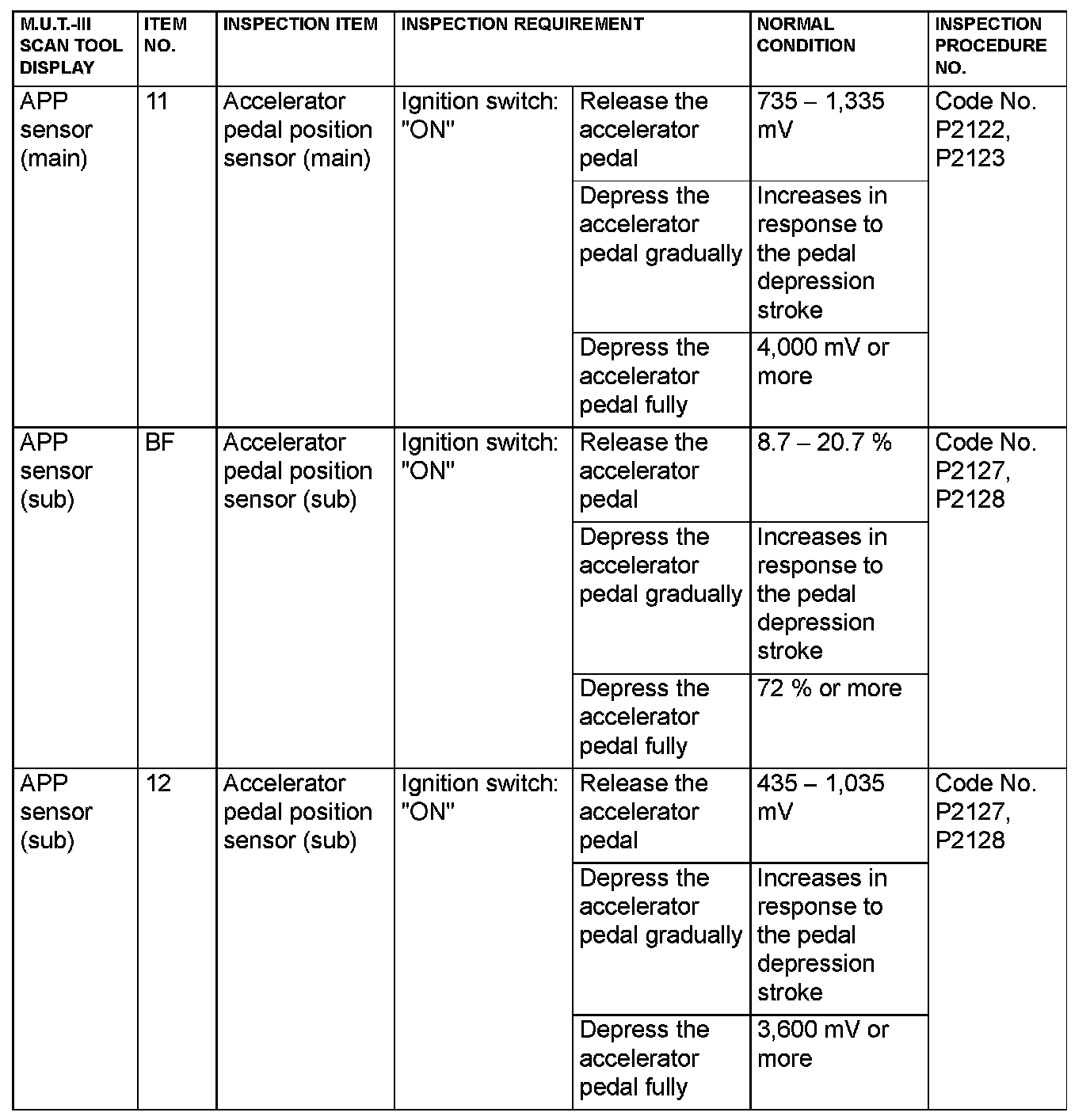

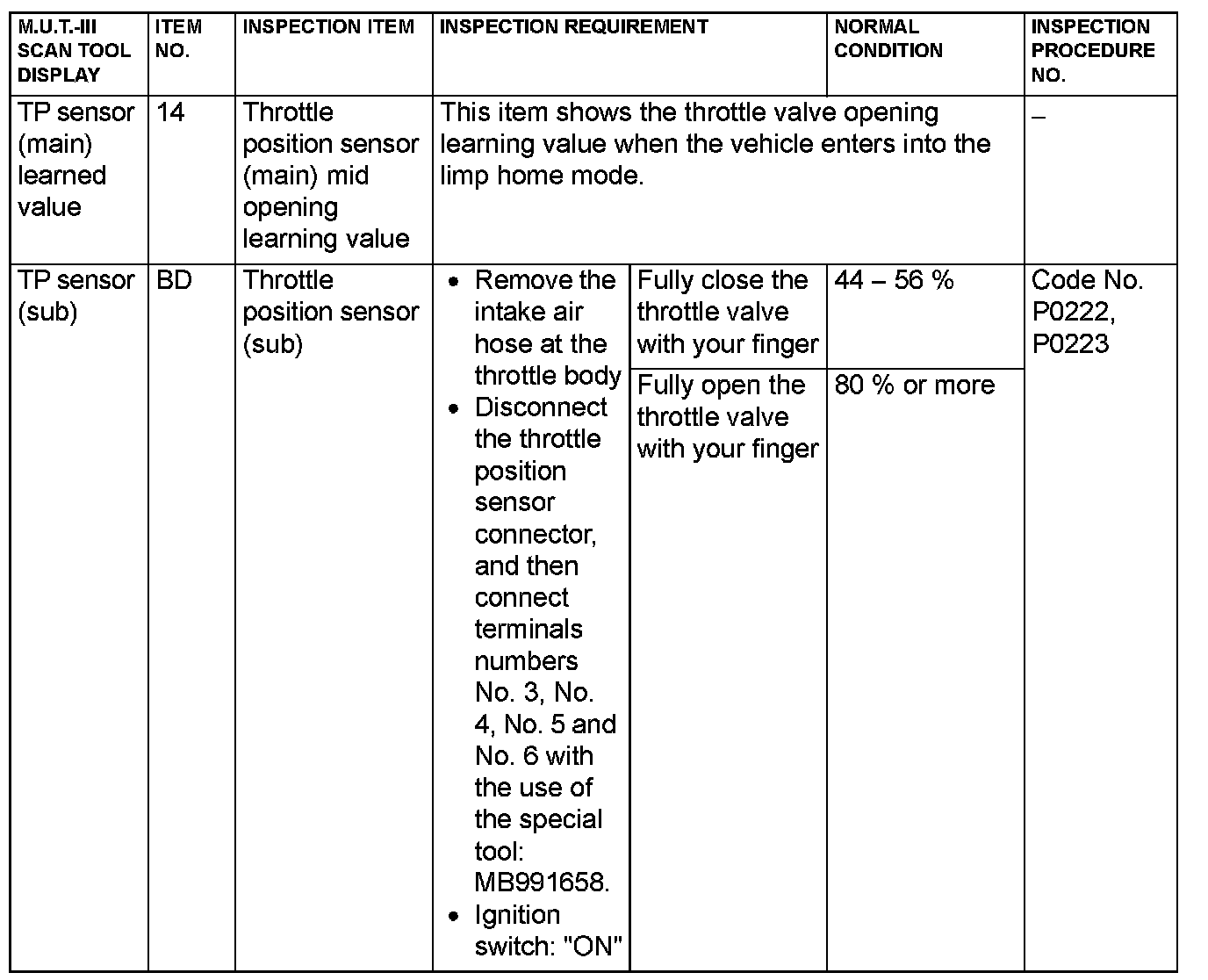

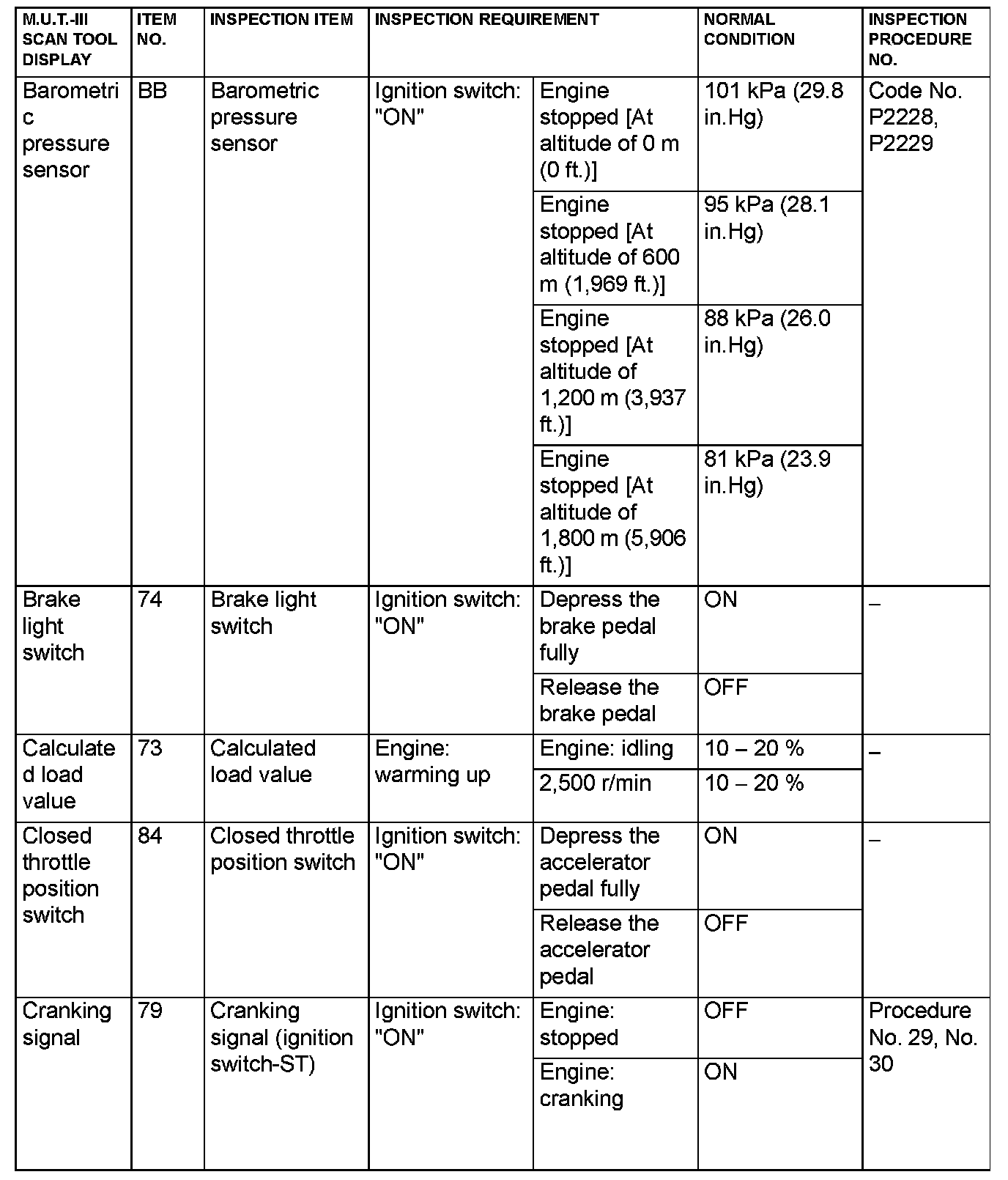

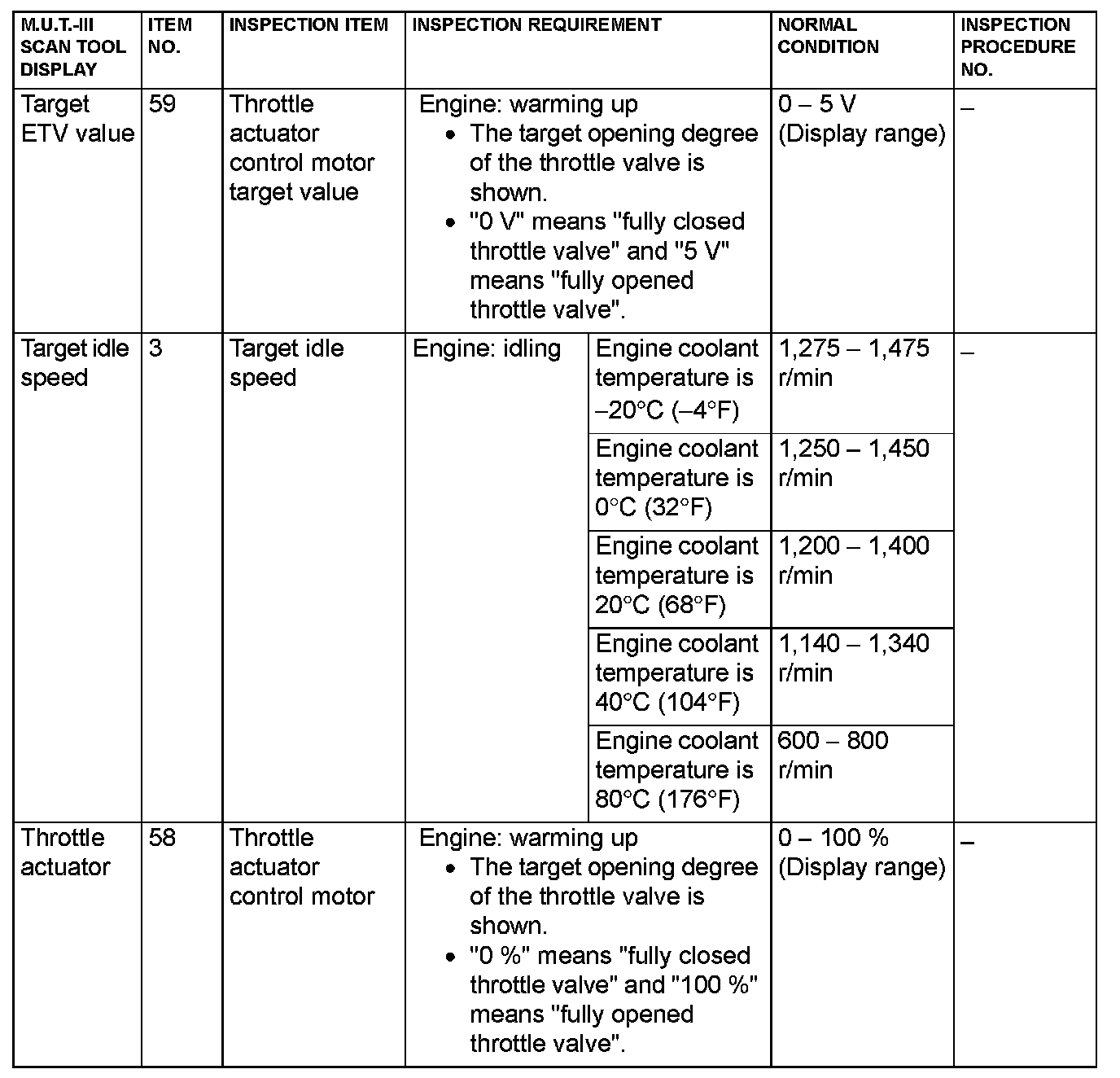

Data List Reference Table (Part 1):

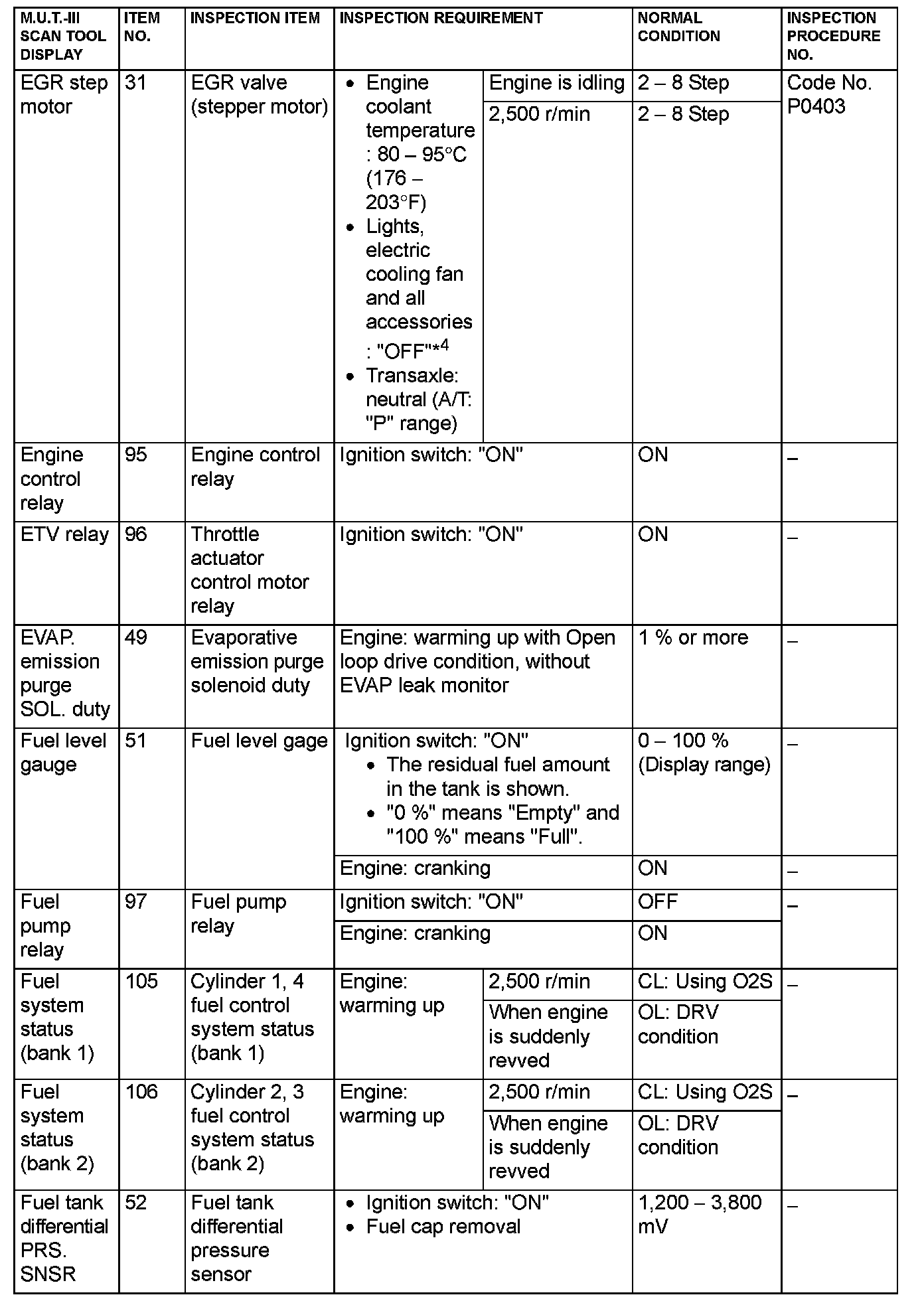

Data List Reference Table (Part 2):

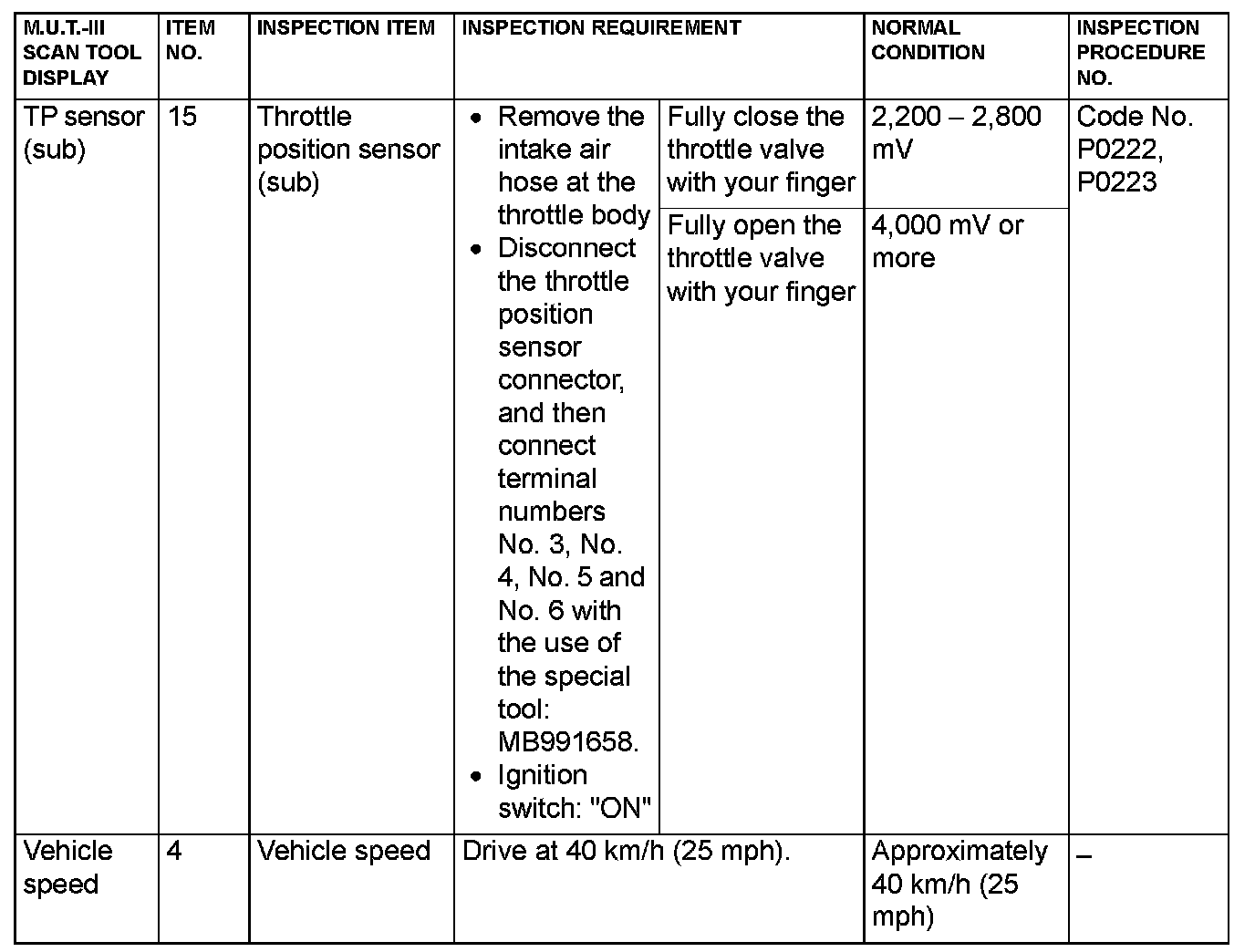

Data List Reference Table (Part 3):

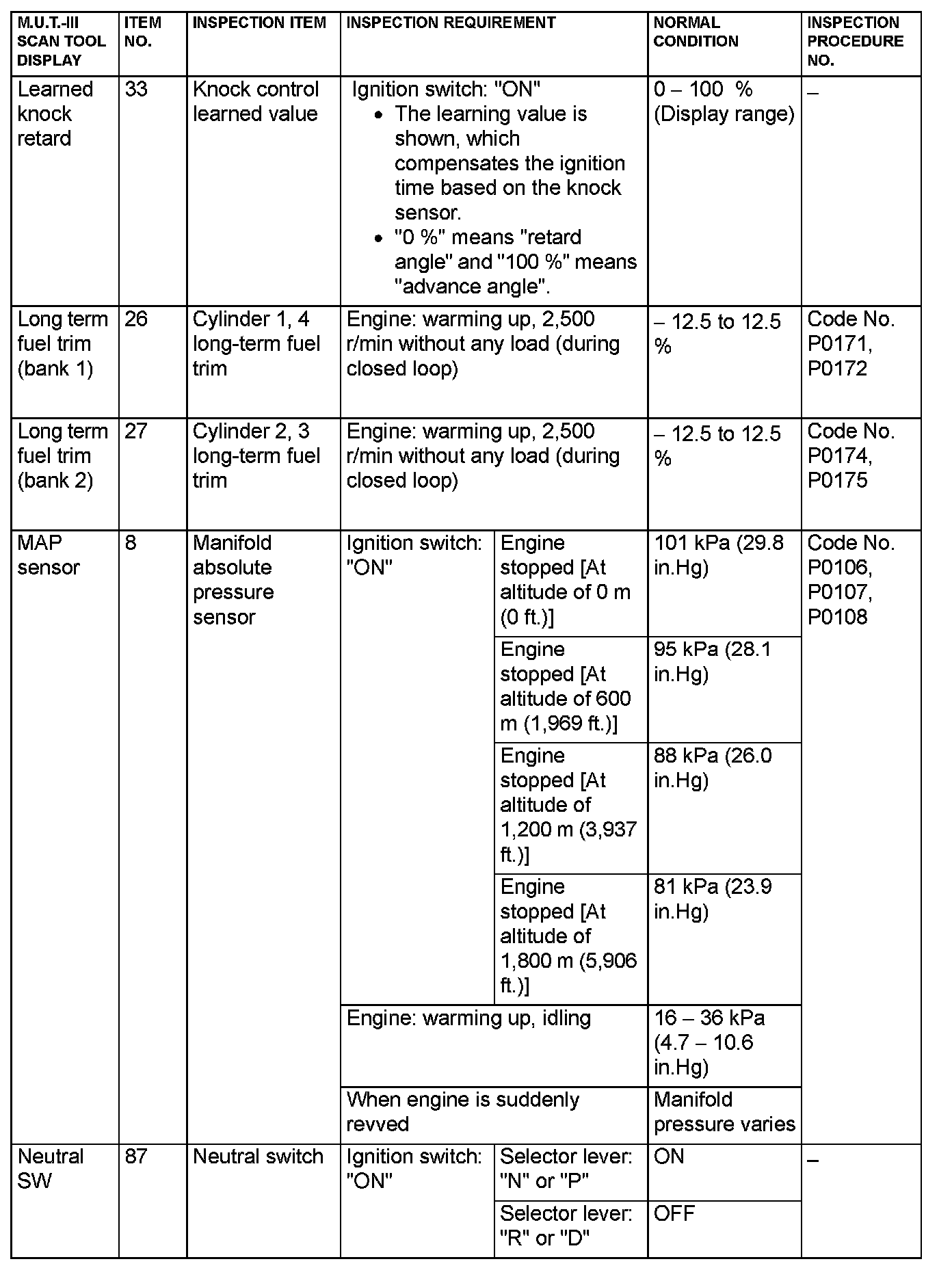

Data List Reference Table (Part 4):

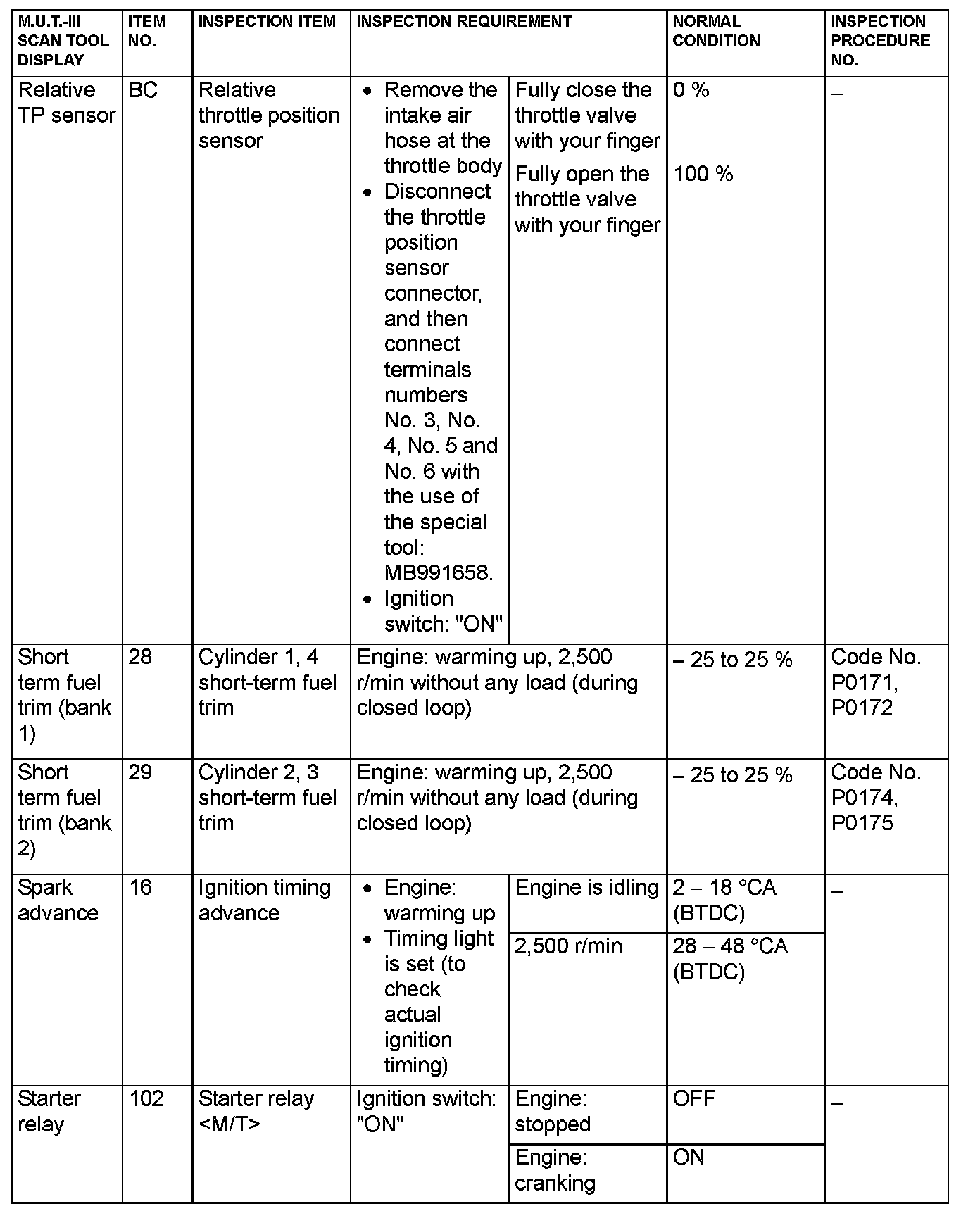

Data List Reference Table (Part 5):

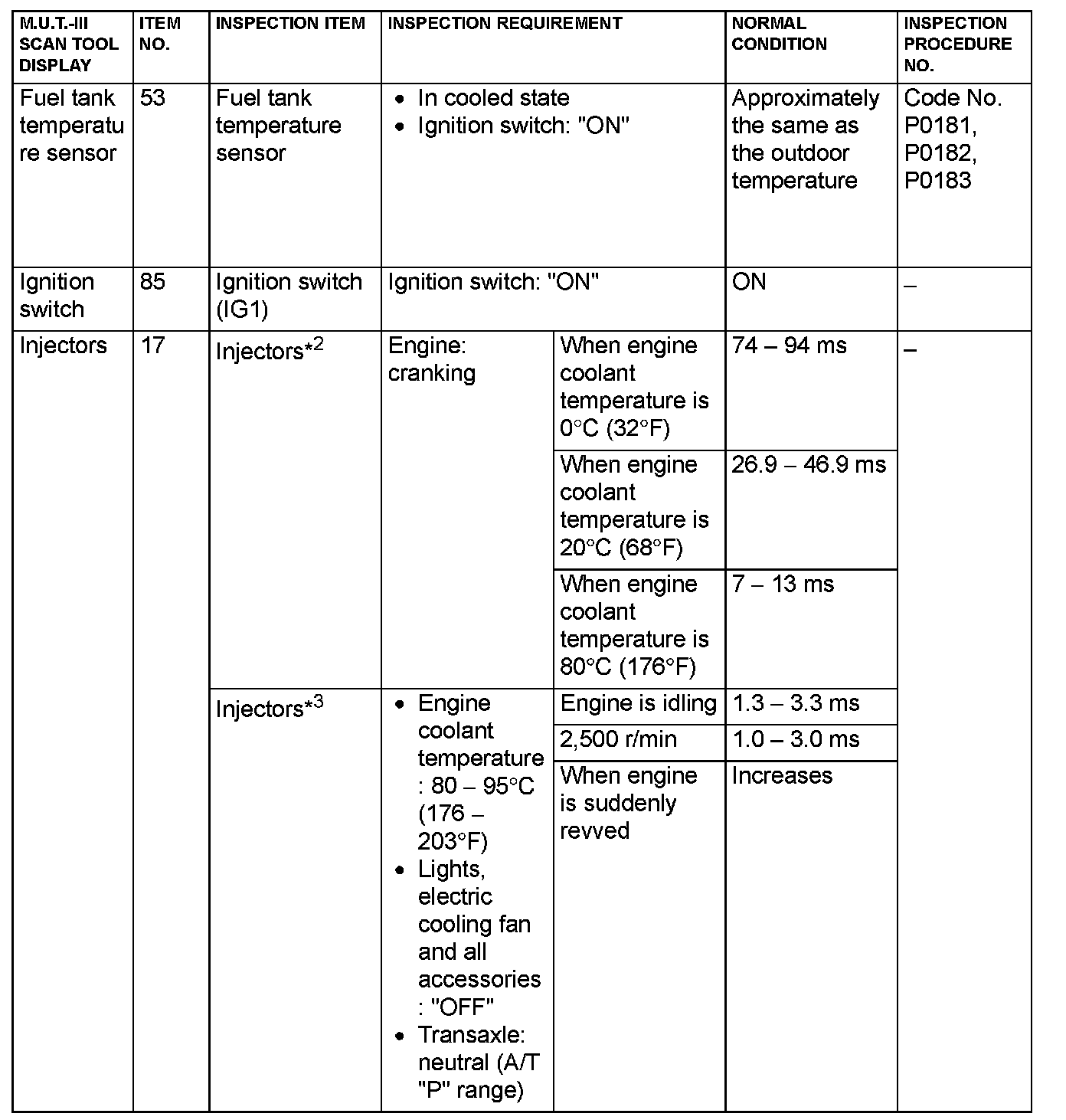

Data List Reference Table (Part 6):

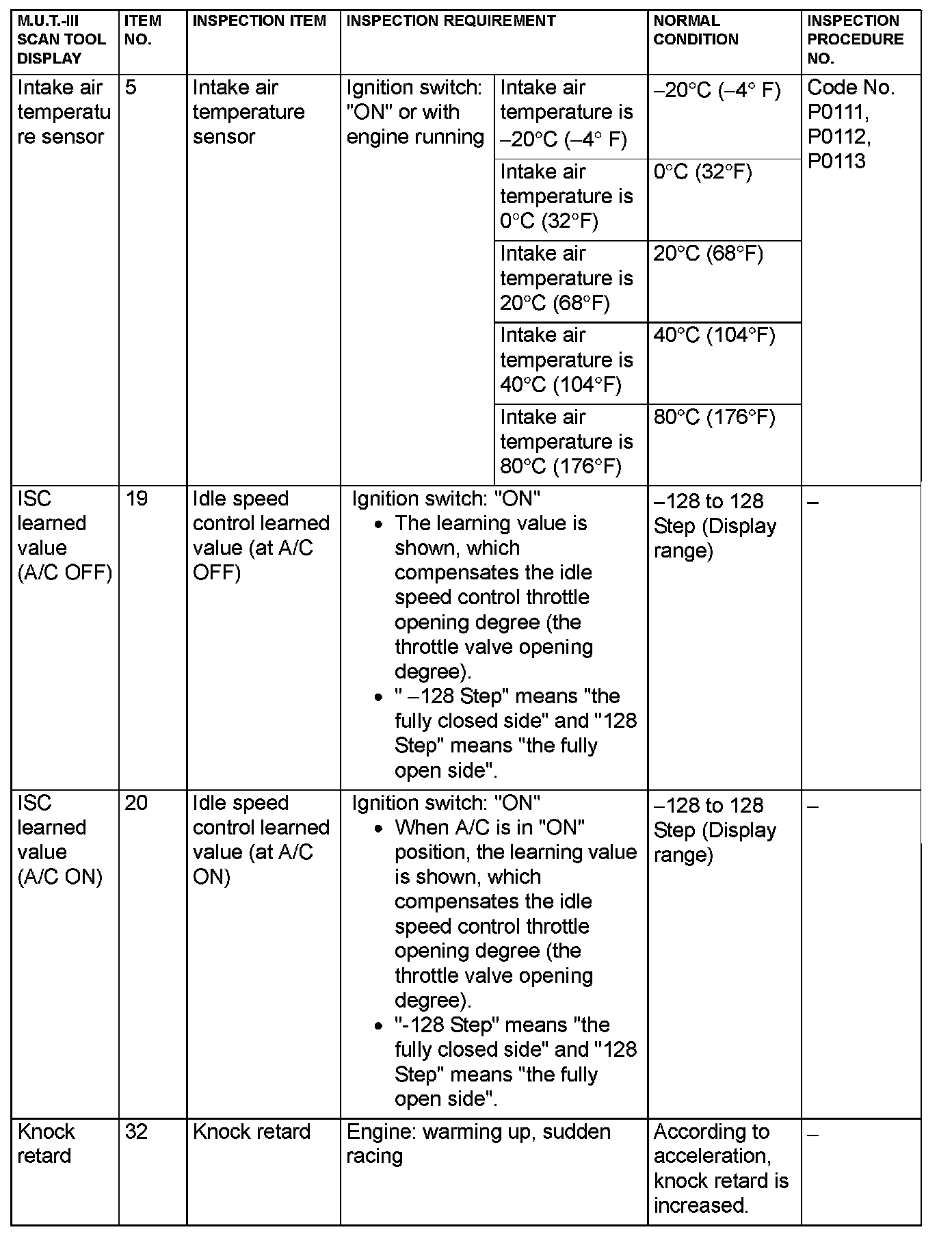

Data List Reference Table (Part 7):

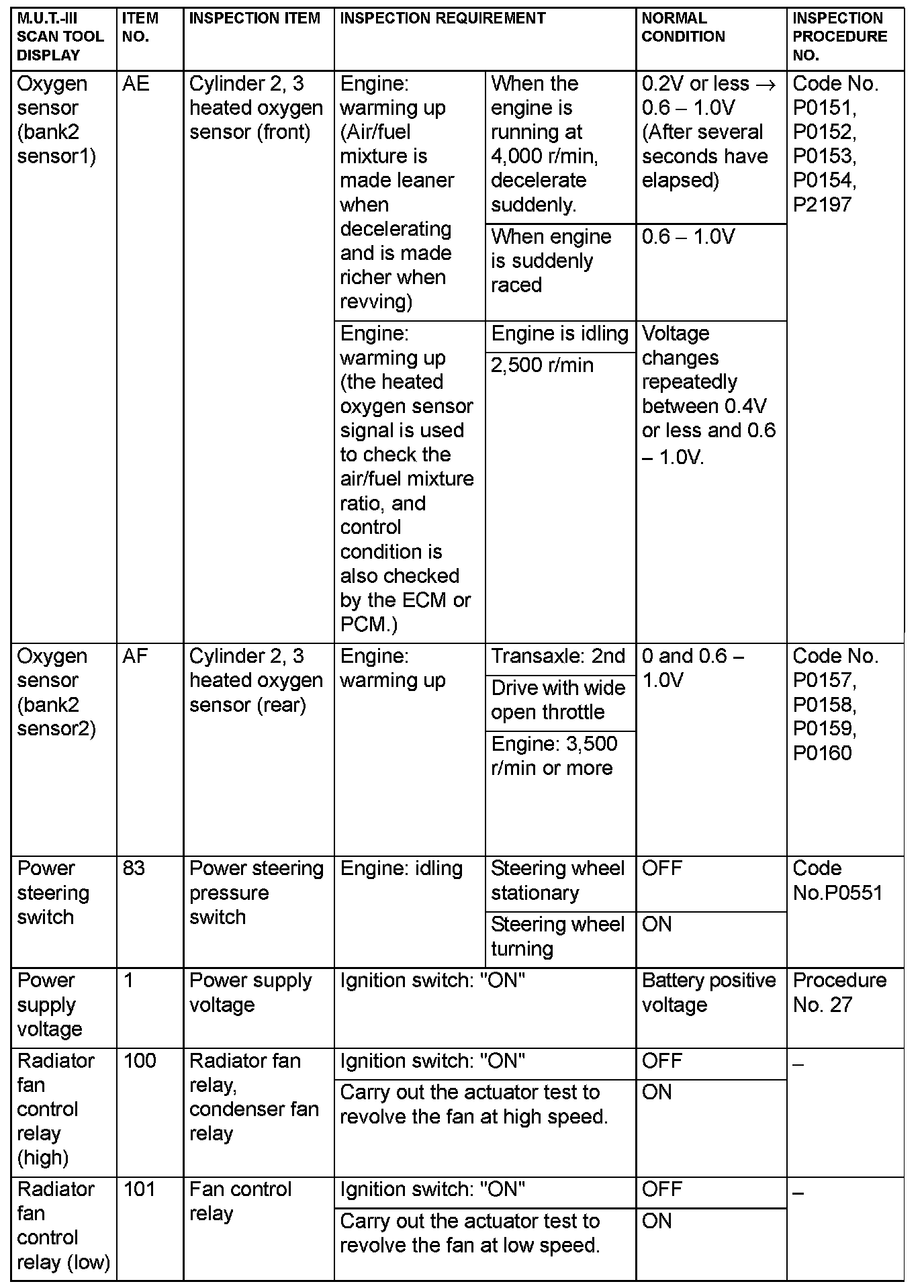

Data List Reference Table (Part 8):
Data List Reference Table (Part 9):
Data List Reference Table (Part 10):
Data List Reference Table (Part 11):
Data List Reference Table (Part 12):
Data List Reference Table (Part 13):
