EGR Valve: Service and Repair

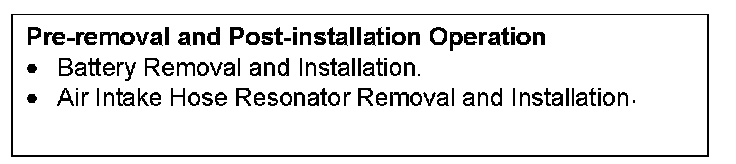

REMOVAL AND INSTALLATION [2.4L ENGINE]Pre-removal And Post-installation Operation:

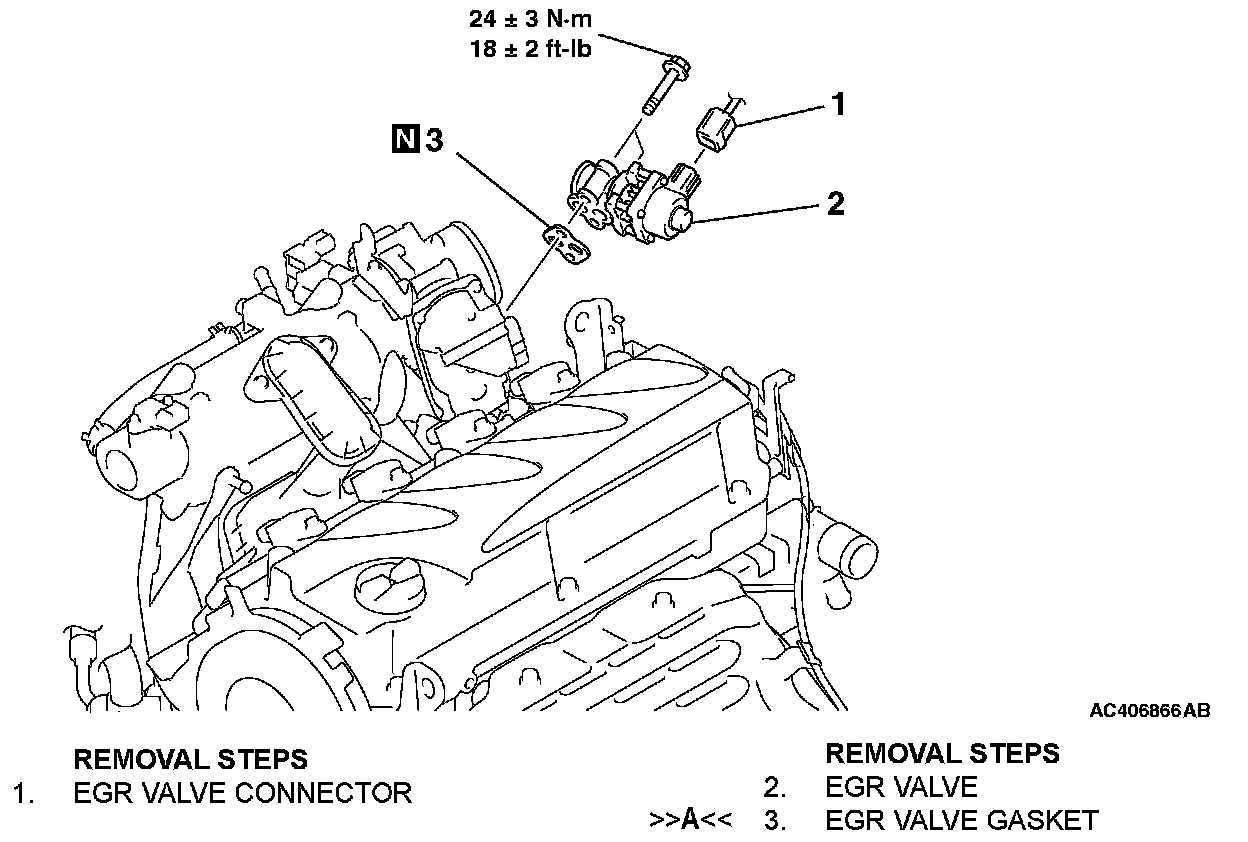

Removal Steps 1-3:

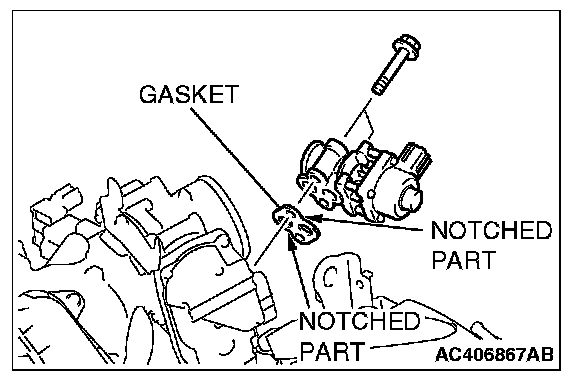

INSTALLATION SERVICE POINT]]A[[ EGR VALVE GASKET INSTALLATIONInstall the EGR valve gasket as shown in the illustration.
